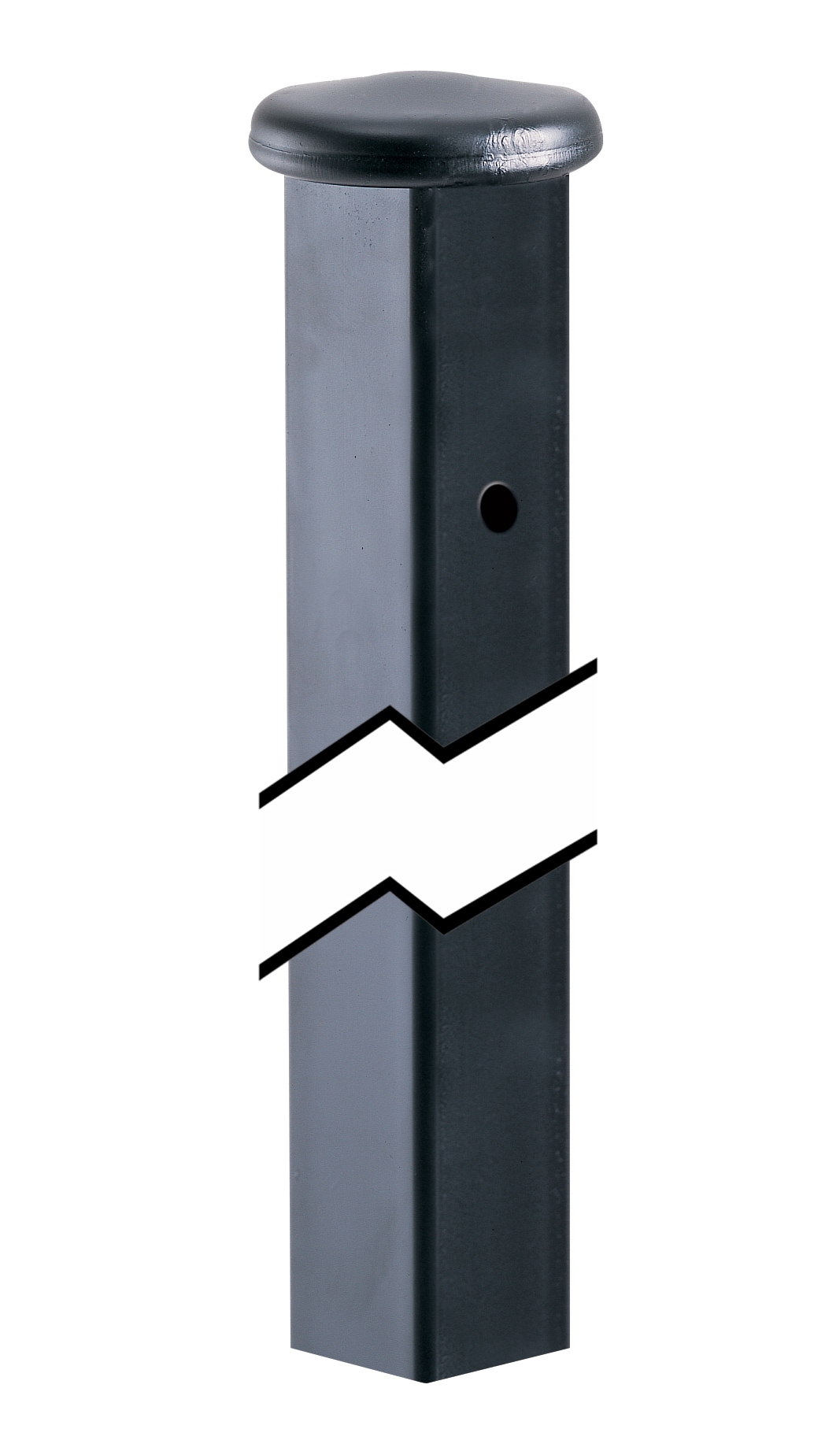

Steel Patterson 48 inch newel post to be used in conjunction with Patterson and Hampton steel railing. Post includes welded round cap. Post is pre-drilled to receive Bolt-Thru fitting brackets for connection of railing panel to post. Post to be trimmed at time of installation to fit proper height in conjunction with railing height requirements. Post inserts into post flange for surface mount application onto flat surface. Can be used as line, end or corner post within the railing configuration. Surface mount post flange and Bolt-Thru fitting brackets purchased separately.
Patterson 48-in newel post for use with 36-in installed height Patterson steel railing or 36-in installed height Hampton steel railing
48-in post to be trimmed to proper height at time of installation using fine tooth hacksaw blade or metal cutting chop saw blade
Installed in conjunction with 36-in Patterson or Hampton railing, flange, and Bolt-Thru fitting set; all components sold separately
Coated with black, baked-on finish, only available in black finish, touch up required for cuts, scratches and scrapes
1-1/4-in x 1-1/4-in square 16-guage post
To be used as line, corner or end post; additional holes may be drilled as required
Post installed at bottom for stair angled application may need to be trimmed at different length than horizontal railing application
Intended for installation on ground; not intended for installation more than 30-in above grade
Check local building codes, compliance with building codes is the installer's responsibility
