The Square D by Schneider Electric Homeline Outdoor Cover Generator and QOM2 Frame Size Main Breaker Interlock Kit is used to direct generator power to any circuit within your home. Outdoor unit. Meets UL and ANSI safety requirements. For use on "S2" and "S3" Series NEMA 3R QOM2 load centers. Interlocks a QOM2 2 Pole main circuit breaker of a load center (150-225 A) with a Homeline 2 Pole (15-125 A) branch circuit breaker.
For Square D Homeline main breaker outdoor 150A-225A panels
Choose where to direct generator power to any circuit in the home

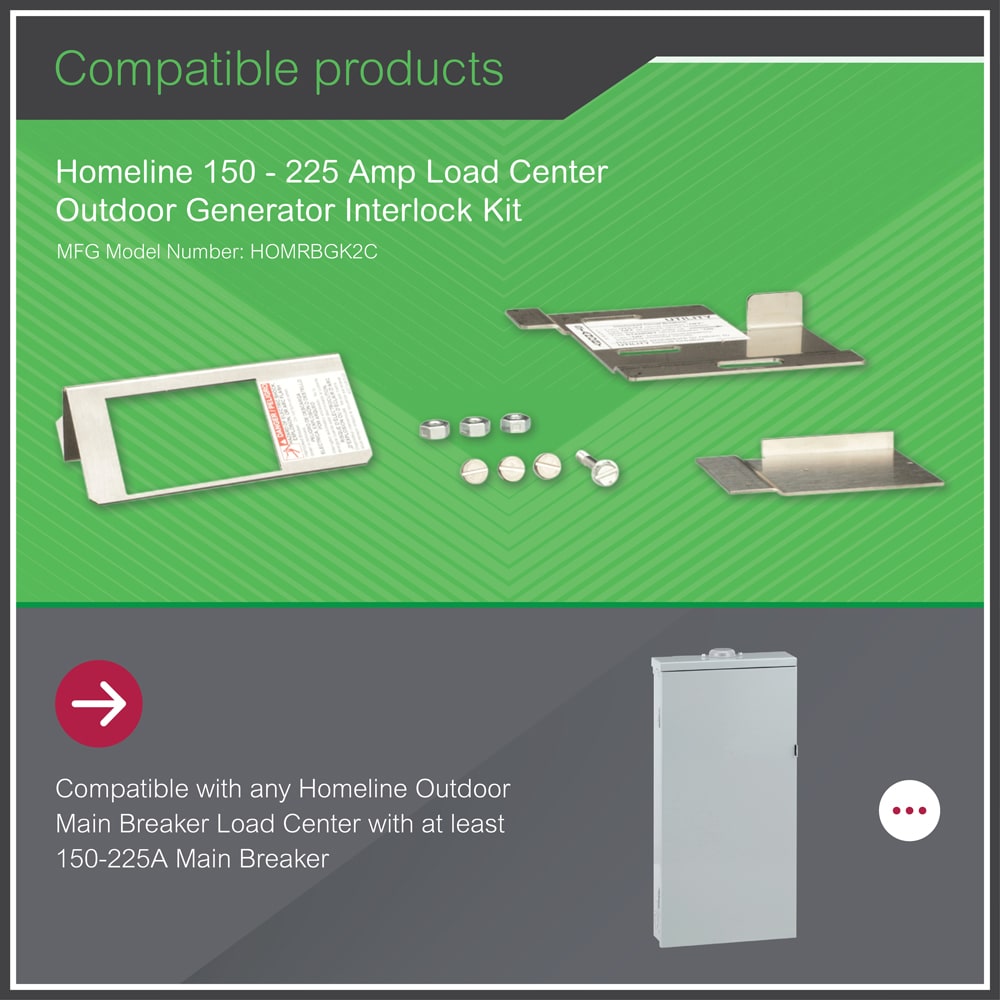

Includes interlock bracket, retaining bracket, and hardware
Use to interlock the QOM2 main breaker with a double-pole breaker back fed from a generator
Helps eliminate the need for a separate generator panel
Avoid the inconveniences that an unexpected power outage can cause

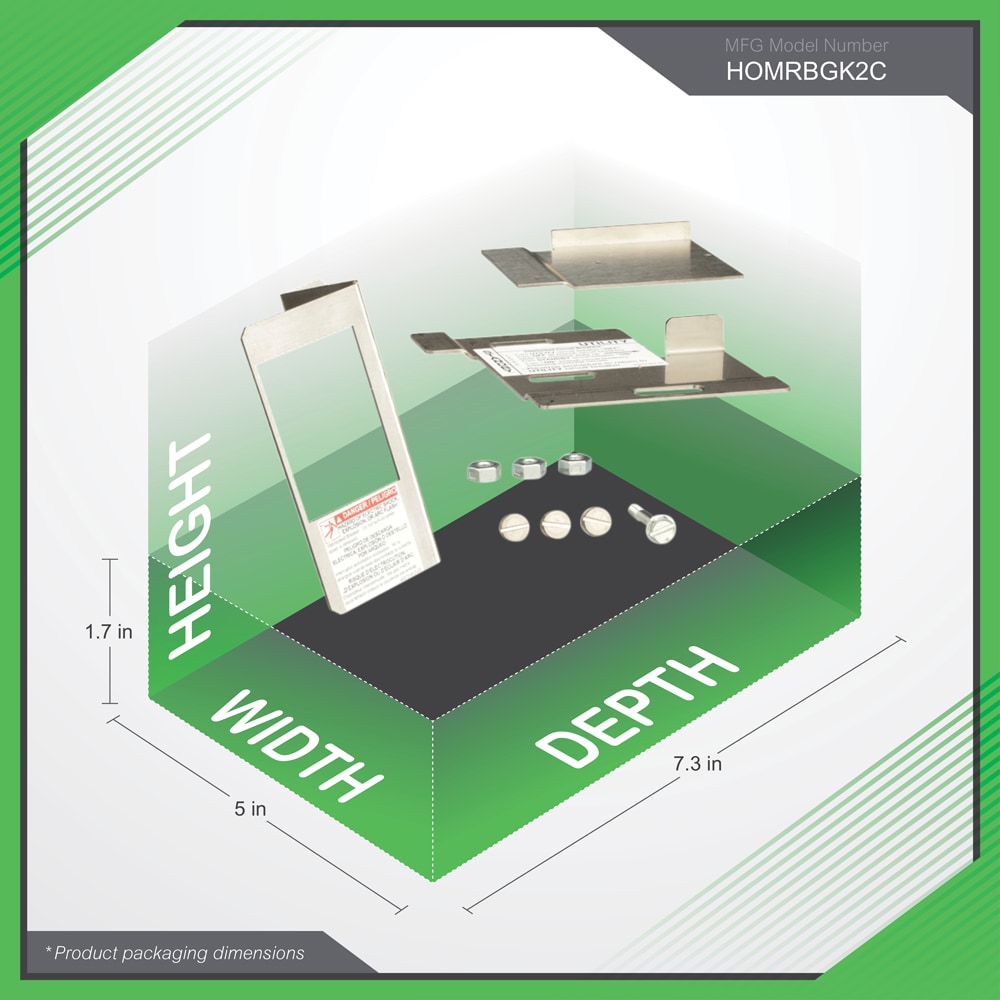

Includes an interlock bracket, a retaining bracket, a 1-hole drilling template, 3 hex nuts, three 10-32 shoulder screws and an interior mounting screw
Wiring diagram and interlock translation labels also provided
