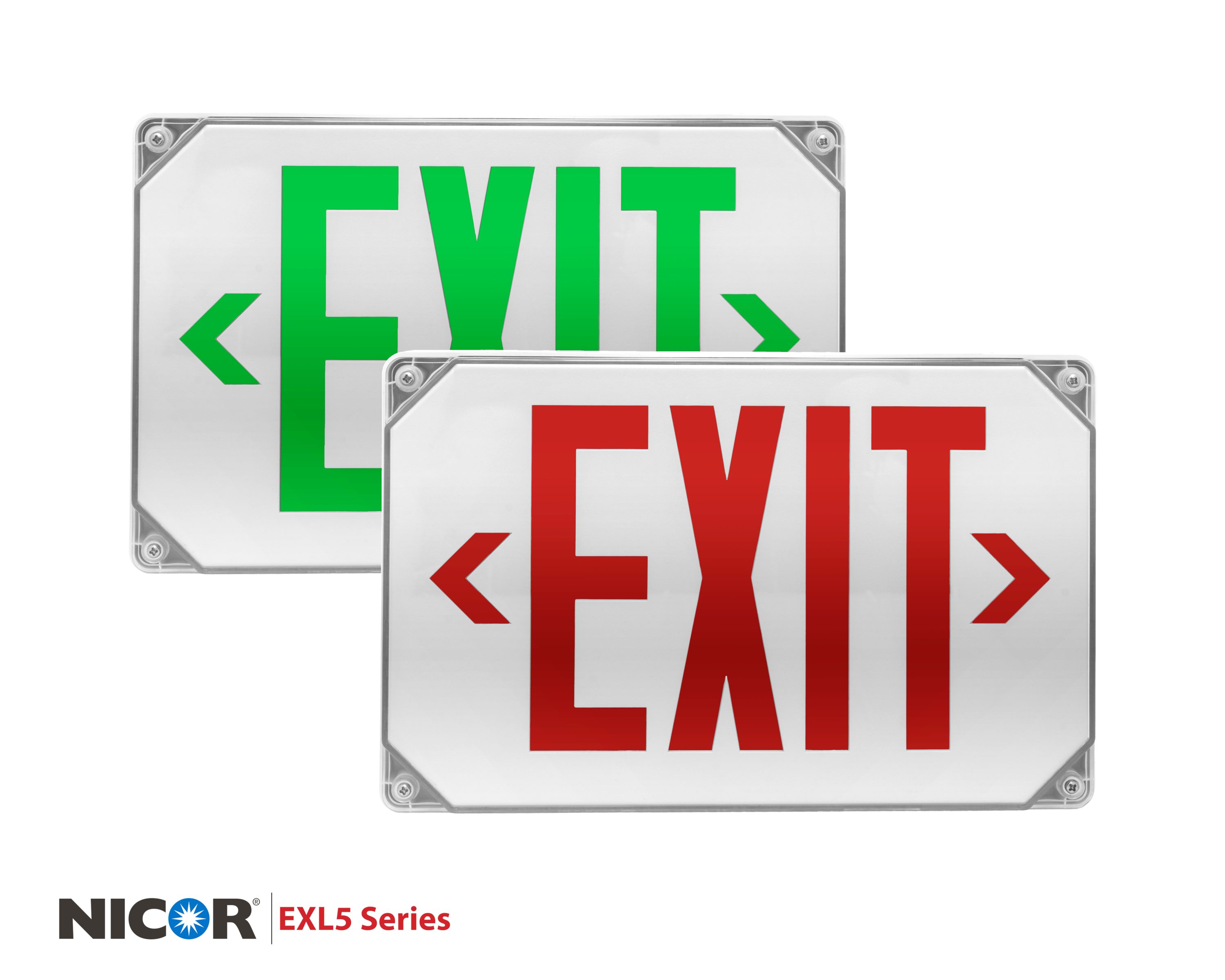

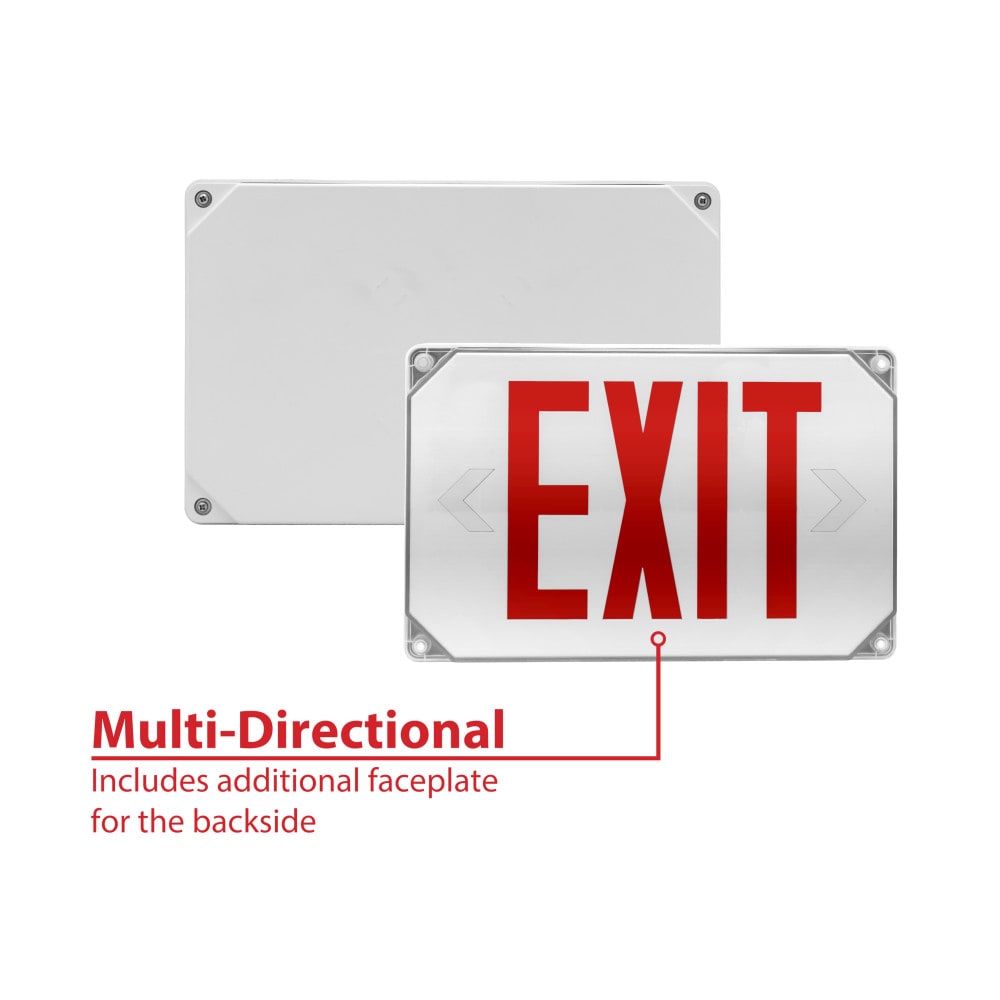

The NICOR EXL5 Series Outdoor LED Exit Sign is code compliant for Outdoor, Wet Location, and Battery Backup requirements. It features a durable corrosion-resistant polycarbonate shield to ensure a wet-location rating. It’s constructed using a new injection-molded ABS thermoplastic housing that’s flammability (UL-94-V-0) rated. The EXL5 includes a Nickel-Cadmium battery to provide 90-minute emergency run-time that kicks on if the power goes out. The EXL5 uses less than 3.6-Watts of electricity and can be installed in both 120-Volt and 277-Volt applications. The low-profile design keeps the fixture lightweight and easy to install. It can be surface mounted to a wall or ceiling using the included mounting bracket with EZ quick-connect. The EXL5 includes an additional faceplate for the backside (if required) and removable chevron arrows. The EXL5 is Wet-Location rated and protected by NICOR’s 1-Year Limited Warranty.
Suitable for Outdoor and Wet-Location settings

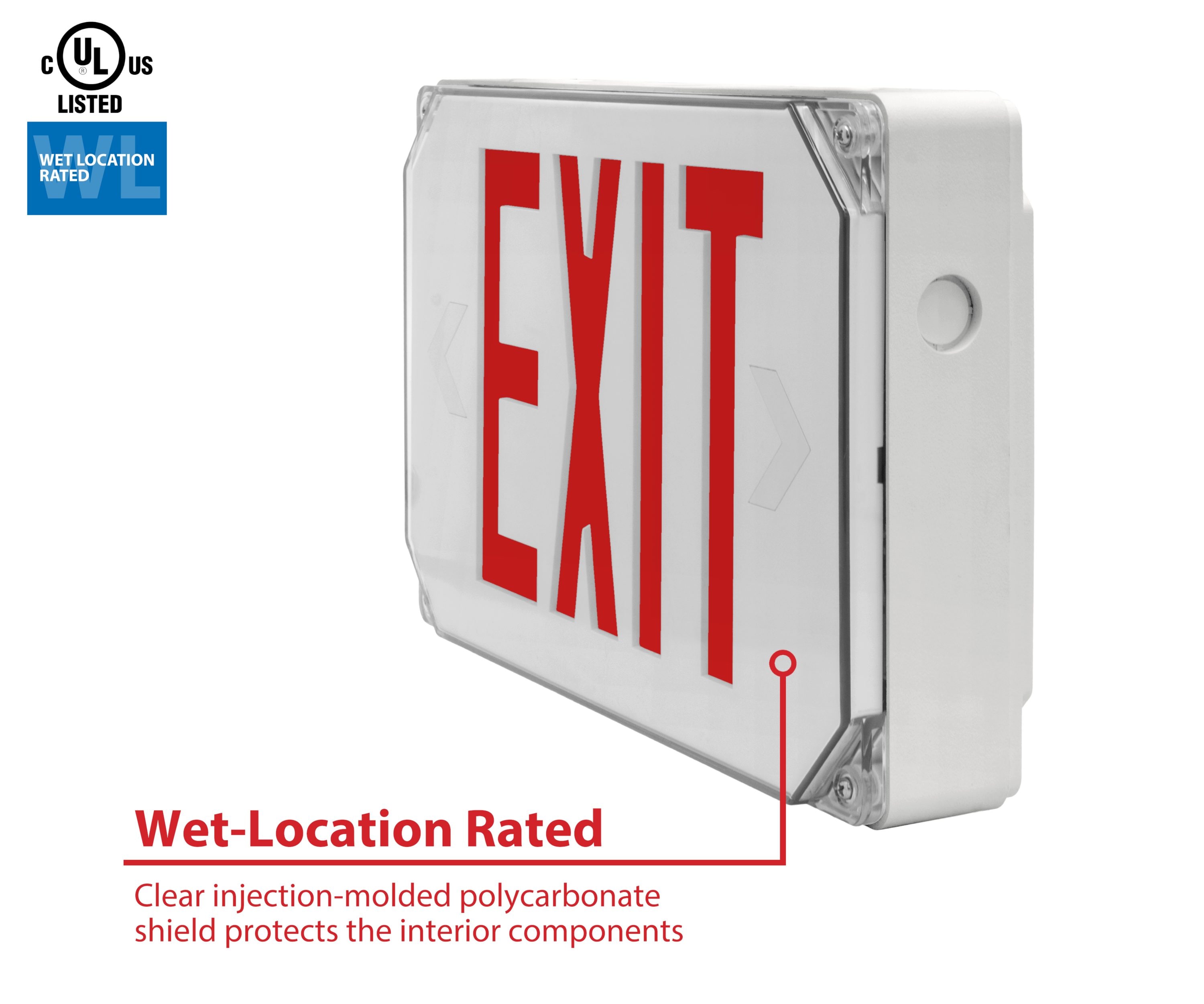

Sealed Polycarbonate shield protects internal components
90-minute emergency battery backup (UL 924 compliant)
1.2-Volt maintenance-free Nickel-Cadmium 500mAh battery
Injection molded thermoplastic ABS housing (UL94-V-0 rated)
Dual-Voltage for residential and commercial applications (120/277V)

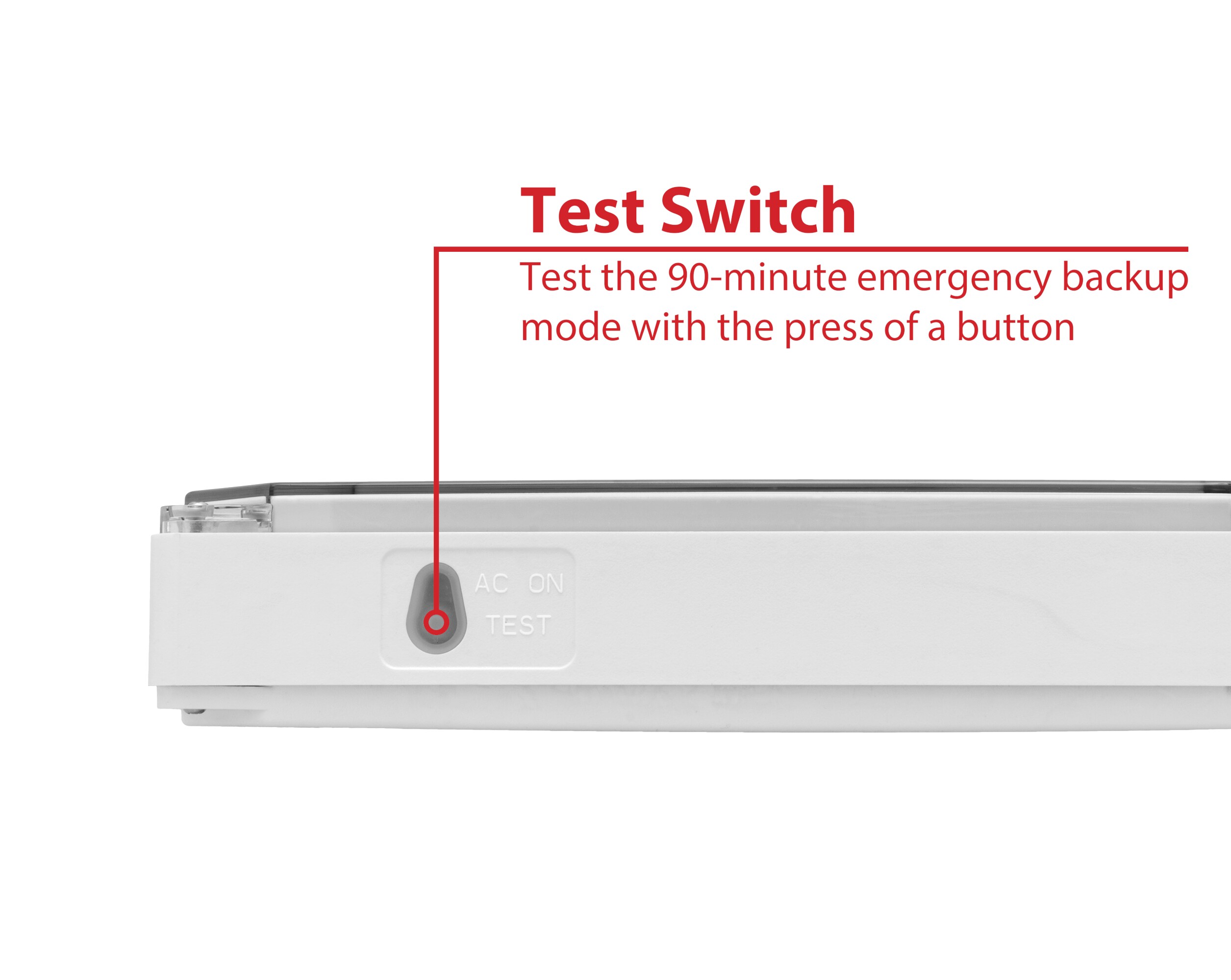

Features a Push-To-Test button with indicator light
Includes universal mounting plate for ceiling or wall mount installation
Mounting Hardware and installation instructions included
