This 4-inch small-aperture Air-Tight IC New Construction Housing provides accent and task lighting for new construction applications and is ideal for those who have easy access above the ceiling. Use with a variety of trims and finishes to create different lighting effects or match any decor. Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage. The lamp housing compartment can be adjusted to fit ceiling thicknesses from 1/2-inch to 1-1/4-inch. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. An aluminum enclosure box ensures proper heat dissipation, allowing this fixture to be used in contact with insulation. It features a universal J-box with snap-out sides and provided with push in connectors to make wiring quick and easy. Bar hangers have a maximum span of 24-inch and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. Pre-installed framing nails on the bar hangers make installation quick and efficient. Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings. The integrated temperature sensor prevents lamp overheating, allowing this fixture to be used with a range of lamp shapes and wattages. It is UL and CUL listed for damp locations and IC installation. The housing is compatible with a variety of trims and finishes to create different lighting effects or to easily match any decor.
The housing and frame are constructed from die-formed corrosion resistant galvanized steel
Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage, and the lamp housing compartment can be adjusted to fit ceiling thicknesses from 1/2-in to 1-1/4-in

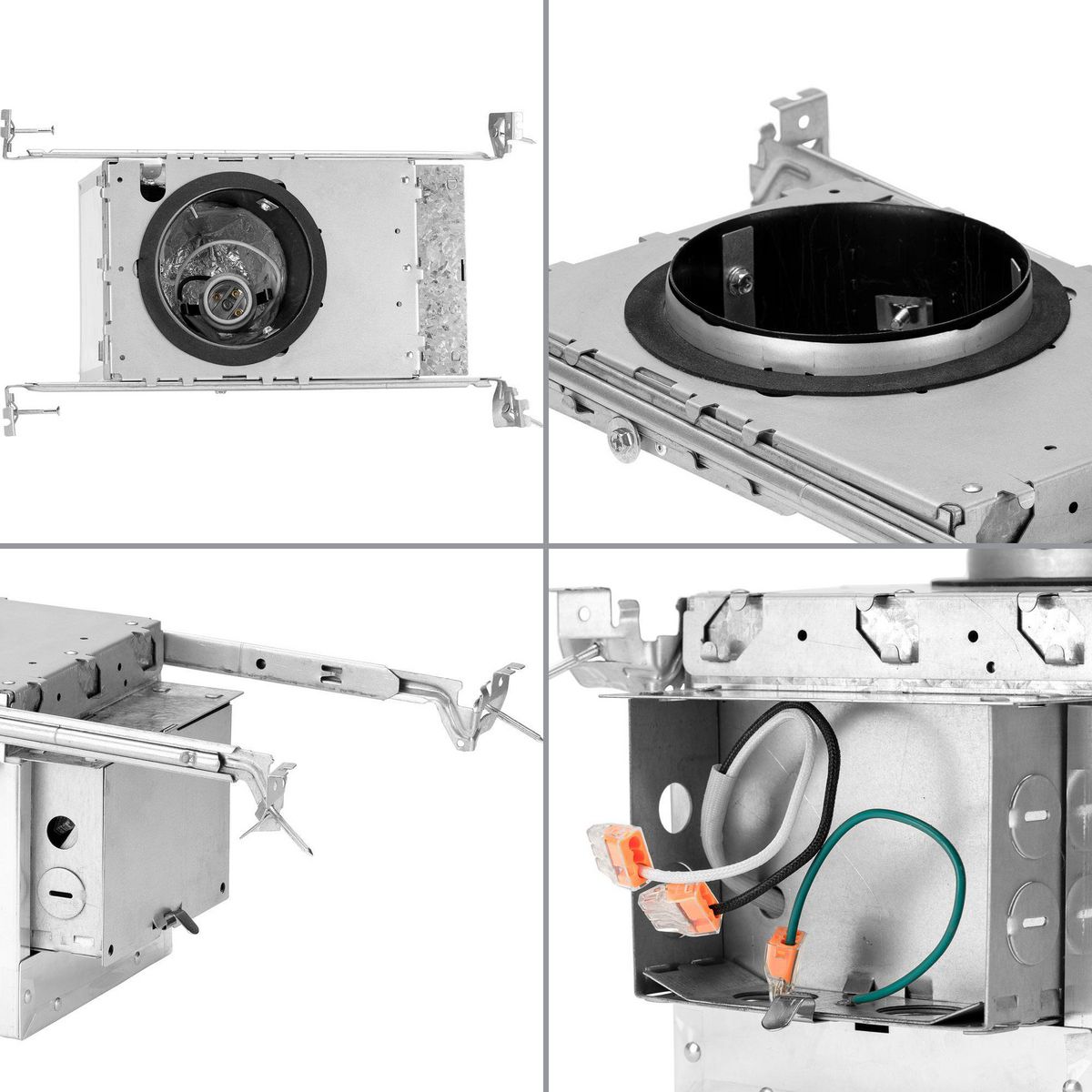

Features a universal J-box with snap-out sides and provided with push in connectors to make wiring quick and easy
Bar hangers have a maximum span of 24-in, scored in two locations for clean breaking, allows for installation in narrow joist spaces, includes pre-installed framing nails on bar hangers and includes t-bar mounting clamps for suspended t-grid ceilings
The integrated temperature sensor prevents lamp overheating, allowing this fixture to be used with a range of lamp shapes and wattages
Measures 5.86-in L x 10.2-in W x 6.3-in H
Housing is provided with a medium base socket for a variety of bulbs - which are based on the trim used

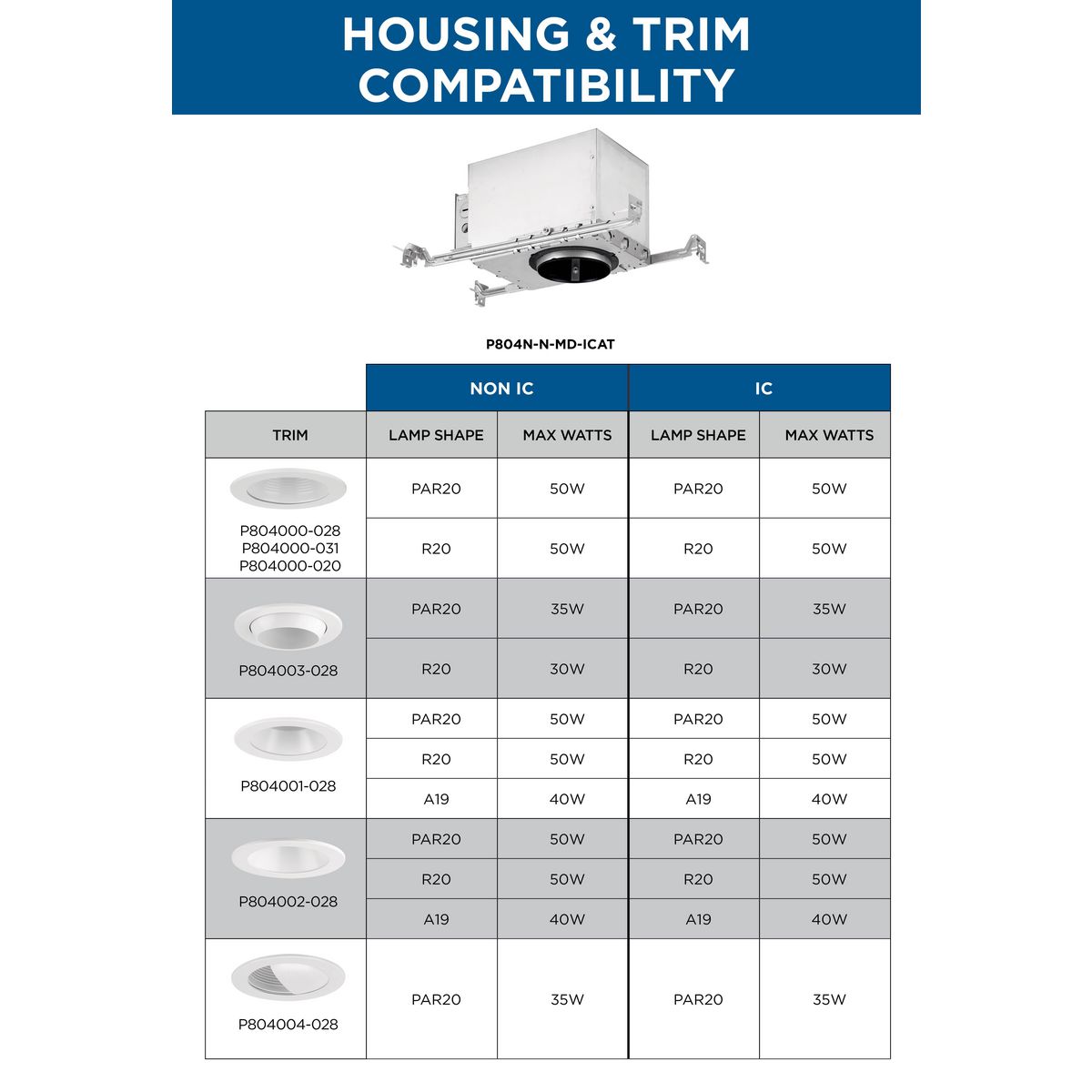

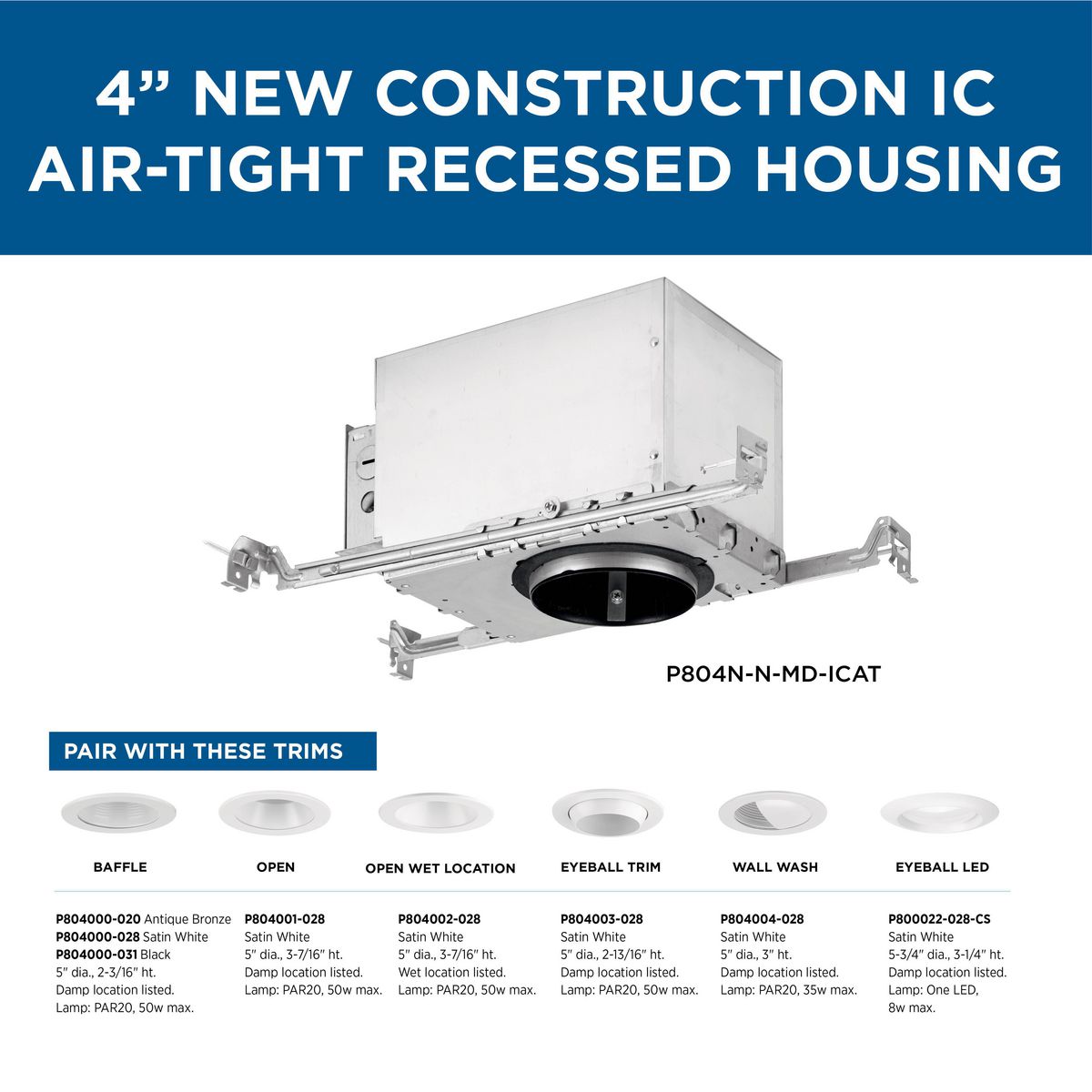

The housing is compatible with a variety of trims and finishes to create different lighting effects or to easily match any decor
cULus damp location rating makes this housing ideal for use in damp locations and IC installations
