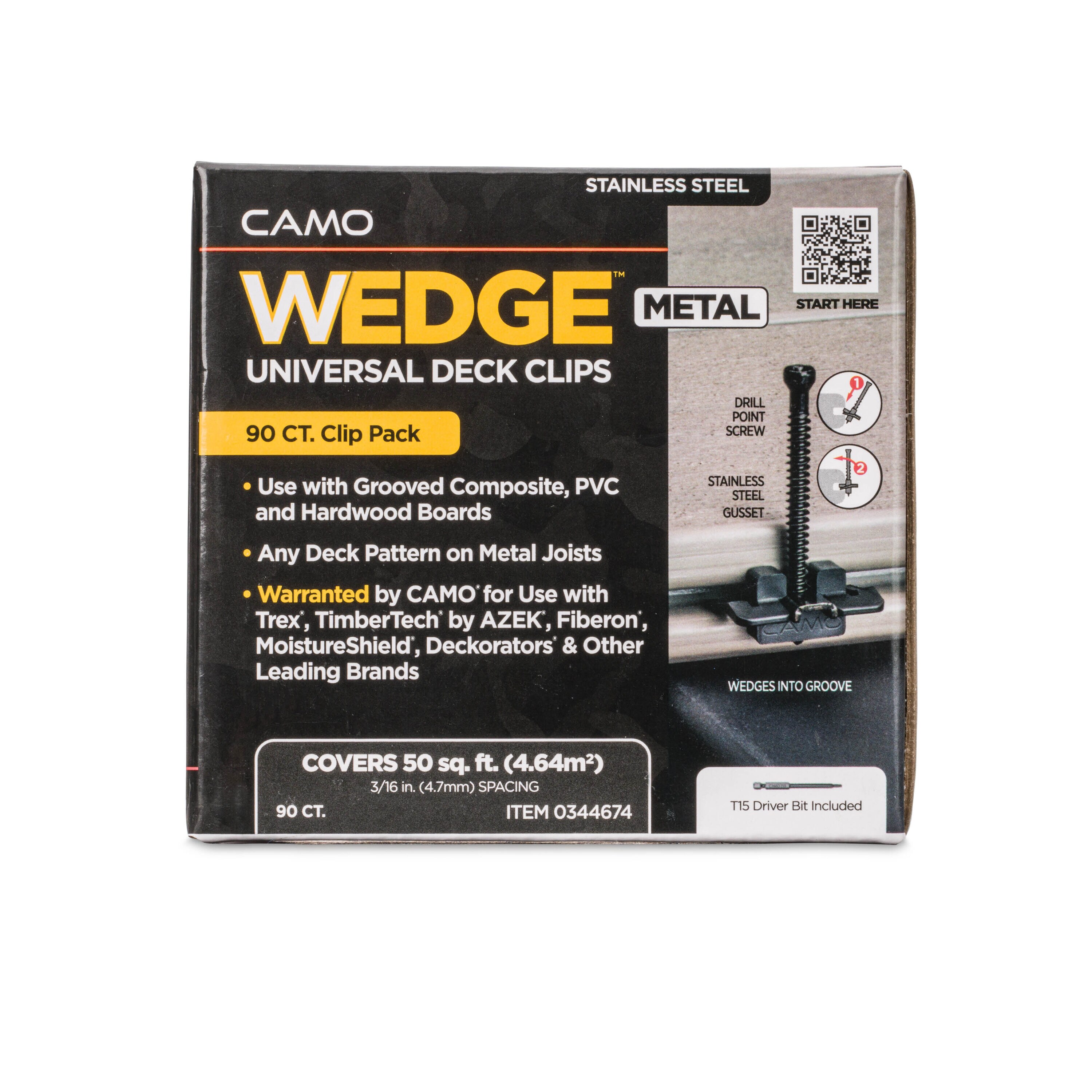

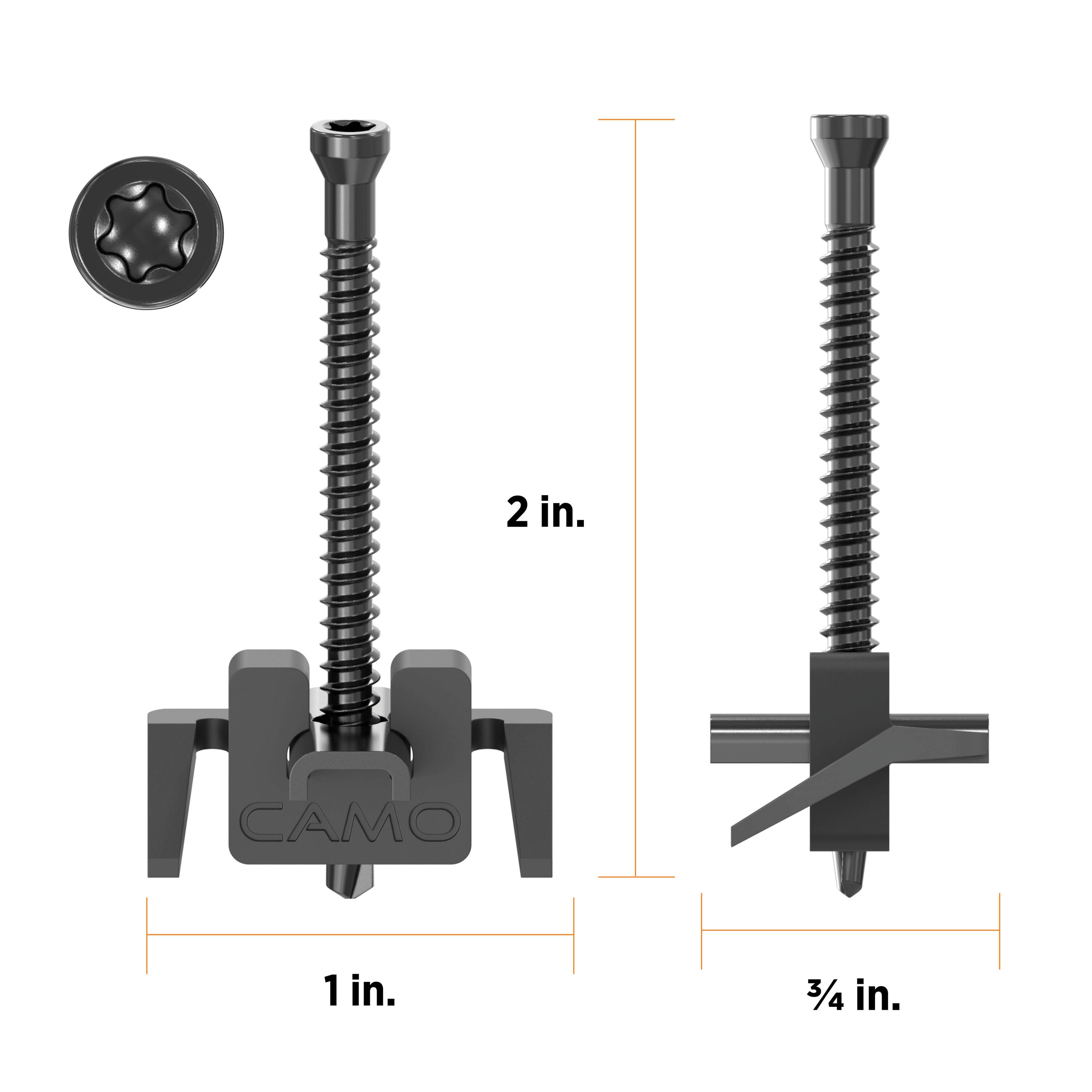

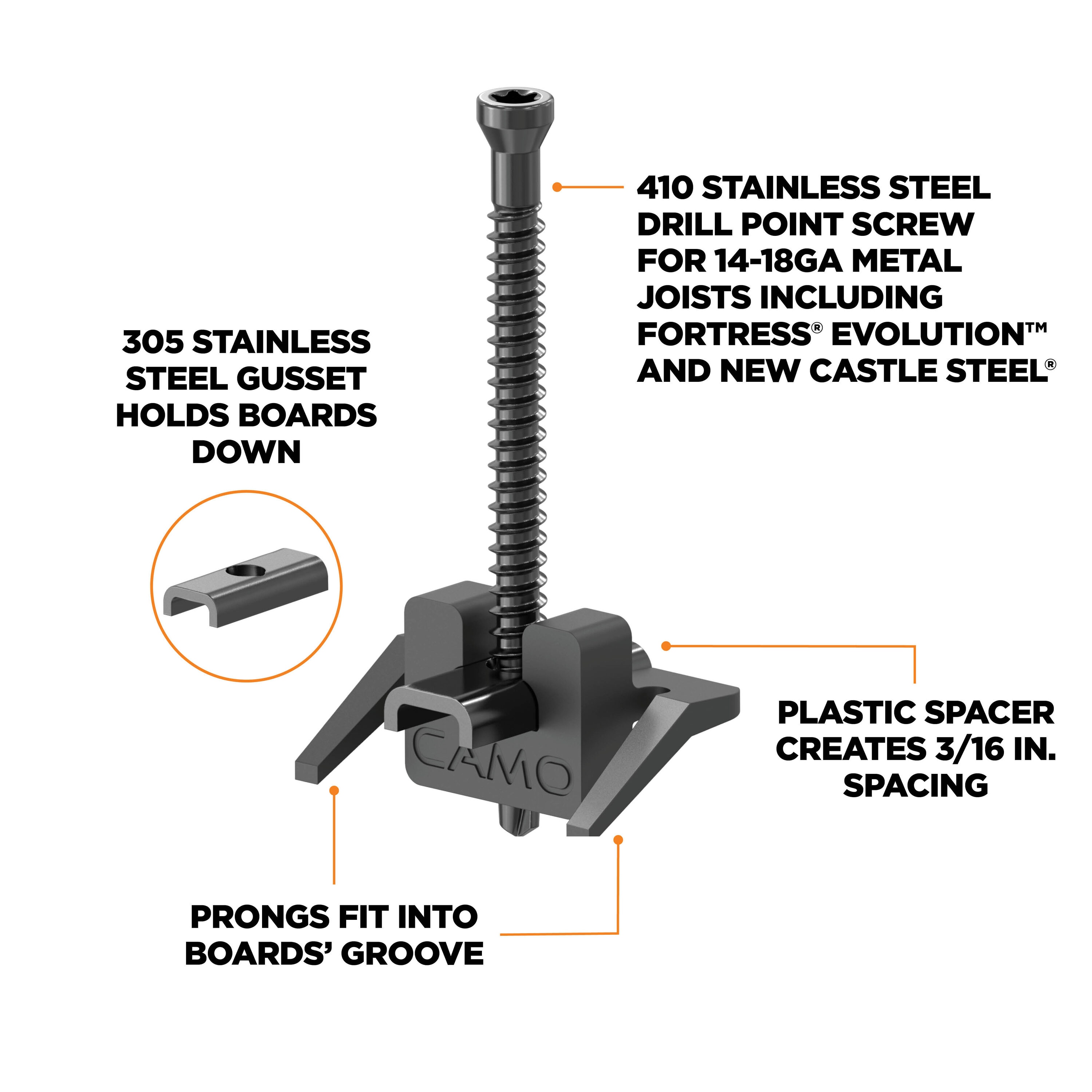

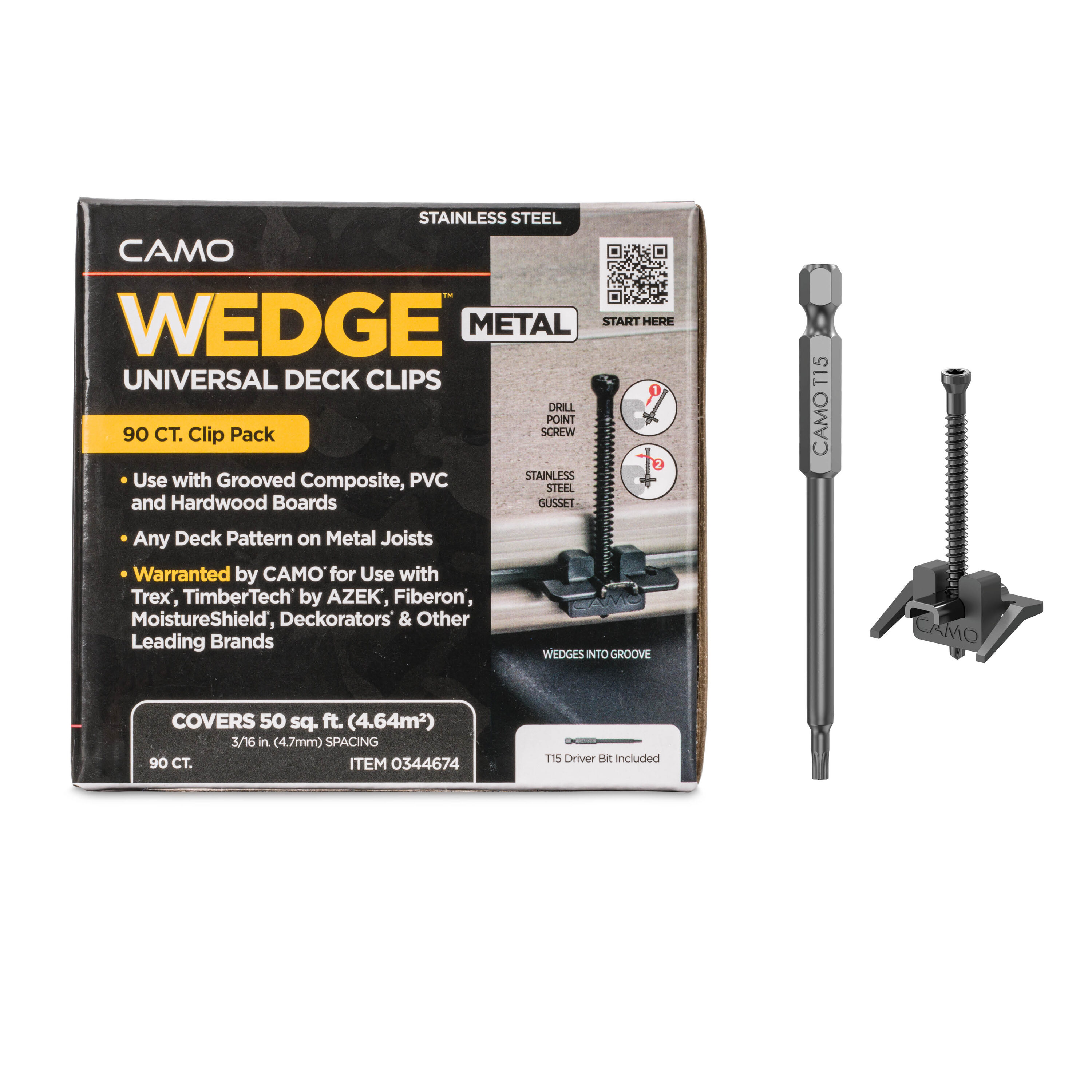

The CAMO Wedgemetal clip is the ultimate deck clip for steel framing. The Wedge clip is approved for use on any deck pattern on 14-18GA metal joists. Installation is flexible and easy. Able to be screwed in 90°, diagonal or herringbone patterns, simply set the clip in the groove of the board until you're ready to fasten. No partial installation required. The 305 stainless steel gusset and 410 stainless steel screw offer superior corrosions resistance and holding power, while the nylon plastic spacer body creates an automatic 3/16 in. spacing between boards, allowing for proper airflow and drainage. The screw's drill point is optimal for metal framing including Fortress EvolutionTM and New Castle Steel. When you're ready to fasten, speed up the job with the NEVER-MISS Guide that helps you easily connect the T-15 bit to the exposed screw head. The T-15 Star Drive on the screw reduces cam-outs, but be sure to use a drill-not an impact driver-during install.
ANY BOARD, ANY ANGLE, ON METAL: install on 14-18GA metal framing in 90-degree, diagonal, or herringbone patterns
EASY INSTALLATION: pre-assembled clips require no partial installation - clips stay in place in the groove until ready to fasten
SELF-DRILLING: Drill point screw augers through material - no predrilling needed

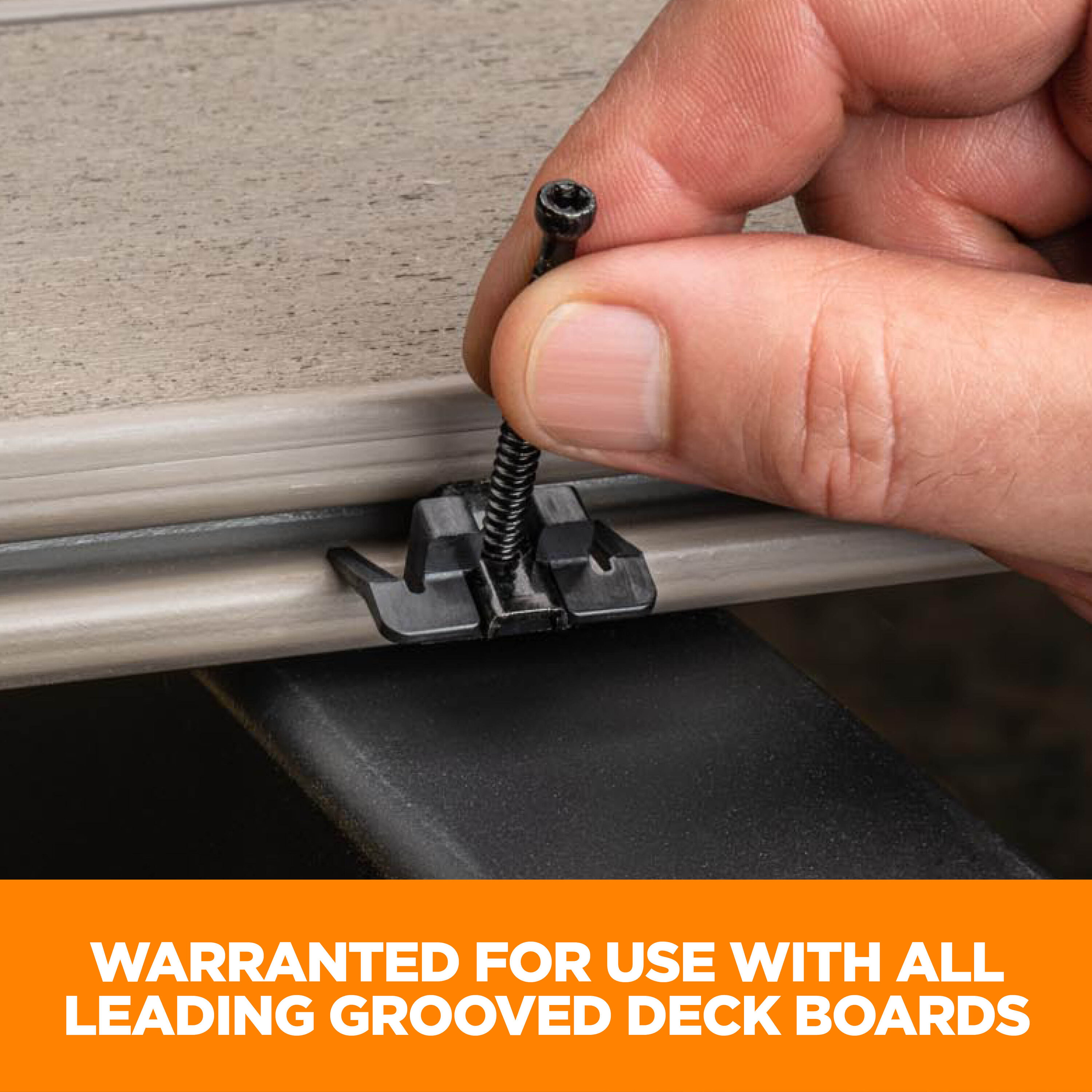

1-pass fasteners - clip prongs fit into the boards's groove and hold the clip until you're ready to fasten

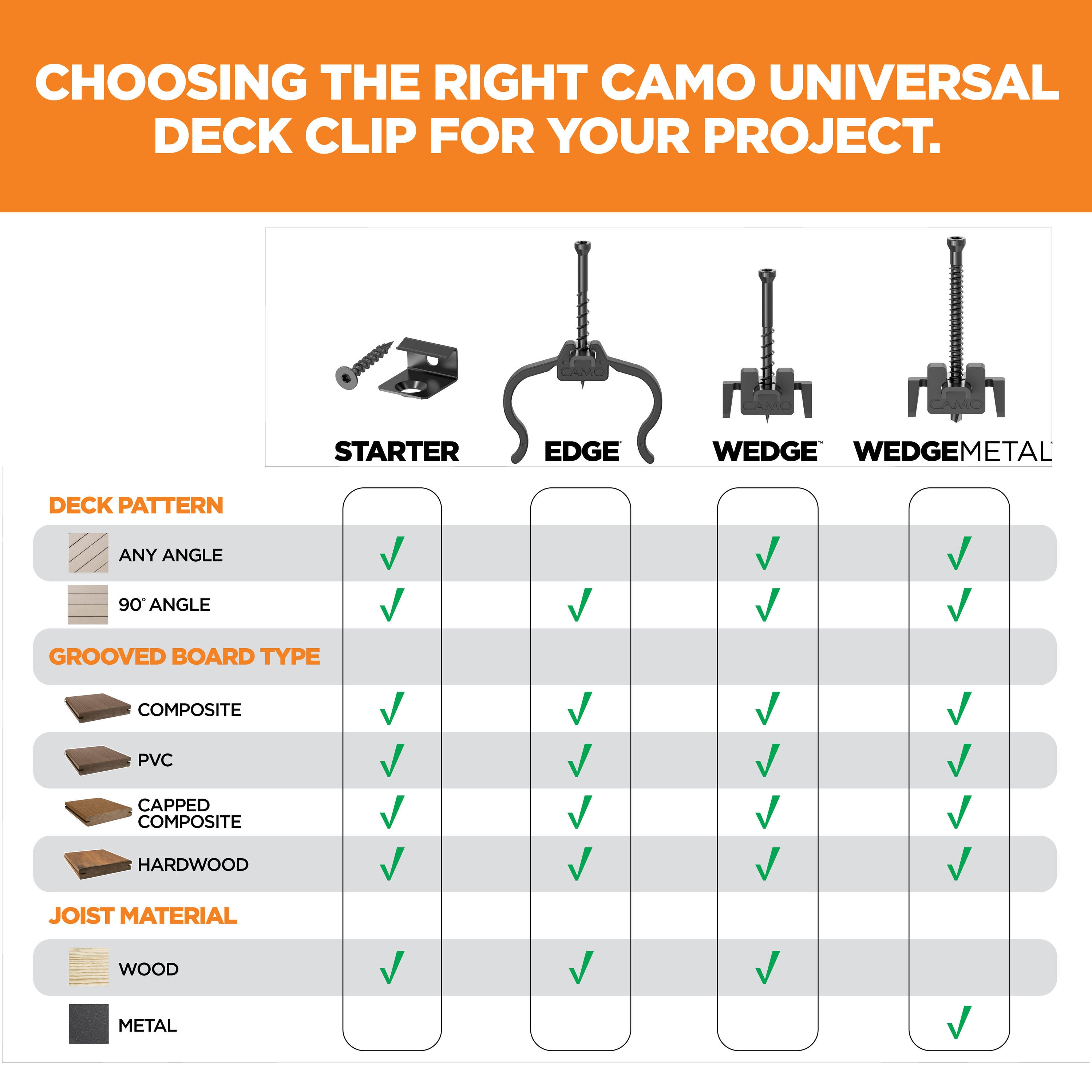

Use with grooved composite, PVC and hardwood boards
Clip body creates 3/16 in (4.7 mm) spacing while the gusset holds boards down

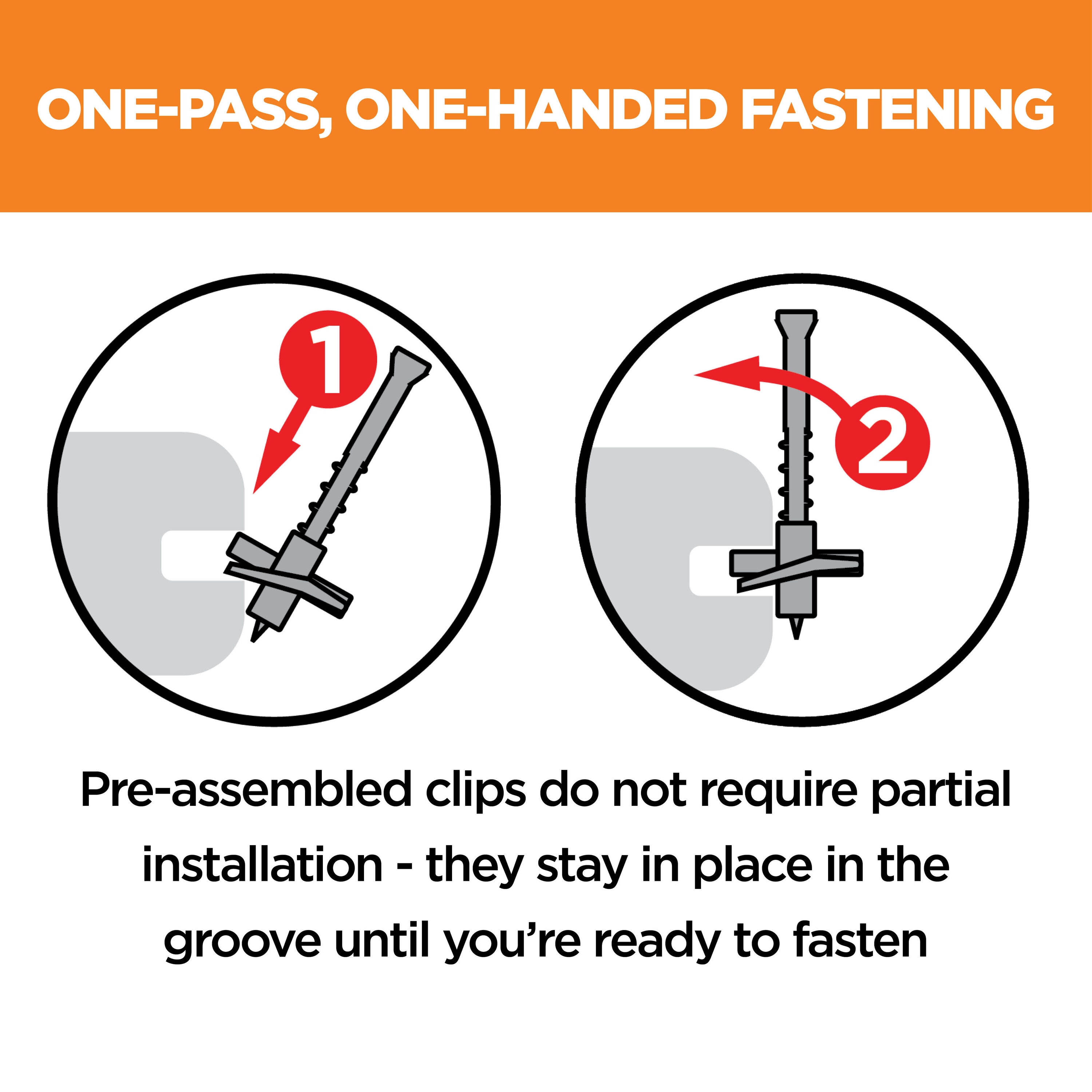

Pre-assembled clips do not require partial installation - they stay in place in the groove until you're ready to fasten

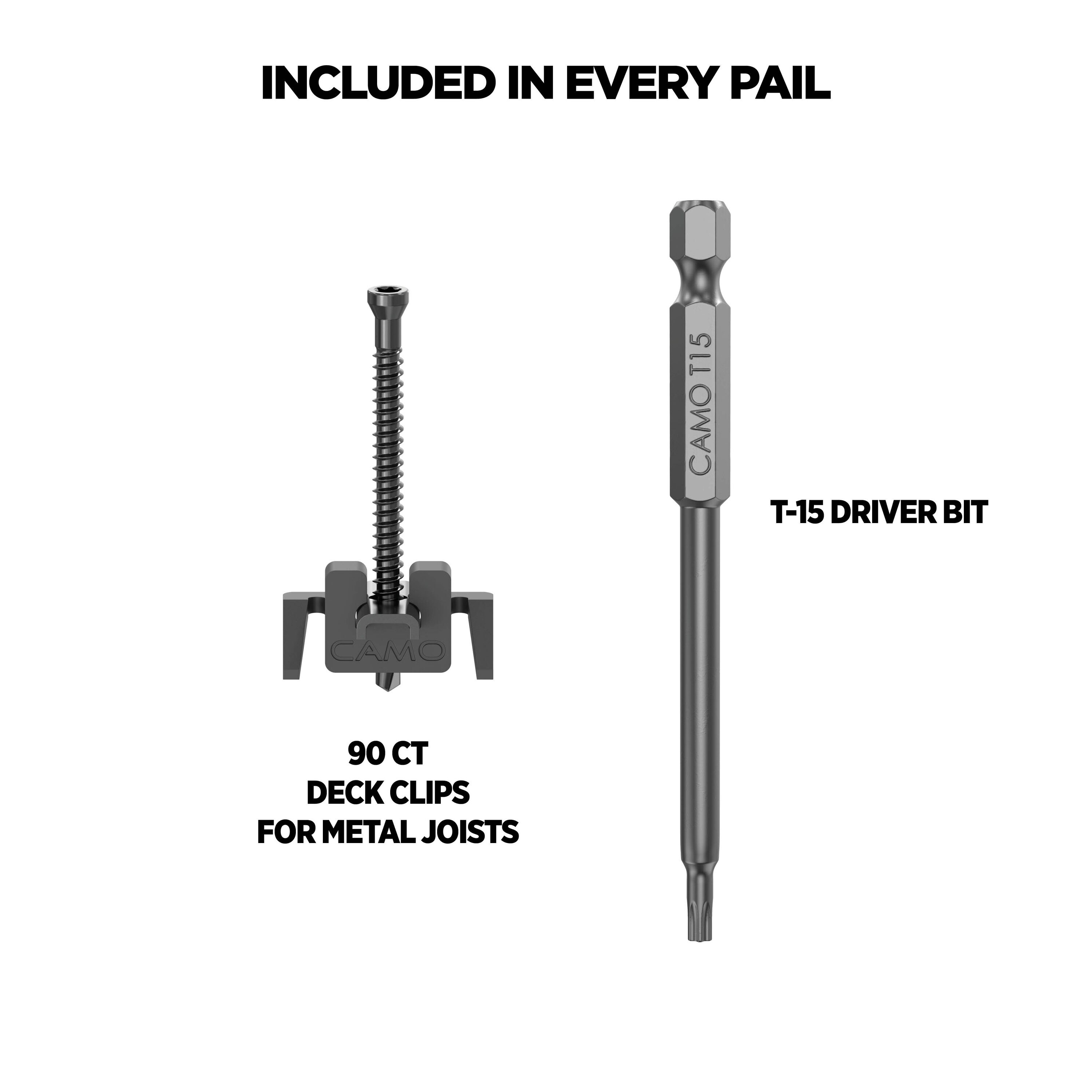

Fasten with never-miss guide or while standing up with the CAMO clip drive or drive
Top-down access allows for easy board removal if needed
