The Global Door Controls TC7030 closers own a compact design that offers an excellent "hidden" solution for those who prefer the visual advantages of a concealed door closer. This type of closers is Grade 1 certified. It has multiple spring tensions available to match any door size and weight. This model features a 105° swing radius with adjustable spring tension. Consistent closure speed is assured with its temperature-sensitive hydraulic fluid. Items are only available in Duronodic finish. They carry a 5 Year mechanical warranty to be the guarantee for our clients.
Overhead concealed closer with cast iron housing
Adjustable latch & closing speeds
Meets the performance standards of Grade 1, ANSI BHMA A156.4
Recommended for installation in aluminum door frame applications
Center-pivoted for single and double acting doors
Comes non-handed / reversible therefore it can be installed on a left hand or a right hand door
Made from cast iron housing, high tensile steel camshaft and pistons

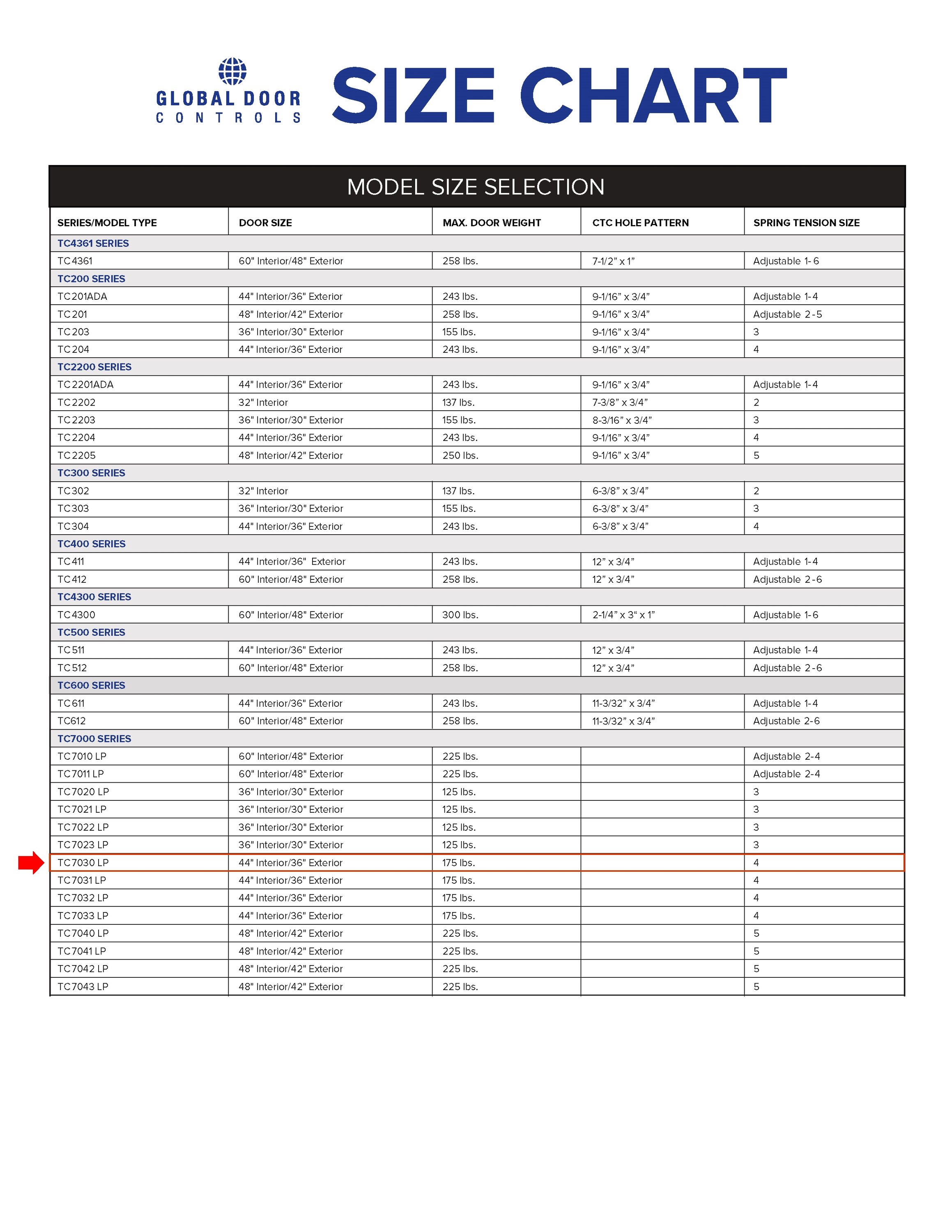

Fits with doors weighing up to 175 lbs.
105 degree back stop with hold open closer
