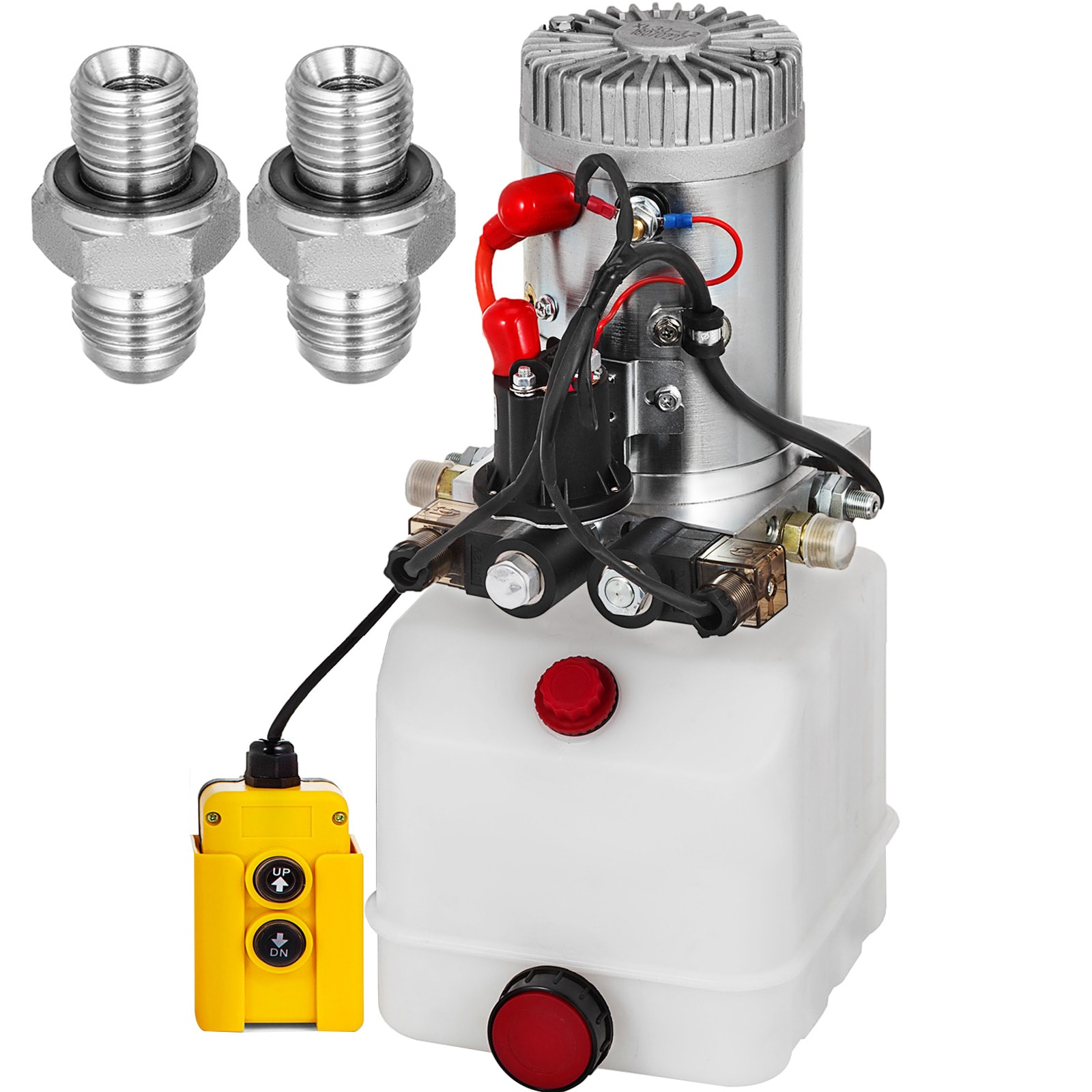

3 Quart Double Acting Hydraulic Pump: This hydraulic pump is a double-acting power unit for both lifting and lowering; It has a 3-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc;; [Package Content] 1 x 3 Quart Double Acting Hydraulic Pump; 1 x English Manual; 2 x SAE # 6 Connectors

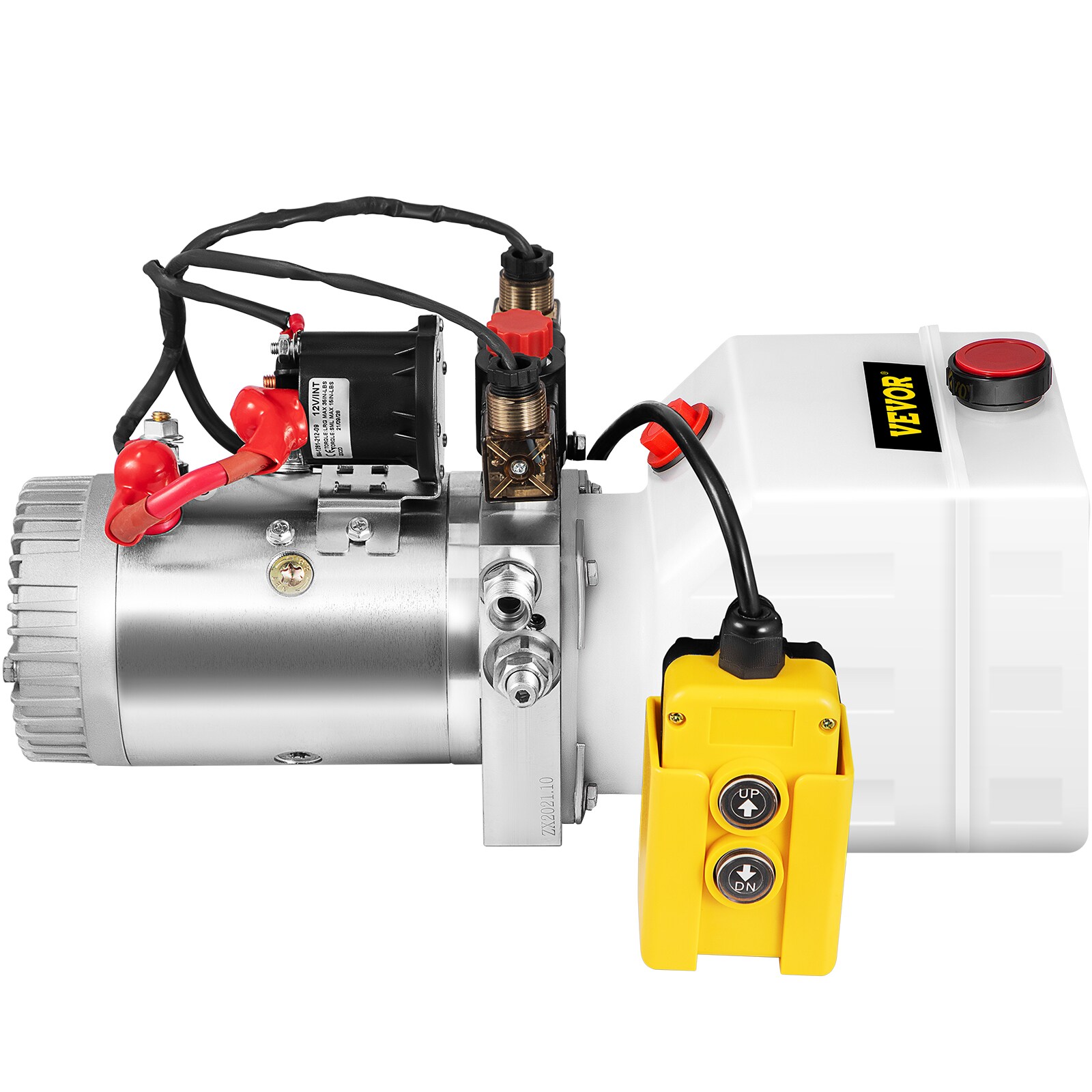

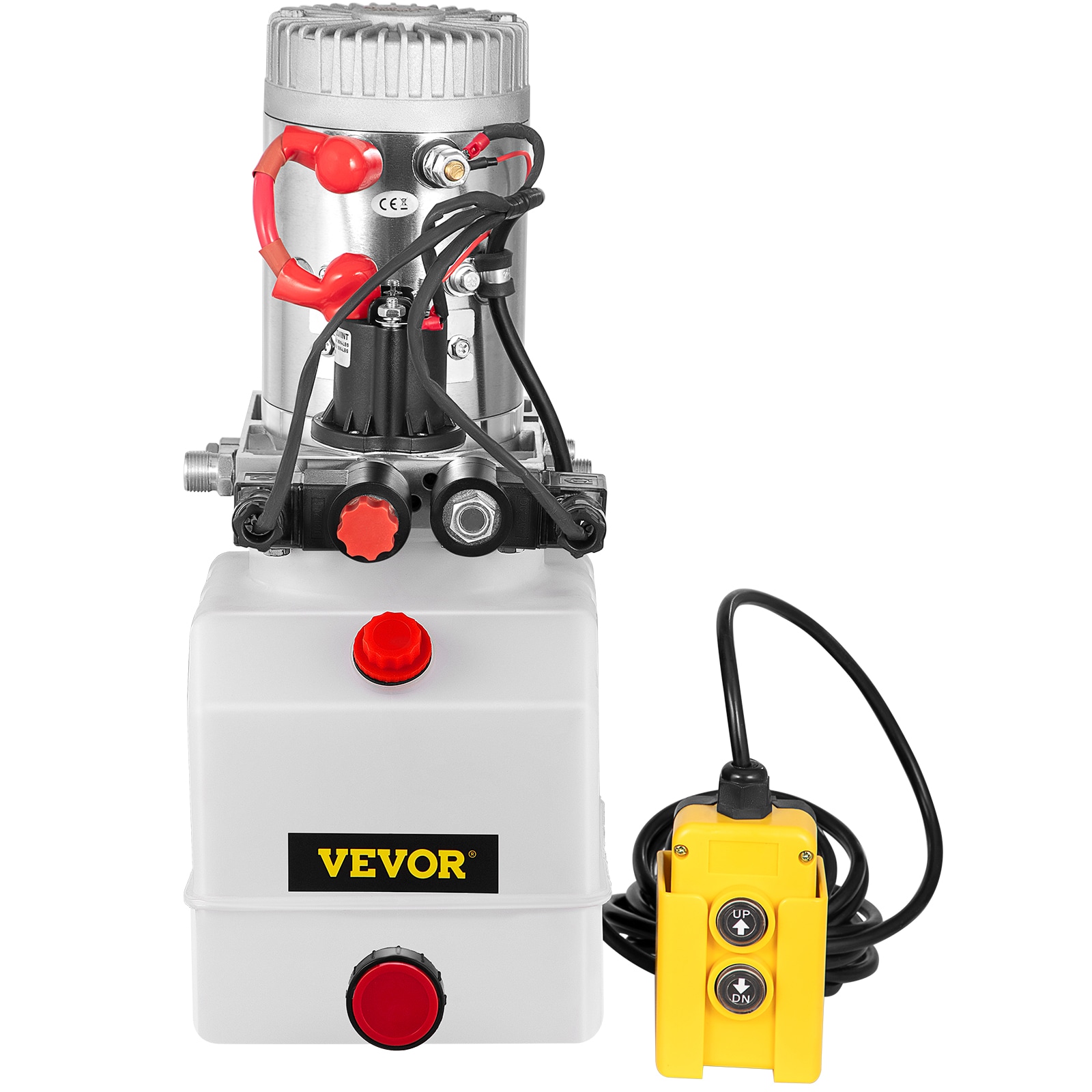

Double-Acting hydraulic pump with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir.
The hydraulic pump has been fully assembled, the wiring is simple and comes with operating instructions

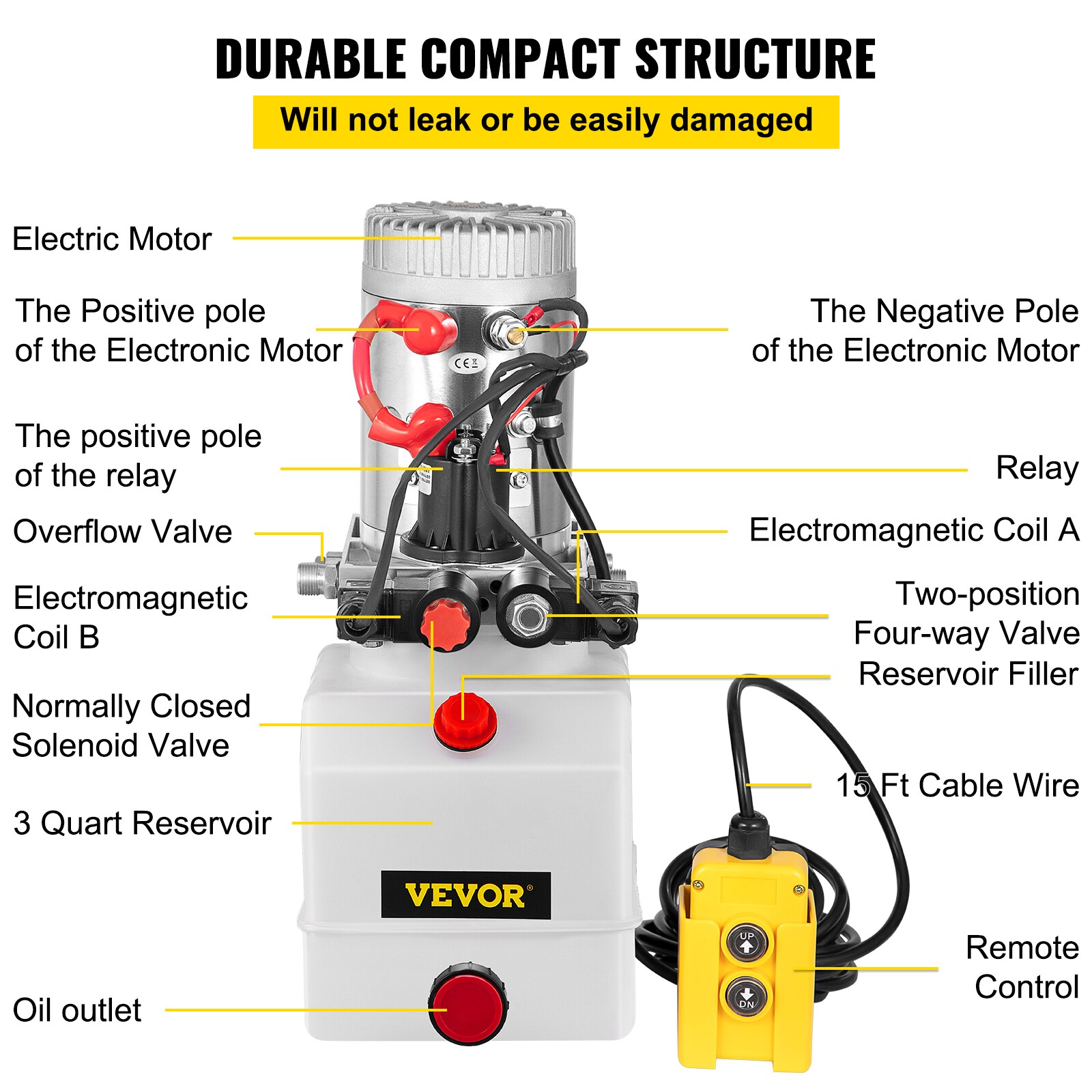

This hydraulic power unit is made of sturdy plastic, equipped with a relief valve, a hand-held remote control and 4 additional SAE#6 connector
Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir; The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; and it is a double-acting pump for both power up and power down;

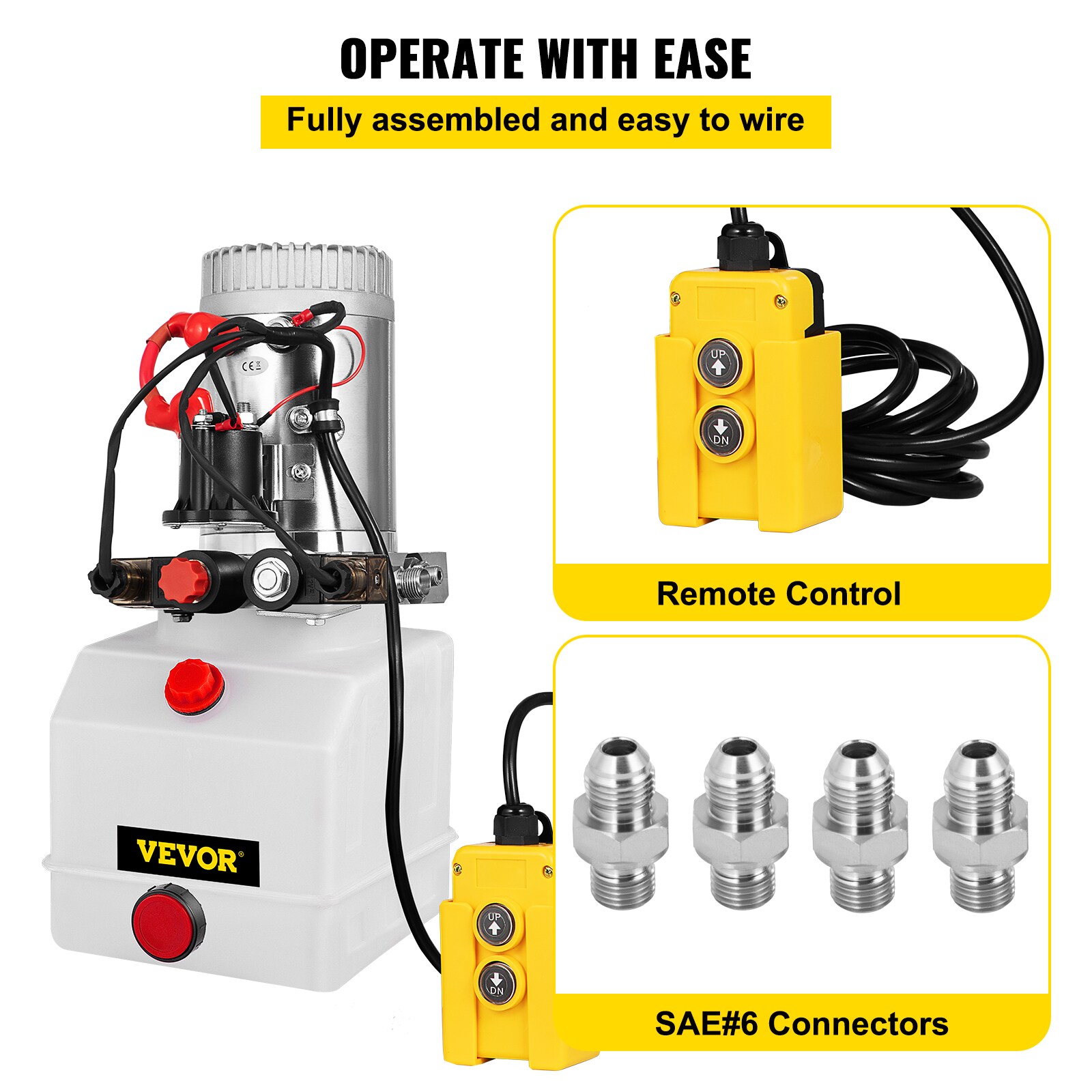

Easy to Use: This 12V hydraulic power unit has been fully assembled in advance; The wiring is simple and comes with operating instructions; 4 SAE#6 connectors and one 15 ft remote control are included in the package;

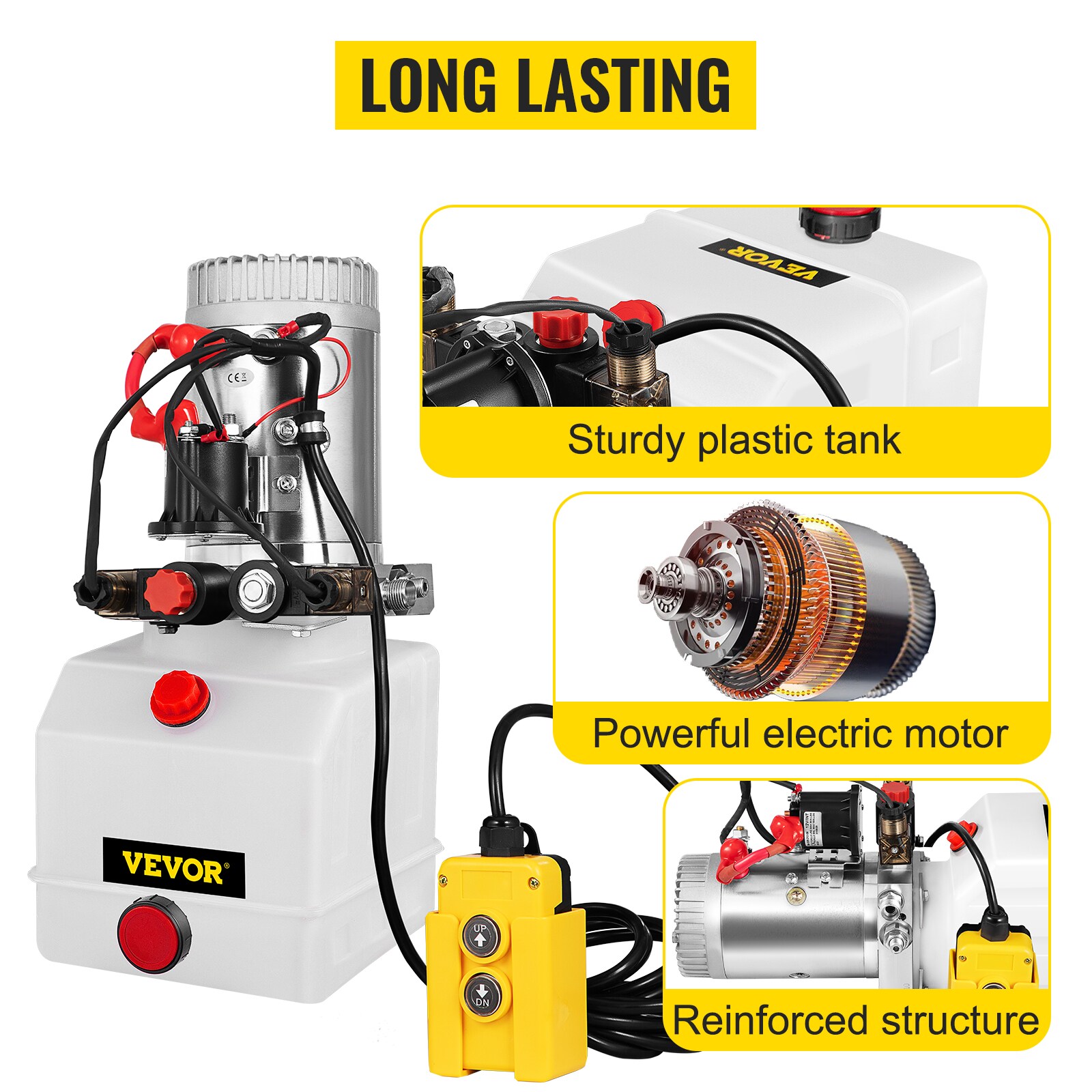

Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged; As a power unit, this is a perfect replacement pump for remote hydraulic systems; Equipped with relief valves, it avoids overpressure, safer and reliable;

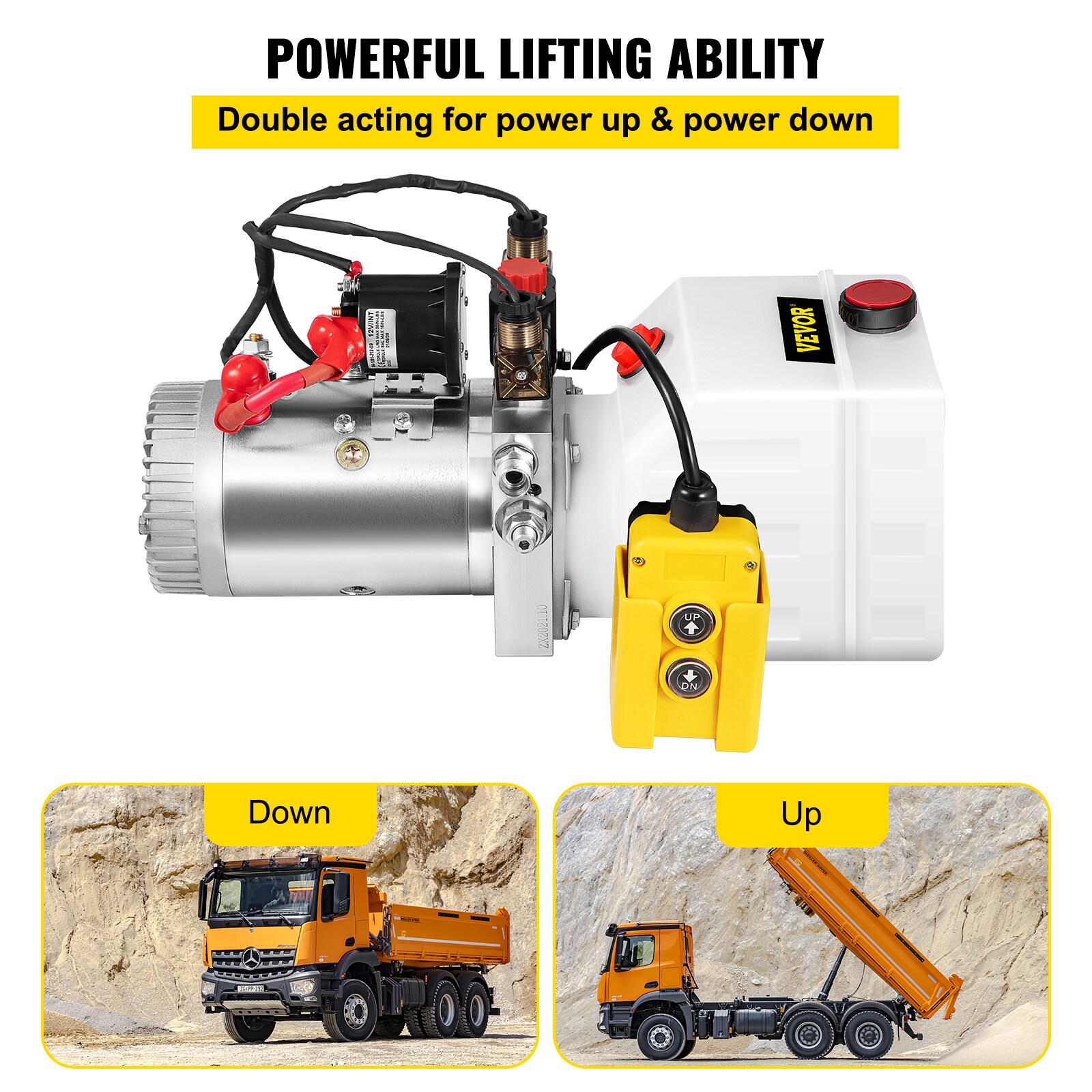

Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time;
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms; It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems;
Specification: Mode: Double-Acting Power-Up/ Power-Down; Tank Material: Plastic (Translucent); Tank Capacity: 3L/ 3Quart/ 0.75 Gal; Flow: 2.0 GPM; Max; Relief Valve Setting A Port: 3200 PSI; Max; Relief Valve Setting B Port: 1500 PSI; Rated Speed: 2850R/MIN; Voltage: DC12V; Power: 1.6KW (Rated), 3.0KW (Max); Duty: 3 Min; Traffic: 1.1 cc/r; Rotation: Clockwise; Connector: SAE # 6; Mount Position: Horizontal/ Vertical; Control: Solenoid and Handheld Pendant; Pendant Control Length: 15ft/ 4.5 m; Gross Weight: 29.1 lb (13.2 kg)
