20 Quart Double Acting Hydraulic Pump: This hydraulic pump is a double-acting power unit for both lifting and lowering; It has a 20-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc;; [Package Content] 1 X 20 Quart Double Acting Hydraulic Pump; 1 X English Manual; Several Related Accessories
Double-Acting Hydraulic pump with a 12V DC motor (Power: 1.6-3.0kw) and a 20-quart reservoir.
The Hydraulic Power Unit has been fully assembled, the wiring is simple and comes with operating instructions
The dump trailer pump is made of sturdy metal, equipped with a relief valve, a hand-held remote control and 2 additional SAE#6 connector
Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 20-quart reservoir; The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down;

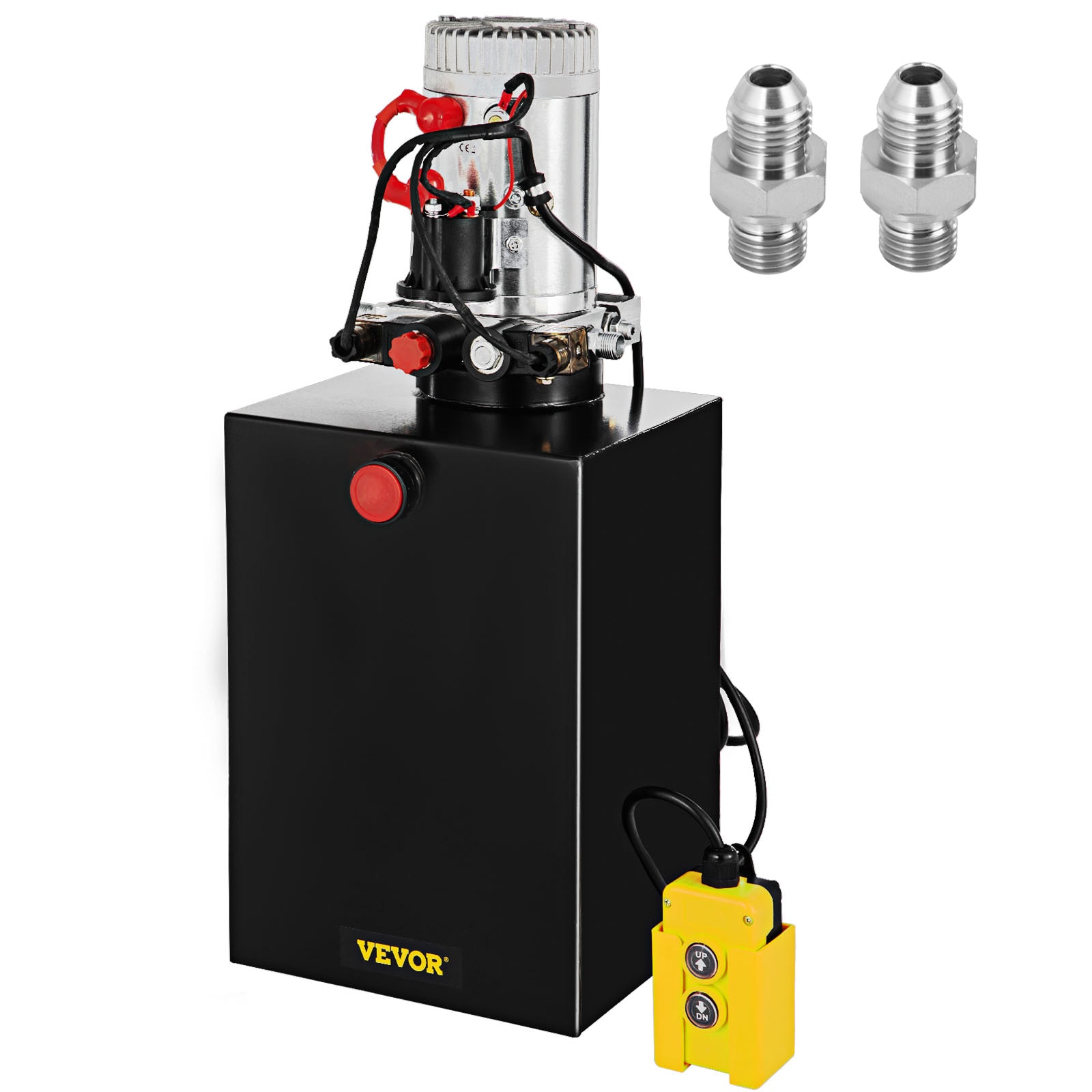

Easy to Use: This 12V hydraulic power unit has been fully assembled in advance; The wiring is simple and comes with operating instructions; It includes a 15 ft remote control and two additional SAE#6 connectors are provided for replacement;

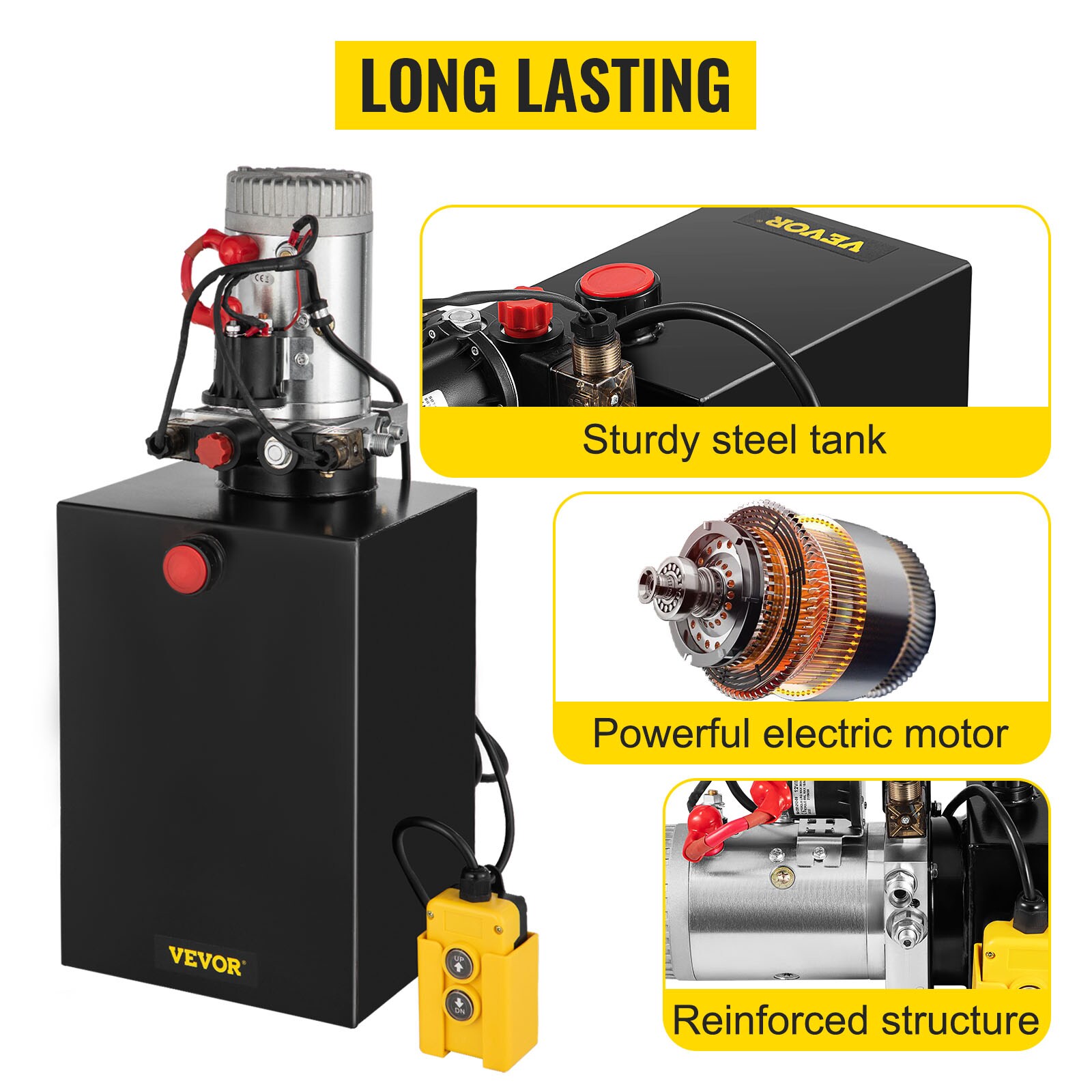

Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged; As a power unit, this is a perfect replacement pump for remote hydraulic systems; Equipped with a relief valve, it avoids overpressure, safer and reliable;
Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time;
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms; It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems;

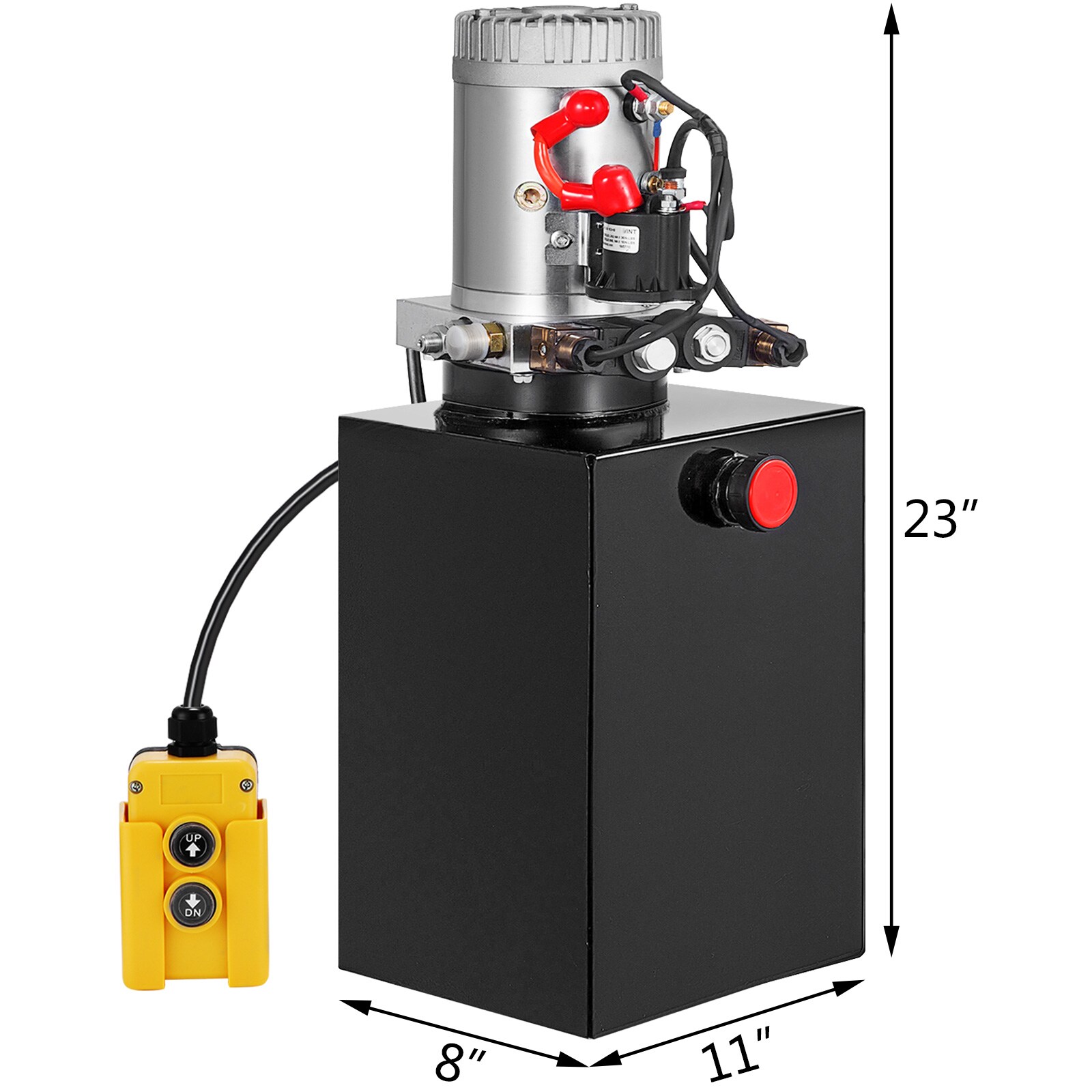

Specification: Material of Tank: Metal; Fuel Tank: 20quart; Power / Gravity: Double Acting Power-Up/Power Down; PSI: 3200 PSI Max; Relief Setting For Increased Lifting Power on A port; Reservoir: 20 Quart Steel Reservoir; Port: SAE # 6 Port, Horizontal mount; Hand held pendant with 15 feet(4.5 m)removal cord; Gross Weight: 34.0 lb (16.4 kg); Package Dimensions (L x W x H): 23.2" x 11.4" x 11.0" (59 x 29 x 28 cm)
