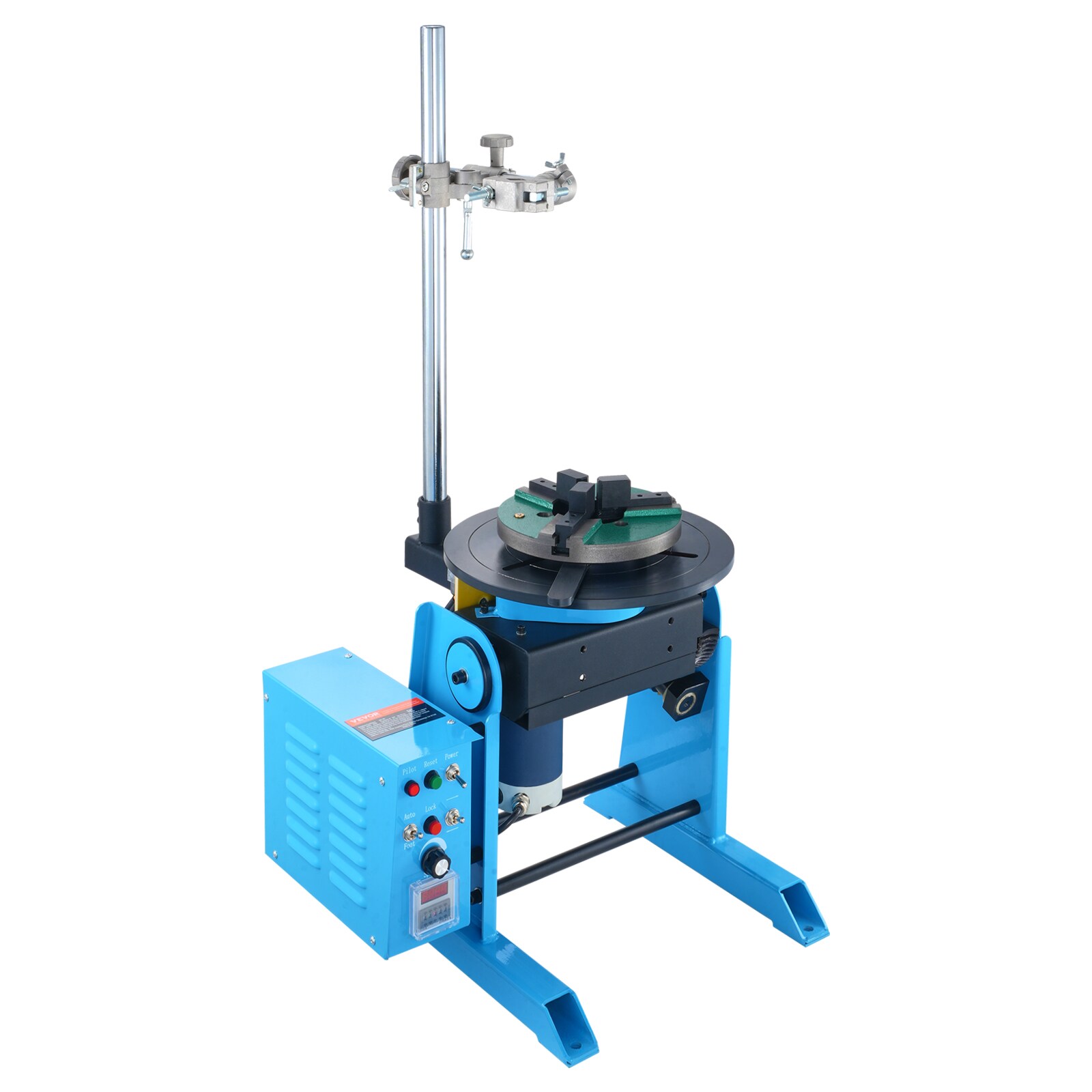

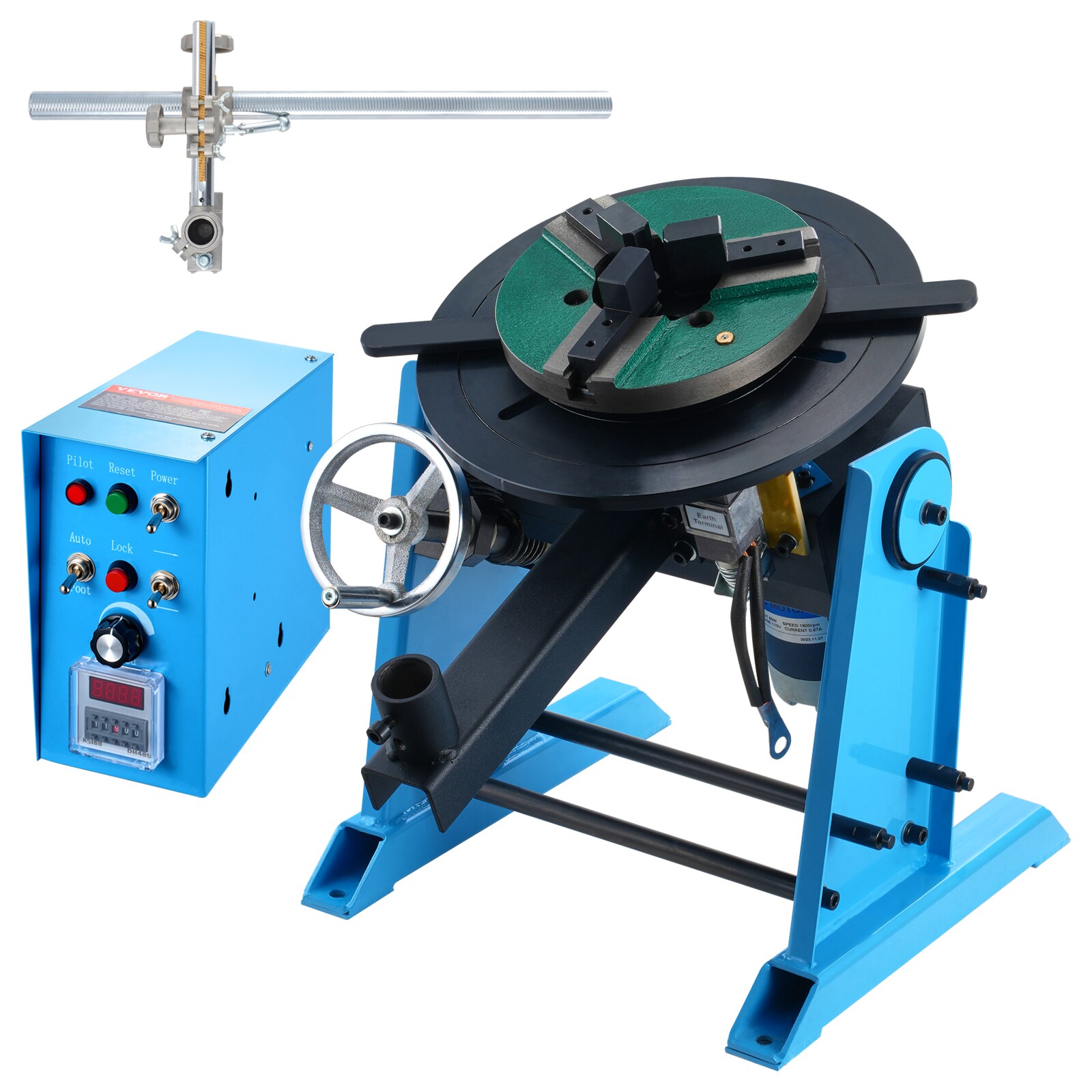

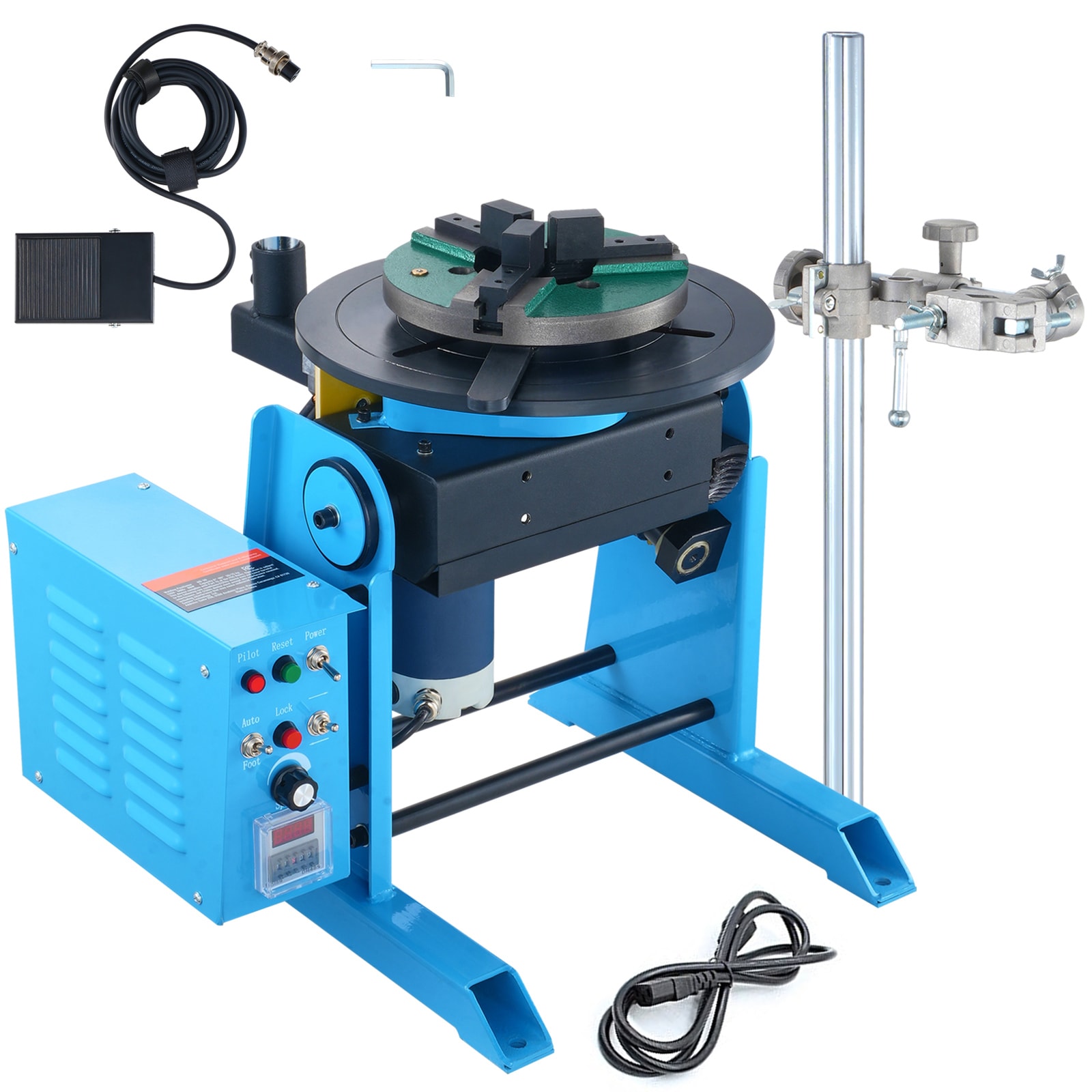

VEVOR Rotary Welding Positioner: Choose VEVOR rotary welding positioner makes welding effortless and accurate; Elevate your welding skills and exceptional welds with 0-90° tiltable worktable, 1-12 rpm stepless speed control, KD200 three-jaw chuck, strong load capacity, easy-to-use control box, and welding gun stand holder;; [Package Content] 1 x Power Cord; 1 x Foot Pedal; 1 x Set of Hand Wheel; 1 x Control Box; 1 x Welding Machine Connection Aviation Plug; 1 x Set of Gun Holder (With Rod); 1 x Gun Stand Holder; 1 x User Manual; 1 x Set Of Mounting Bolts (4 x Stud, 4 x Flat Washer, 4 x Spring Washer); 1 x M5 Hex Wrench

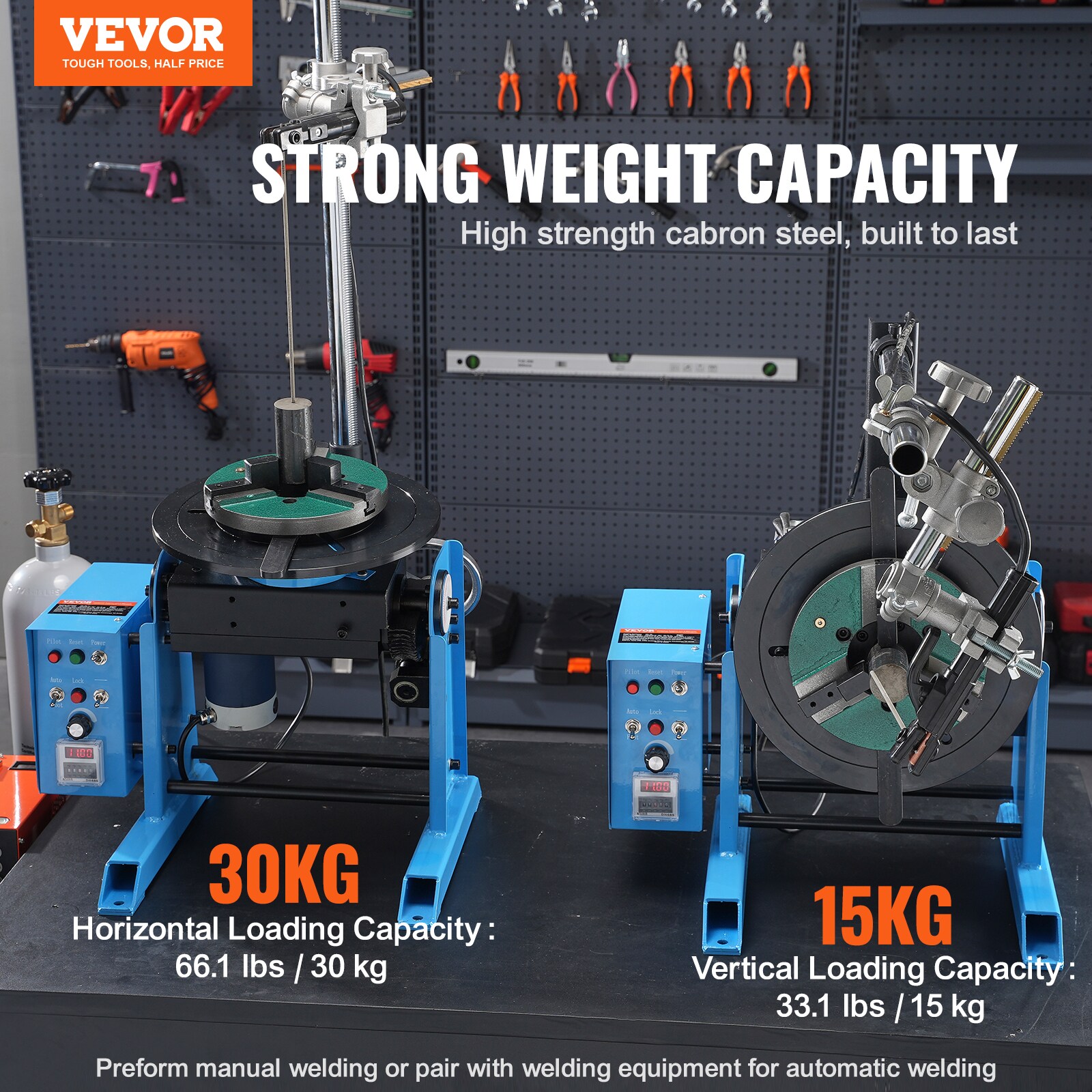

Welding positioner turntable table is constructed with high-strength carbon steel, boasts 33.1 lbs (vertical) or 66.1 lbs (horizontal) load-bearing capacities
Features a worm gear turning structure with a self-locking function, ensuring precise and stable positioning of welding workpiece
Control the worktable's 360° rotation effortlessly with the foot pedal switch, providing flexibility during welding

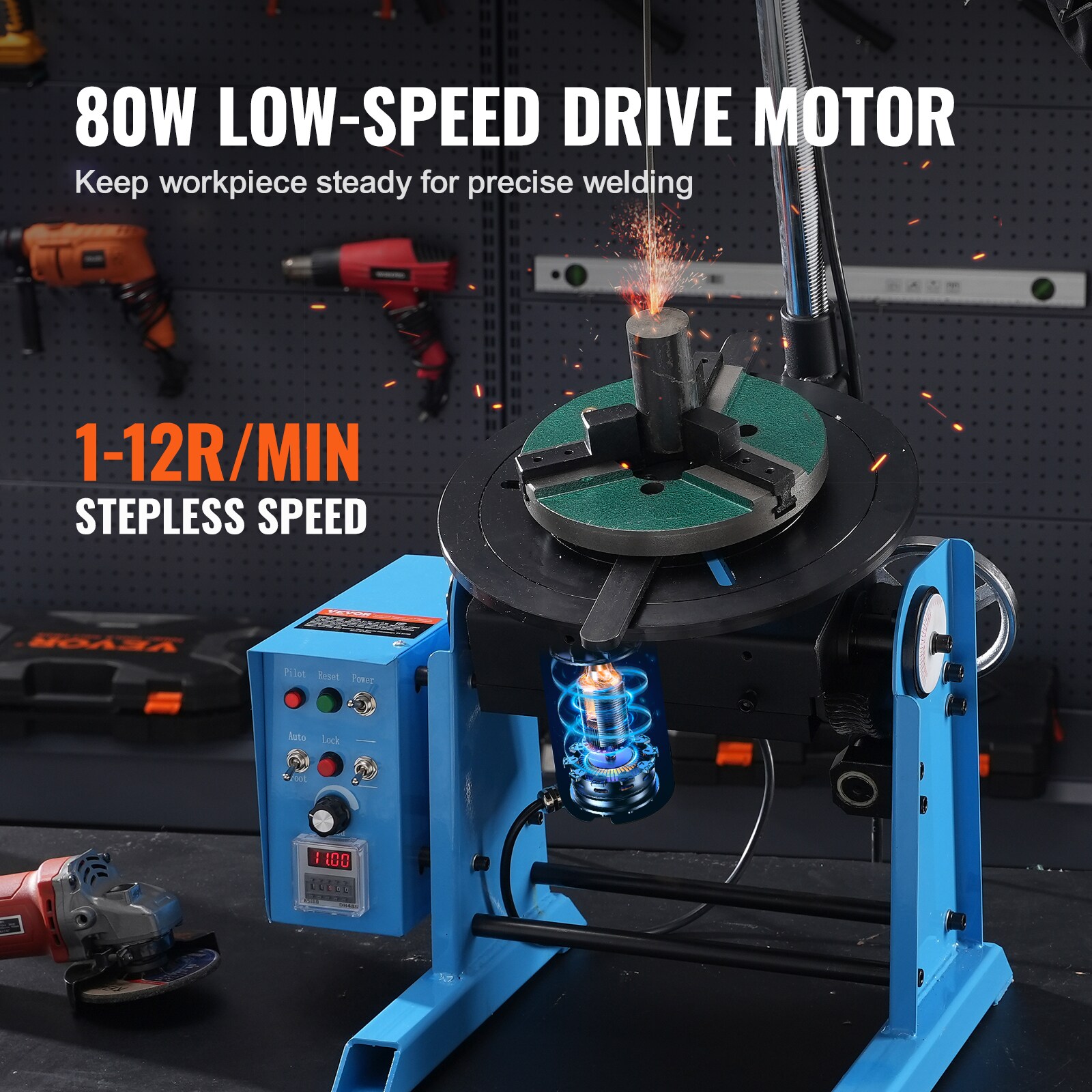

Smooth Rotation: VEVOR rotary welding positioner boasts 80W high quality motor that runs at 1-12 rpm low speed for stable and smooth operation; With a load capacity of up to 33.1 lbs/15kg (vertical) or 66.1lbs/30 Kg (horizontal), it offers excellent stability and supports efficient, precise welding;
0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel; Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece;
Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m supporting range, it effectively prevents the weldment pieces from moving and falling; Also includes a welding gun stand holder to secure the welding gun in place;

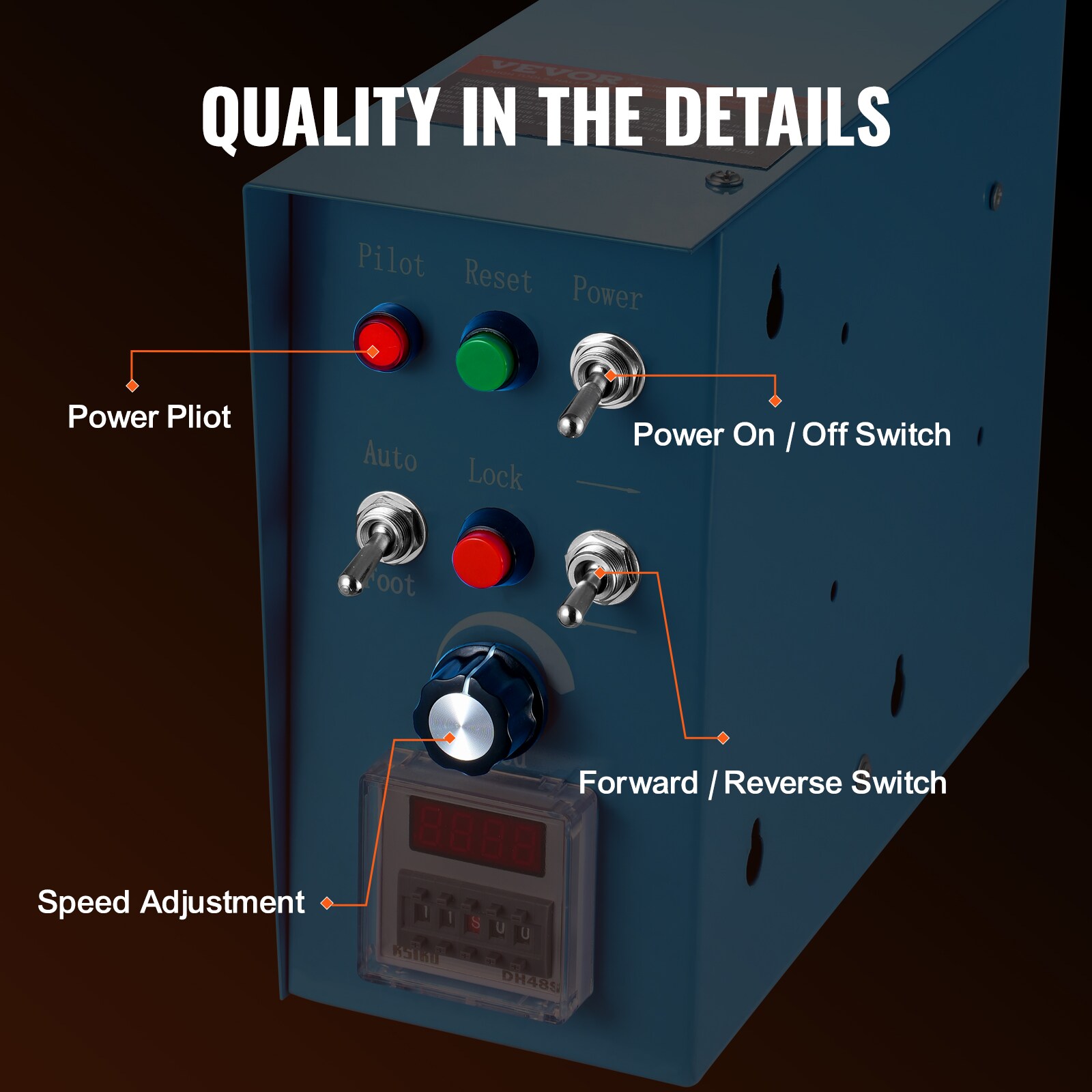

Easy to Operate & Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment; You can easily control the rotation speed with the user-friendly control box; The convenient foot pedal switch also allows for easy control of table's 360 degrees rotation;
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing; It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding; Elevate welding efficiency and precision with VEVOR!
Specification: Item Model Number: HD-30; Motor Power: 80W; Speed: 1-12 RPM; Horizontal/Vertical Load Capacity: 66.1lbs/30 kg ; 33.1lbs / 15kg; Working Table Tilting Angle: 0-90°; Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm; Turntable Diameter: 12.4'' / 315mm; Net Weight: 85.5 lbs / 38.8 kg; Product Dimensions: 18.7'' x 24.1'' x 37.8'' / 475 x 613 x 960 mm
