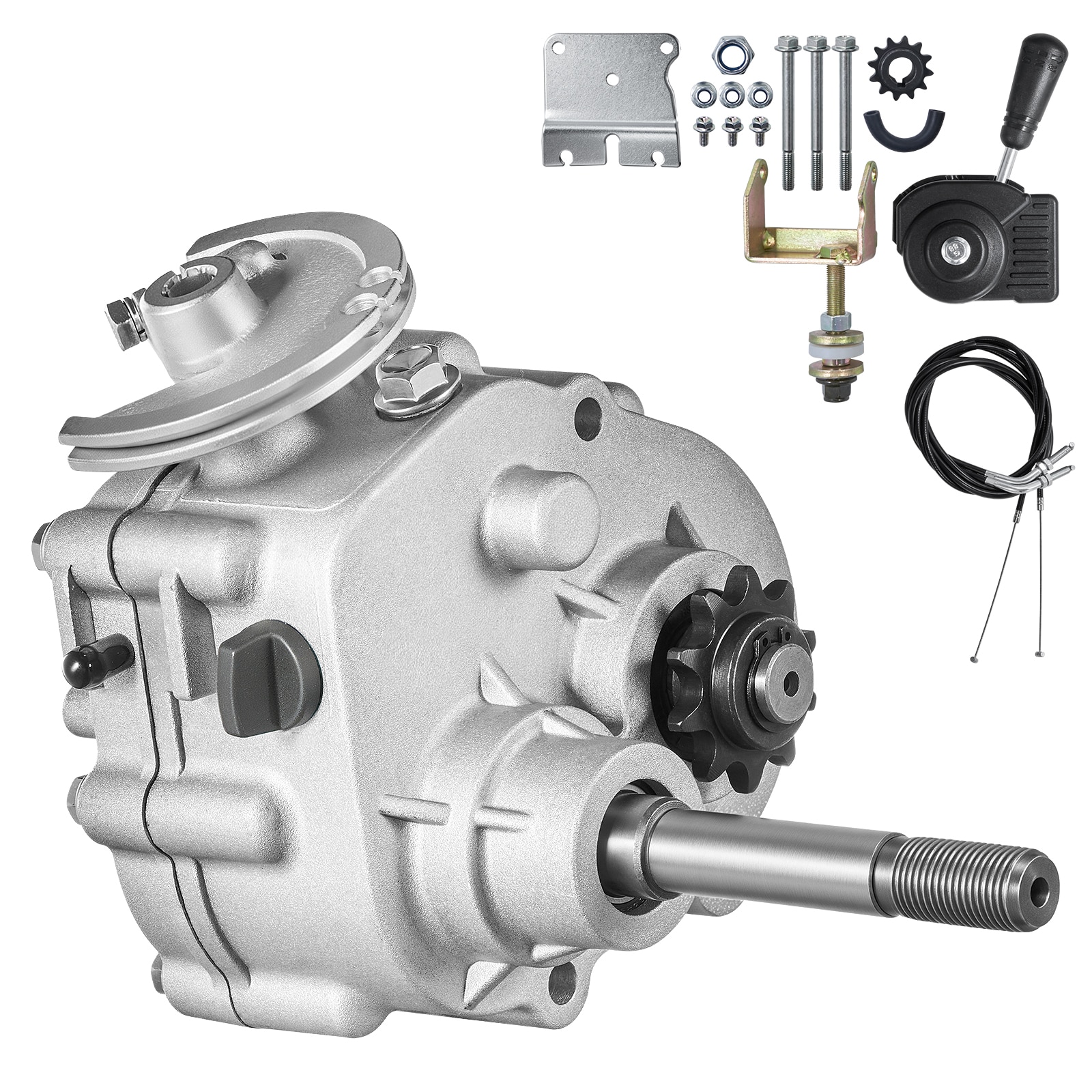

Go Kart Forward Reverse Gear Box: This gearbox kit is for go-karts, utility vehicles, and other applications; It's a lightweight and rugged gearbox that allows the operator to select three shift modes; This box works with a TAV2 30 torque converter system; Note: Please only use on 30 SERIES; This gear won't fit 40;; [Package Content] 1 X Gearbox with 3/16" Keyway; 1 x Shifter Disc; 2 x Shifter Cable; 1 x 06C-12 Sprocket; 1 x Full Mounting Hardware; 1 x User Manual

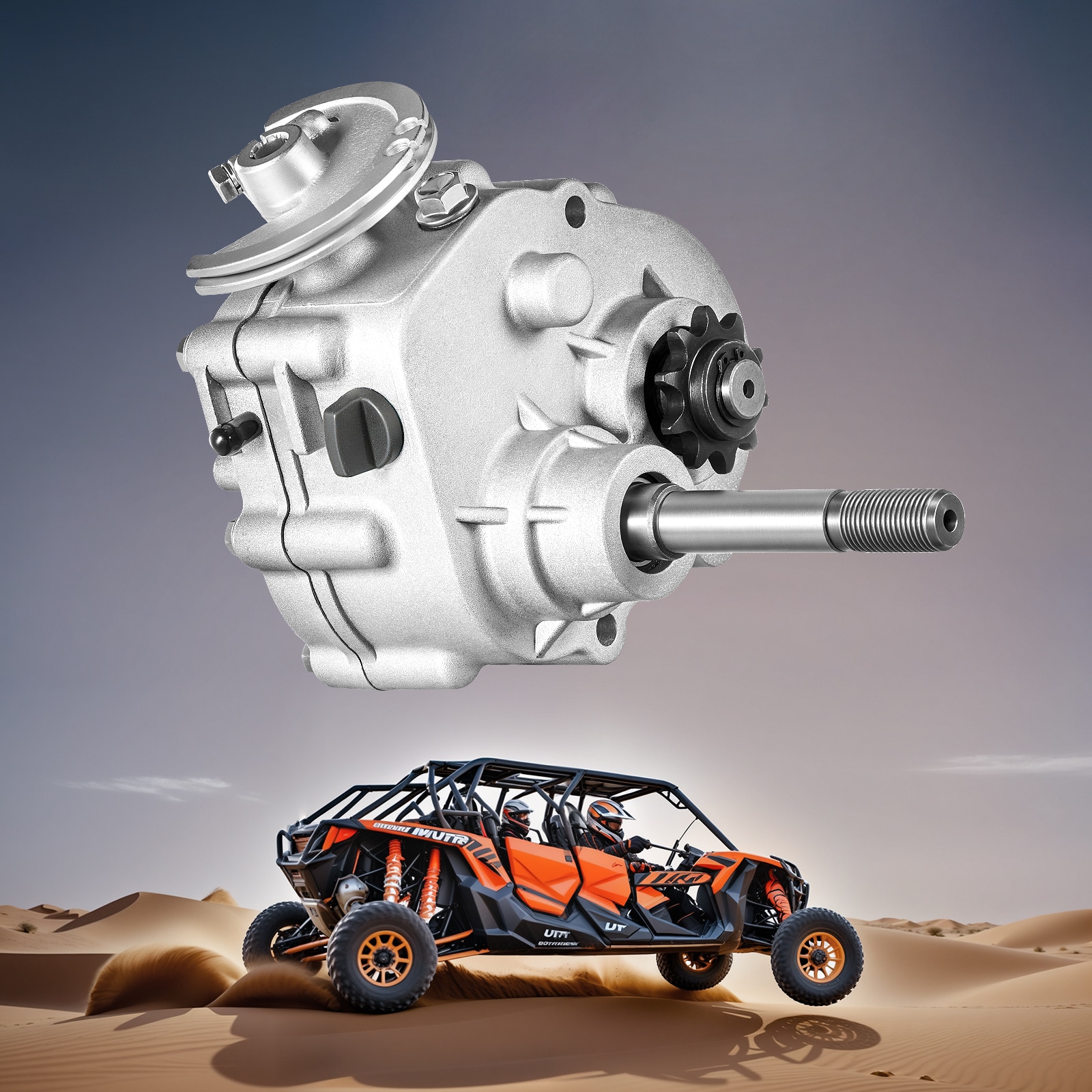

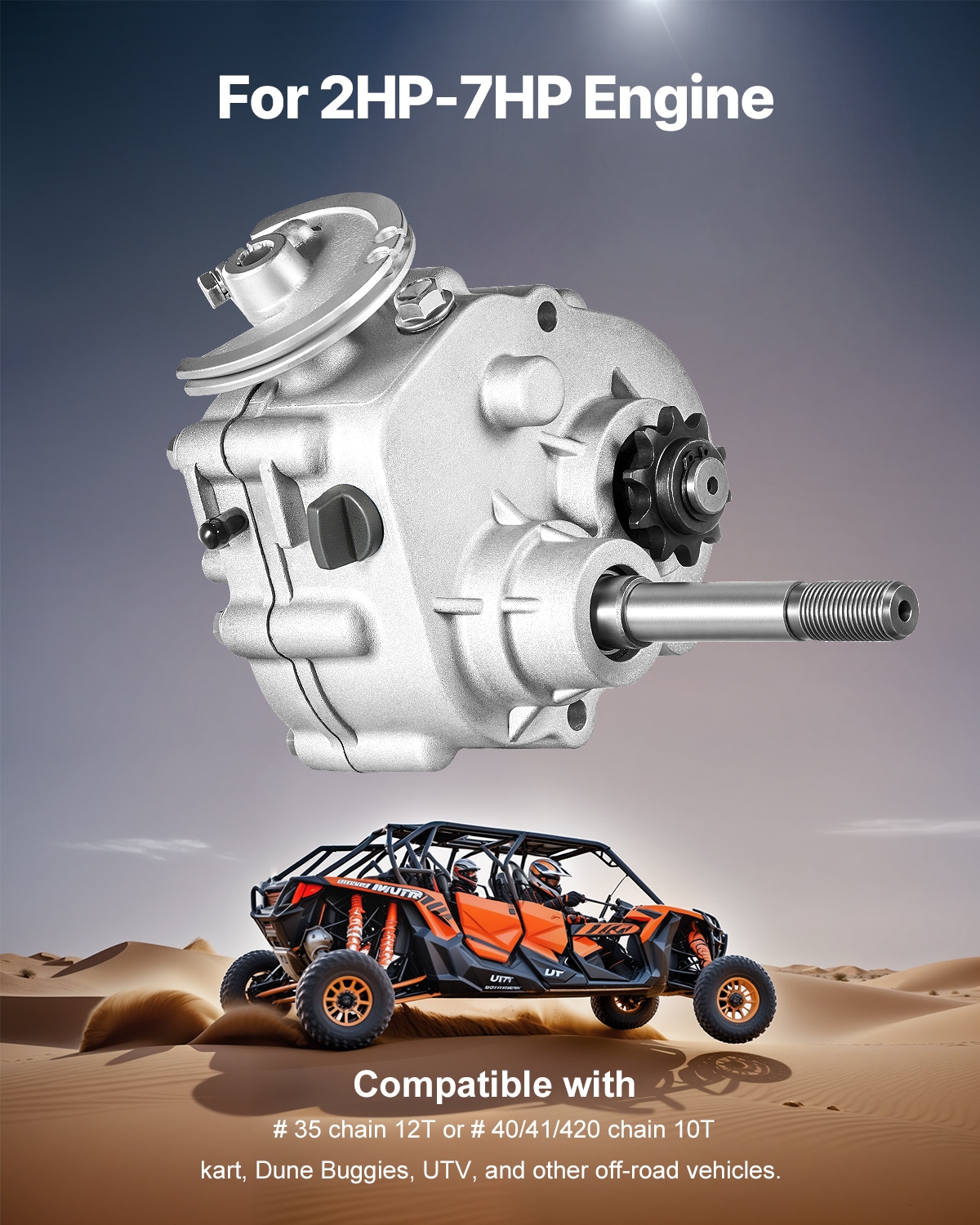

Fit for engines 2-7 HP: This 30 Series forward/reverse gearbox kit is designed for go-karts, dune buggies, UTVs, and other off-road vehicles with #35 chain 12T or #40/41/420 chain 10T;

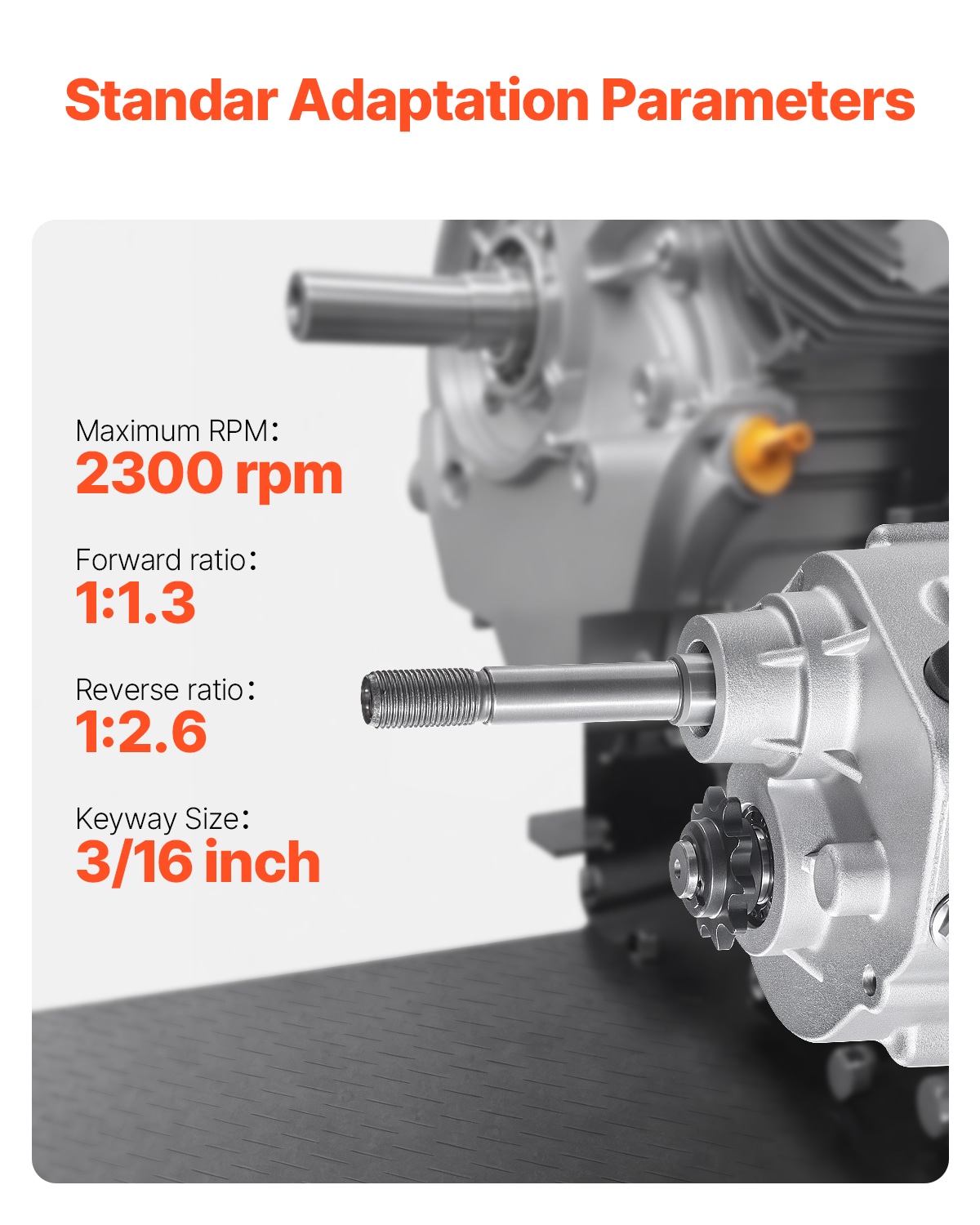

Adaptation Parameter: This drive clutch adapts to vehicles; Shaft size: 5/8 ", Keyway : 3/16", Forward ratio: 1: 1.3, Reverse ratio: 1: 2.6, RPM: 2300;

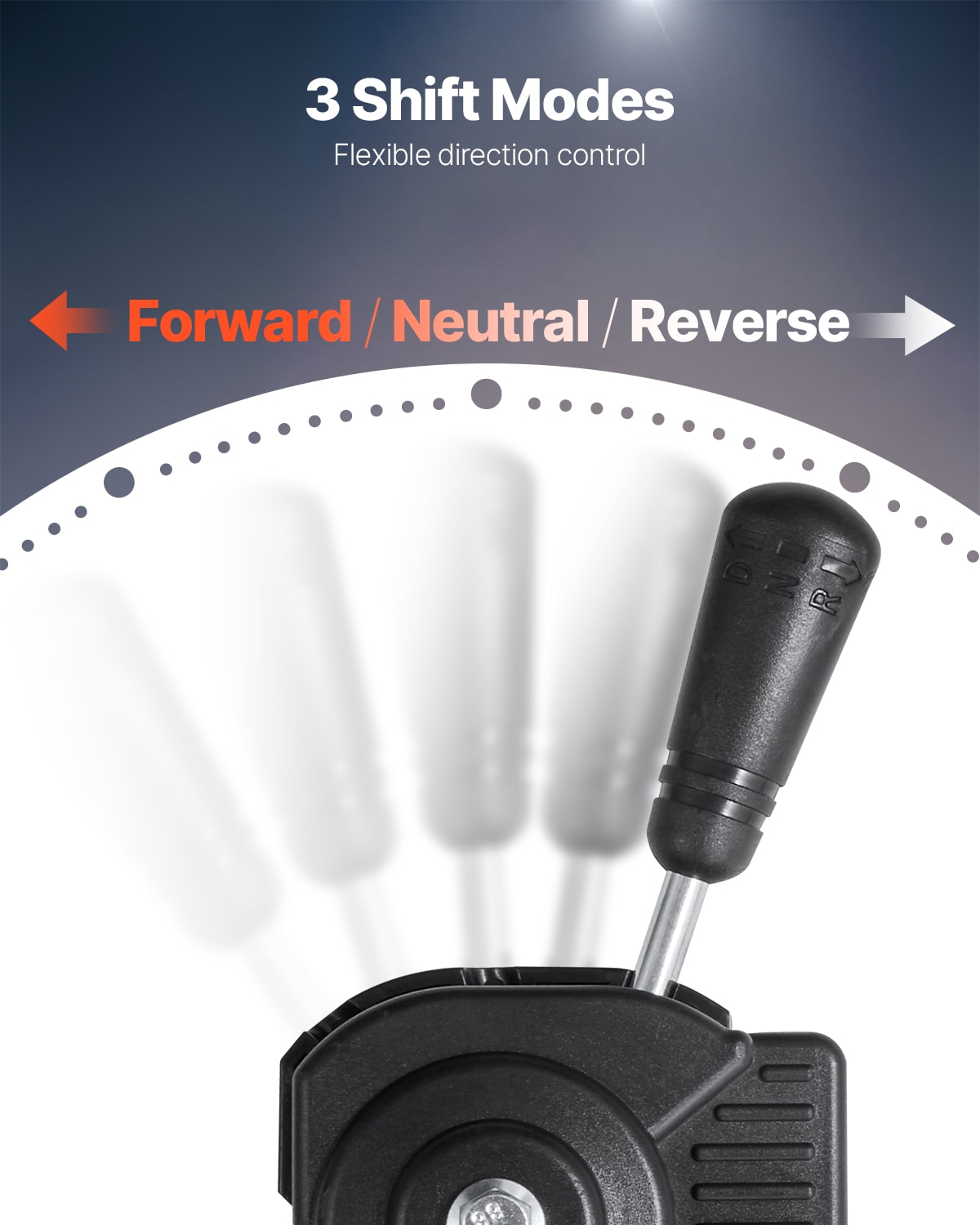

Three Shifting Modes: Equipped with a handle, this gearbox offers three easy-to-use shifting modes: Forward, Reverse, and Neutral, allowing for convenient and straightforward operation;
Durable Alloy Construction: Crafted from iron and aluminum alloy, the primary driving clutch replacement boasts a sturdy build with excellent heat dissipation features;

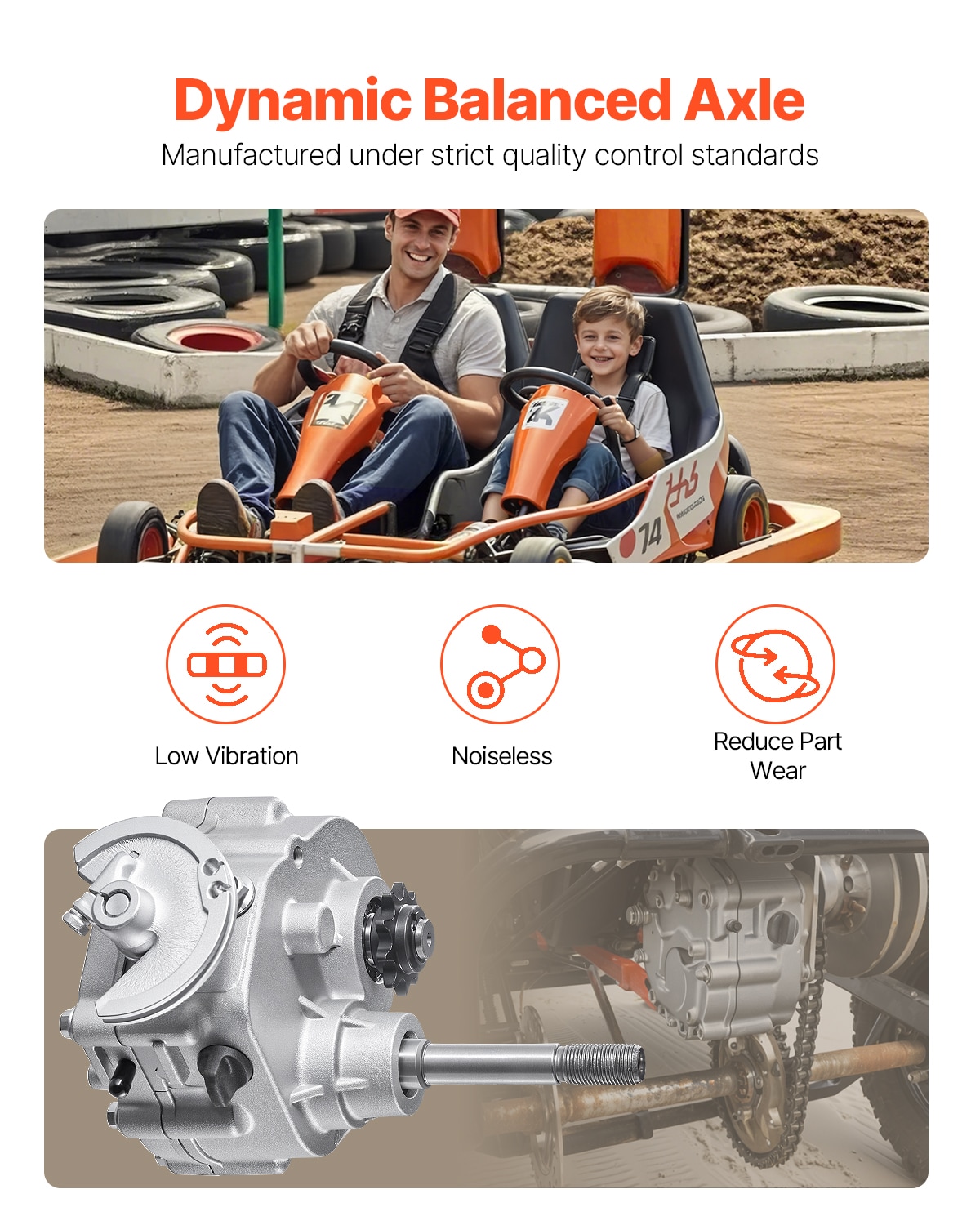

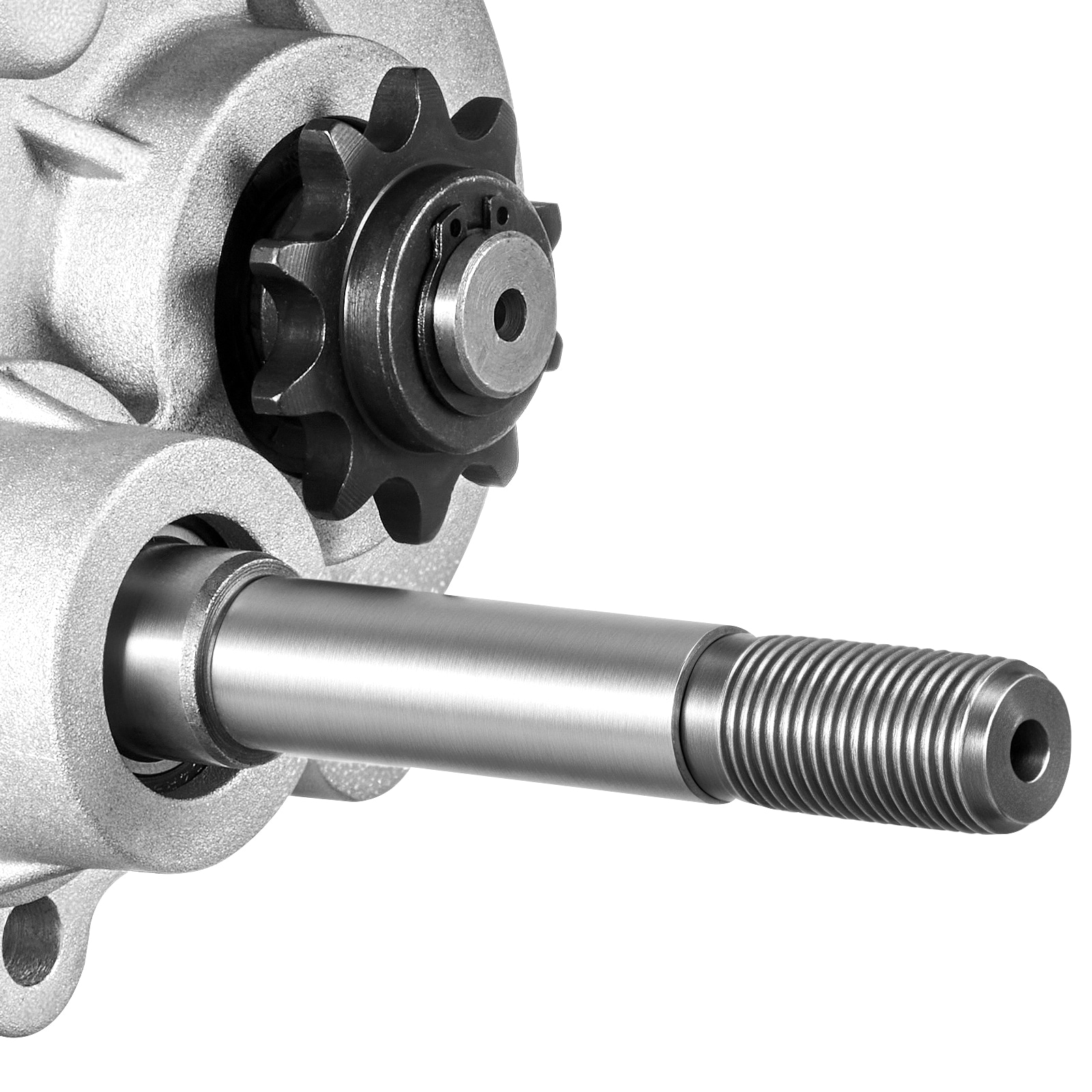

Dynamic Balance Performance: The drive clutch axle is processed for dynamic balance, lowering wear-related imbalances and ensuring smooth operation with minimal noise and vibrations;
Specification: Item Model Number: MC30RG10T12T; Product Dimensions: 8.3 x 6.7 x 6.3 in/212 x 170 x 160 mm; Net Weight: 12.1 lbs/5.5 kg; Maximum RPM: 2300 rpm; Forward ratio: 1:1.3; Reverse ratio: 1:2.6; Keyway Size: 3/16 in
