Whether high or low temperature, this stable sealing performance ensures integrity

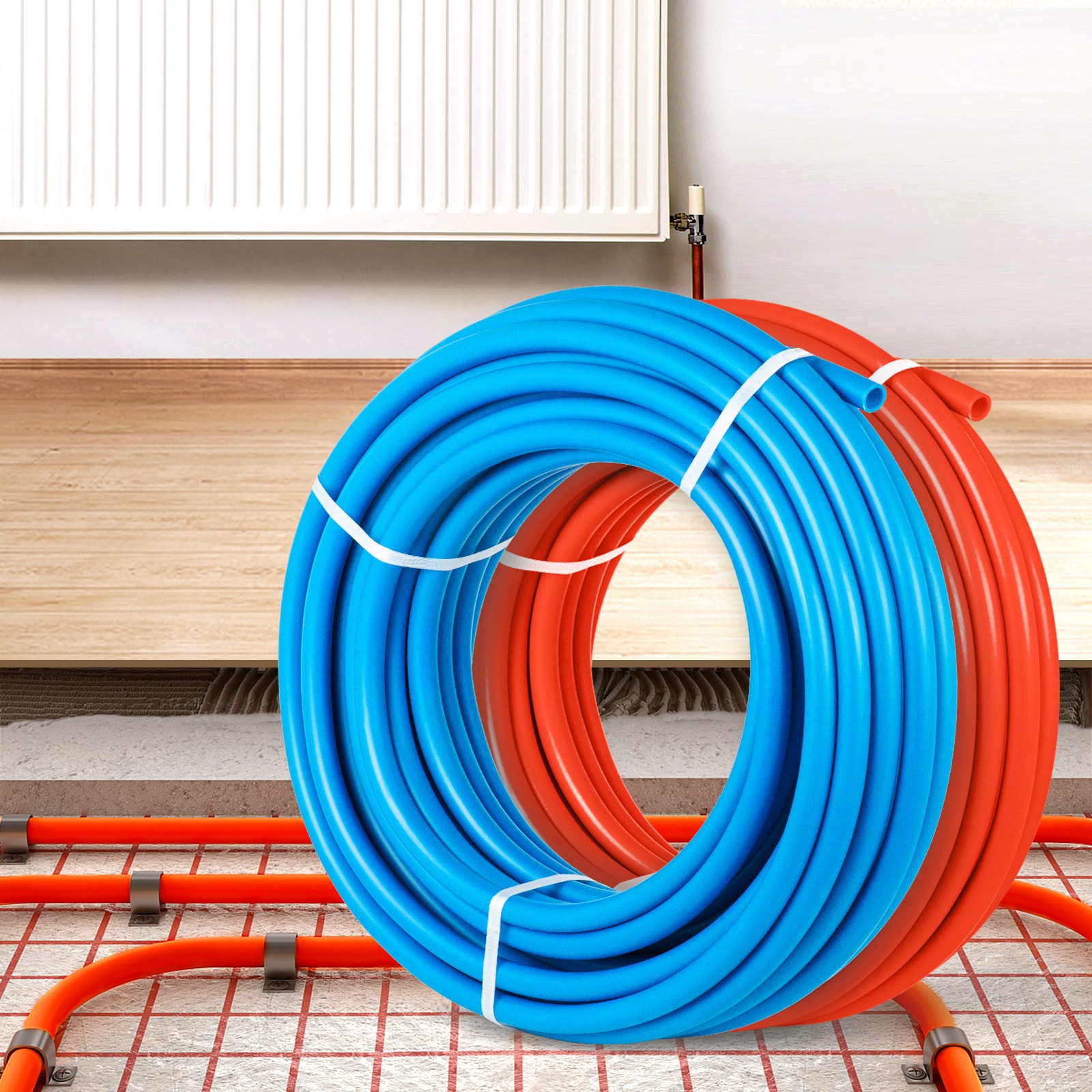

It can be used as an open loop radiant floor heating system to distribute water temperature between 40 degrees Fahrenheit to 203 degrees Fahrenheit
Our PEX tube is a robust PEX tubing with superb quality for home and commercial hot and cold water plumbing projects

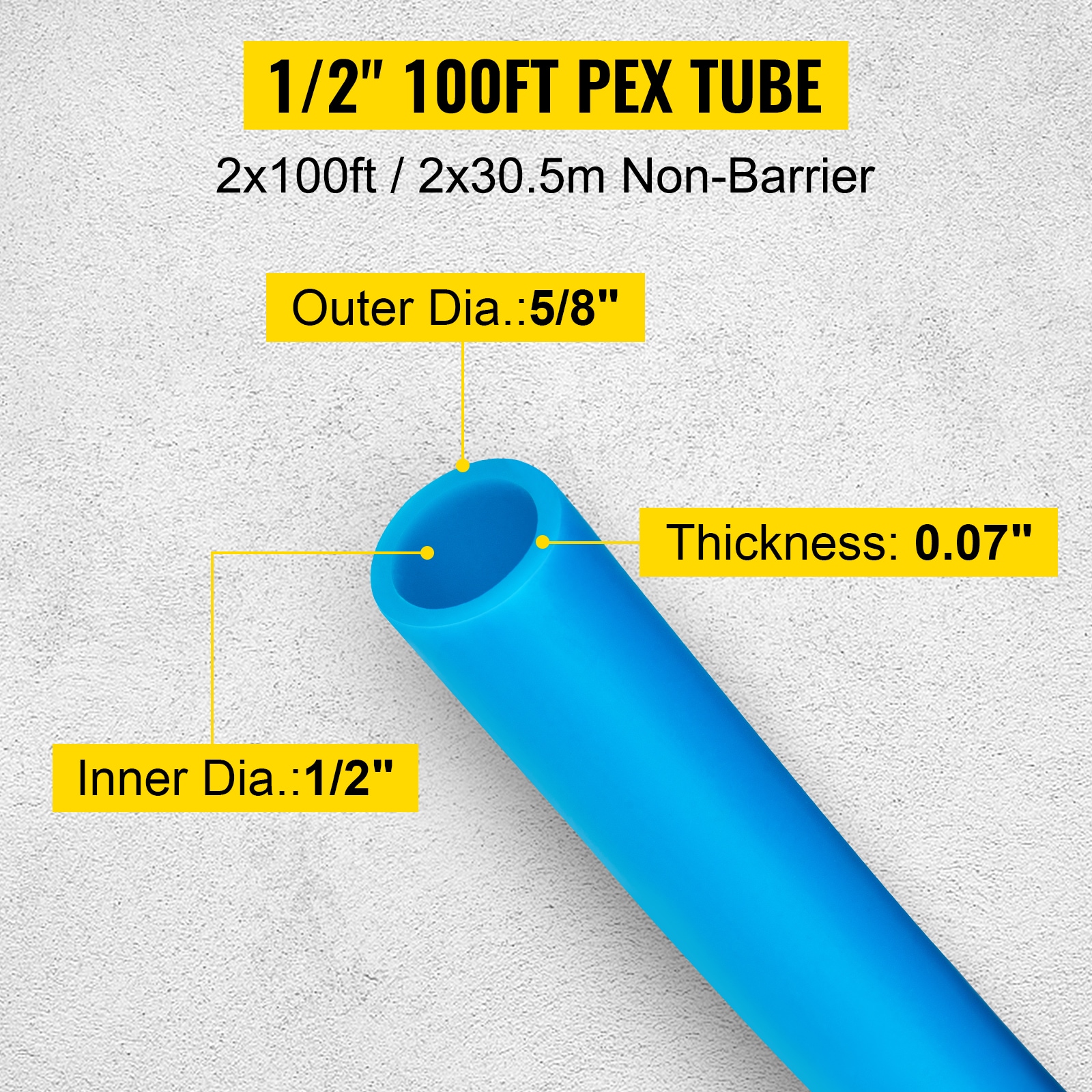

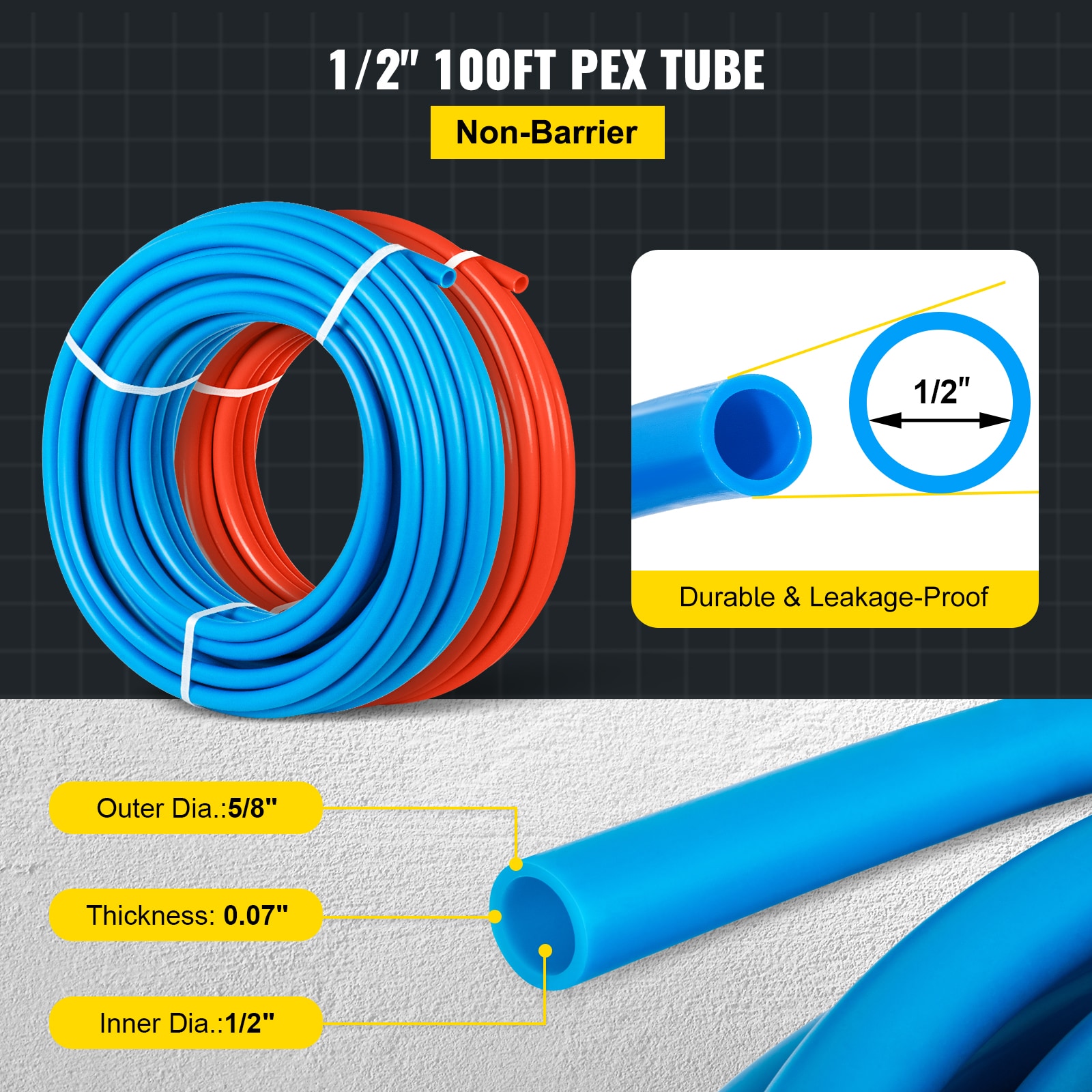

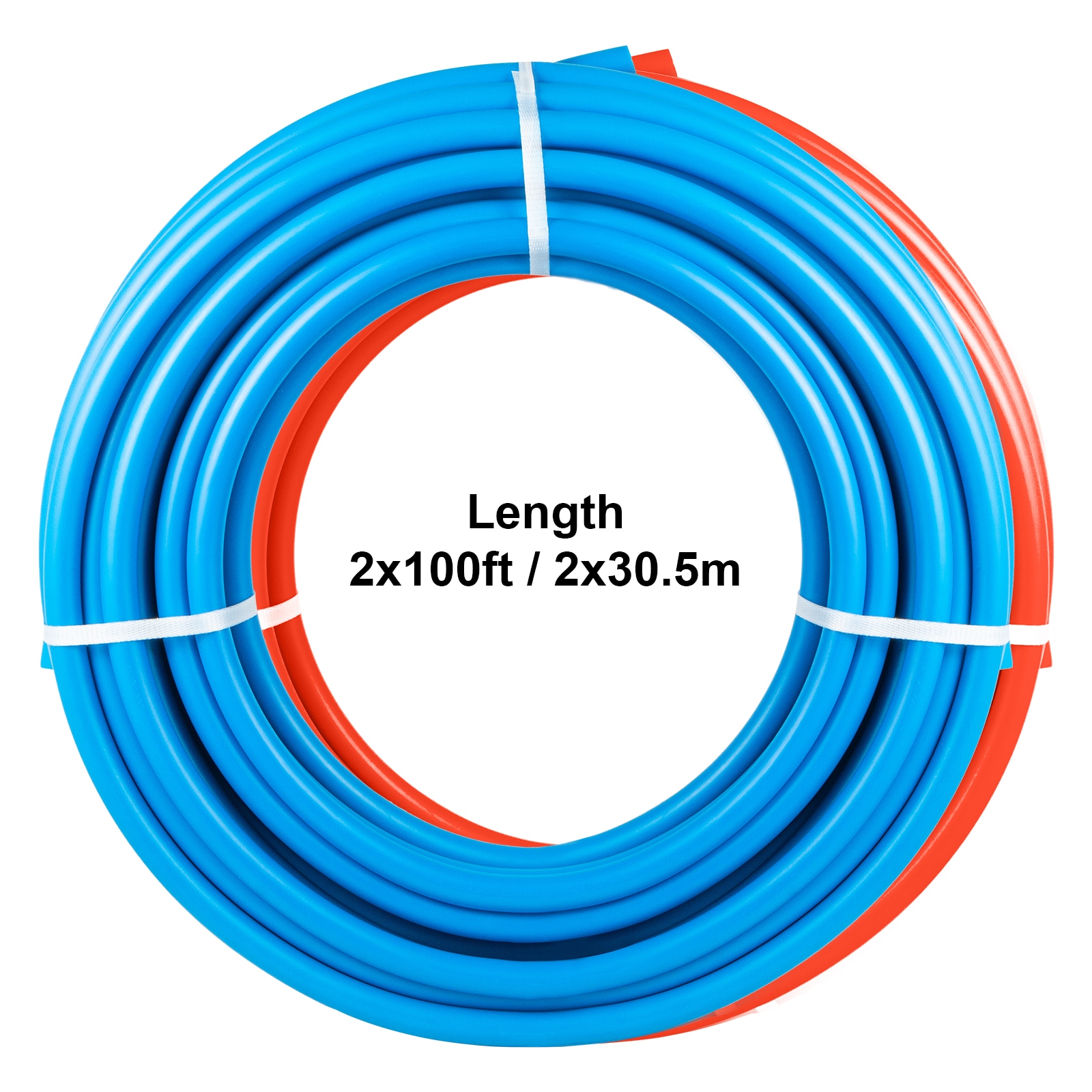

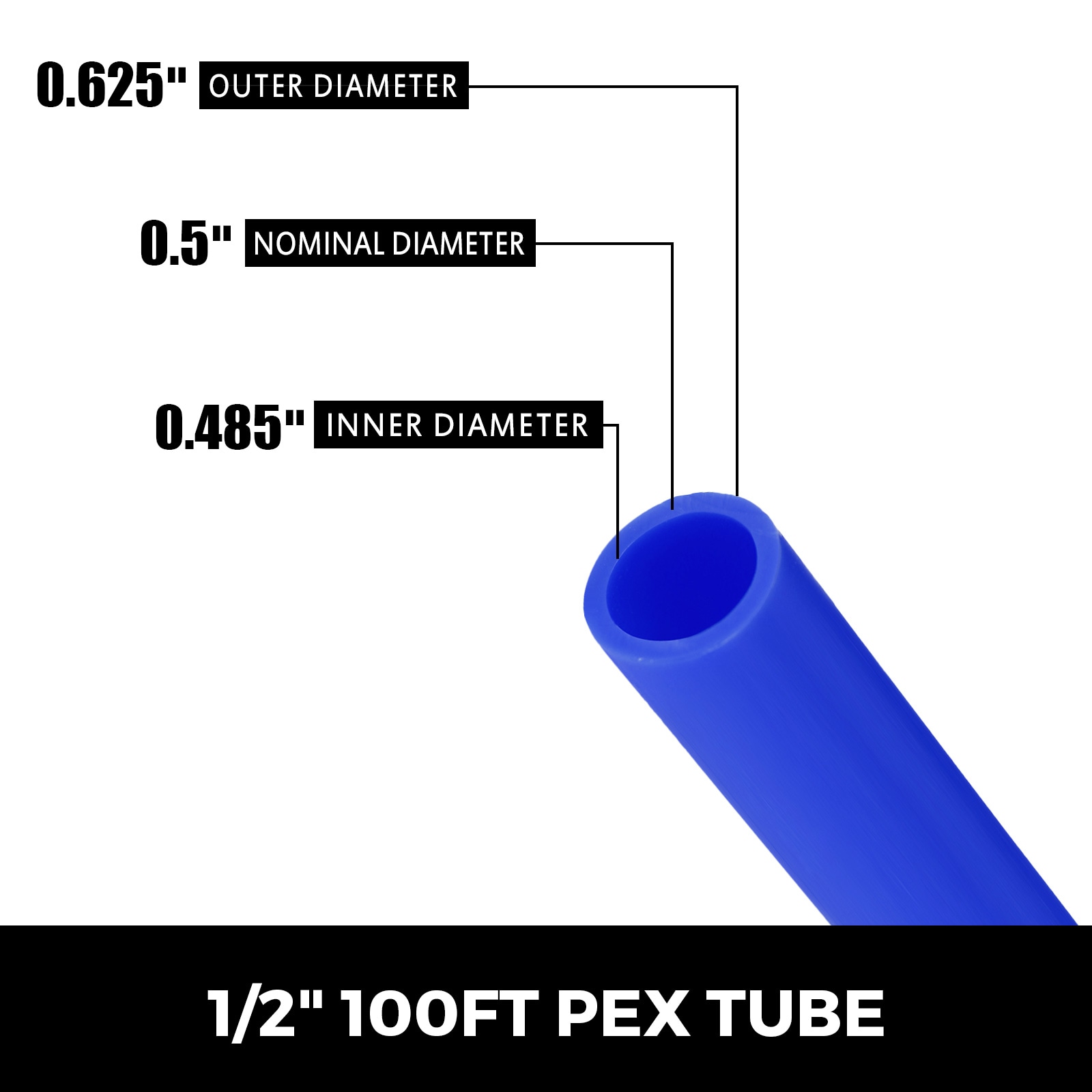

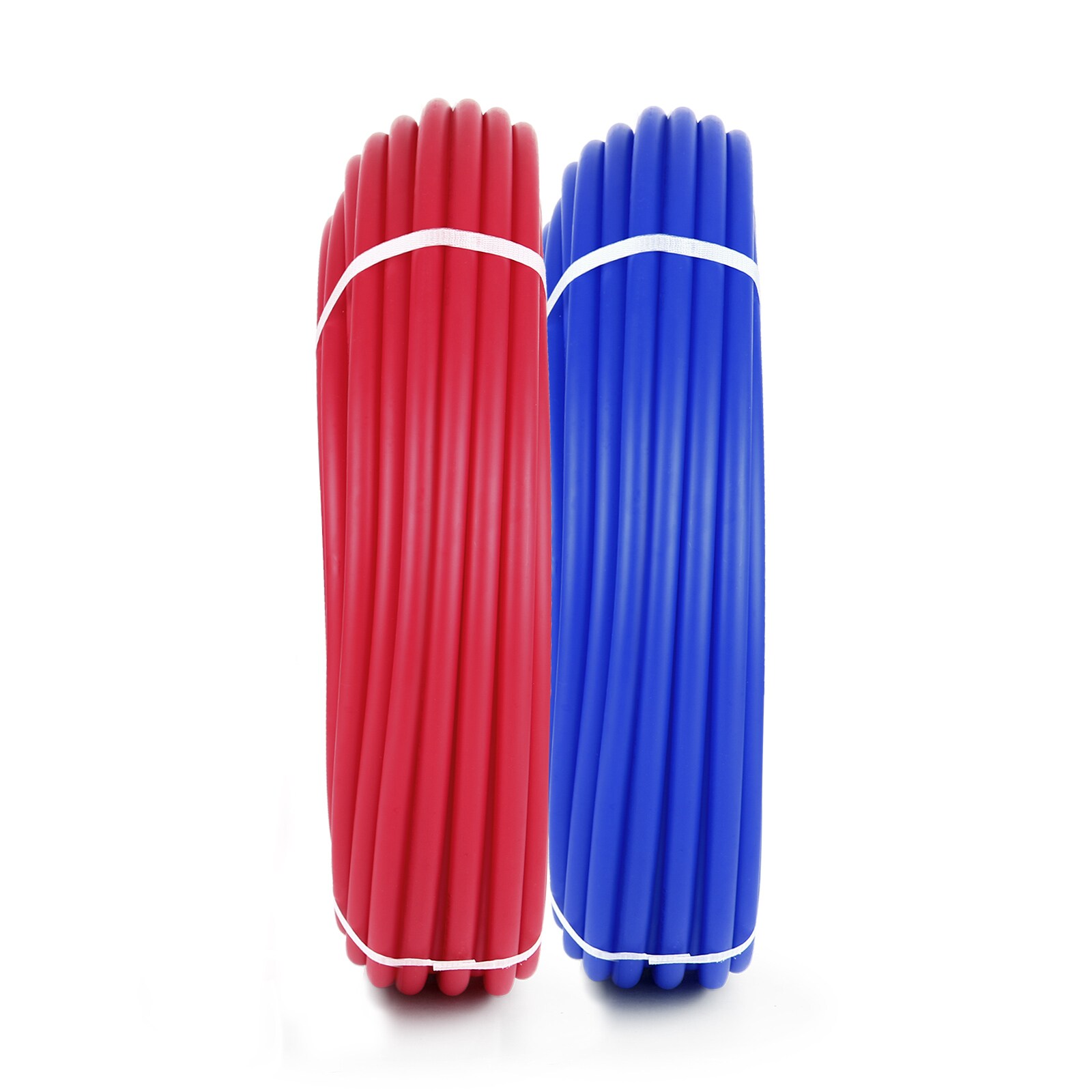

RELIABLE PEX MATERIAL- Color: Red & Blue; Nominal Dia;: 1/2"; Outer Dia;: 5/8"; Inner Dia;: 1/2"; Thickness: 0.07"; Total Length: 2x100 ft / 2x30.5 m; Built with excellent PEX material, this non-barrier PEX pipe is durable, water and dust-proof, non-leaking, and easy to maintain; It fits various home piping systems, like potable water and radiant floor water projects, providing quick and clean water flows in constant, without unpleasant smell or taste;
SUPERB SEALING DESIGN- Compatible water temperature: -40 degrees Celsius to 95 degrees Celsius/-40 degrees Fahrenheit to 203 degrees Fahrenheit; Pressure rate: 80 psi @ 200 degrees Fahrenheit, 100 psi @ 180 degrees Fahrenheit, 160 psi @ 73 degrees Fahrenheit; This non-broken 1/2" PEX tube can tackle different temper and pressure circumstances, whether in high or low temper and pressure; Such stable sealing performance ensures integrity and assured use in longer life expectancy;
EXCELLENT FLEXIBILITY- Design with min;5" bending radius, this PEX radiant heat tubing is easy to bend for different ground situations; You can install it effortlessly on floors or walls, and with its bendable features, you can mount it in corners without breaking or cracking, which greatly saves your fittings and connectors;

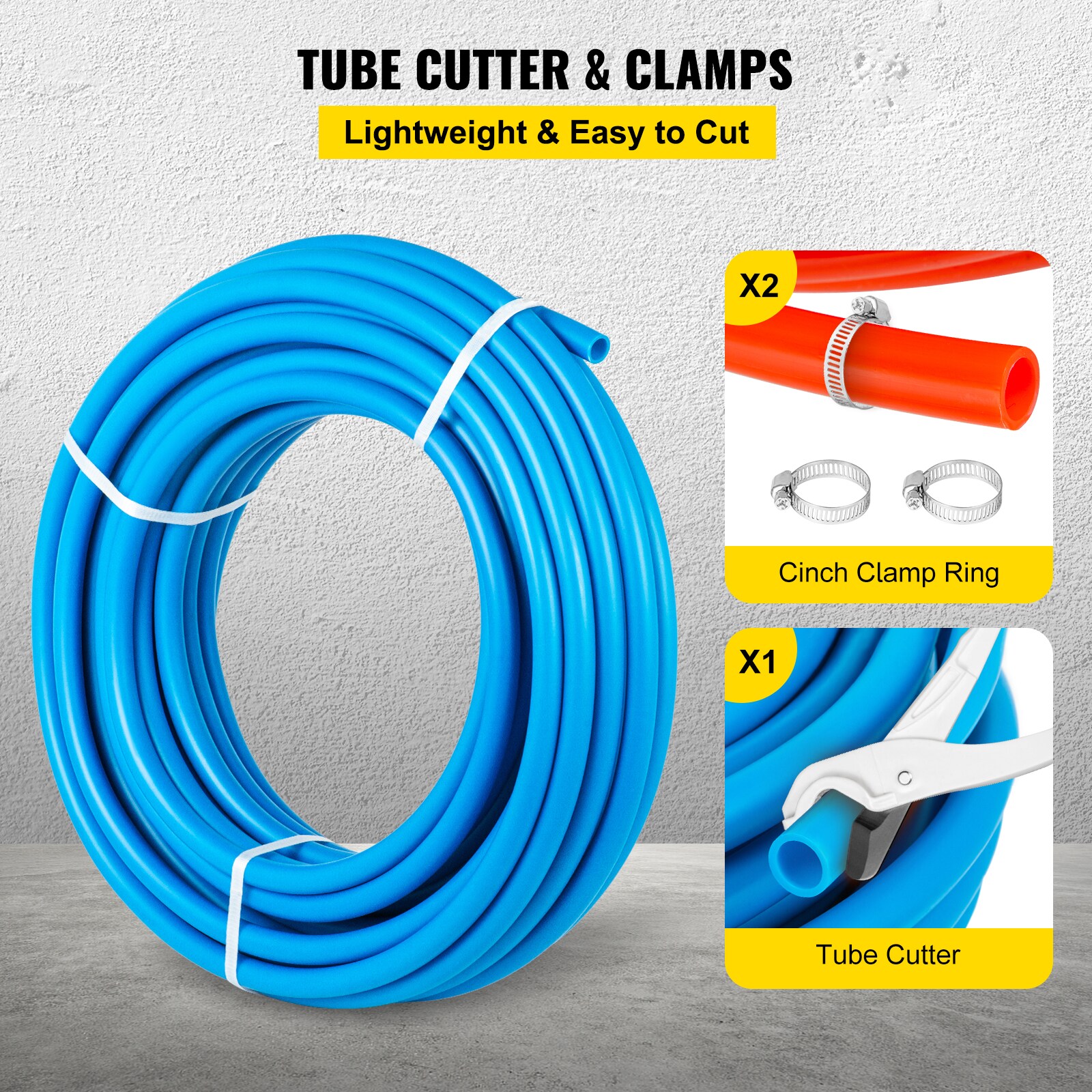

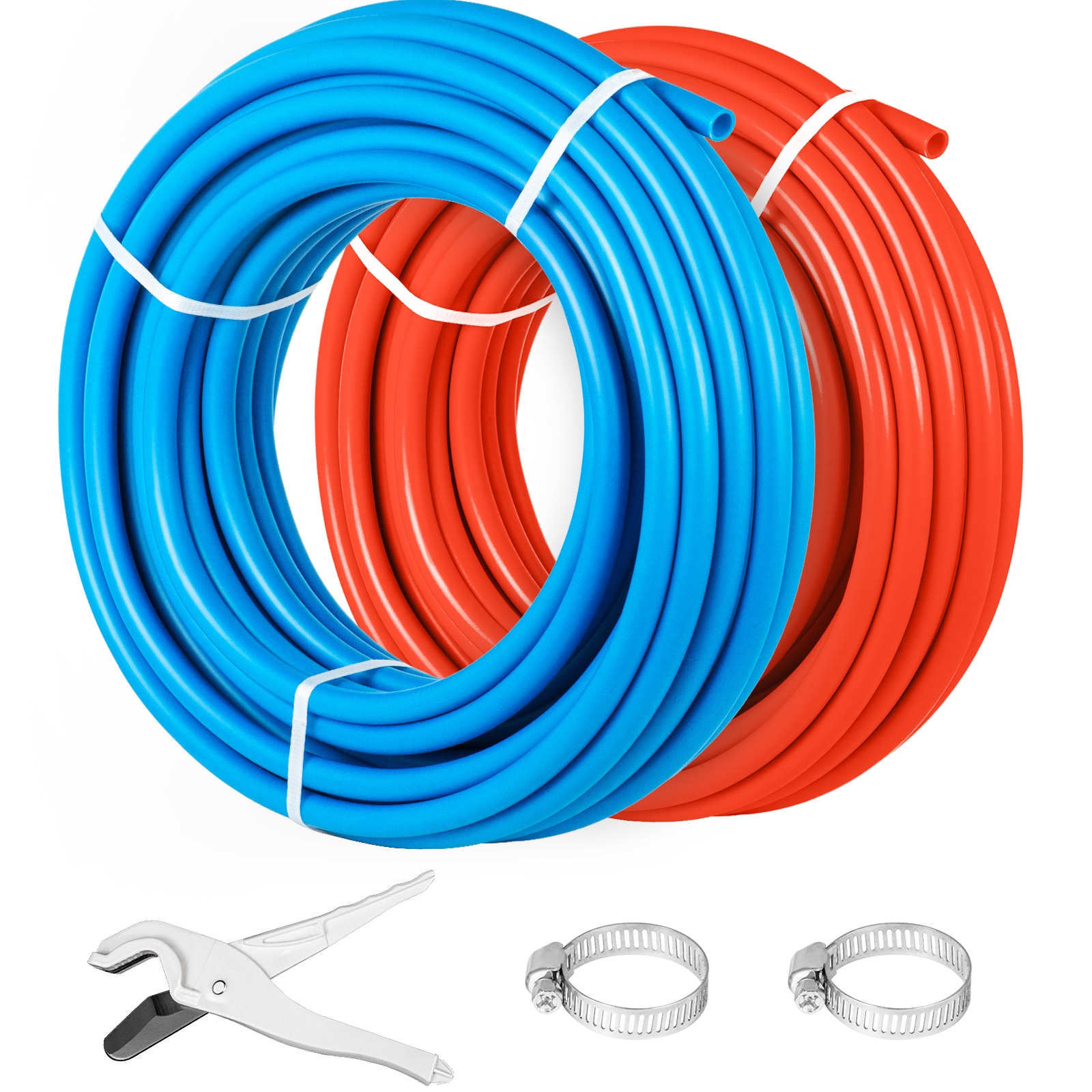

INSTALLATION WITH CUTTER- The pipe kit comes with 2 x clamps and 1 x cutter; It can be installed in different connection systems of floor types, such as crimp connection system (crimp tool + crimp rings + crimp fittings), cinch (clamp) connection system (cinch tool + steel clamps + crimp fittings), press system (by Viega), compression PEX fittings;

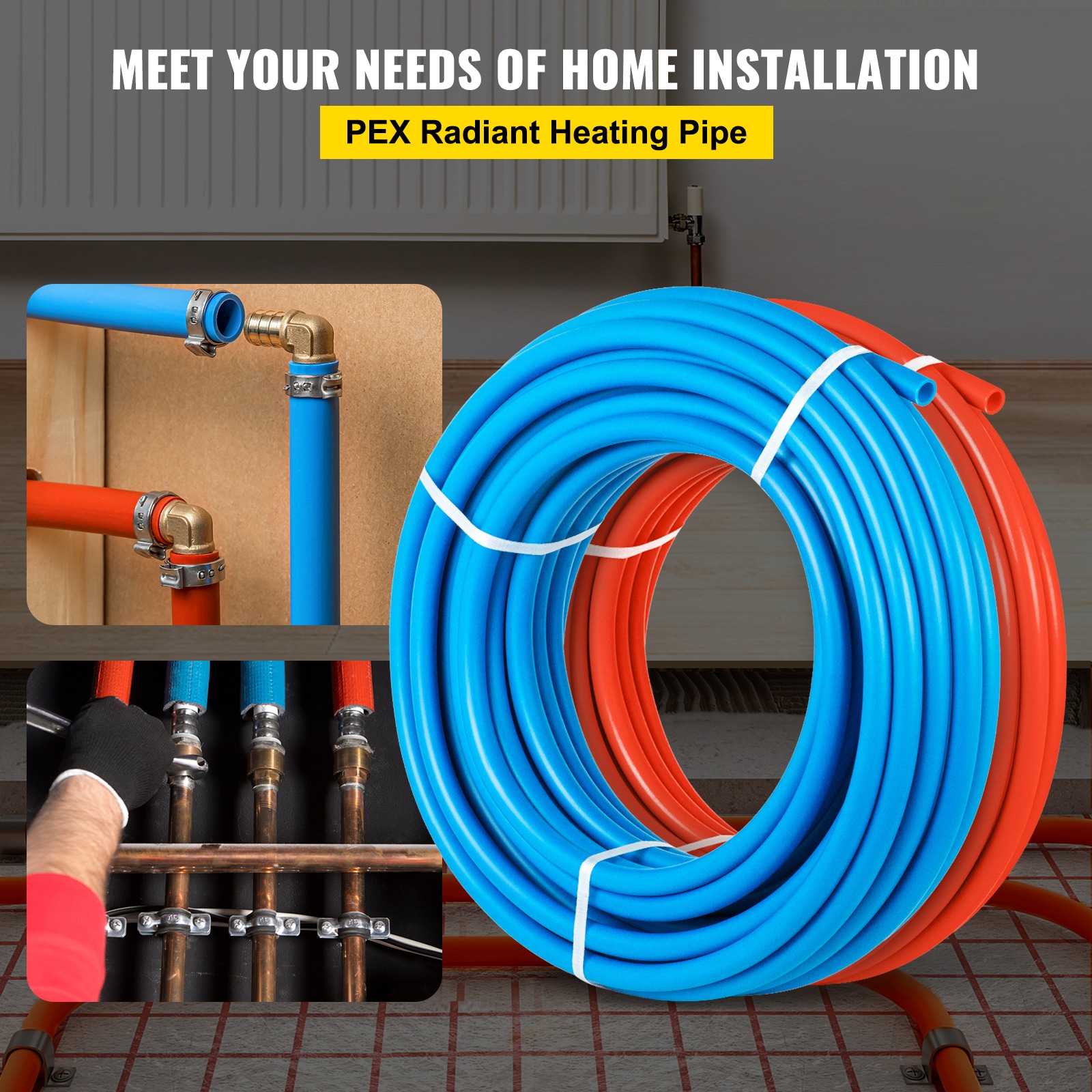

RESIDENTIAL & COMMERCIAL USE- Our flexible PEX line is suitable for residential & commercial use, like radiant floor heat system, solar water heater system, central air-conditioning piping system, snow & ice melting system, hot & cold water plumbing, etc;
Specification: Type: PEX-B Tube (Non Oxygen Barrier); Color: Red & Blue; Total Length: 2x100ft / 2x30.5 m; Nominal Diameter: 1/2" / 1.2 cm; Inside Diameter: 1/2" / 1.2 cm; Outside Diameter: 5/8" / 1.6 cm; Tube Thickness: 0.07" / 1.8 mm; Temperature Range: -40 to 95 degrees Celsius / -40 degrees Fahrenheit to 203 degrees Fahrenheit; Pressure Rate: 80 psi @ 200F, 100 psi @ 180F, 160 psi @ 73F By PPI; Min;Bending Radius: 5" / 12.7 cm; ANSI/NSF 14, ANSI/NSF61, NSF-Pw (Certified for Radiant Heating Applications); UPC listed by IAPMO; SDR-9 Dimensional Standard; Meets & Exceeds DIN 4726 Standard
