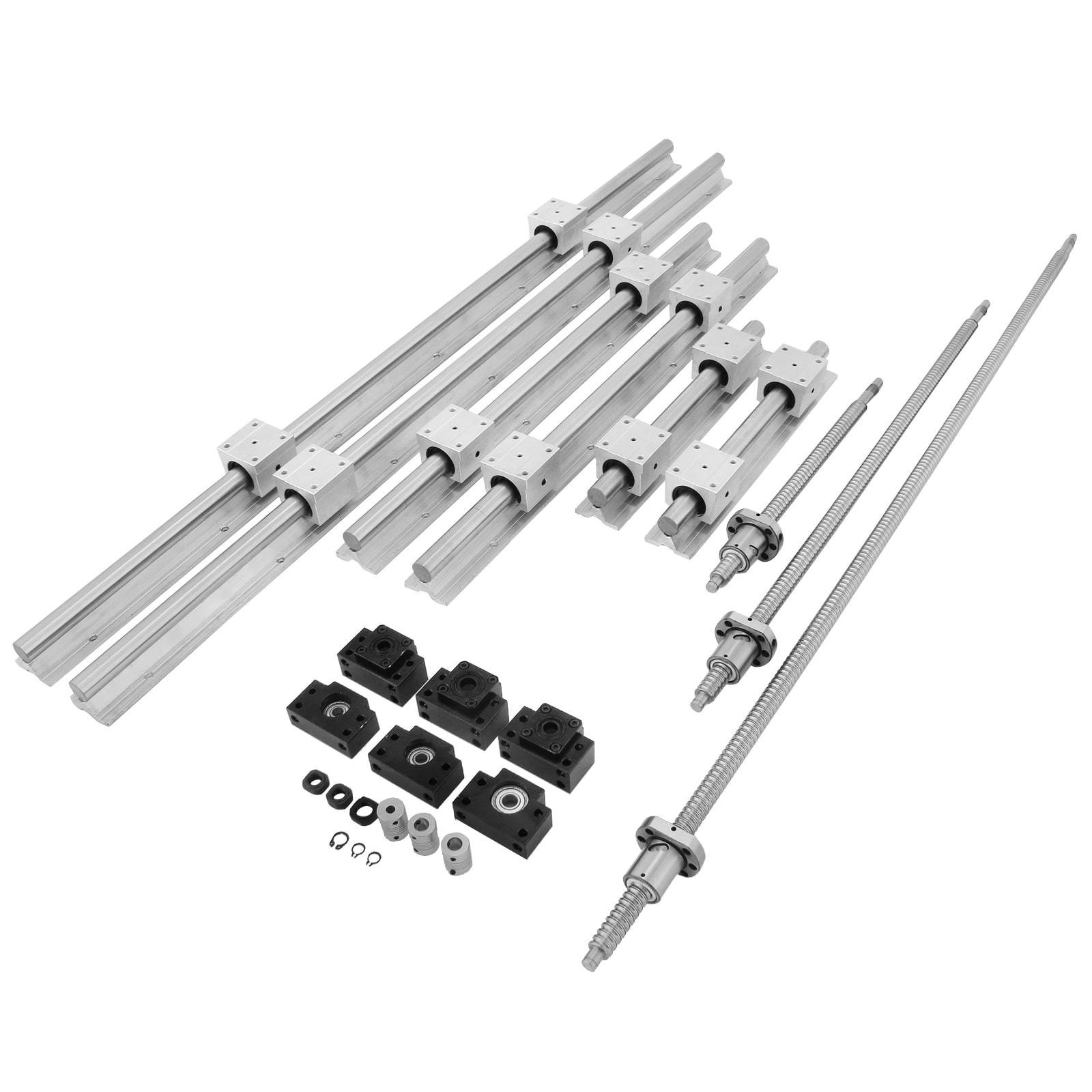

Linear Guide Rail Set: The listing is for supported linear rails SBR20-300/600/1000 mm rails (6 supported rails+12 SBR20UU bearing blocks), 3pcs of ballscrews RM1605-350/650/1050 mm-C7 (3 screws + 3 ball nuts + 3 end-machinings ), 3 sets of BK/BF12 (with locknuts and cir-clips) and 3pcs of flexible couplings; Move smoothly without deflection, minimal wear, and low noise;; [Package Content] 2 x SBR20-300mm Linear Rail Guide; 2 x SBR20-600mm Linear Rail Guide; 2 x SBR20-1000mm Linear Rail Guide; 1 x Ballscrew SFU / RM 1605-350mm- C7 with End Machined; 1 x Ballscrew SFU / RM 1605-650mm - C7 with End Machined; 1 x Ballscrew SFU / RM 1605-1050mm- C7 with End Machined; 12 x SBR20UU Linear Blocks; 3 x BK/BF 12 Support for Ballscrew; 3 x 6.35x10mm-25x30mm Flexible Couplings
SBR20-300/600/1000 mm rails, RM1605-350/650/1050 mm-C7 ball screws, couplings 6.35 mm*10 mm
Linear guides are made of quality material, ball screws with high efficiency and low heat generation
High working efficiency due to a lot of ball rolling motion between the screw shaft and nut

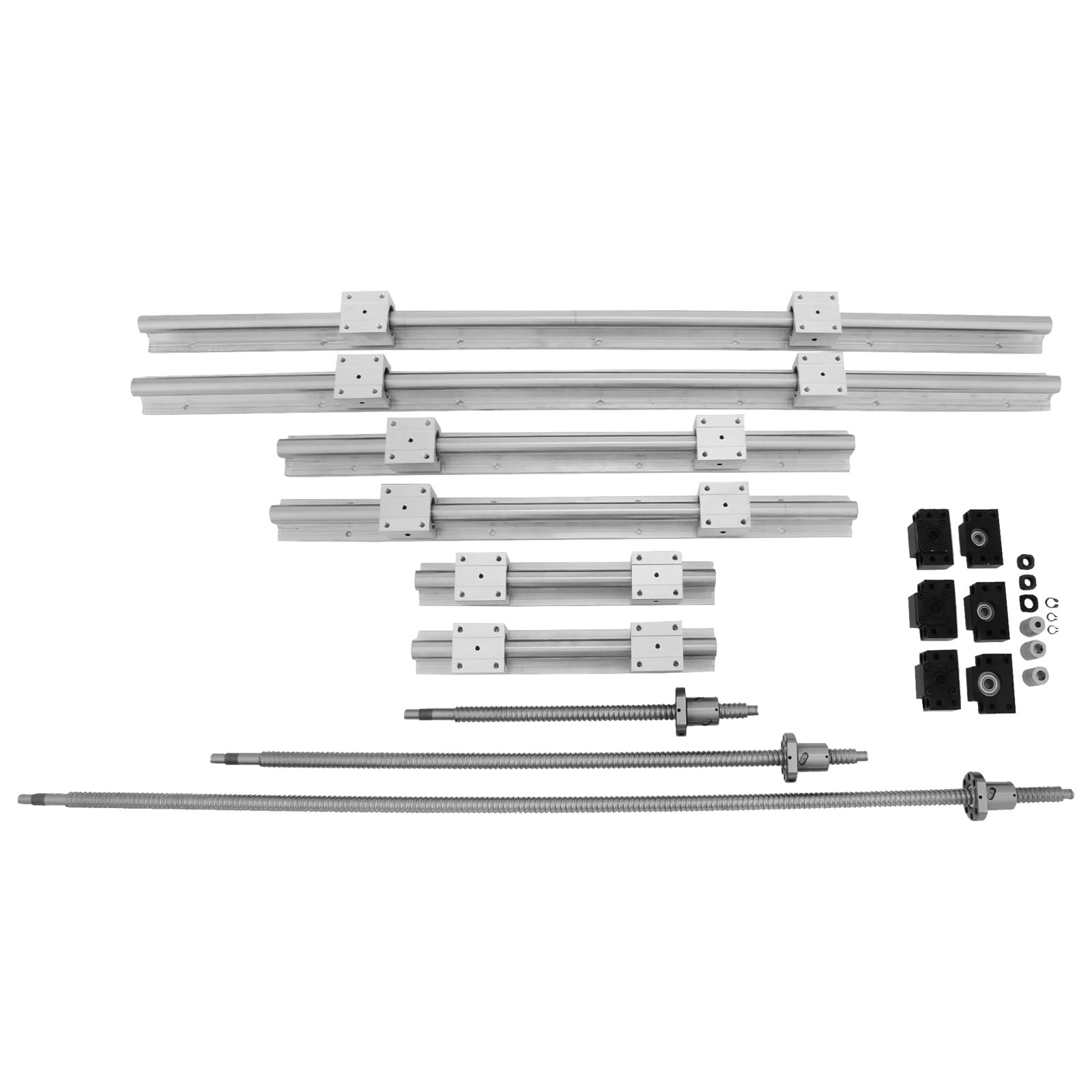

Complete Linear Rail Kits: This set includes supported linear rails SBR20-300/600/1000 mm rails, two for each type, 3pcs of ball screws RM1605-350/650/1050 mm-C7, 3 sets of BK/BF12, and 3pcs of couplings 6.35 mm*10 mm;

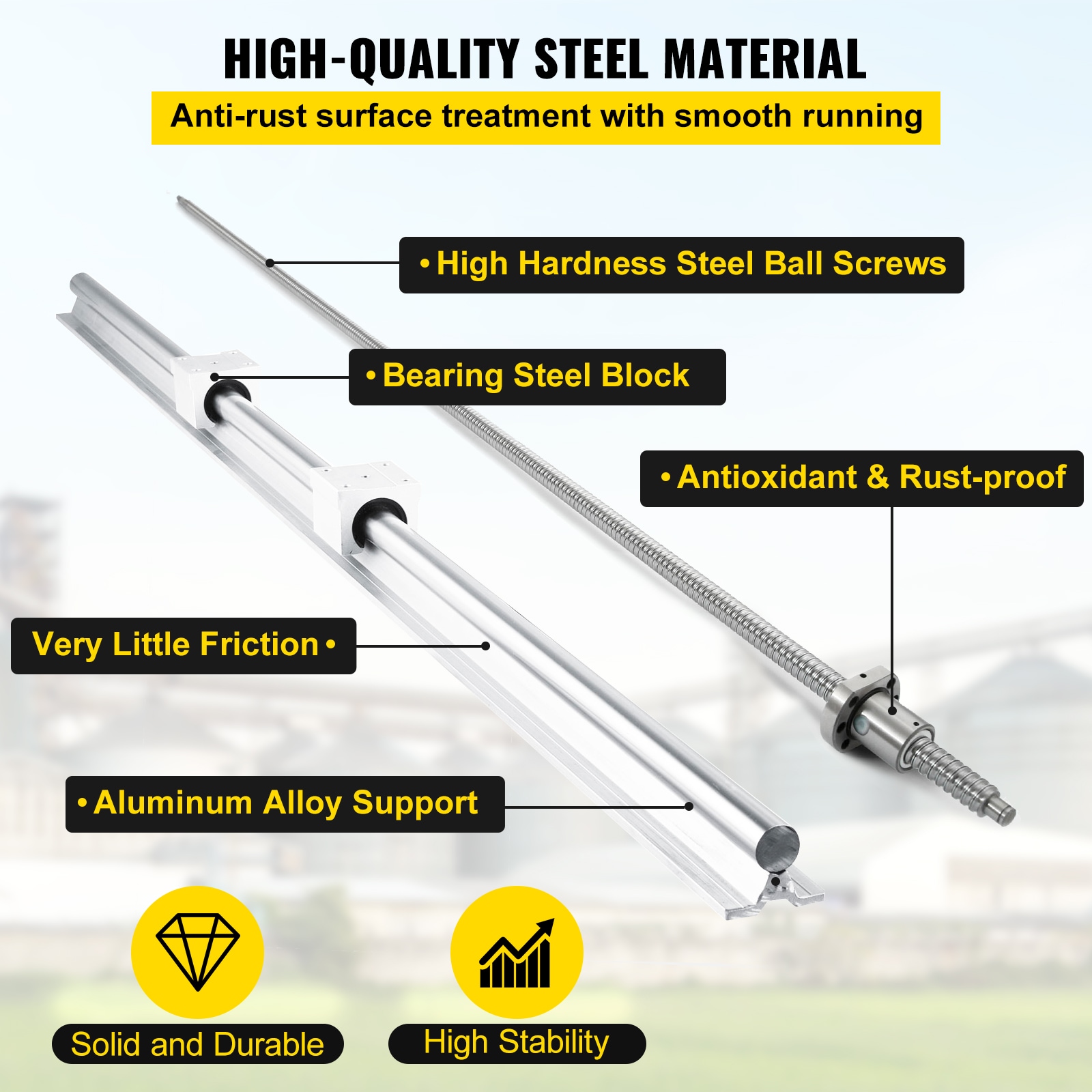

High-Quality Steel Material: Linear guides are made of quality material; The ball screw with high efficiency and low heat generation can ensure accurate micro feed and get a higher rigidity;

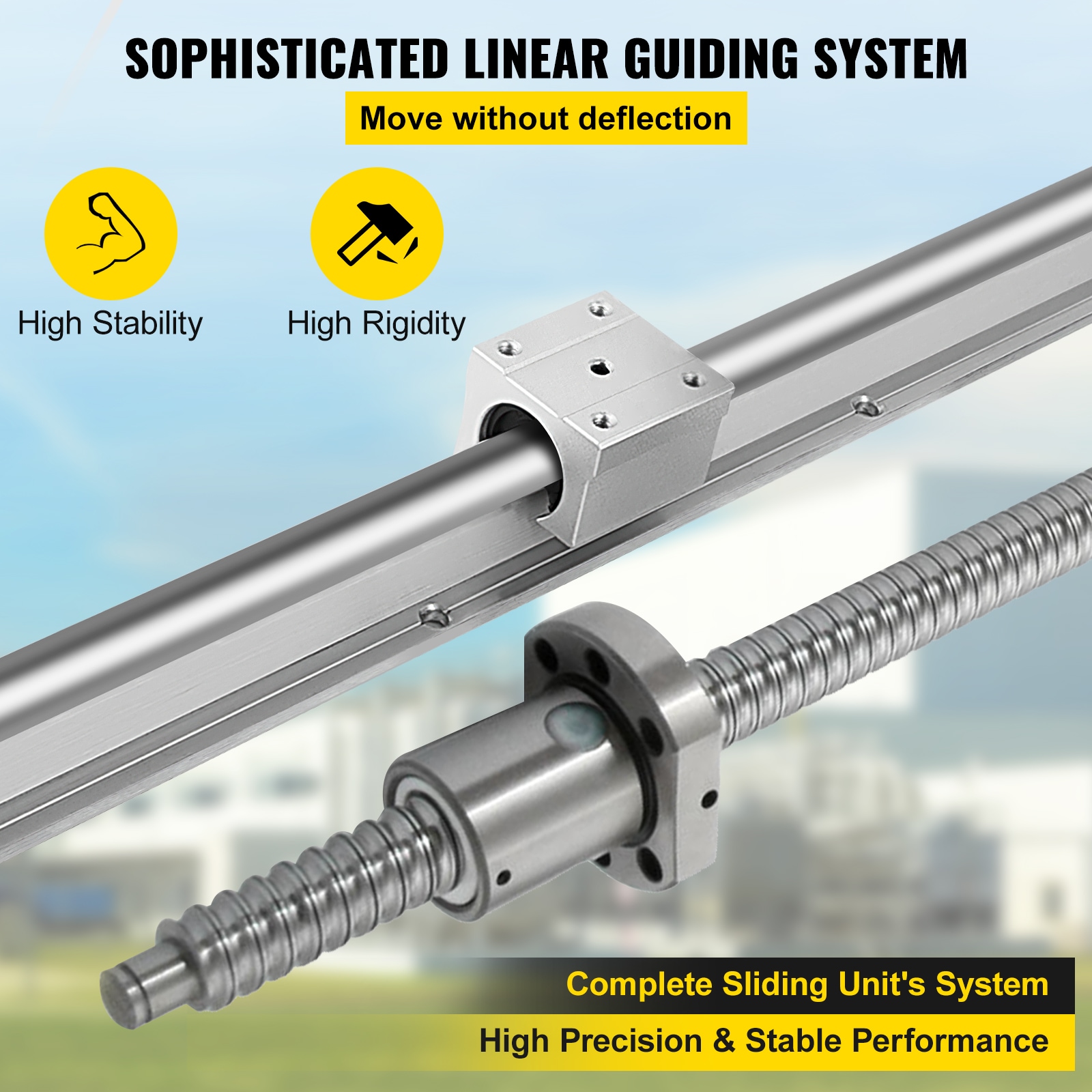

Premier Linear Guiding System: Complete sliding unit's system with high accuracy and can be moved without deflection; There is a lot of ball rolling motion between the screw shaft and nut; Therefore, it is possible to obtain a high efficiency of movement;

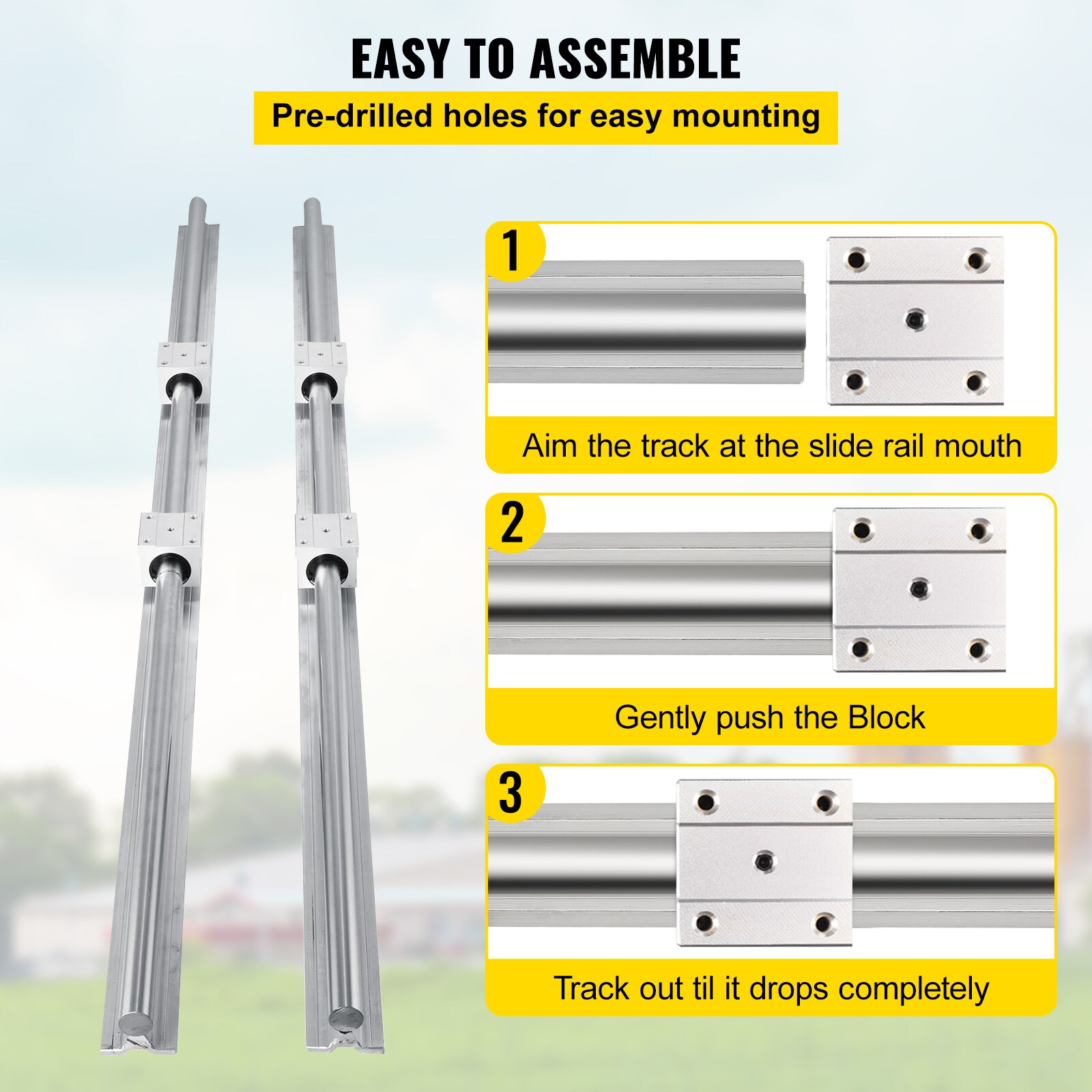

Easy to Install: Quality support rail with pre-drilled holes for ease of mounting; The ball screw movement achieves high-speed feed; Convenient to install it, less effort to maintain;

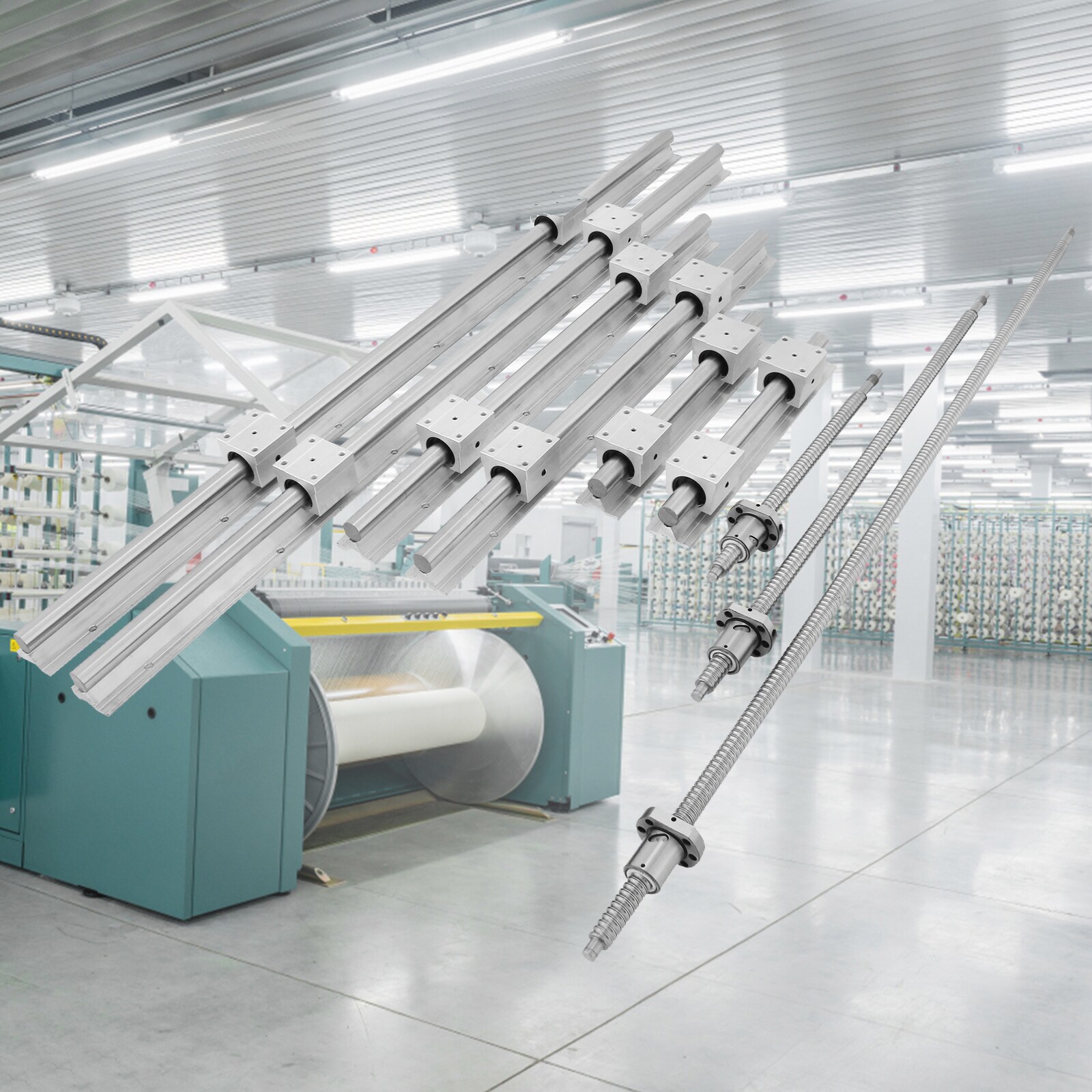

Wide Application: The linear guide rail is widely used in CNC Router / CNC Grinding machines, industrial machinery printing, paper-processing, automatic machine, X-Y table, factory automation equipment, etc;
Specification: Linear Guide SBR20 Length: 11.8/23.6/39.4 in (300/600/1000 mm); Ballscrew Length: 14.8/25.6/41.3 in (350/650/1050 mm); Class: C7; Screw Diameter: 0.63 in / 16 mm; Screw Pitch (Lead): 0.197 in / 5 mm; Screw Length: 7.87 in / 200 mm; Feature: Anti-friction; Packing Size: 44 x 8 x 4 in / 110 x 20 x 10 cm; G;W;: 44 lbs / 20 kg
