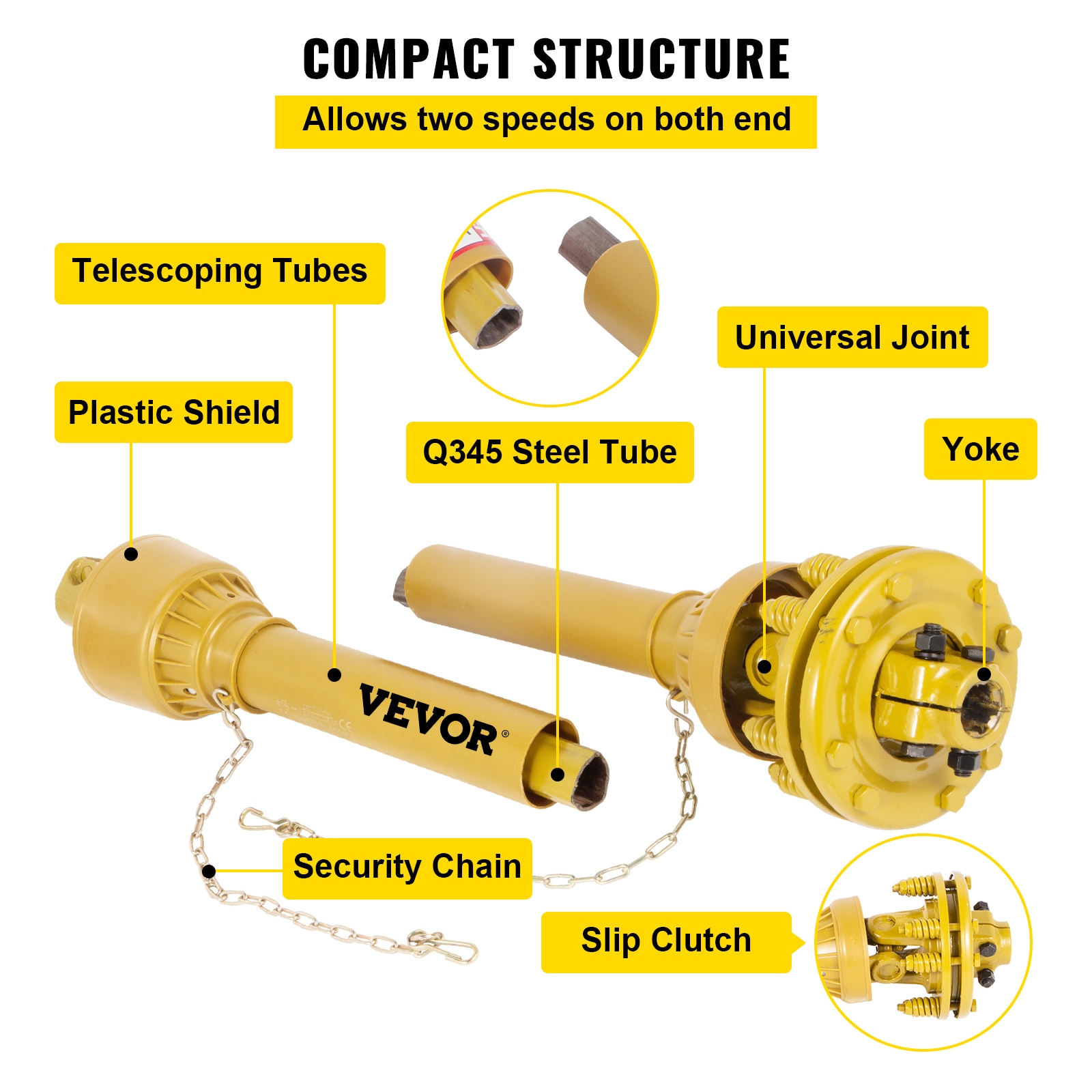

Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification; It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield; The PTO shaft is durable and robust when working with various agricultural machinery;

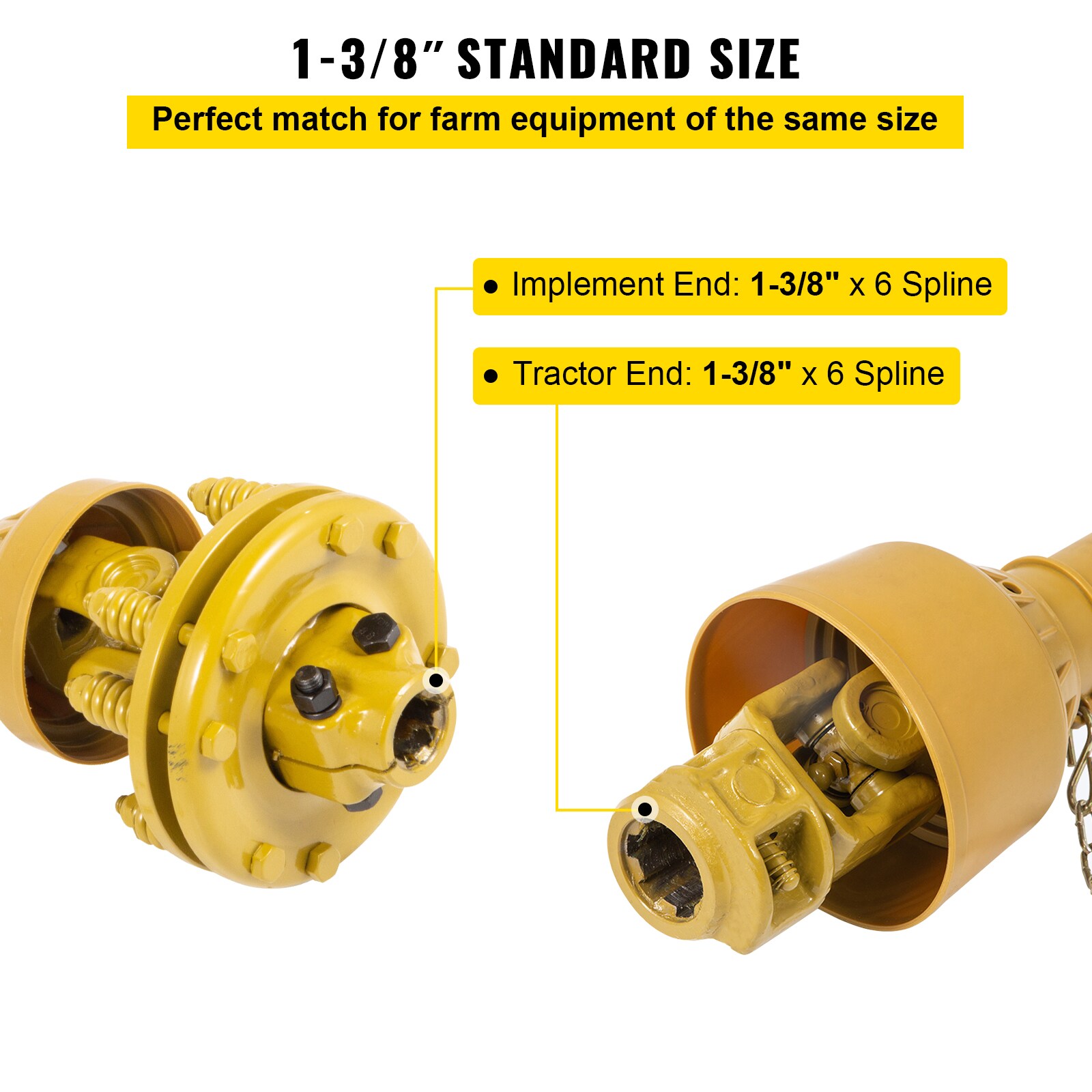

6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline; Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery; Your machinery will be running like never before;

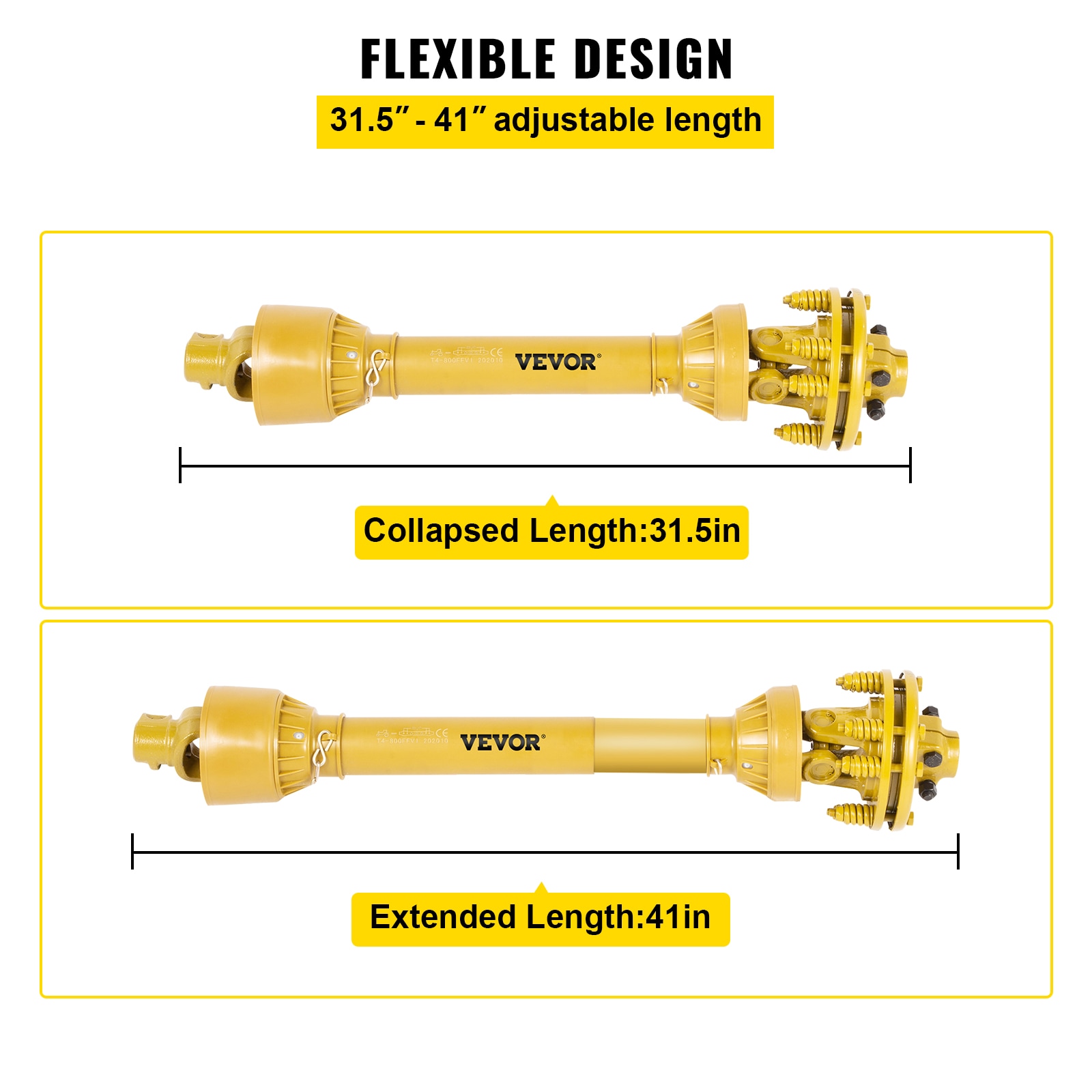

Adjustable Length: Compressed Length: 31.5"; Extended Overall Length: 41"; Friction Disc Dia: 5.5"; The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes; It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque; It allows two sides of the PTO drive line shaft to spin at different speeds;
It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield; The PTO shaft is durable and robust when working with various agricultural machinery;
Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery; Your machinery will be running like never before;
Extended Overall Length: 41"; Friction Disc Dia: 7"; The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes; It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque; It allows two sides of the PTO drive line shaft to spin at different speeds;

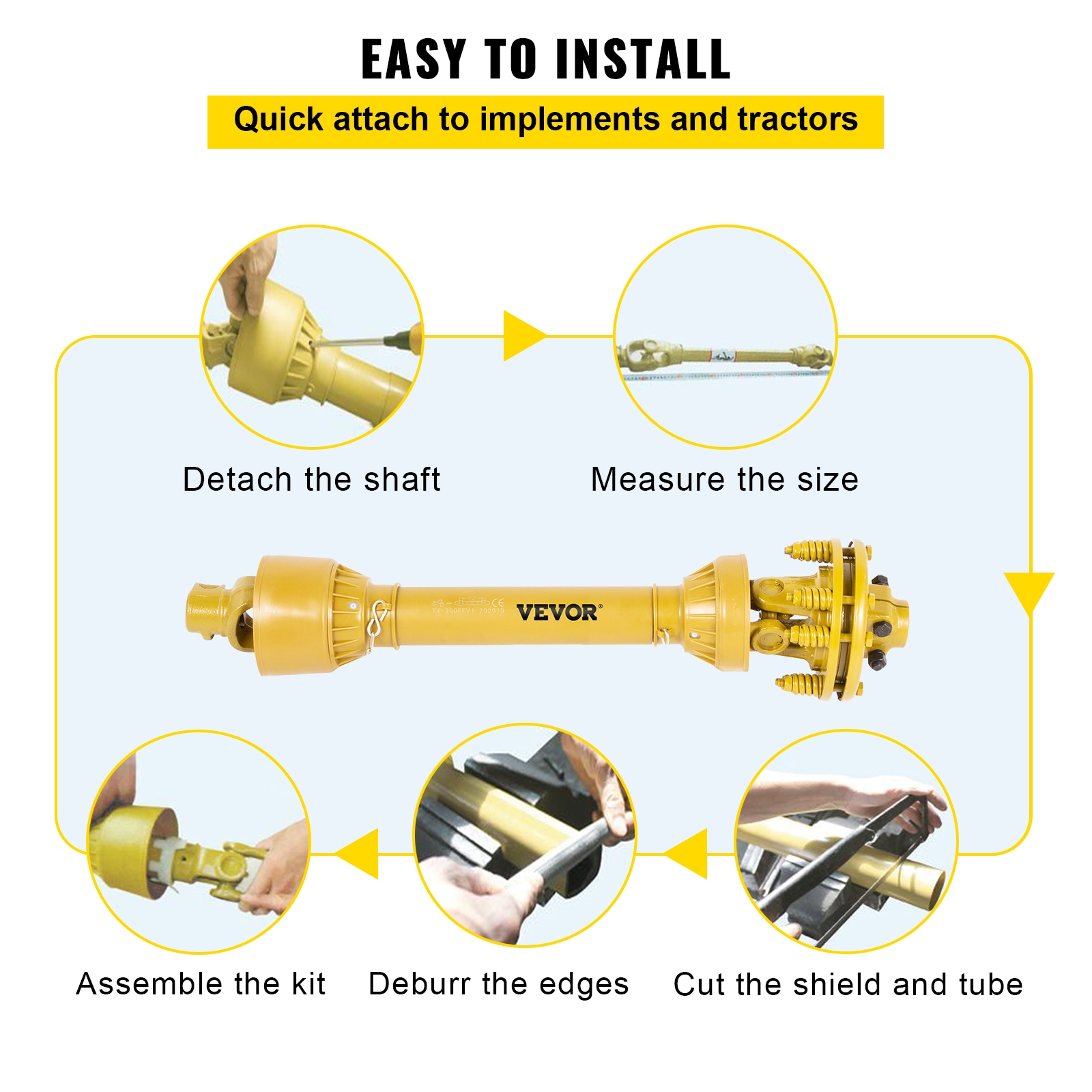

Easy Assembly ＆ Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for direct replacement; The slip clutch works as an extra security line for the PTO shaft to prevent further damage moving up the line; The security chain and plastic shield eliminate potential dangers in the transmission process;

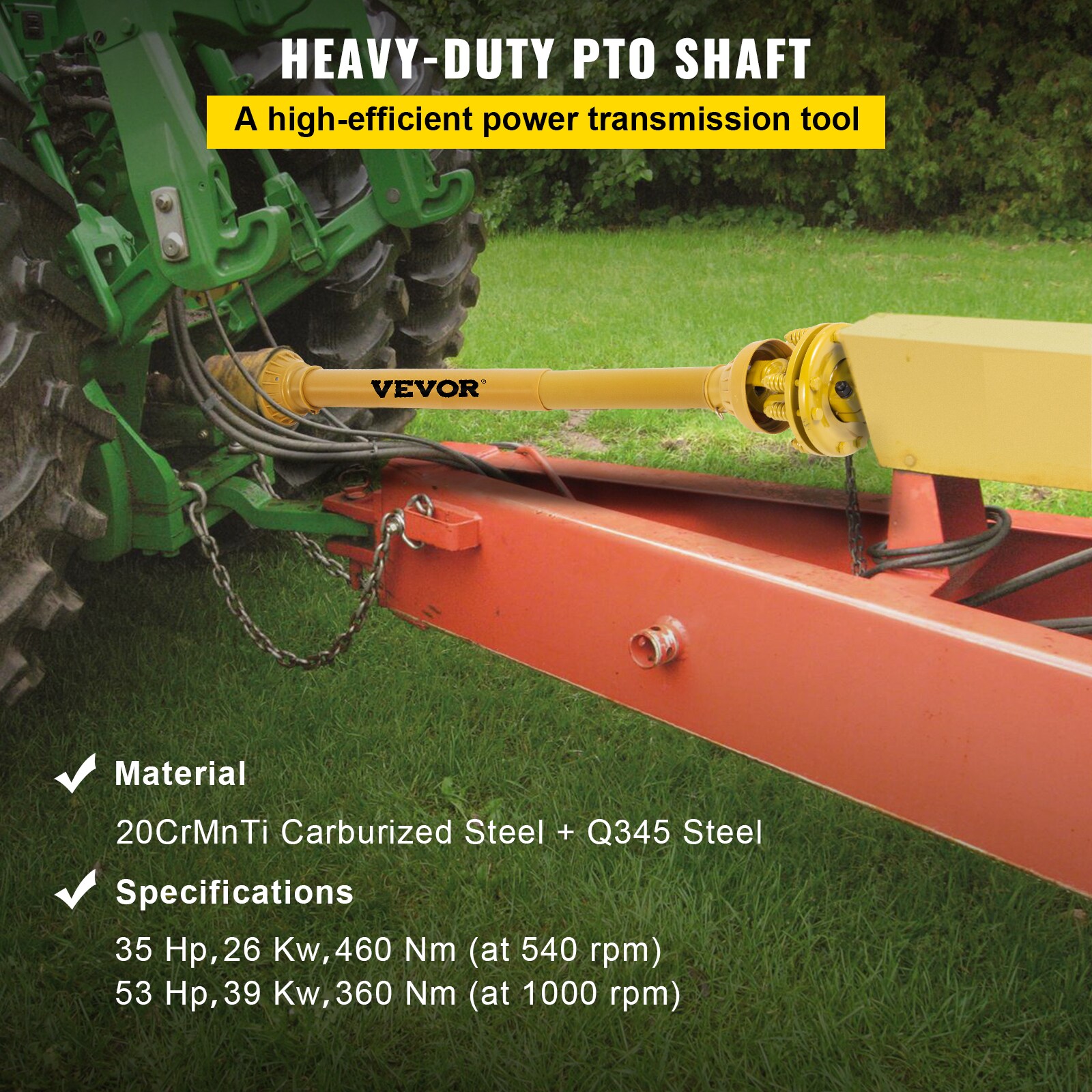

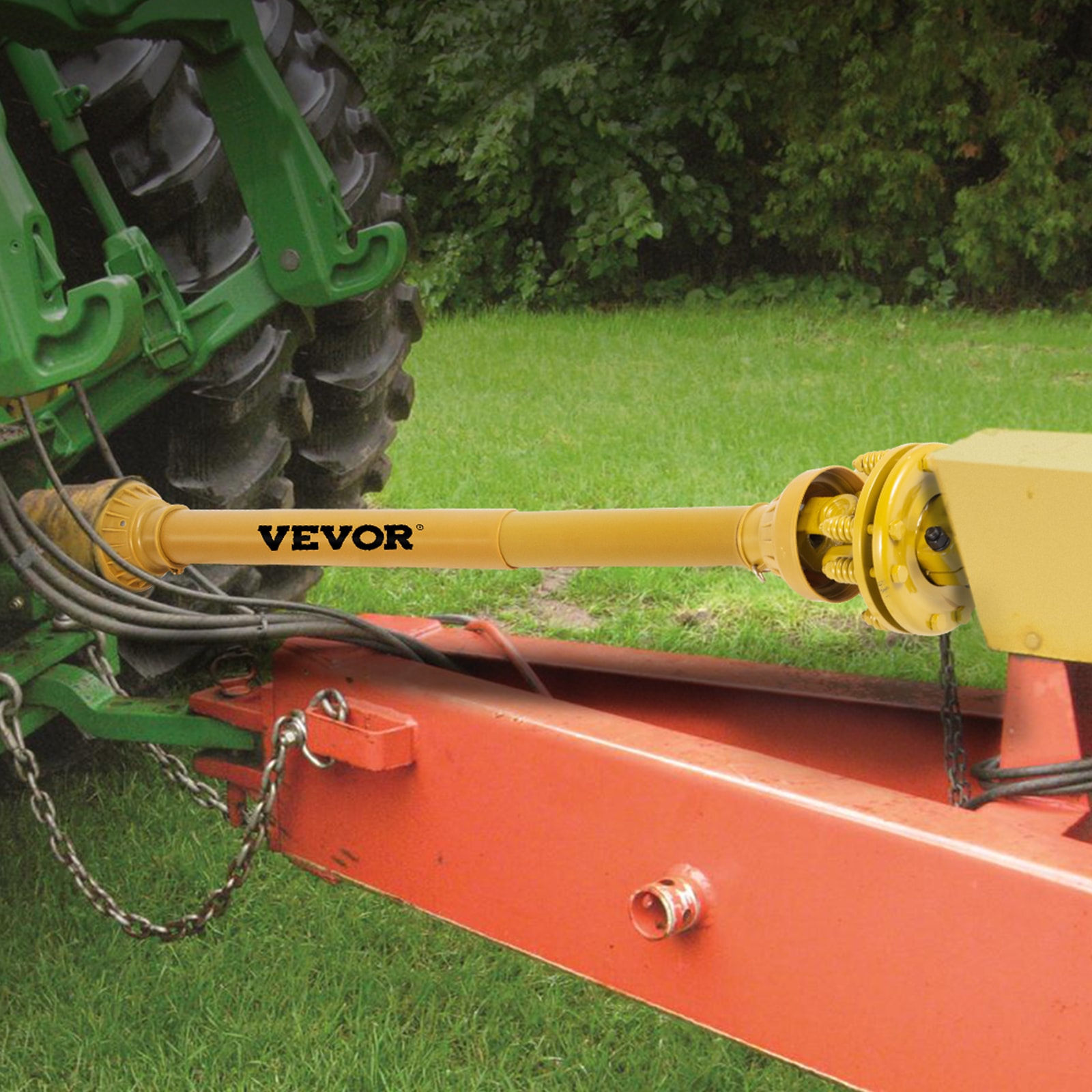

Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment; It is widely used on mowers, rotary tillers, tractors, and more; Control the speed and power of your machine effectively; Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner;
Specification: Model: T4-YⅢP*800mm*4.05.05B*4FFV1; Series: 4; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 31.5" / 800 mm; Extended Overall Length: 41" / 1050 mm; Max Torque: 900Nm; Friction Disc Dia;: 7" / 178 mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000PRM: 53hp, 39Kw, 360Nm; Color: Yellow
