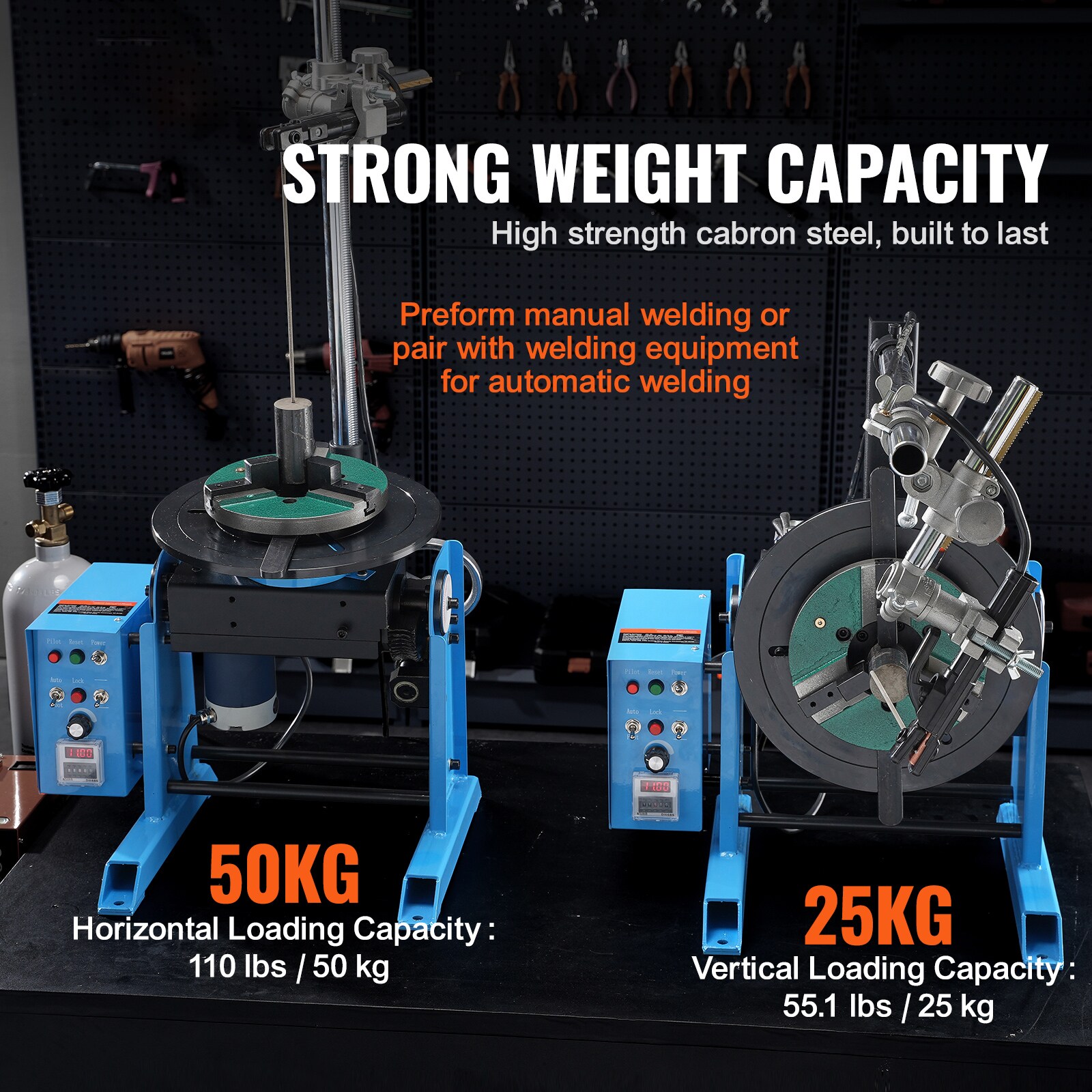

Built with high-strength carbon steel, the SVOPES welding positioner offers a solid load-bearing capacity of 55 lbs vertically and 110 lbs horizontally; Its rugged construction is designed to withstand heavy-duty welding tasks and is resistant to corrosion for long-lasting performance.
The positioner comes with a KD200 chuck that features a clamping range of 10-210mm and a supporting range of 80-190mm; This chuck ensures that the workpiece stays securely in place during welding, reducing movement and increasing accuracy.

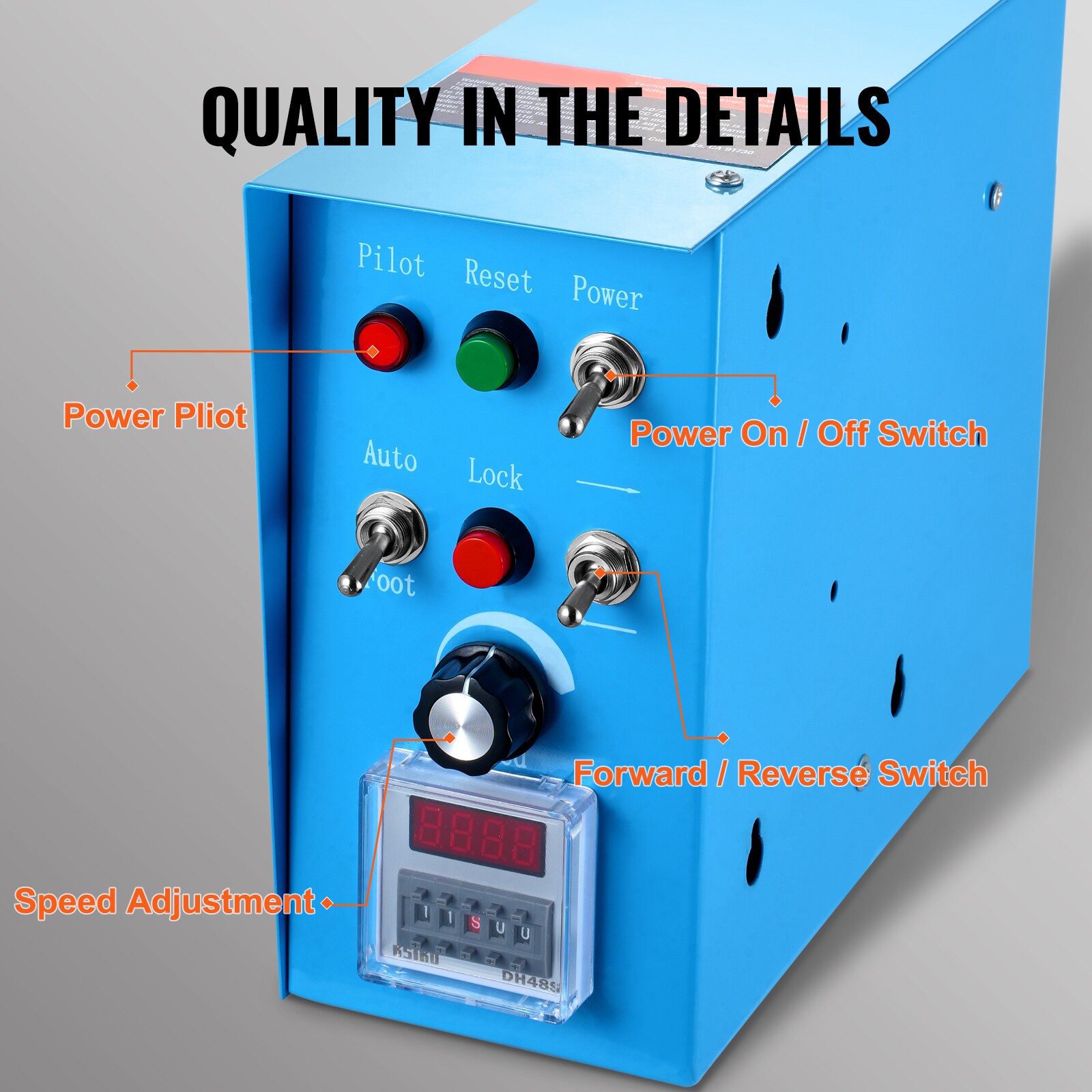

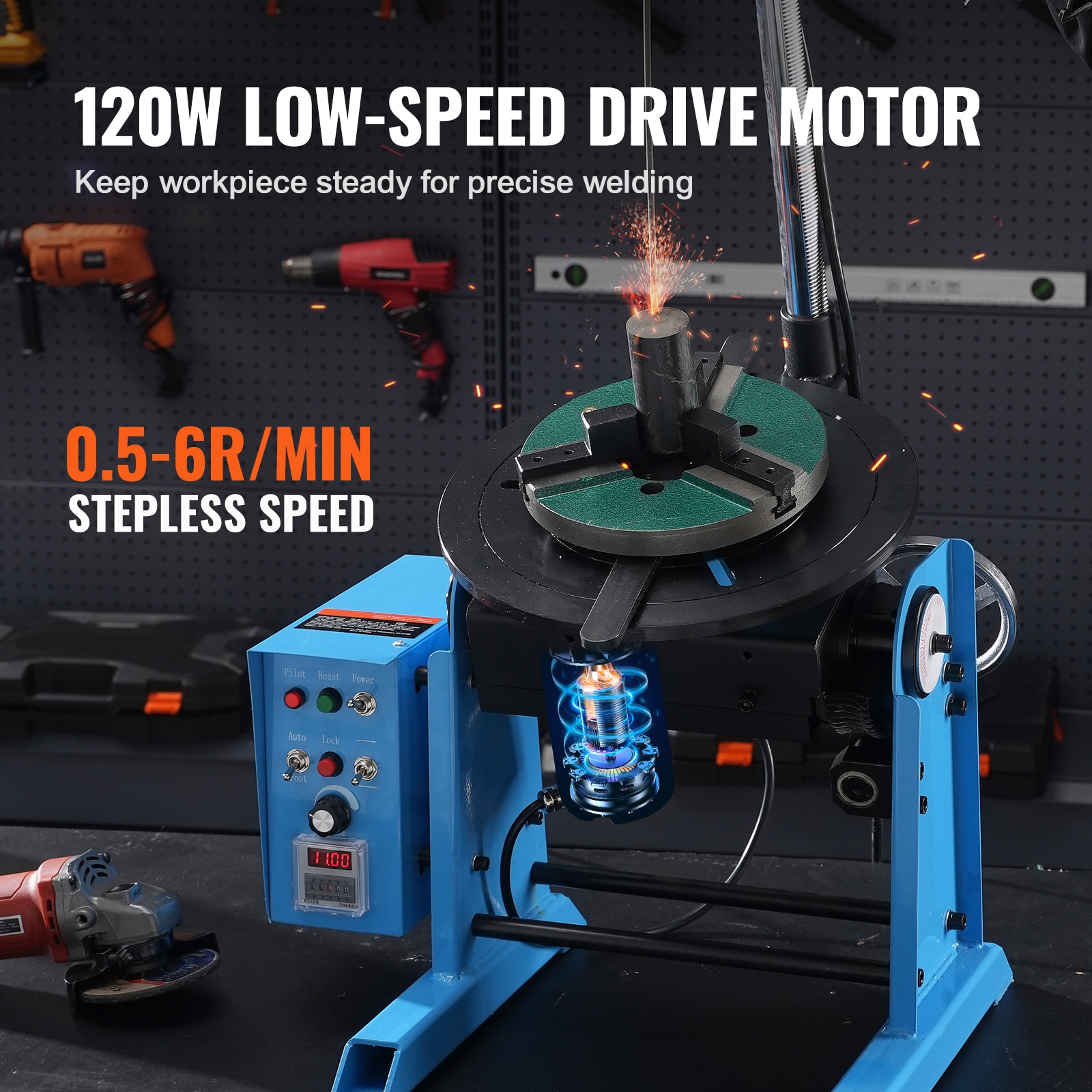

Operate the 360° rotating worktable with ease using the foot pedal switch; The intuitive control box allows for stepless speed adjustments ranging from 0.5-6 RPM, giving you full control over the welding process and ensuring smooth, consistent results.
Featuring a worm gear mechanism with a self-locking function, the welding positioner ensures precise and secure positioning of workpieces; The handwheel enables accurate adjustment of the worktable's angle, while the included welding gun stand holder guarantees stable placement for precise welding.
This positioner is ideal for a wide range of welding applications, including metal, pipe, heavy machinery, and automated welding; It provides reliable and accurate results, making it suitable for various industries and welding tasks.

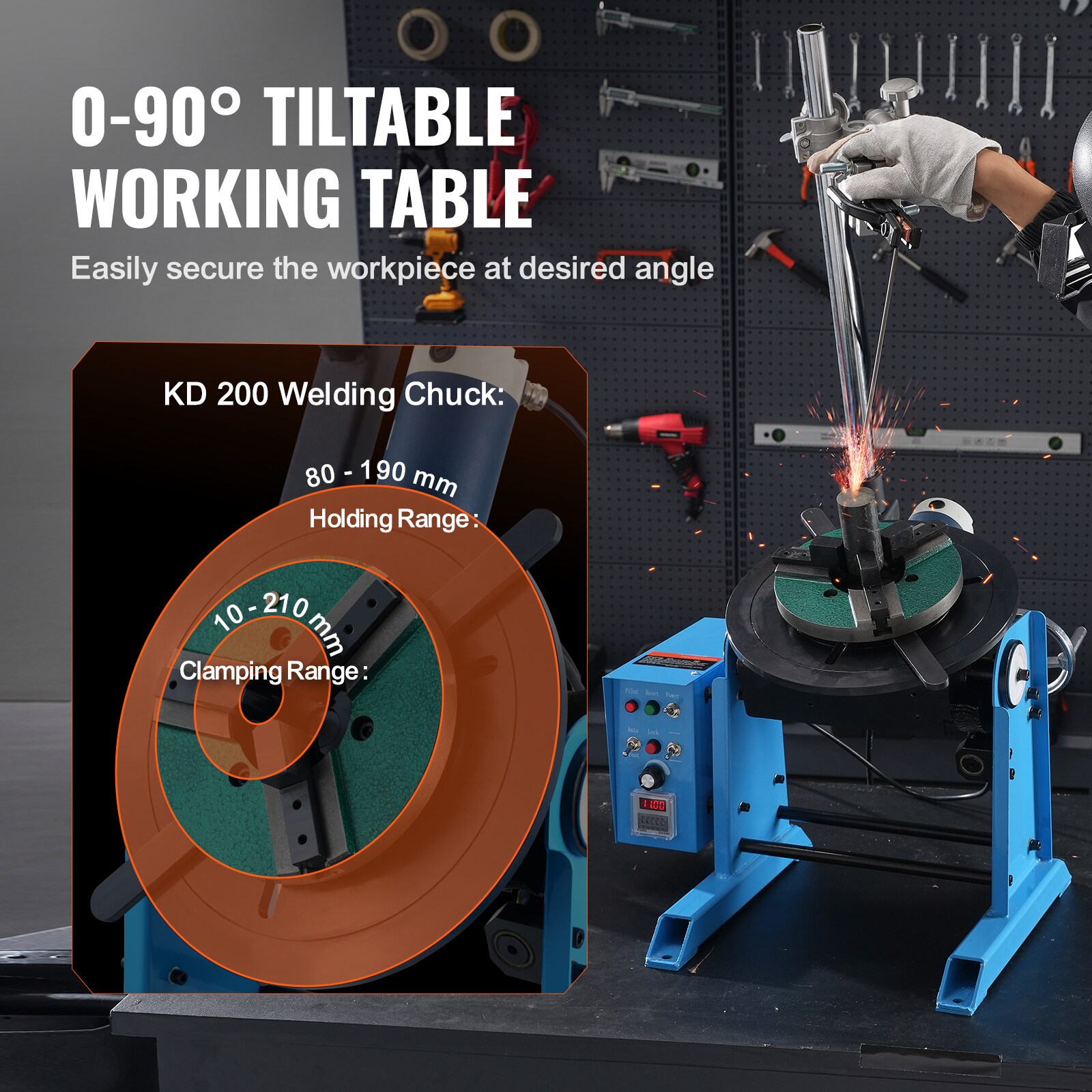

The turntable can tilt from 0 to 90°, providing flexibility in positioning; The handwheel securely locks the worktable at the desired angle, offering precise control for various welding angles and making it easier to reach hard-to-weld spots.
Versatile Welding Applications: The positioner is perfect for a wide range of tasks, including cutting, grinding, assembly, and testing; It can be easily mounted on a workbench or used with specific tooling for manual welding, or integrated with welding equipment for automated tasks, enhancing efficiency and precision in various industries.
Motor Power: 120W,
Speed: 0.5-6 RPM,
Horizontal/Vertical Load Capacity: 55lbs/25 kg ; 110lbs / 50kg,
Working Table Tilting Angle: 0-90°,
Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm,
Turntable Diameter: 12.4'' / 315mm,
Net Weight: 85.0 lbs / 38.6 kg,
Product Dimensions: 25.7'' x 19.8'' x 35.2'' / 652 x 502 x 895 mm,
Item Model Number: HD-50.

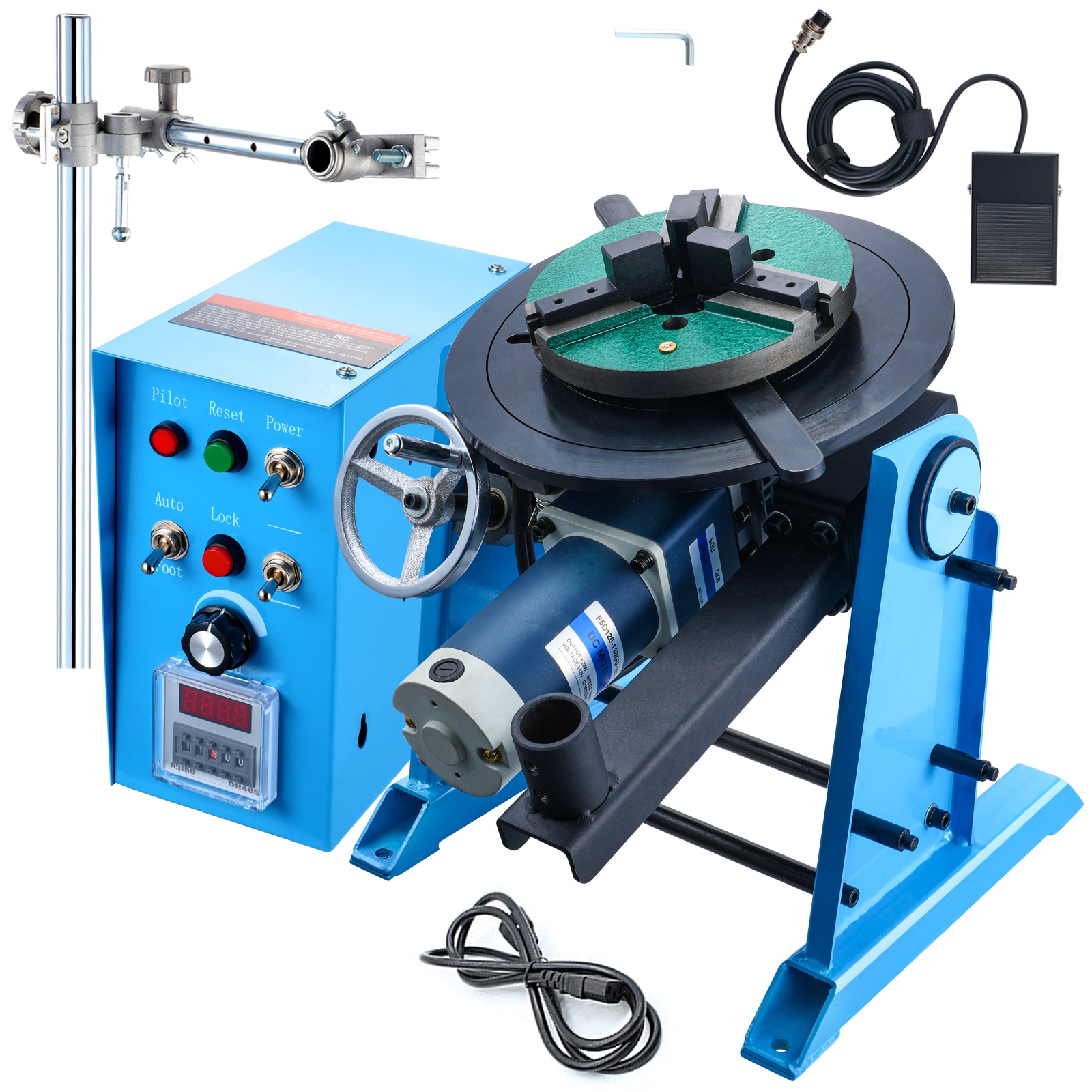

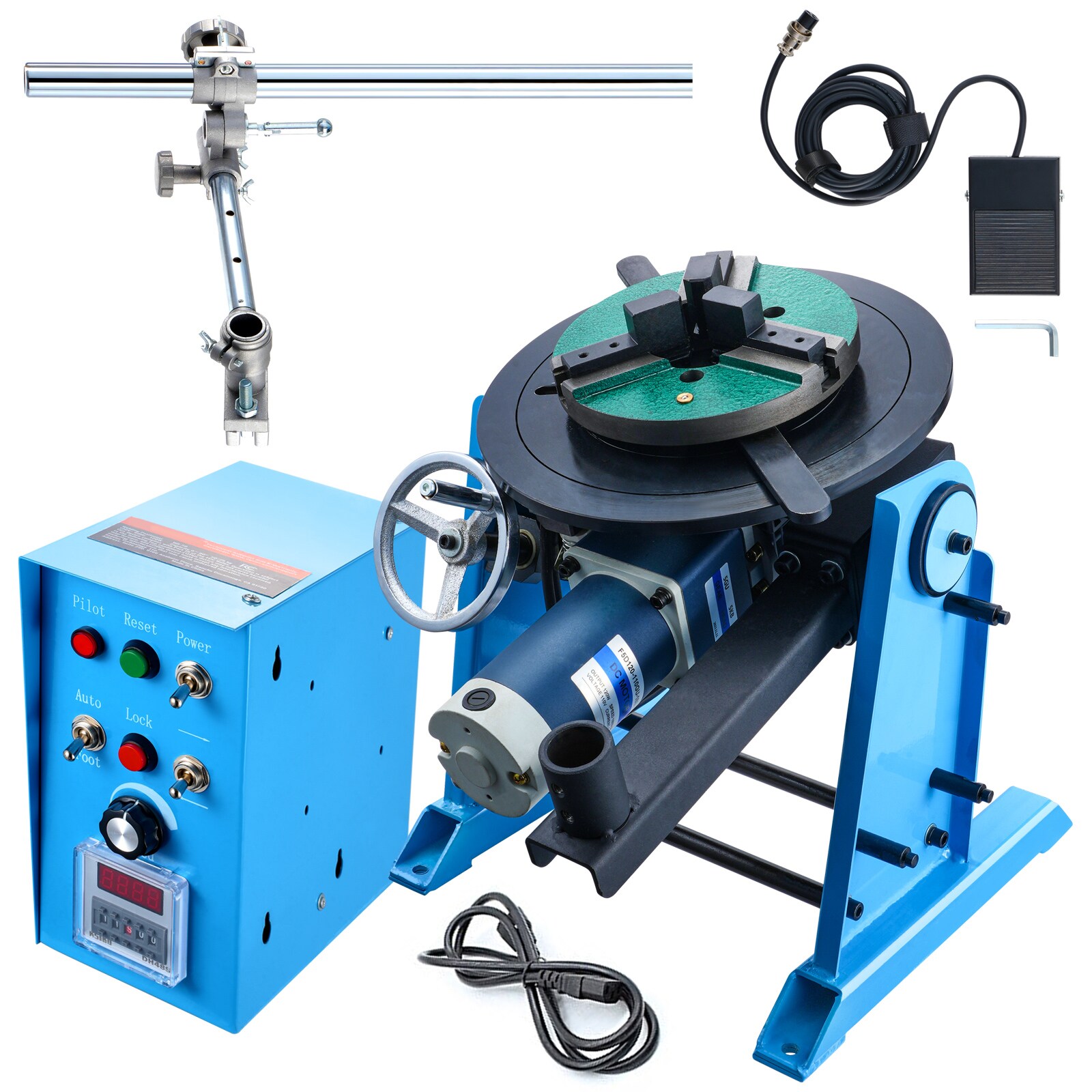

1 x Foot Pedal,
1 x Set of Hand Wheel,
1 x Control Box,
1 x Welding Machine Connection Aviation Plug,
1 x Set of Gun Holder (With Rod),
1 x Gun Stand Holder,
1 x User Manual,
1 x Power Cord,
1 x Set of Mounting Bolts (4 x Stud, 4 x Flat Washer, 4 x Spring Washer),
1 x M5 Hex Wrench.
