The SVOPES 7.5KW, 34A, 10HP VFD offers highly accurate motor speed control, optimizing both performance and energy efficiency. Featuring easy wiring, a user-friendly interface, and a soft start/stop function, this drive simplifies your operations while reducing mechanical wear and tear. Whether you're using it for industrial machinery or other equipment, the SVOPES VFD ensures smooth, reliable performance, extending the lifespan of your motors and minimizing downtime.
Ideal for a range of industrial machinery with three-phase motors, such as compressors, lathes, fans, milling machines, and conveyors, this VFD excels at managing speed control across diverse mechanical systems.
Featuring a detachable panel and a 7.9-inch (20 cm) control cable, this design allows for remote operation, offering flexibility in setup and enabling independent control at a distance from the VFD.
The powerful cooling fan operates with minimal noise, ensuring rapid heat dissipation even during extended use, this efficient cooling system keeps the drive running smoothly without disrupting the working environment.
With a 10-level protection system, including overcurrent, overload, overvoltage, and phase loss protection, this VFD ensures safe and reliable operation, safeguarding both the drive and connected equipment.

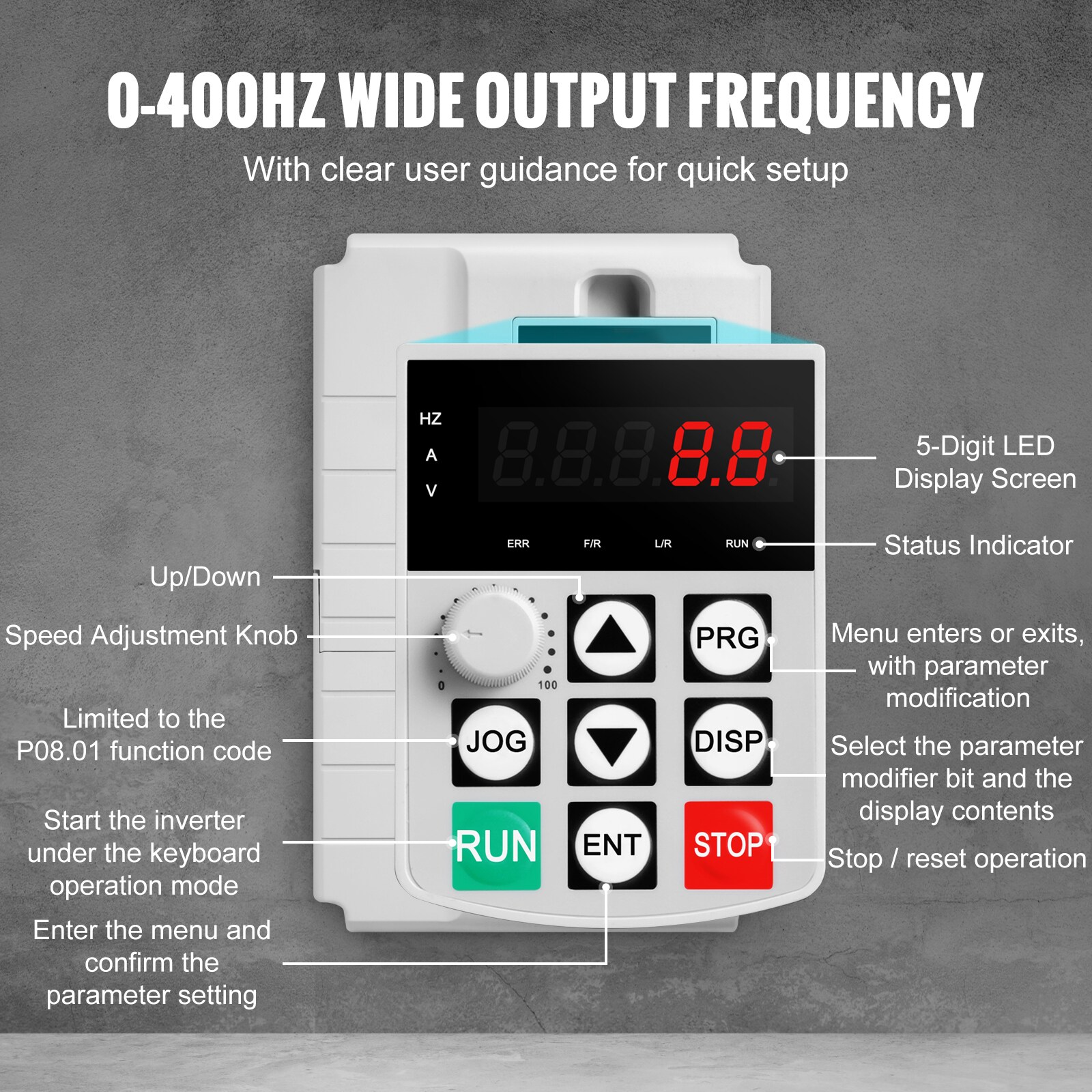

Equipped with a clear display and an easy-to-navigate control panel, this VFD simplifies setup and operation; The detailed user manual guides you through parameter adjustments for efficient configuration.
The SVOPES 7.5KW, 10HP VFD supports input frequencies of 50/60Hz and provides a versatile output frequency range from 0 to 400Hz, offering precise control over motor speeds for various applications.
Versatile Application: Our VFD is suitable for driving 3-phase motors in various machines such as compressors, lathes, fans, and milling machines; Note: It doesn't support external braking resistors; For heavier loads, select a higher-powered VFD for optimal performance.

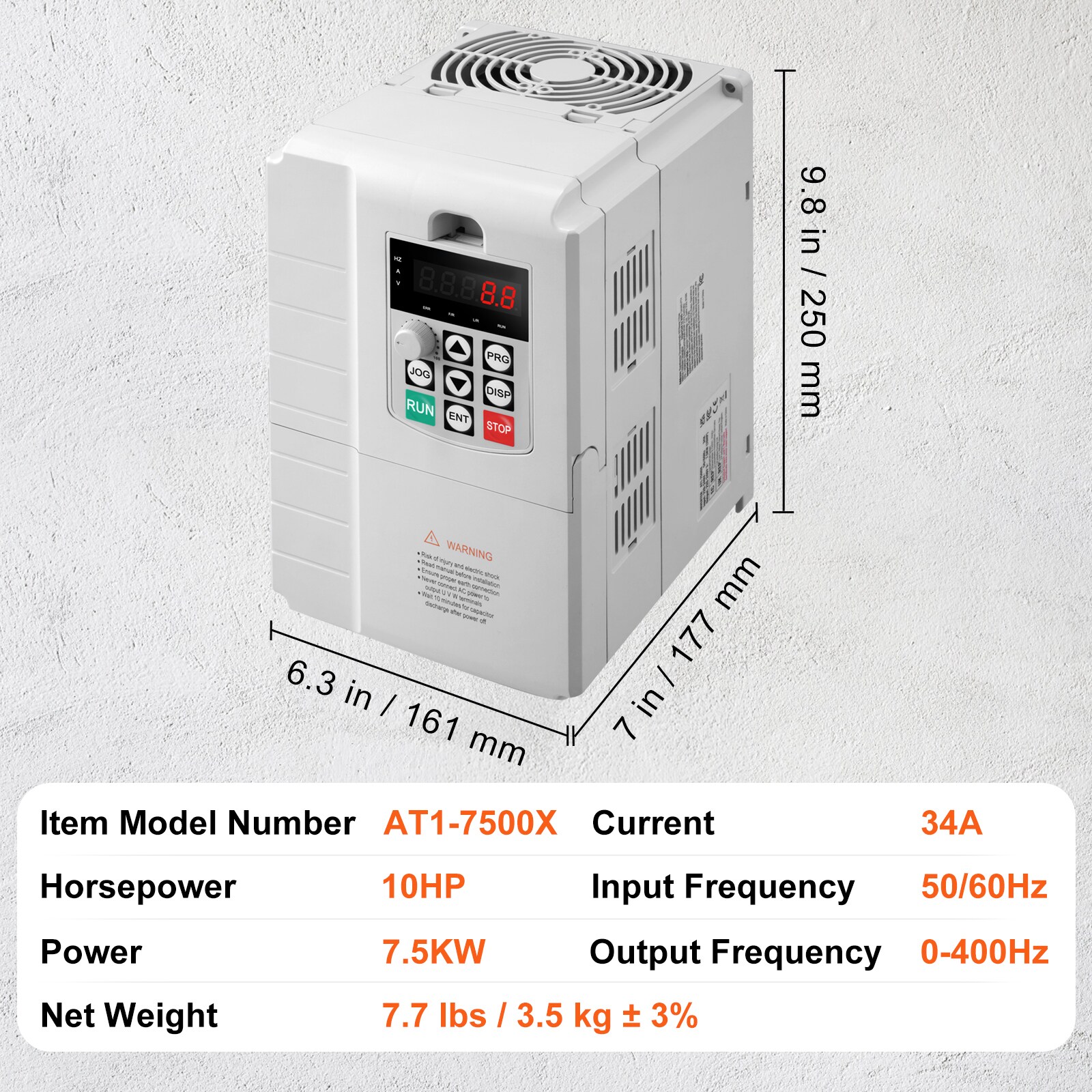

Horsepower: 10HP
Input Voltage: AC 220-240V Single Phase
Output Voltage: AC 220-240V Three Phase
Input Frequency: 50/60Hz
Output Frequency: 0-400Hz
Operating Temperature: 10°C-40°C / 50°F-104°F
Net Weight: 3.5 kg ± 3% / 7.7 lbs
Item Model Number: AT1-7500X
Power: 7.5KW
Current: 34A
1 x User Manual
1 x 10HP Variable Frequency Drive
