This linear guide rail set consists of 2 pieces of 1000 mm / 39.4" long HGR20 rail shafts, 4 blocks, and a ballscrew kit; The high-quality steel material not only prolongs the lifespan of the shaft but also the entire machine; It ensures smooth movement without deflection, minimal wear, and low noise.
This bearing rail is crafted with a carbon steel main axle, GCr15 bearing steel linear rail block, and an aluminum alloy casing; It is corrosion-resistant, has high strength, and is highly wear-resistant.
The linear slide kit comprises 2 pieces of 1000 mm / 39.4" long HGR20 rail shafts, 4 blocks, and a ballscrew kit.
The surface undergoes chrome plating treatment for beautiful anti-rust; The hardness can reach as high as HRC62, ensuring high accuracy and strong durability.

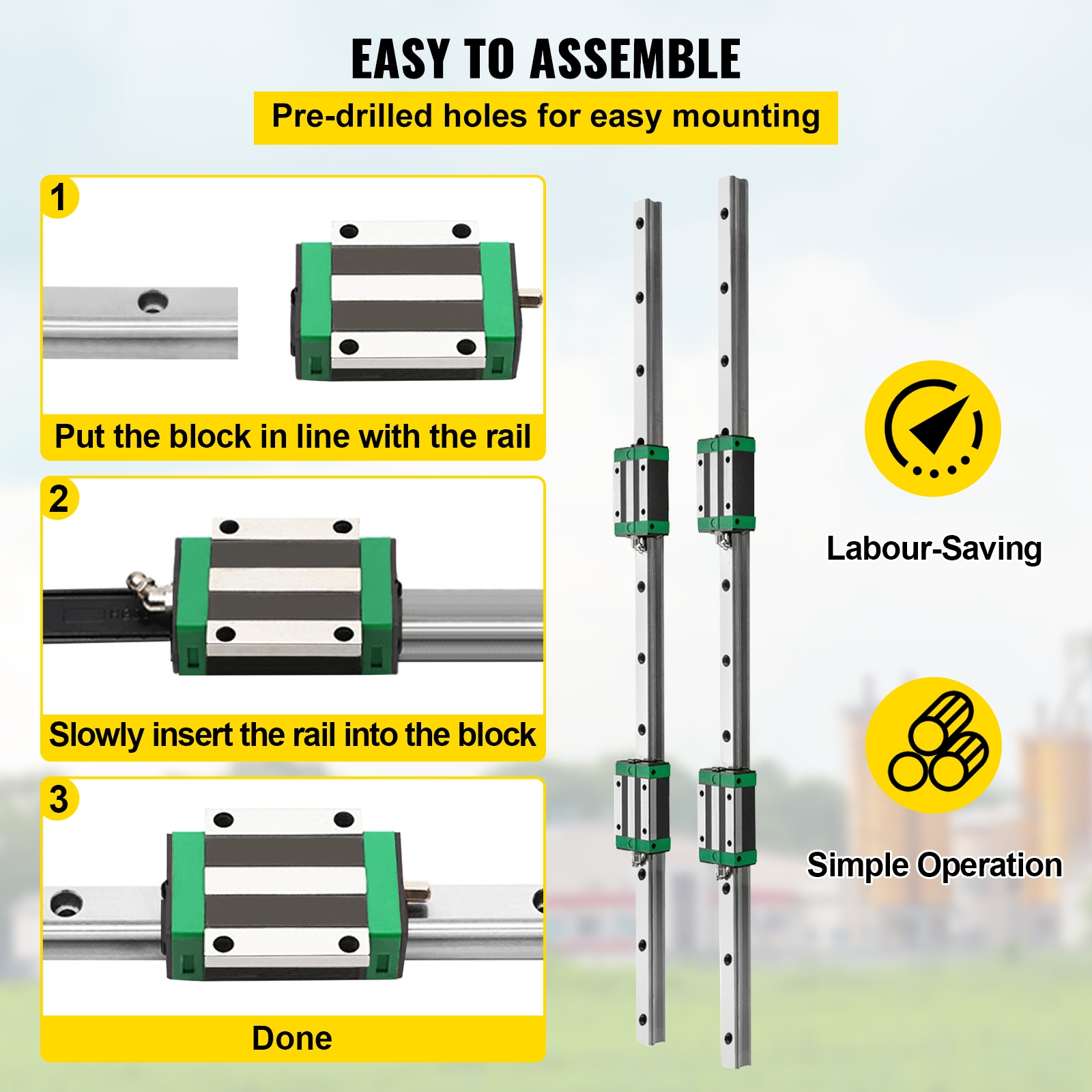

Pre-drilled holes on the support rail facilitate mounting, saving time and effort.

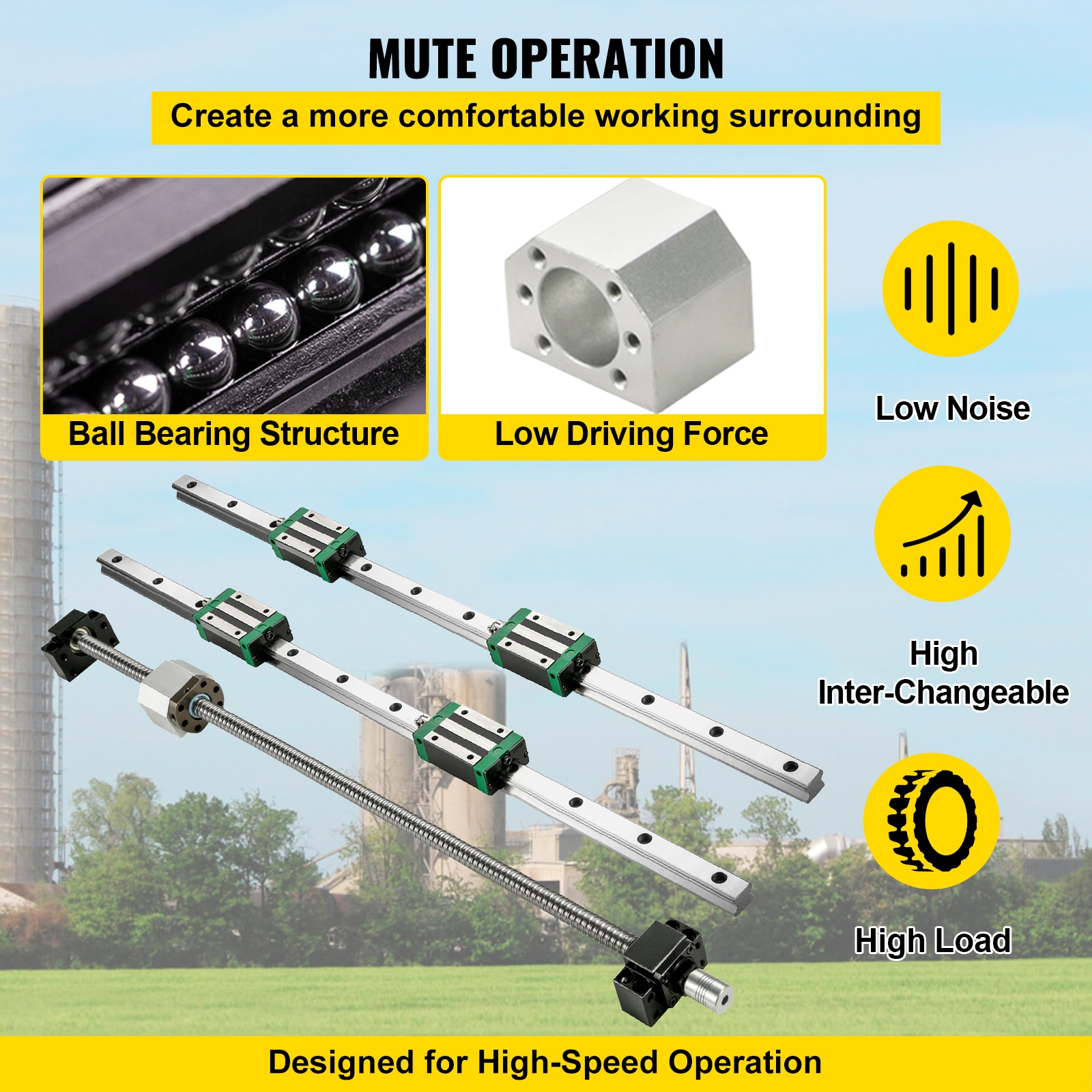

Professional and technical rail and block stabilize the original rail; It moves smoothly without deflection, with minimal wear and low noise during use.

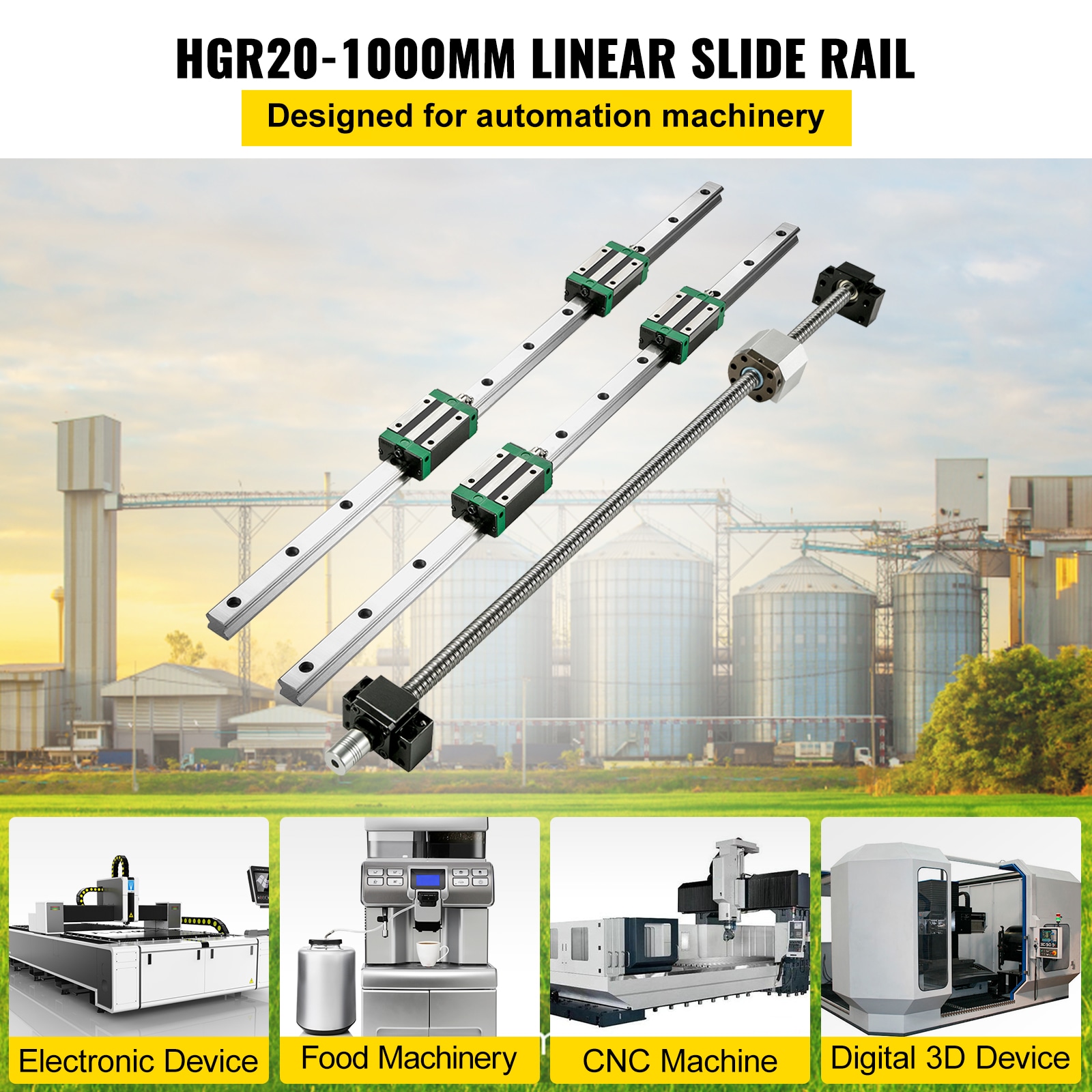

The linear motion rail is ideal for your DIY routers, mills, and lathes; It is widely used in automation machinery and is also suitable for automatic equipment and precision measuring equipment.
Versatile Uses: The CNC linear rail finds wide application in automatic and precision equipment requiring precise linear movement.
Rail Shaft Length: 100 cm (39.3 in),
Nuts: BF12 / BK12 Nuts,
Fixing Screw Hole Size: M4 x 16 mm,
Static Load Ratings: 25.31,
Allowable Static Torque: 0.17 KNm,
Type: HGR20 Slide Rail,
Material: Gcr15 Steel,
Performance: Smooth Motion, Low Noise,
Net Weight: 11 kg (24 lbs),
Block Dimensions(L x W x H) : 7.3 x 4.2 x 3.4 cm (2.8 x 1.6 x 1.3 in).

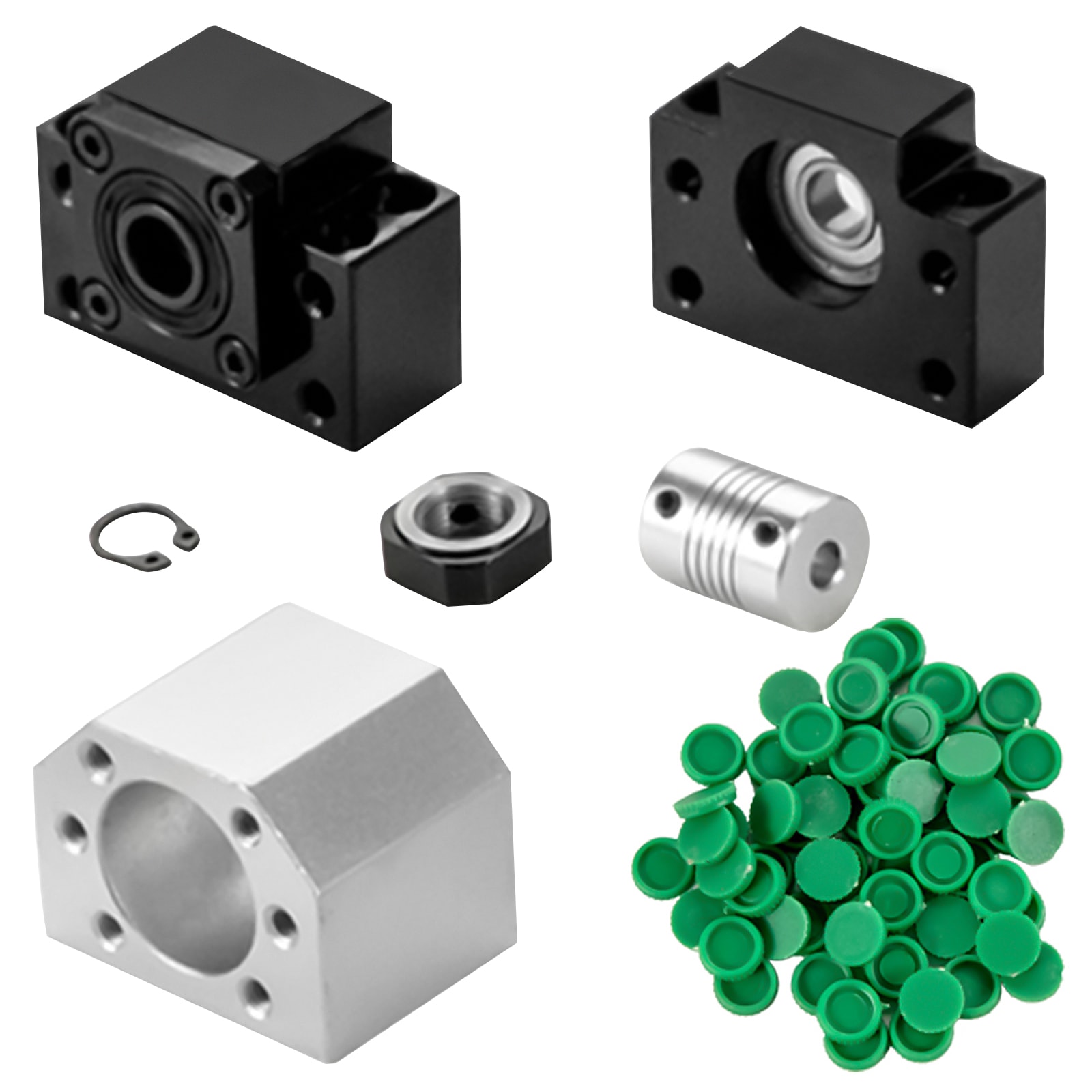

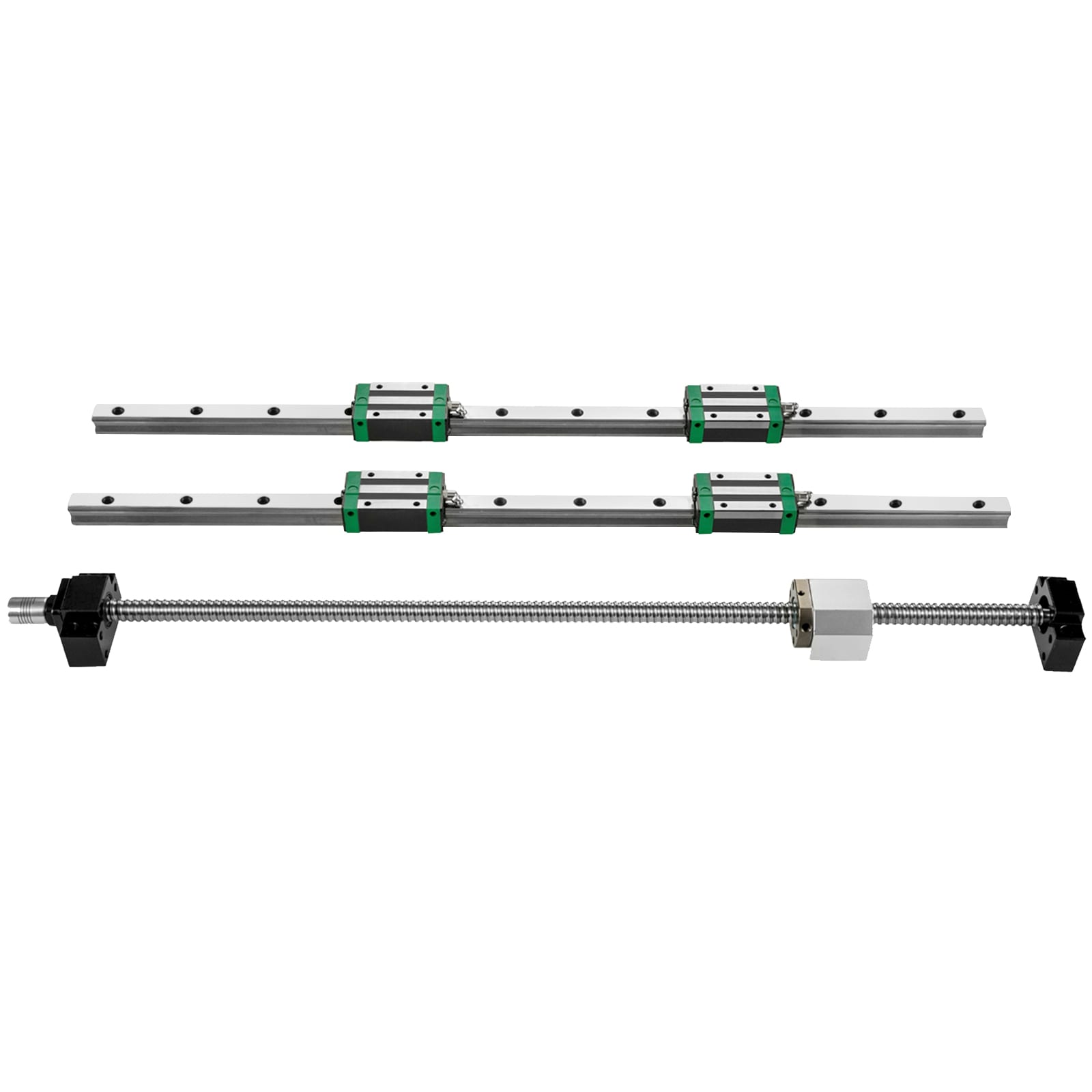

4 x Slide Blocks,
1 x RM1605-1000 mm Ballscrew,
1 x Ball Nut,
1 x BF12 / BK12 Nut,
1 x Plum Coupling,
2 x HGR20-1000 mm Linear Guide Rails.
