The SVOPES SBR16 Linear Guide Rail Set features two high-performance 800mm guide rails and four precision SBR16UU slide blocks; Constructed from strong aluminum, the rails are engineered for exact hole diameters and consistent spacing, ensuring precise movement in all automated applications; The built-in ball bearings in the SBR16UU slide blocks reduce friction, providing smooth, noise-free operation even under heavy loads; Ideal for CNC machines, DIY projects, and other high-precision automation systems, this kit is versatile and built for long-term reliability.
This linear rail set is perfect for high-load automation systems and DIY projects like CNC routers, engraving machines, lathes, and other custom machinery setups.

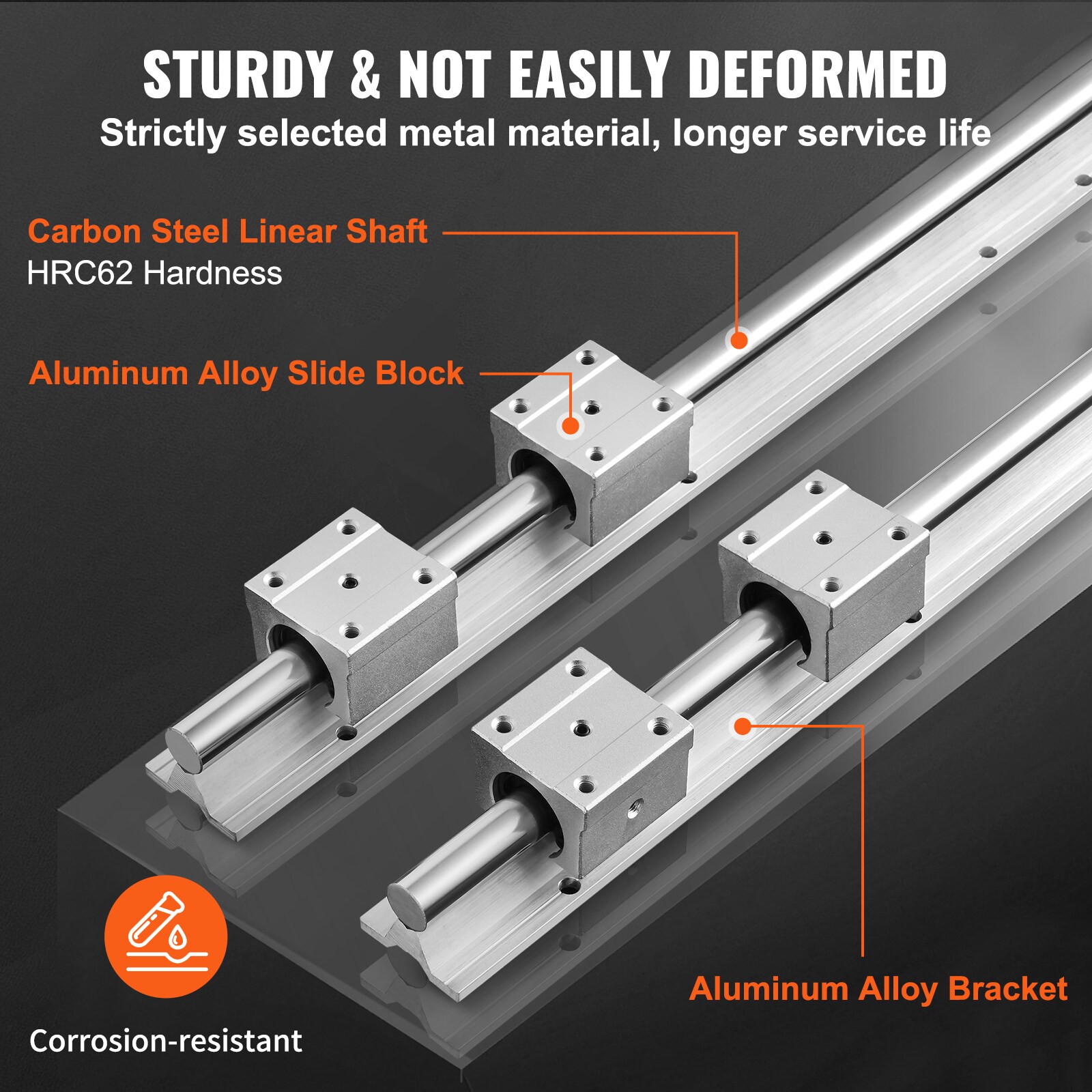

The all-metal construction of the linear bearing and securely locked slide block ensures the system can withstand heavy loads without losing stability or performance.

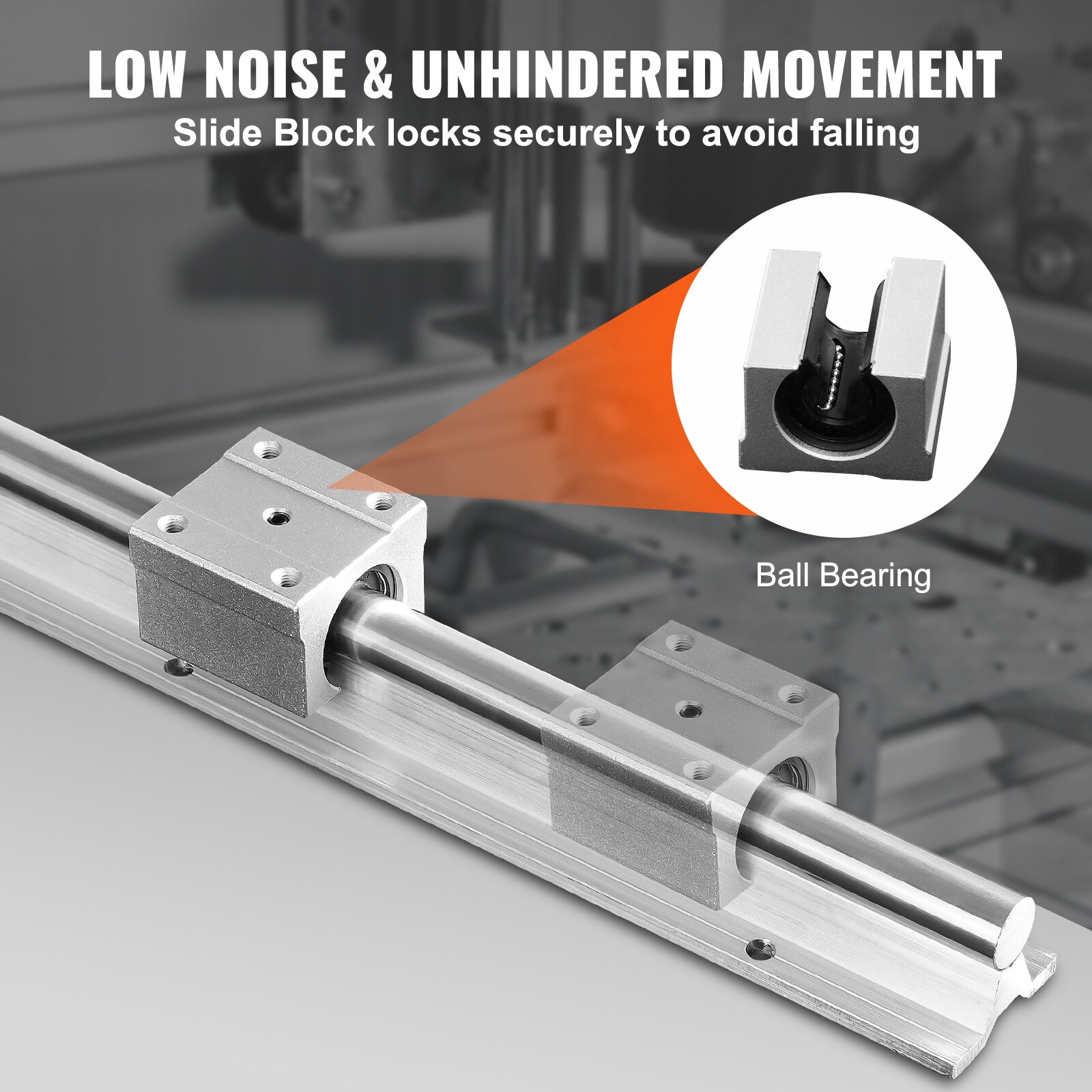

Aluminum SBR slide blocks paired with ball bearings glide smoothly along the rails, reducing friction for easy and stable motion during long-term use.
The chrome-plated surface of the rails ensures corrosion resistance, making them suitable for humid environments and providing excellent heat resistance for reliable performance.

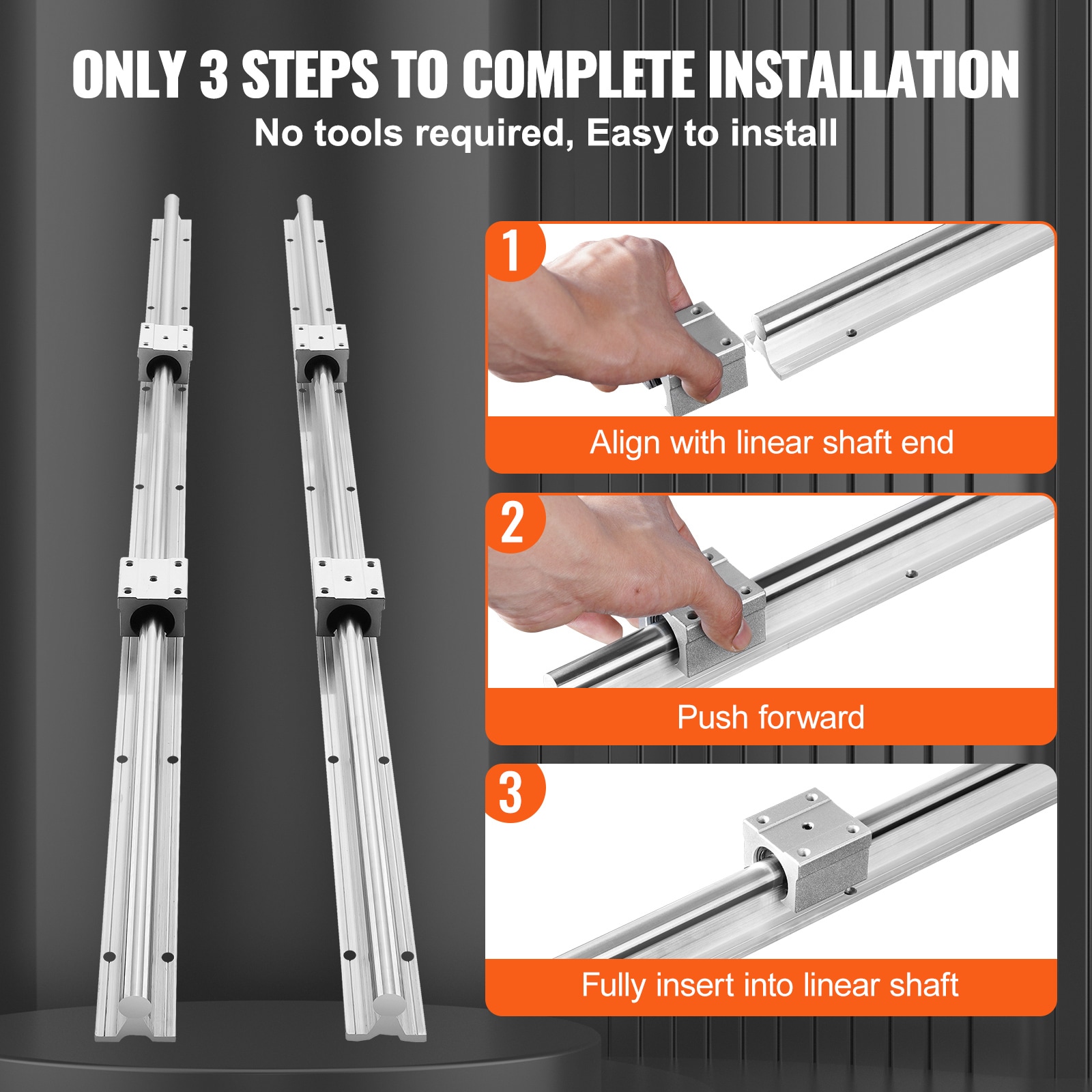

The rails come pre-assembled, with mounting holes for quick installation; The block's tightness can be easily adjusted using the side screw for a secure, reliable connection.
Accurate hole spacing, hole diameter, and shaft dimensions allow for precise installation, improving overall system performance and ensuring equipment alignment.
Heavy-Duty Load Capacity: The SBR16 linear guide rail system is designed to handle substantial loads, with a dynamic load capacity of 774 N per block and a static load capacity of 1180 N, ensuring reliable performance under pressure.

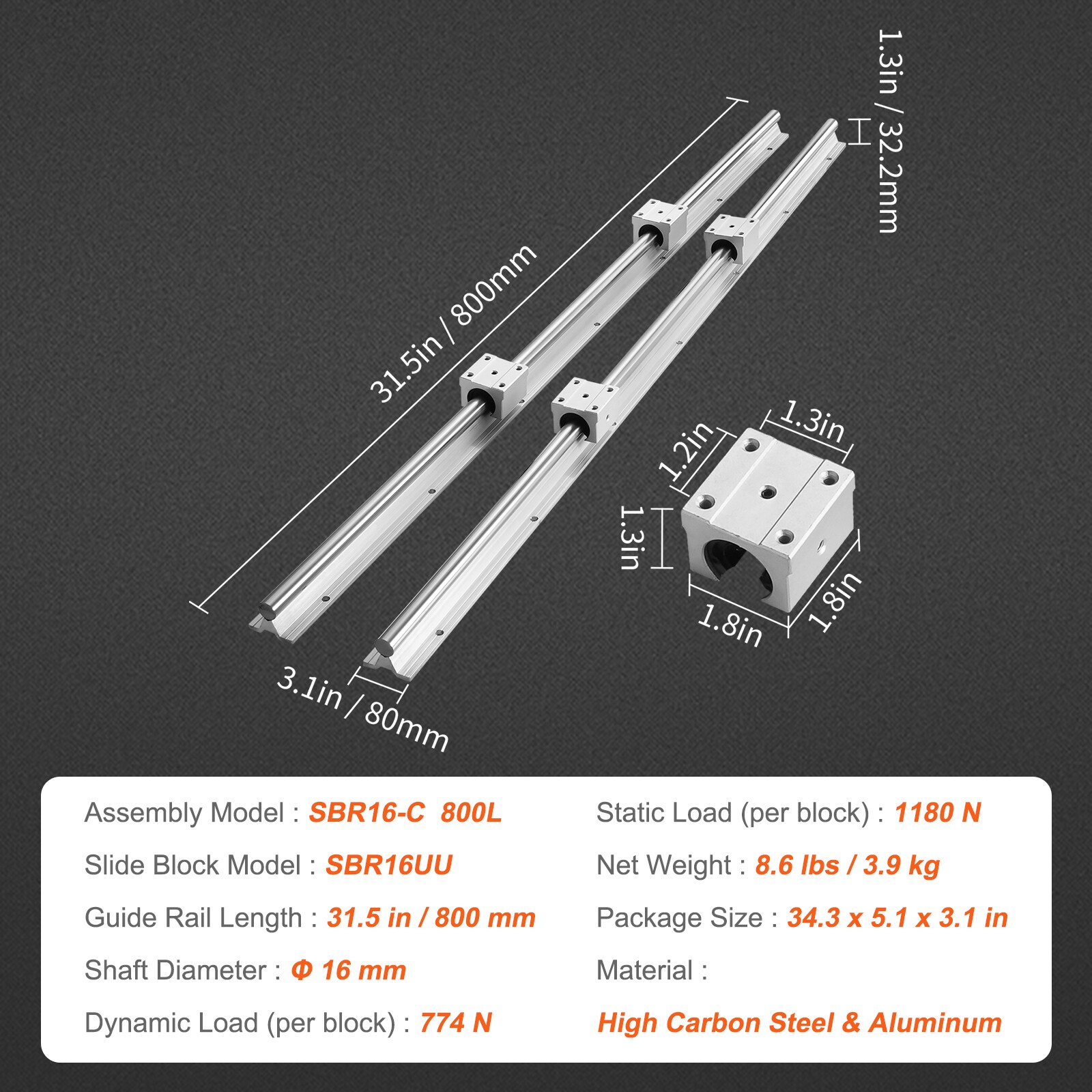

Guide Rail Length: 800 mm / 31.5 in,
Slide Block Model: SBR16UU,
Shaft Diameter: Φ16 mm,
Dynamic Load (per block): 774 N,
Model Number: SBR16-C 800L,
Static Load (per block): 1180 N,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 32 mm / 1.3 in,
Mounting Hole Distance B: 30 mm / 1.2 in,
Slide Block Size (L x W x H): 45 x 45 x 33 mm / 1.8 x 1.8 x 1.3 in,
Product Dimensions (L x W x H): 800 x 80 x 32.2 mm / 31.5 x 3.1 x 1.3 in,
Package Size (L x W x H): 870 x 130 x 80 mm / 34.3 x 5.1 x 3.1 in,
Net Weight: 3.9 kg / 8.6 lbs.
4 x SBR16UU Sliding Blocks,
2 x SBR16 1000mm Linear Guide Rails with Supports.
