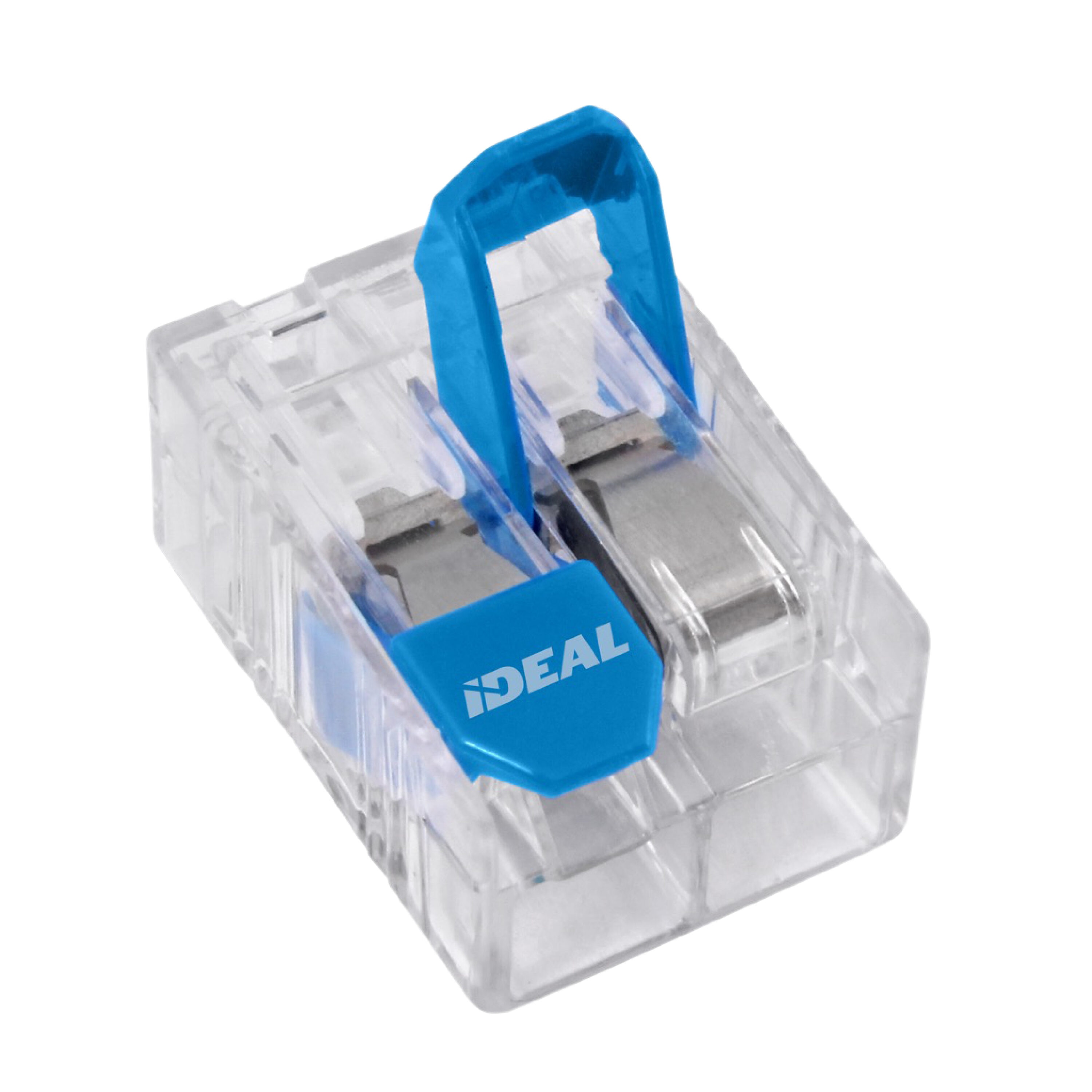

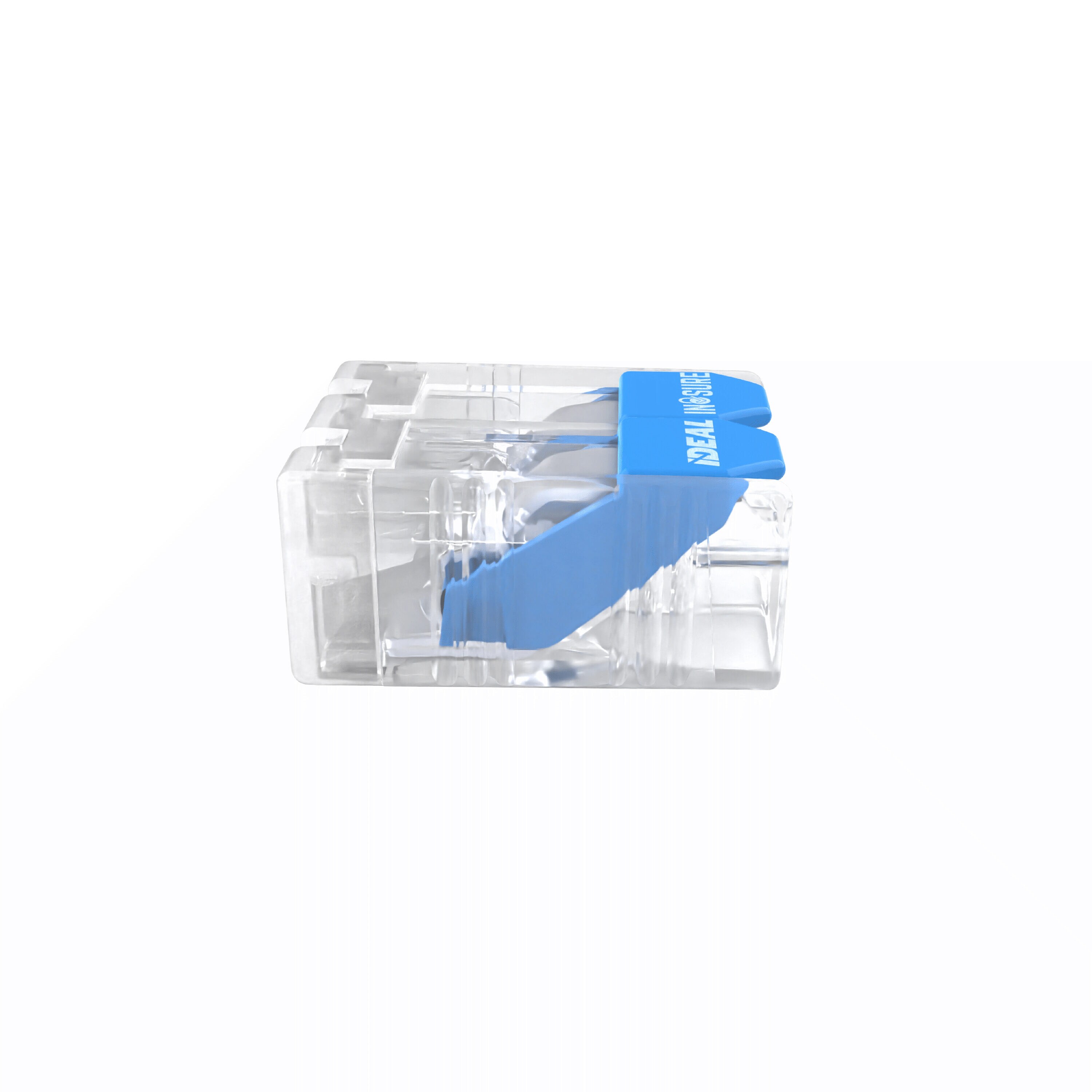

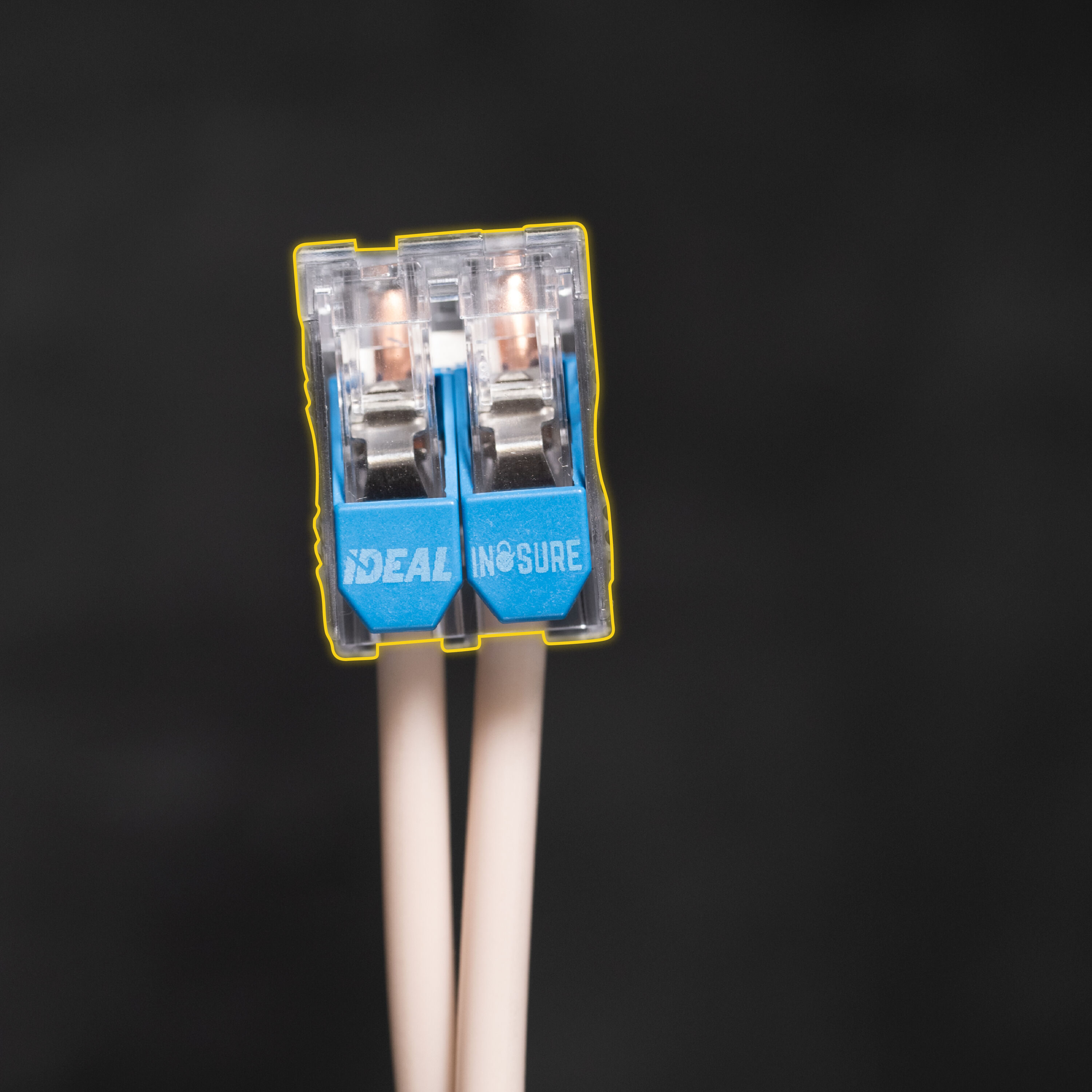

Experience fast and secure connections with IDEAL In-Sure Lever Connectors, 10 AWG, 2-Port. With a patented design, this 2-Port connector has an improved lever action, reducing the effort and strain on your hands. It provides the most extensive wire range in the industry, supporting solid and stranded wires with a reusable design from 10 AWG to 22 AWG, and copper-clad aluminum wires from 12-10 AWG. Be confident in your connection with our audible click-locking feature, a protective side wall to keep them locked in cramped spaces, and clear housing allowing visual inspections of each connection.

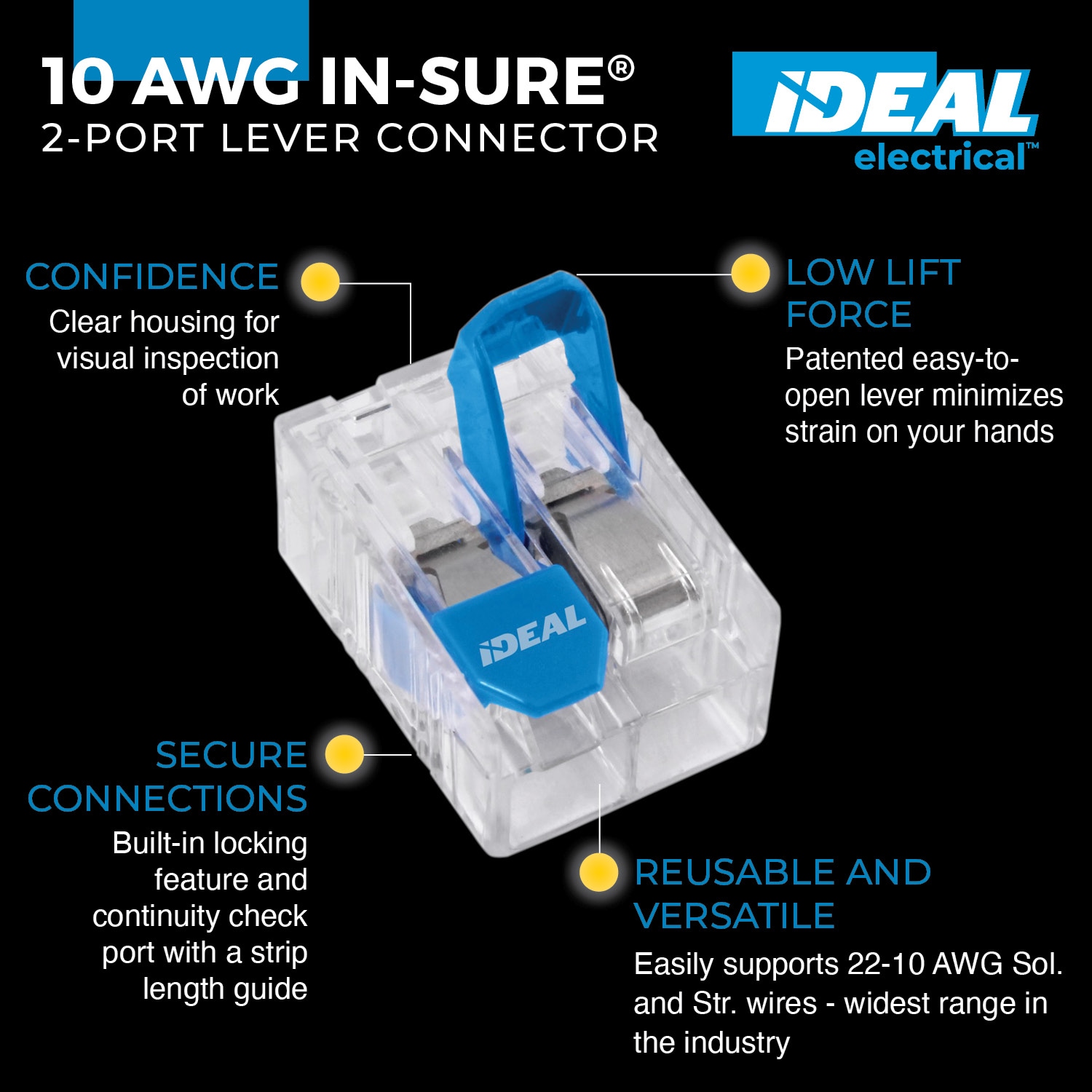

REUSABLE DESIGN WITH WIDEST WIRE RANGE: Easily supports 10 AWG to 22 AWG solid and stranded wires — the widest wire range in the industry
VOLTAGE AND TEMPERATURE: Maximum rated voltage is 600V and the maximum temperature is 105°C
UL LISTED FOR USE WITH CCA WIRES: The first lever connector to be listed for use with copper-clad aluminum wires

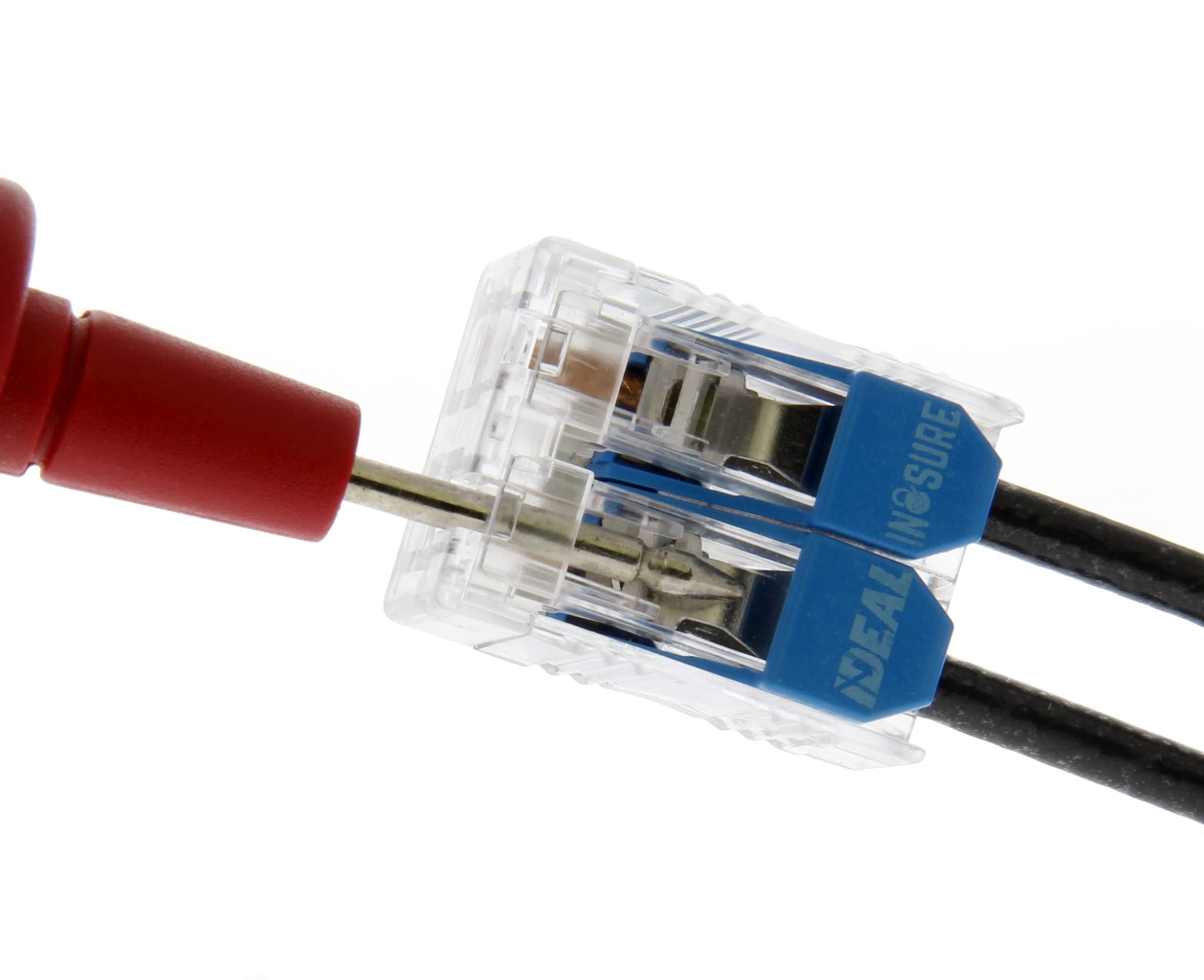

SECURE CONNECTIONS: Built-in locking feature and continuity check port with a strip length guide
LOW LIFT FORCE: Patented easy-to-open lever minimizes strain on your hands

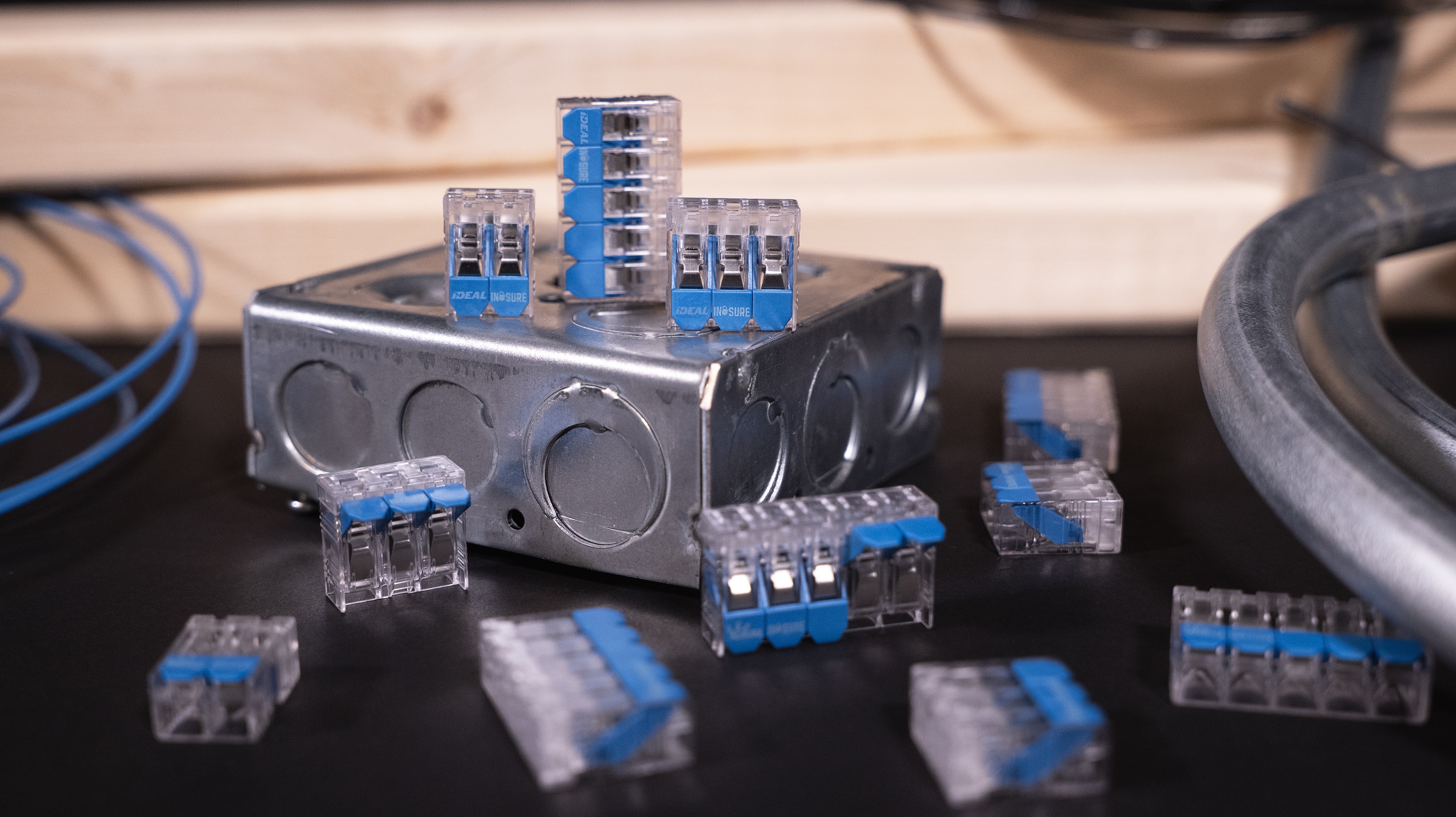

COMPACT CONNECTOR: Conveniently sized to easily fit into junction boxes

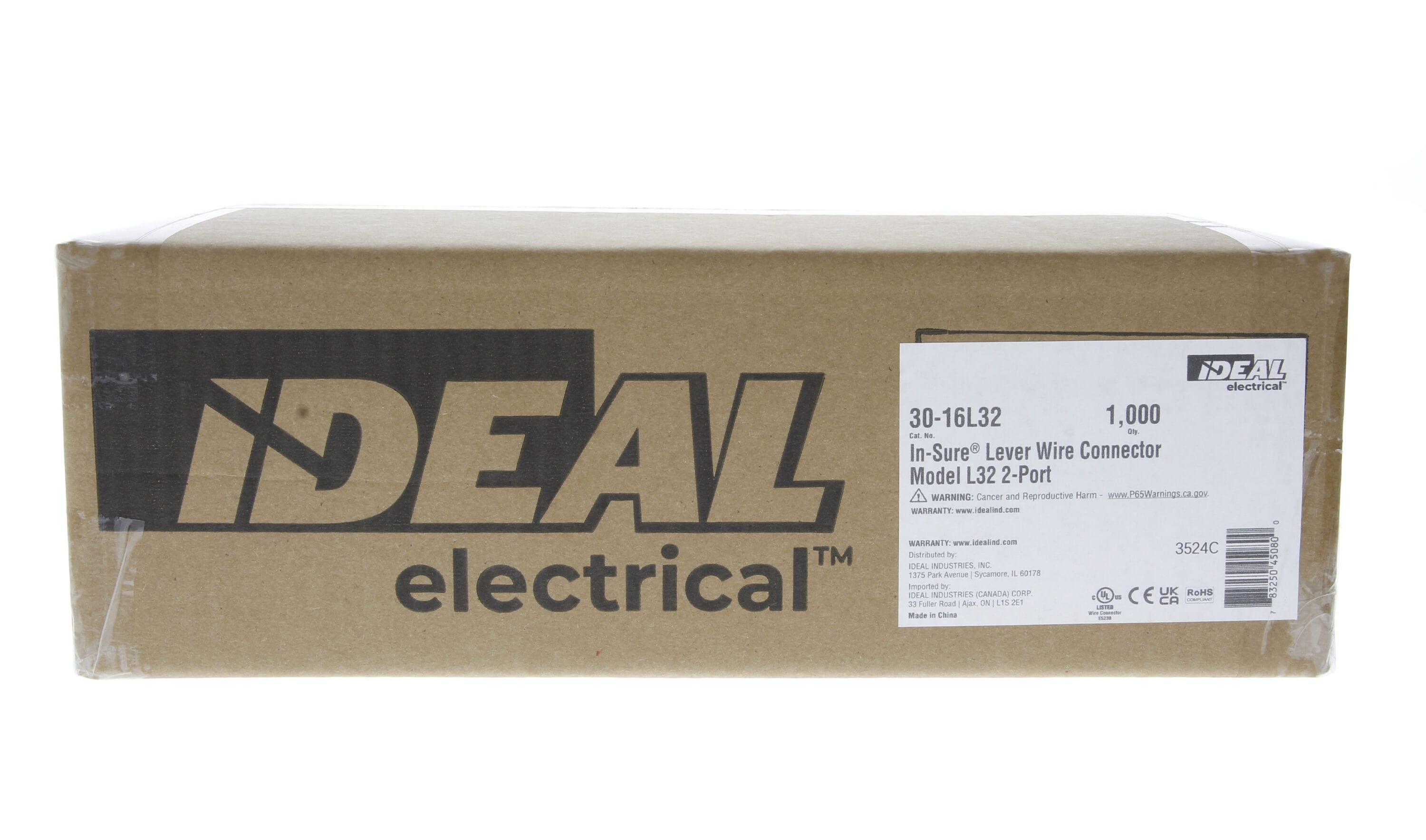

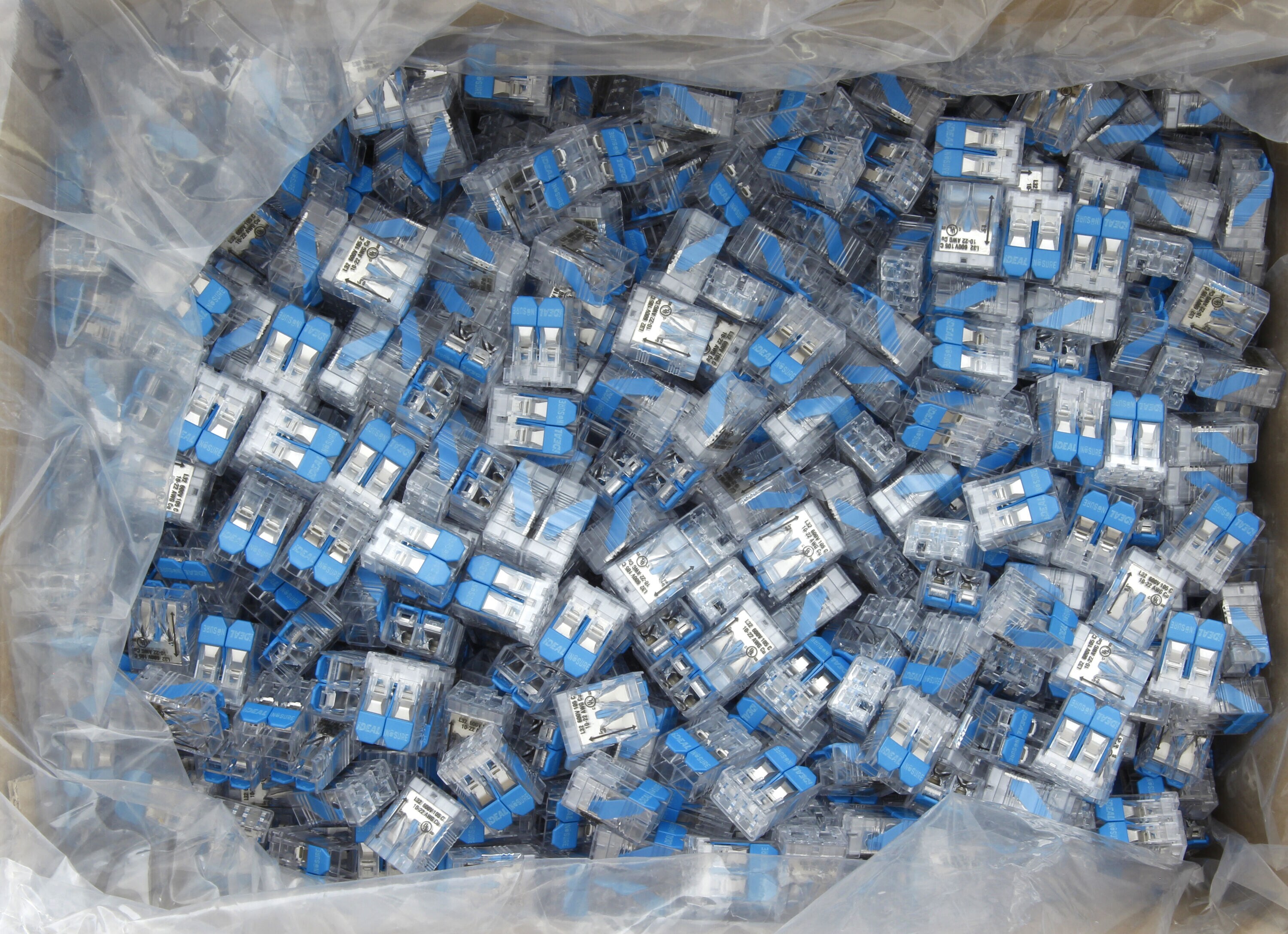

PACKAGE INCLUDES: Box of 1000 In-Sure Lever Connectors, 10AWG, 2-Port
