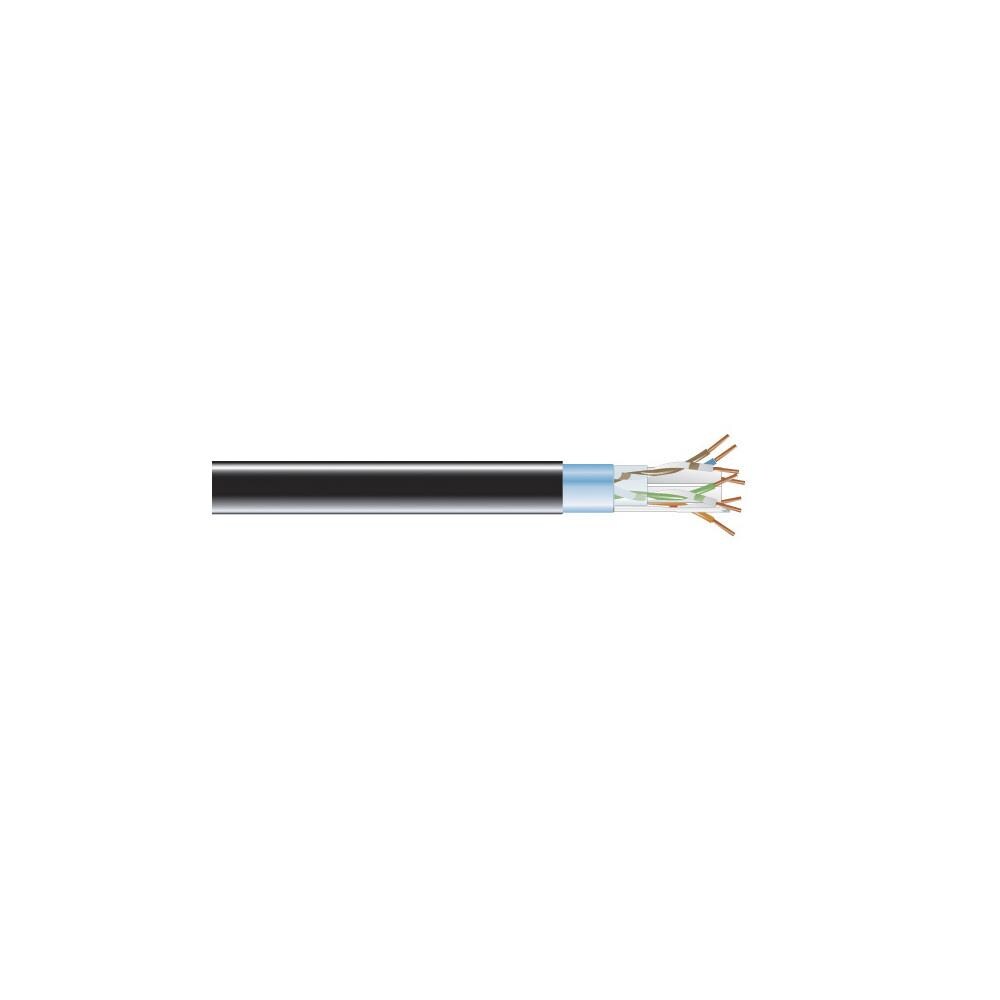

Black Box Black Box Network Services EVNSL0618A-1000 CAT6 400-MHz Shielded Solid Bulk Plenum Cable, Black- 1000 ft.

Features Ideal for carrying data, audio, and video, and for use in 10-/100-/1000-Mbps networks Aluminum Mylar tape Foil shield protects against noise and EMI/RFI interference Meets TIA/EIA-568-C.2 Category 6, ISO/IEC 11801, UL 444, RoHS 2002/95/EC Specifications Color: Black Attenuation - 100 m/dB Minimum: 100 MHz: 19.8-250 MHz: 32.8-300 MHz: 36.4-400 MHz: 43.0 ACR - 100 m/dB Minimum: 100 MHz: 24.5-250 MHz: 5.5 Characteristic Impedance: 1~250 MHz: 100 15 ohms Conductors: Bare solid copper Construction: FR PVC jacket, HDPE insulation Delay Skew: 1-400 MHz, 536 ns/100 m maximum ELFEXT - dB Minimum: 100 MHz: 27.8-250 MHz: 19.8-300 MHz: 18.2-400 MHz: 15.7 Gauge: 24 AWG Mutual Capacitance Maximum: 56 pF/m NEXT - dB Minimum: 100 MHz: 44.3-250 MHz: 38.3-300 MHz: 37.2-400 MHz: 35.3 PS-ACR - 100 m/dB Minimum: 100 MHz: 22.5-250 MHz: 3.5 PS-ELFEXT - dB Minimum: 100 MHz: 24.8-250 MHz: 16.8-300 MHz: 15.2-400 MHz: 12.7 PS-NEXT - dB Minimum: 100 MHz: 42.3-250 MHz: 36.3-300 MHz: 35.2-400 MHz: 33.3 Return Loss: 400 MHz Shield: Aluminum/Mylar tape with drain wire Outer Diameter: 7.0 0.2 mm Length: 1000 ft. Weight: 43 lbs
