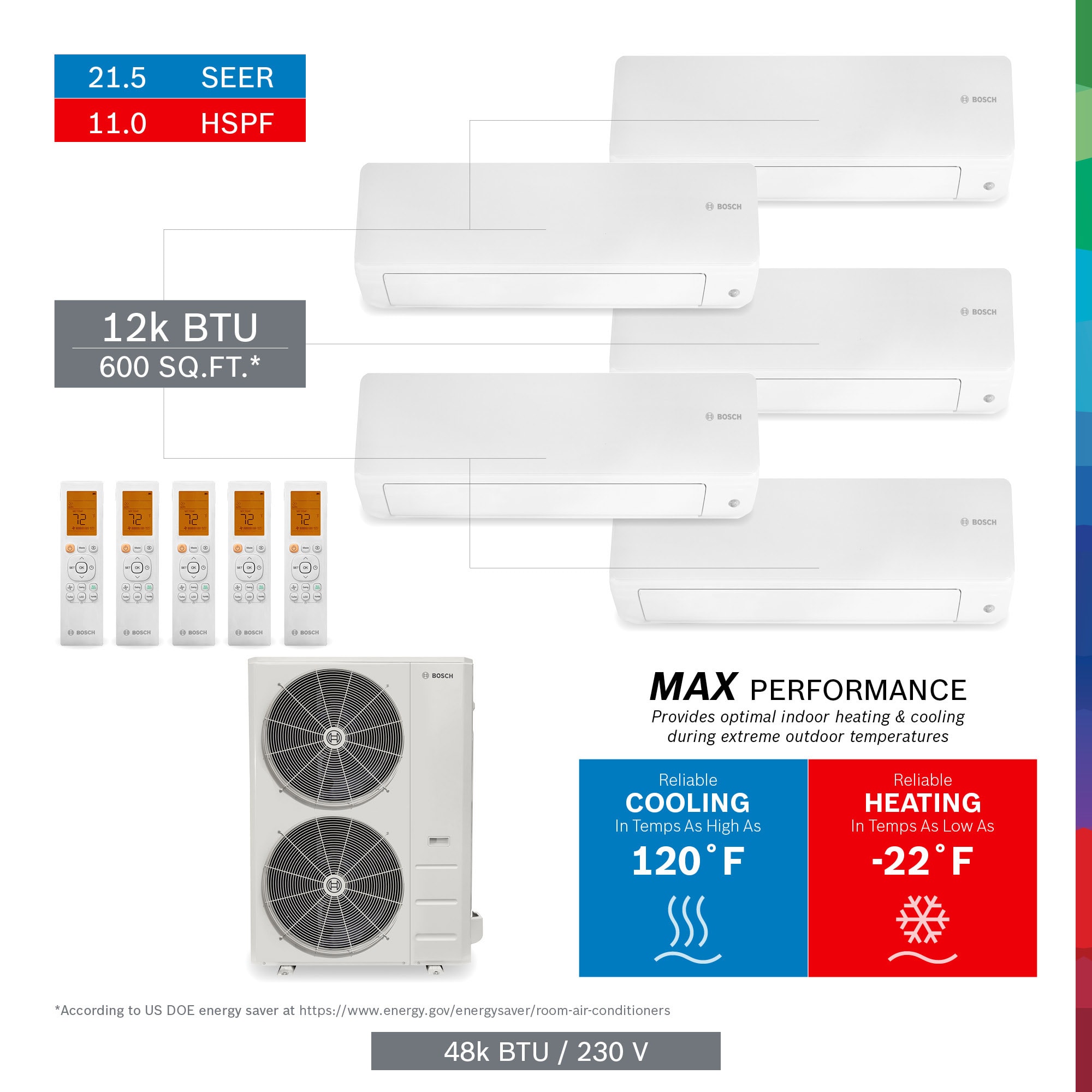

Create total comfort within five zones of a living space with the Bosch Climate 5000 Multi-Zone Mini-Split system. Designed to fit virtually anywhere while providing energy-efficient on-demand comfort that is quiet, compact, and easy to maintain, the Bosch Climate 5000 multi-zone mini-split series is the perfect alternative to traditional HVAC systems for home additions, renovations, and enclosed patios. Bosch 5000 Max Performance system is designed to provide comfortable and optimal indoor heating in cold-climate conditions even when outdoor temperatures dip down to -22°F, with no additional accessories required. The system is comprised of three main parts – the indoor air handler, outdoor condenser, and the piping line set (not included with Pro Packs). The indoor and outdoor units are connected by the electric and refrigerant piping line set (not included with Pro Packs) that can be run with the condensate drain line through a 3-inch diameter hole in an exterior wall.
Utilizing a combination of efficient technologies, this mini split system minimizes electricity usage to reduce your electric bill. The Climate 5000 series’ multi-part filter system refreshes and cleans, circulating air by reducing potential odors, allergens, viruses, and bacteria while helping to trap dust, pollen, mites, and other particles that plague allergy sufferers. The Bosch Climate 5000 series with Intelligent Eye Infrared Sensor saves energy by lowering the speed of the compressor when nobody is in the room, and automatically controls humidity. Wireless back-lit remote included for easy adjustment, featuring: Timer, Turbo, Follow-Me, Sleep, and Silent settings to customize your comfort. Limited residential warranty covers replacements parts for 7 years and compressor for 10 years. Requires Professional Installation.
Compact and Aesthetic: modern indoor air handler designed to fit virtually anywhere
No ductwork required, making for quick and convenient professional installation - Line Set NOT Included
48,000 BTU 230V System heats and cools five spaces up to 3,000 sq ft - DOE standard 20 BTU/sq ft
(5) - 12,000 BTU indoor air handler heats and cools spaces up to 600 sq ft and removes up to 61.0 pints/day of moisture (5 Air handlers included) - Each individual air handler comes with a wall mounting bracket, hardware, 15 ft communication cable, wireless remote-control, and remote control wall mount.
Whisper Quiet and AHRI Certified: as low as 23.5 dBA with a 21.5 SEER and 11.0 HSPF rating
Intelligent Eye Sensor works with high-efficiency inverter compressor to save energy and automatically controls humidity - Temperature sensor wireless back-lit remote features silent mode, timer, automated "follow-Me" settings, and "turbo" speed settings for the highest level of comfort
Provides optimal home heating comfort when outdoor temperatures plumet to -22°F and rise to 86°F - Also delivers reliable home cooling comfort with outdoor temperatures ranging from -13°F to 122°F
12,000 BTU indoor unit measures 9.1 in D x 33.4 in W x 11.7 in H and weighs 25.6 lbs, Outdoor unit measures 17.6 in L x 41.7 in W x 52.5 in H and weighs 238.3 lbs
Limited residential warranty covers replacement parts for 7 years and compressor for 10 years - Requires Professional Installation
