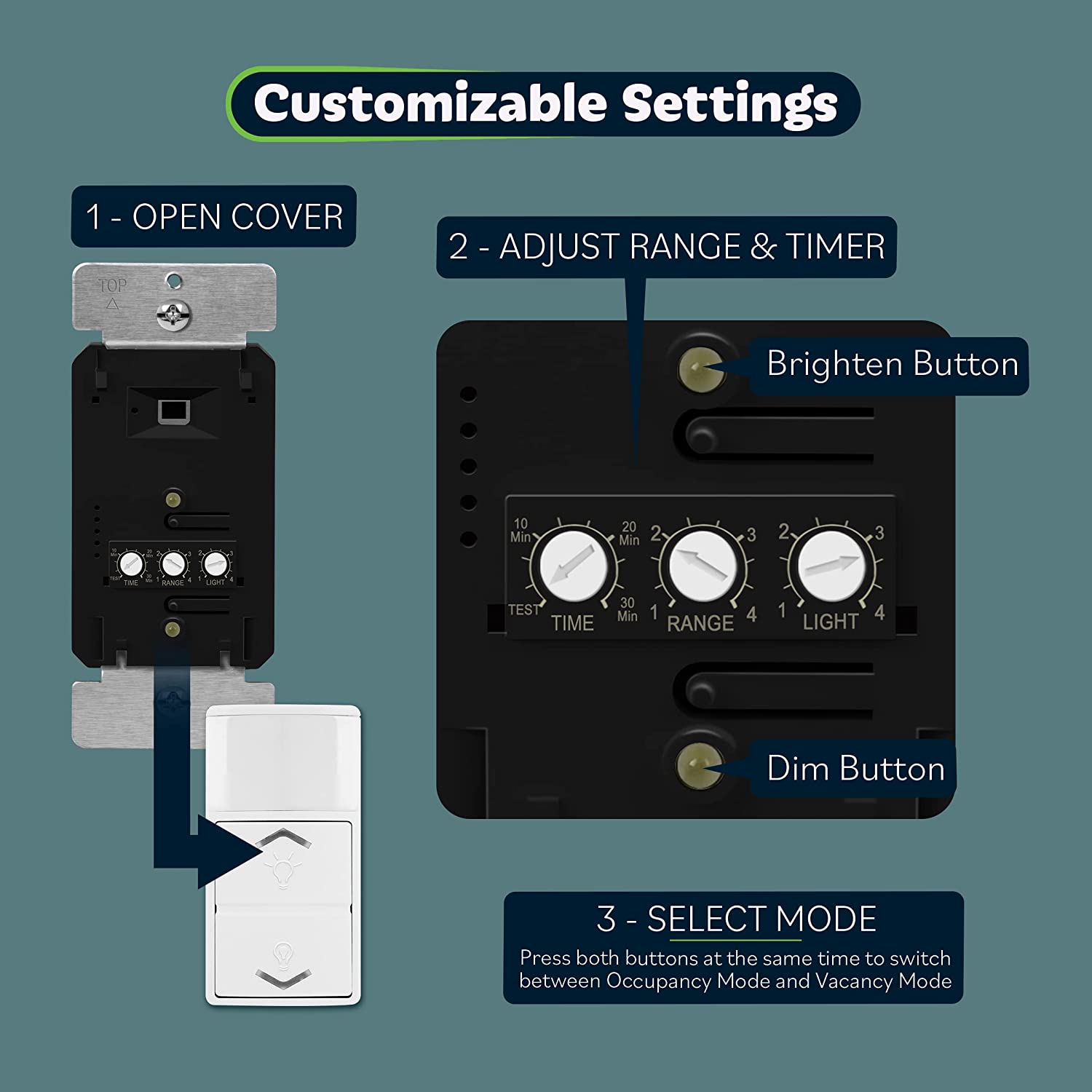

The Enerlites DWODS-120-W is a motion sensor switch with dimming made specifically for low-voltage lighting. The switch automatically turns lights ON and OFF based on the motion detected in a room. An easy replacement for any indoor light switch, the PIR motion sensor automates your lighting to bring your home into the modern age. The PIR sensor has a 180° field of view and is best suited for spaces up to 1200 square feet. The mode, sensor range, and time delay can all be adjusted with simple controls located under the face cover of the device. The switch has two modes: Occupancy (OCC) and Vacancy (VAC). In occupancy mode, lights are automatically turned ON when you enter a room and automatically turned OFF after the room is vacant. Alternatively, vacancy mode requires the light switch to be turned ON manually, but it will shut OFF automatically after the room is vacant for a time. In addition to occupancy and vacancy modes, the auto-light switch also features a full-control dimmer that can be easily operated with the top and bottom buttons of the device. Dimming helps to conserve energy and gives offers more control over your lighting. The sensor switch will also help you conserve energy by ensuring the light is never left on by mistake. This motion-sensing wall switch is ideal for rooms that are used frequently, such as a living room, conference room, bedroom, or office. This device is cUL listed, CA Title 24 compliant, and includes a one-year warranty.
Motion sensor switch with dimming automatically turns lights ON/OFF and allows you full control of light brightness; for use in residential or commercial areas, such as bathrooms, kitchens, home offices, and more
Switch uses a Passive Infrared (PIR) sensor to reduce false triggers from unwanted movements; PIR sensor detects motion with 180° field of view to automatically turn lights ON/OFF based on the occupancy or vacancy in a room
Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Auto OFF) allow you to customize the sensor according to your needs; adjustable time delay range from 15 sec (Test) to 30 min
White color; neutral wire required; 120VAC, 800W incandescent/halogen, 150W LED/CFL dimmable type only; 1200 sq ft coverage area, 180-degree field of view; single-pole use only
CA Title 24 compliant, cUL listed; 1-year warranty; wall plate sold separately
