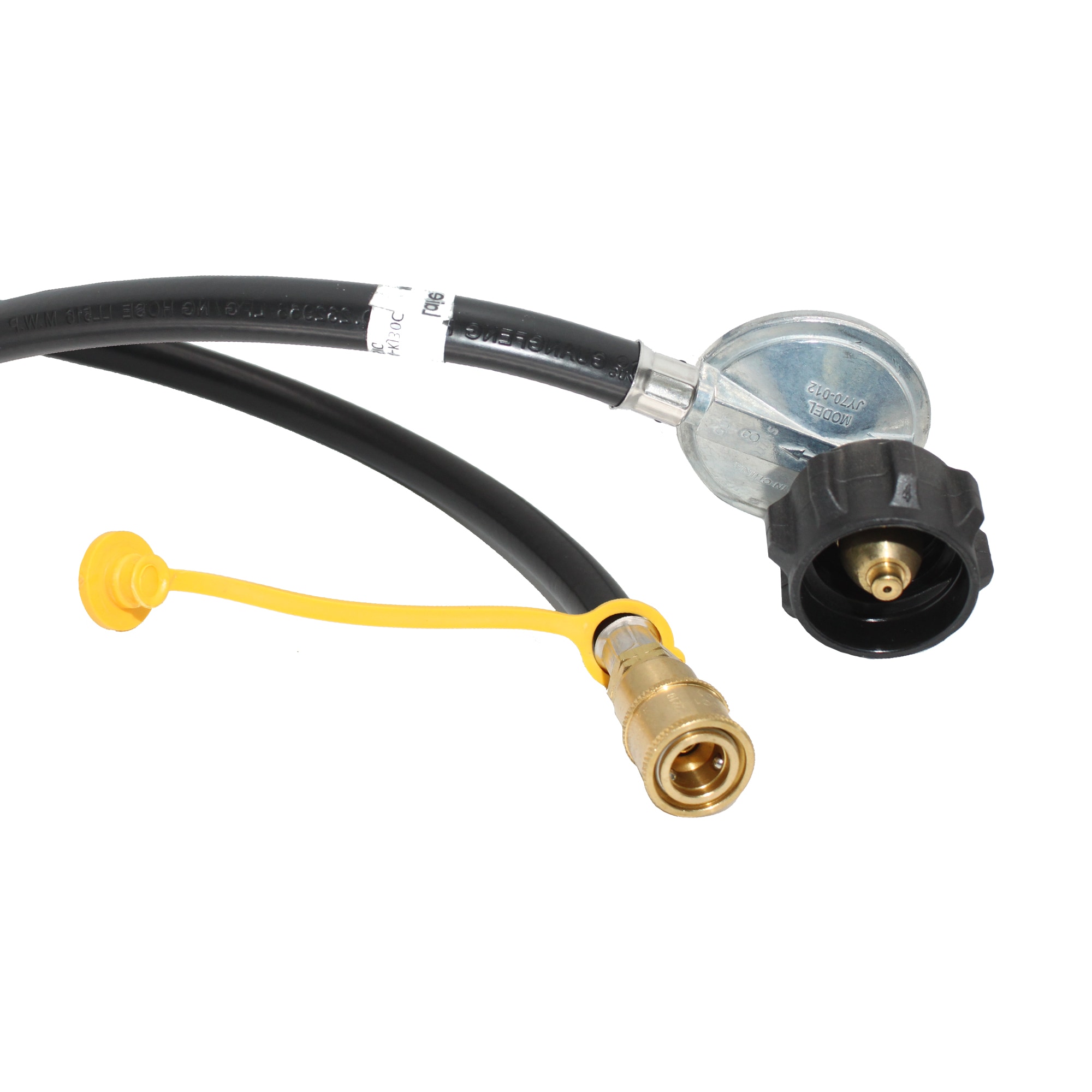

90 Degree Low-Pressure Regulator Assembly with Quick Connect & 12-ft Hose used for connecting low-pressure propane appliances such as BBQ Grills or Patio Heaters. Easily connects to the appliances inlet valve via Model 250 Quick Disconnect to any OPD Valved Cylinder such as 5, 10, 20, 30, and 40 lb tanks. Allows for a total breakdown from both the tank and inlet valve in just seconds.

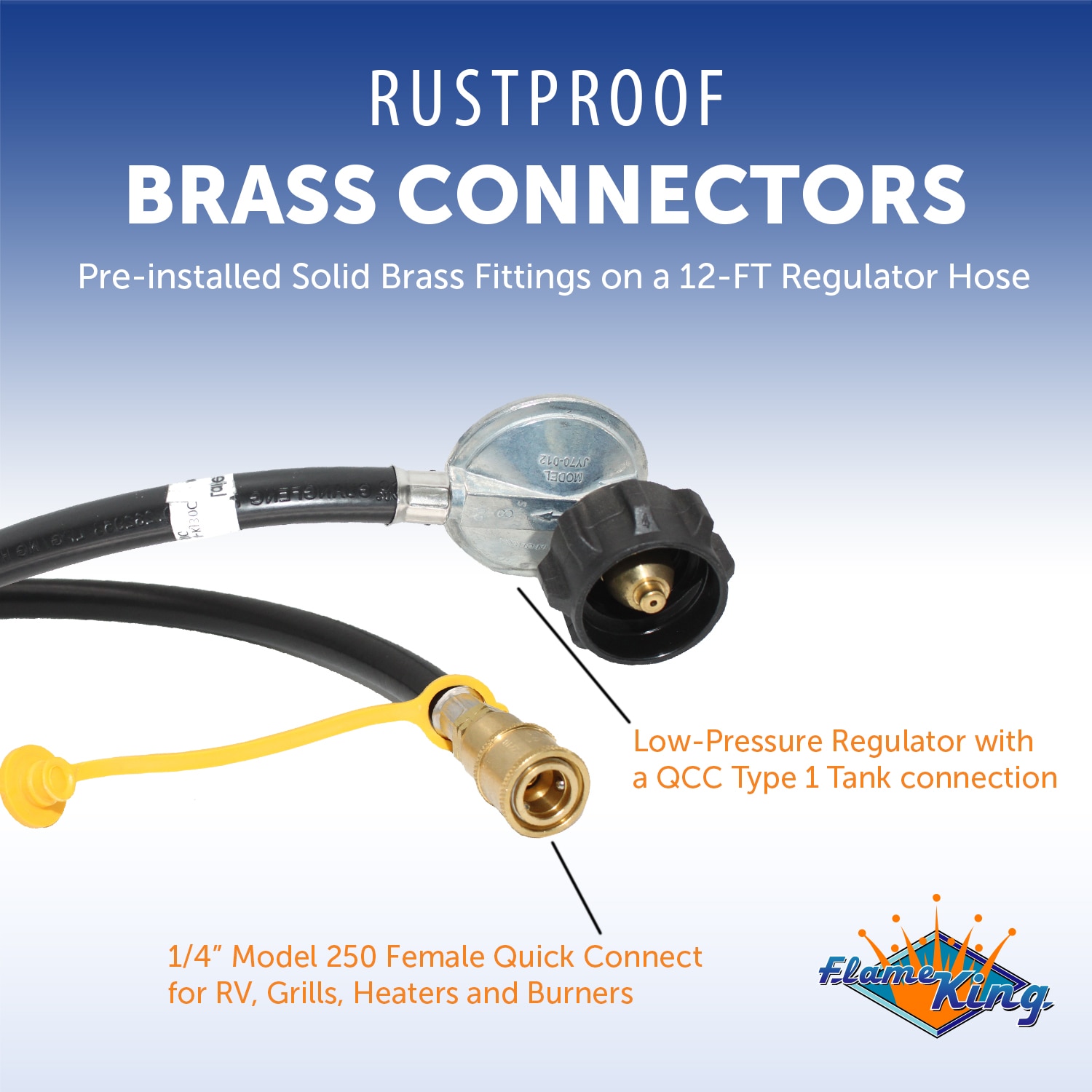

90 Degree Low-Pressure Regulator with a QCC Type 1 Tank connection and thermo-plastic hose terminating in a 1/4" Model 250 Female Quick Disconnect

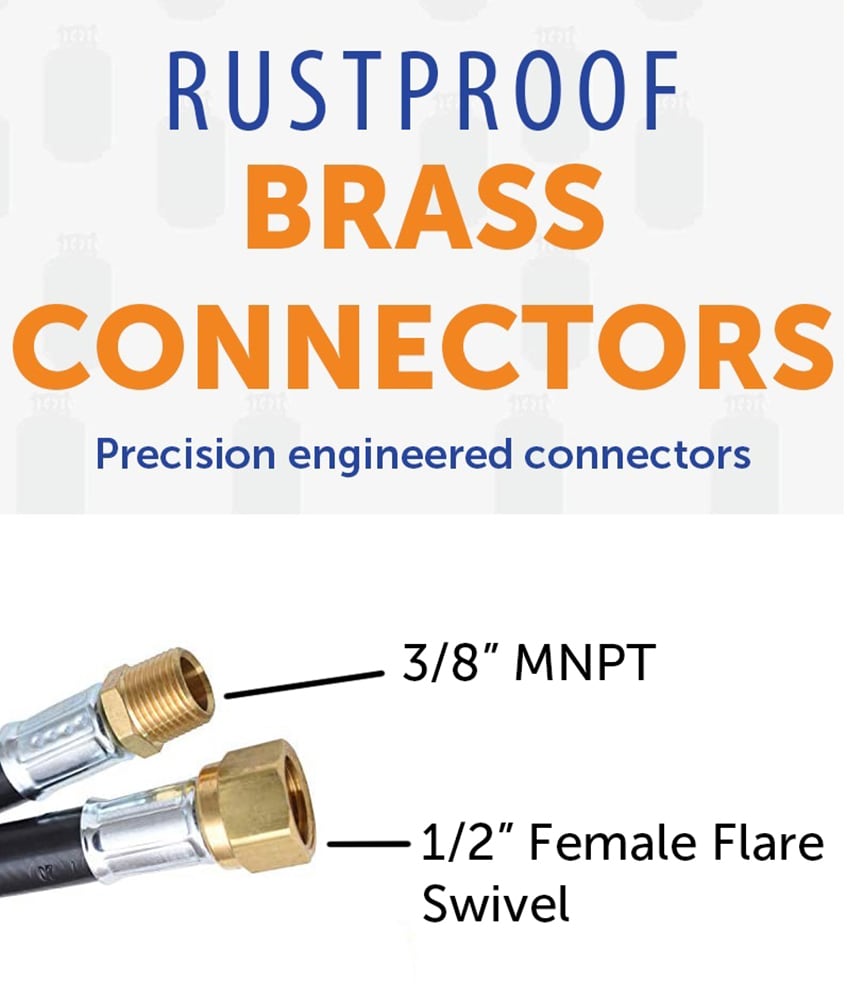

Solid Brass Pre-installed Fittings on a 12-FT Regulator Hose (72 inches overall length)
OUTLET PRESSURE of 11" WC PSIG Max Flow Capacity; 65,000 BTU per hour
Certification - UL144/UL569 Used for LP Gas only
IMPORTANT - NOT compatible with Flame King CHS10 & CHS20 or Mr Heater Big Buddy model heaters
