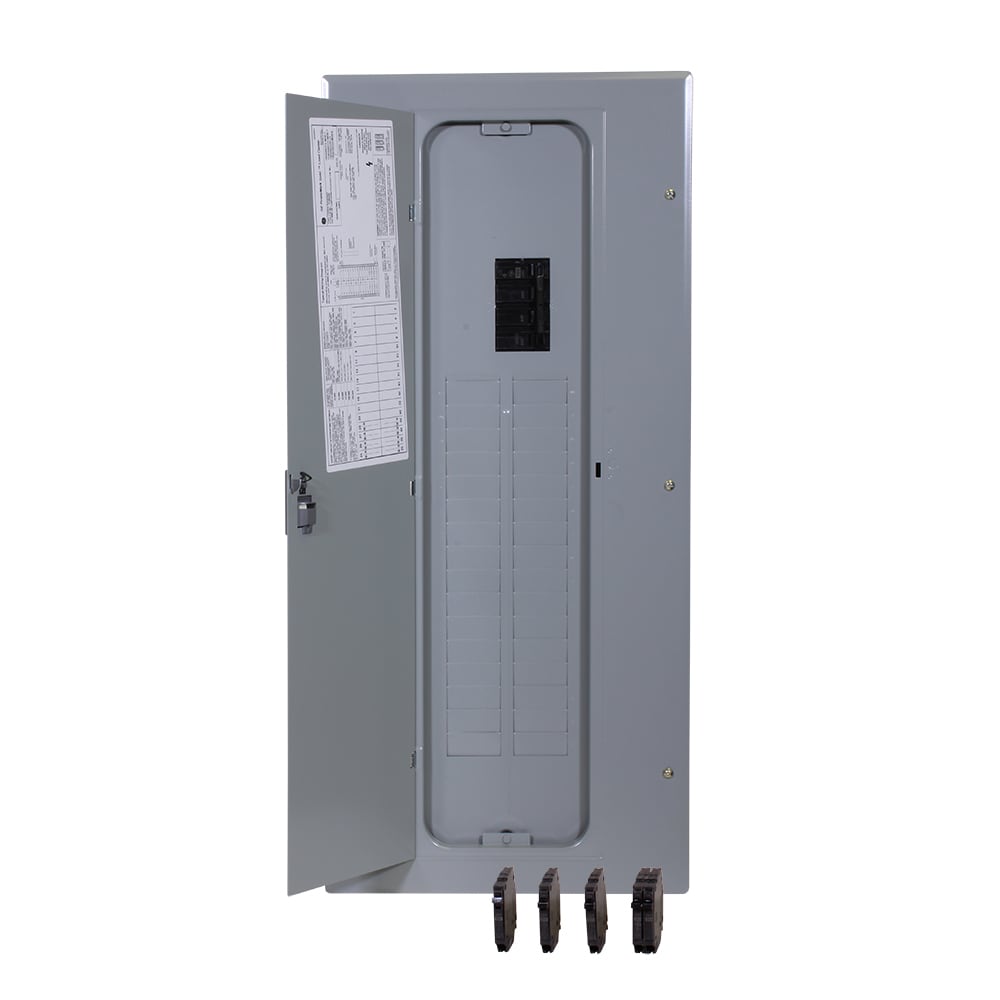

The GE PowerMark Gold Main Breaker load centers can be used as a home's main panel or sub panel de-pending upon your preferences. All GE PowerMark Glold Main Lugs are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The GE PowerMark Main Lugs are UL Listed and NEMA 1 Certified. These units are sin-gle phase, 3 wire and for use with 120/240 VAC systems and rated for up to 22kAIC. The GE PowerMark Gold Main Lugs are compatible with the GE Q-Line THQL/THQP breakers and the new ABB Q-Line THQL breakers. The GE PowerMark Gold series will be replaced with the ABB ReliaHome series.
Galvanized box for rust resistance with a self-adjusting dead-front cover
Elevated neutral bars with backed out screws
Full-length neutral bars for faster and easier wiring and 100% split neutral holes on each side are rated for #14-4 wire
Copper Bus Bar
UL Listed and NEMA 1 Indoor certified
Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
Kit includes 3 - THQP120 20 Amp single-pole circuit breakers and 1 THQP230 - 30 Amp double-pole half inch circuit breaker
Compatible with GE THQL, THQP, DFCI, GFCI and AFCI circuit breaker
Changing to ABB ReliaHome P-Series Panels
