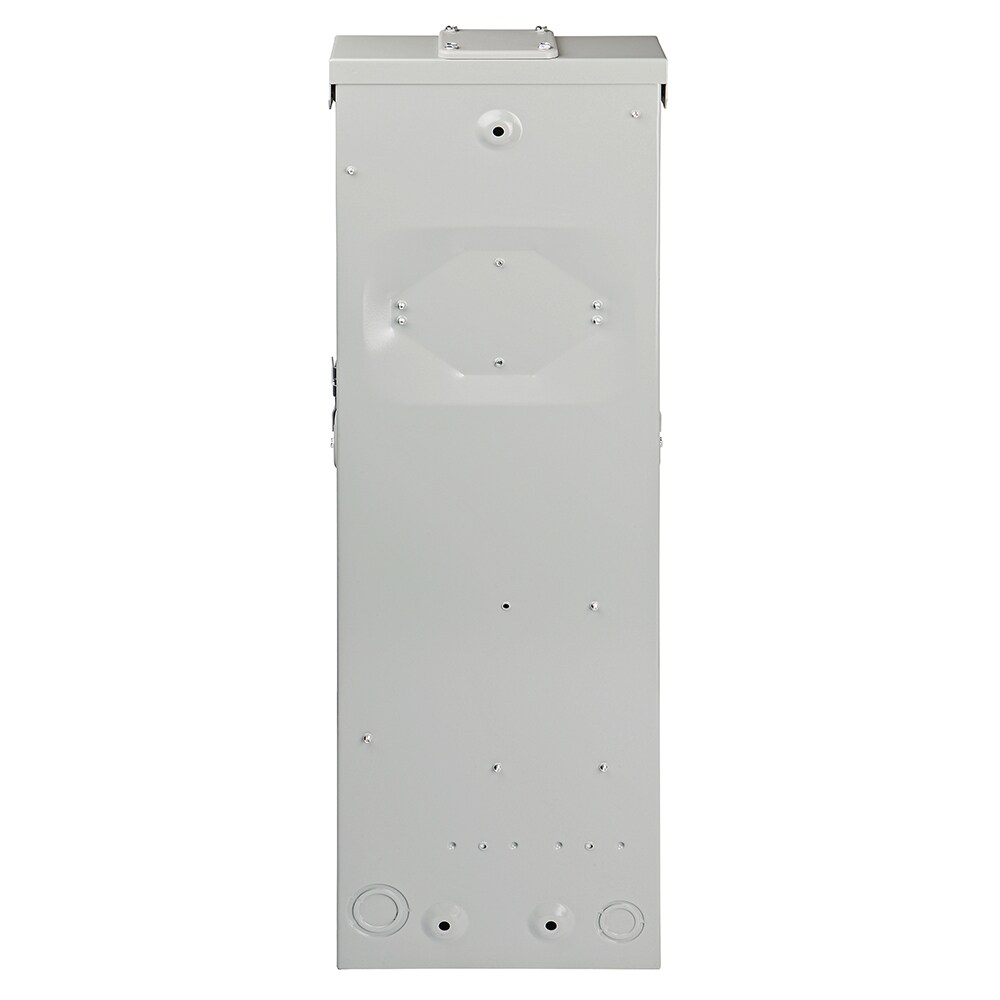

This Midwest ringless metered overhead/underground feed temporary power panel is factory assembled and tested. It comes to the construction job site ready to use with no need to assemble individual parts, saving installation time. The single, heavy-gauge NEMA 3R rainproof enclosure protects against weather, vandalism and nuisance tripping. It is lockable and is engineered for maximum protection of receptacles, cords, plugs, breakers. The unit complies with NEC2020 and OSHA requirements.
Galvanized steel construction provides superior corrosion protection
Dead front construction prevents accidental contact with live parts
Features a 100 Amp main breaker to quickly de-energize the entire panel
For use on single phase, 120/240 volt 3-wire systems
4 additional breaker spaces to house up to 8 circuits
Features 2 breaker fed 20 amp GFCI duplex outlets to protect cords, equipment and users
Supplied with factory installed cu/al equipment ground lug
Single, rainproof, welded-flange nema 3r enclosure with padlock provision
Closure caps included, hubs ordered separately
