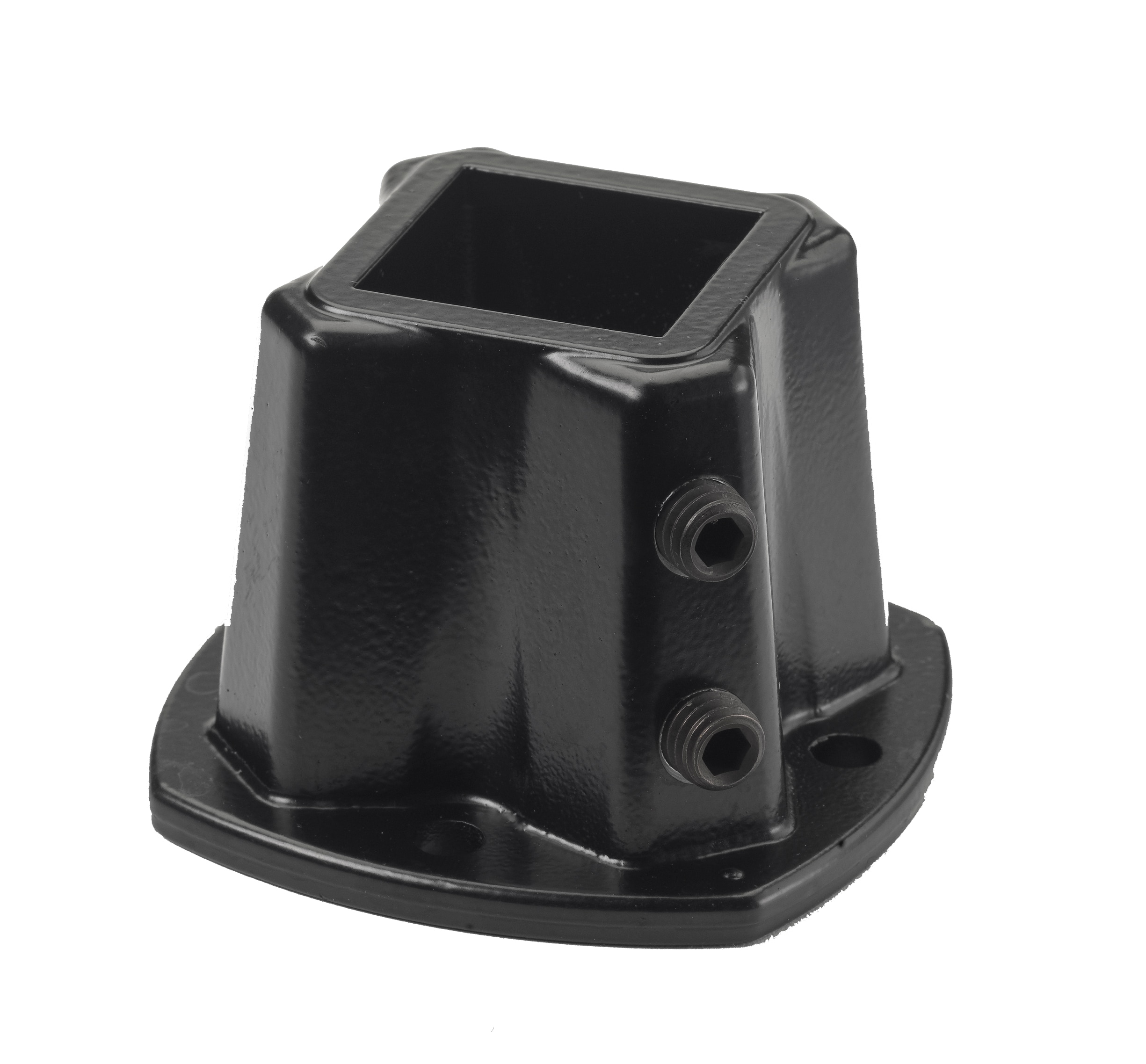

Post/Column Flange to be used in conjunction with 1-1/4-in x 1-1/4-in square Windsor or Patterson steel newel posts and Newport or Oakwood flat or corner columns. 1-1/4-in flange is ordered for use with posts or columns for field application. Flange receives 1-1/4-in steel post or 1-1/4-in column tube and is secured in place with included set screws. Must be installed on level terrain within the railing configuration.
For use with 1-1/4-in x 1-1/4-in steel newel post and steel columns
1-1/4-in post flange used to install 36-in or 48-in newel post, 96-in flat column, or 96-in corner column
One flange required per newel post, two flanges required for flat column, three flanges required for corner column
Install using masonry anchors or lag bolts, sold separately
Ordered individually
Intended for use on flat surfaces only
Baked on, black finish
Post/Column flange only, posts and columns sold separately
Check local building codes, compliance with building codes is the installer's responsibility
