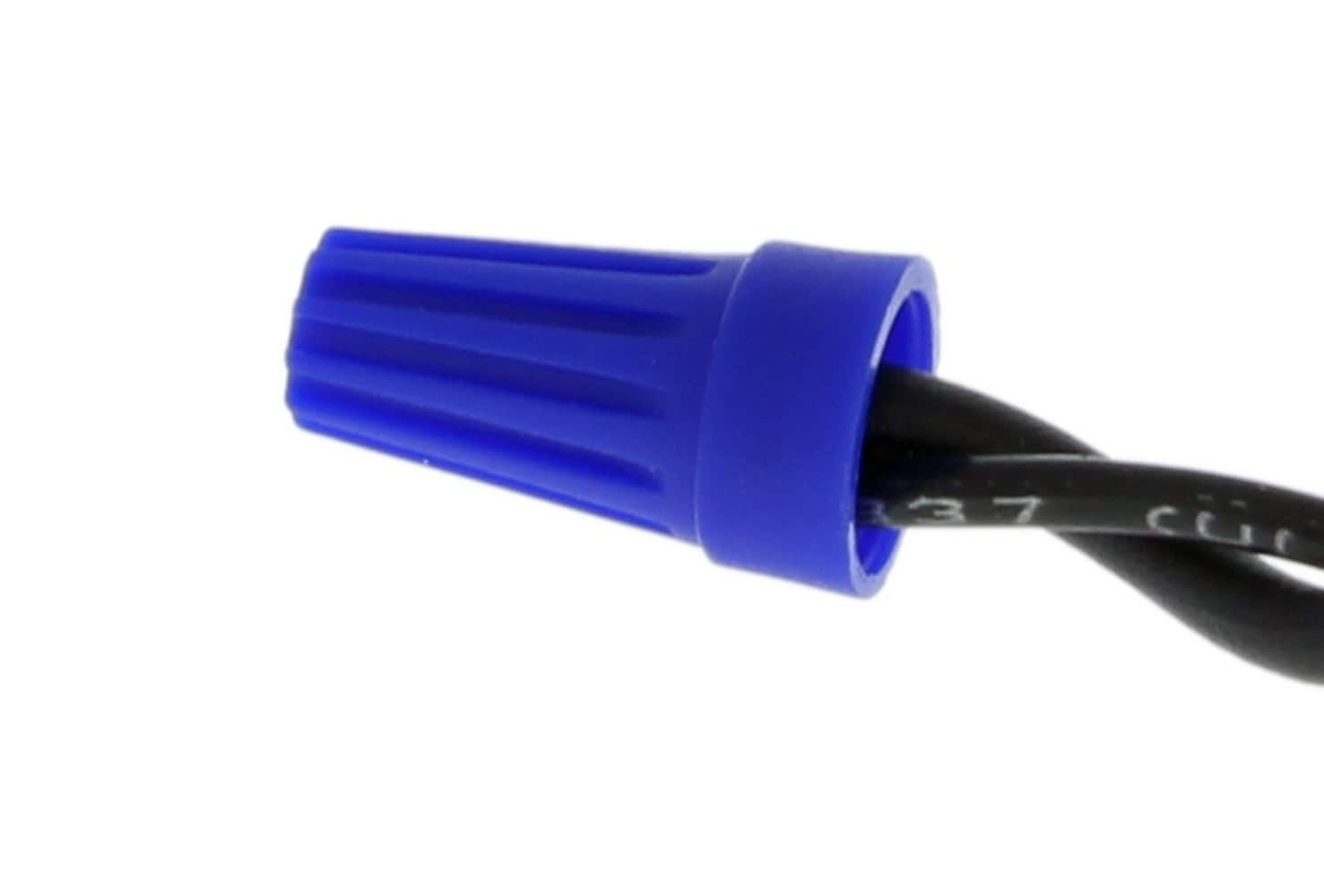

With four, color-coded connectors designed to accommodate hundreds of different solid or stranded wire combinations, WireTwist Wire Connectors offer an economical connector that brings a lot of value in comfort and performance. The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flash over and turned back strands providing excellent dielectric protection.
Positive grip shell design for comfort and ease of application
Flame retardant shell rated at 105°C for maximum protection

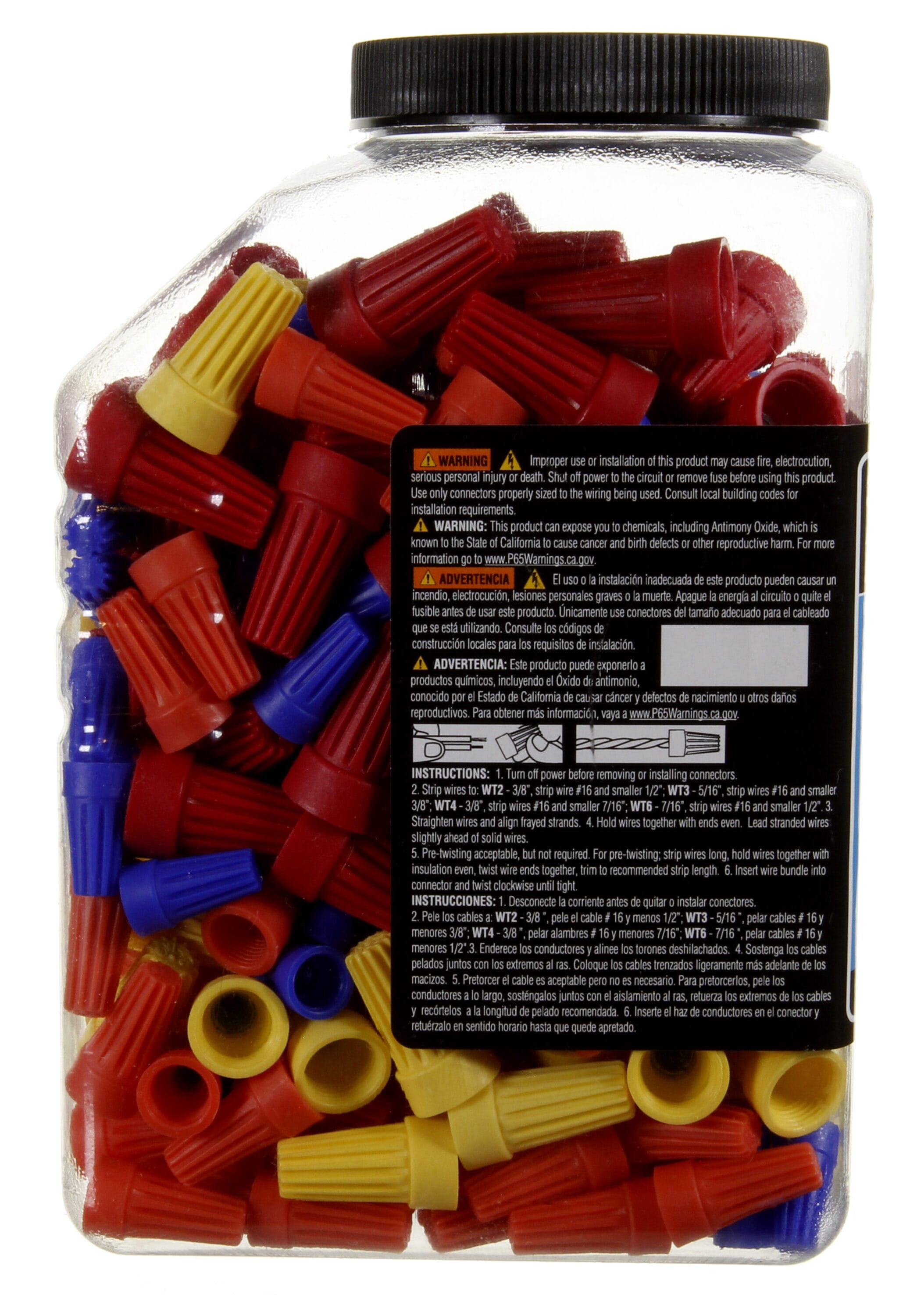

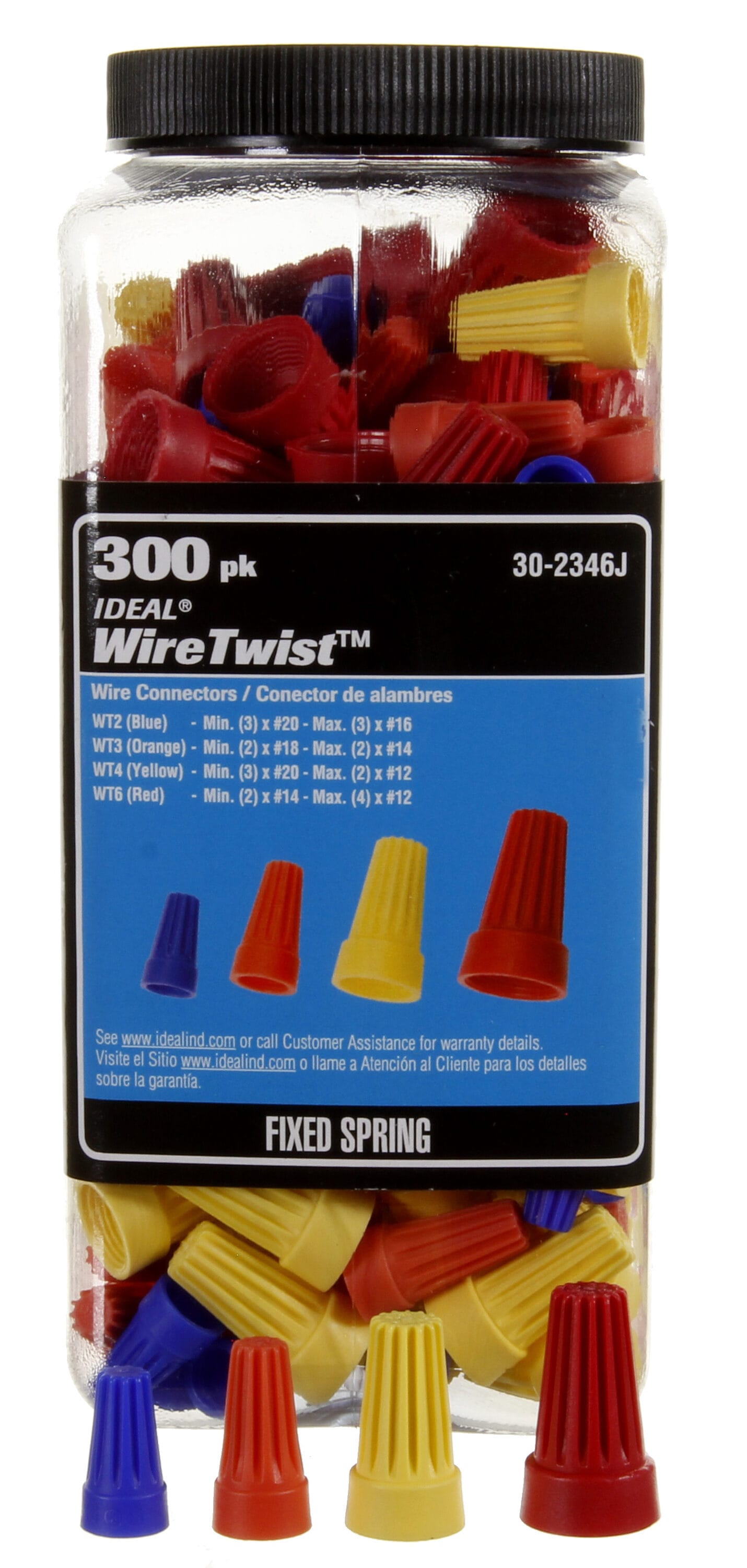

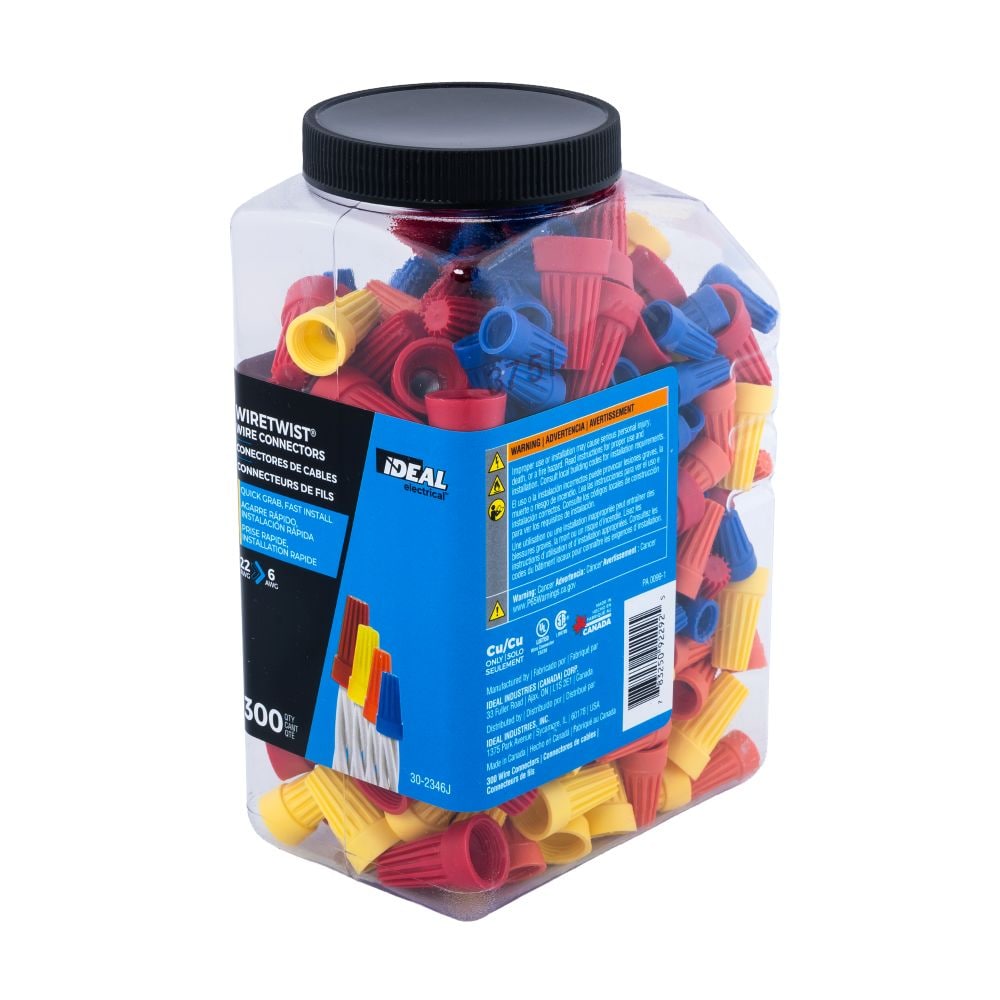

Includes 75 blue, 75 orange, 75 yellow and 75 red connectors
Deep skirt to prevent arcing and unintended shorts
Square wire spring ensures solid contact and secure connections
UL 486C listed and CSA 22.2 #188 certified
