Jones Stephens has built its reputation over the years in the plumbing industry, providing the market with thousands of products to complete any project. If you need it, we got it. Made to the highest quality standards, Jones Stephens' copper stub out elbows with open and closed ends for pressure testing are the professional, trusted choice for your installation. Install a stub out during the rough-in phase of your remodel or construction, and the exposed end will be ready for a connection to a fixture or device. These stub outs connect to ASTM F1960 (cold expansion style) PEX and come complete with a flange for nailing to a stud. They are lead free and are tested and listed by IAPMO for approval for use in drinking water services in the USA and Canada.
Connects to ASTM F1960 (cold expansion style) PEX

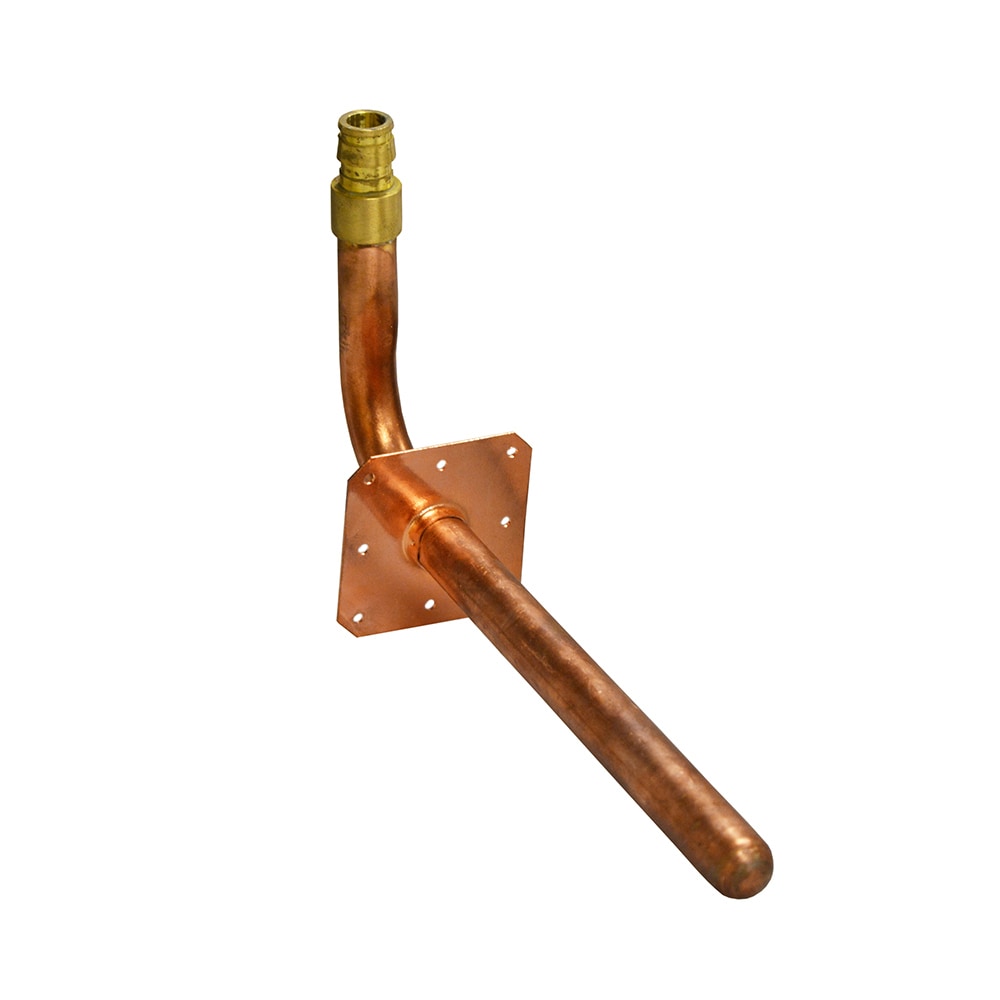

4 inch x 8 inch with 90° elbow stub out
Closed end for pressure testing and includes square flange for nailing to a stud
End connection 1 equal to 1/2 inch ASTM F1960 cold expansion PEX
End connection 2 equal to 1/2 inch CTS (spun closed for testing)
ANSI/NSF 61 and ANSI/NSF 372 approved for drinking water and meets IAPMO IGC 319, CSA B137.5, NSF/ANSI 14
ASTM B88 type L copper tube
Complies with section 1417(d) of the safe drinking water act, the lead content requirements of section 116875 of the California health and safety code and NSF/ANSI 372-2016
CUPC approved for use in USA and Canada
