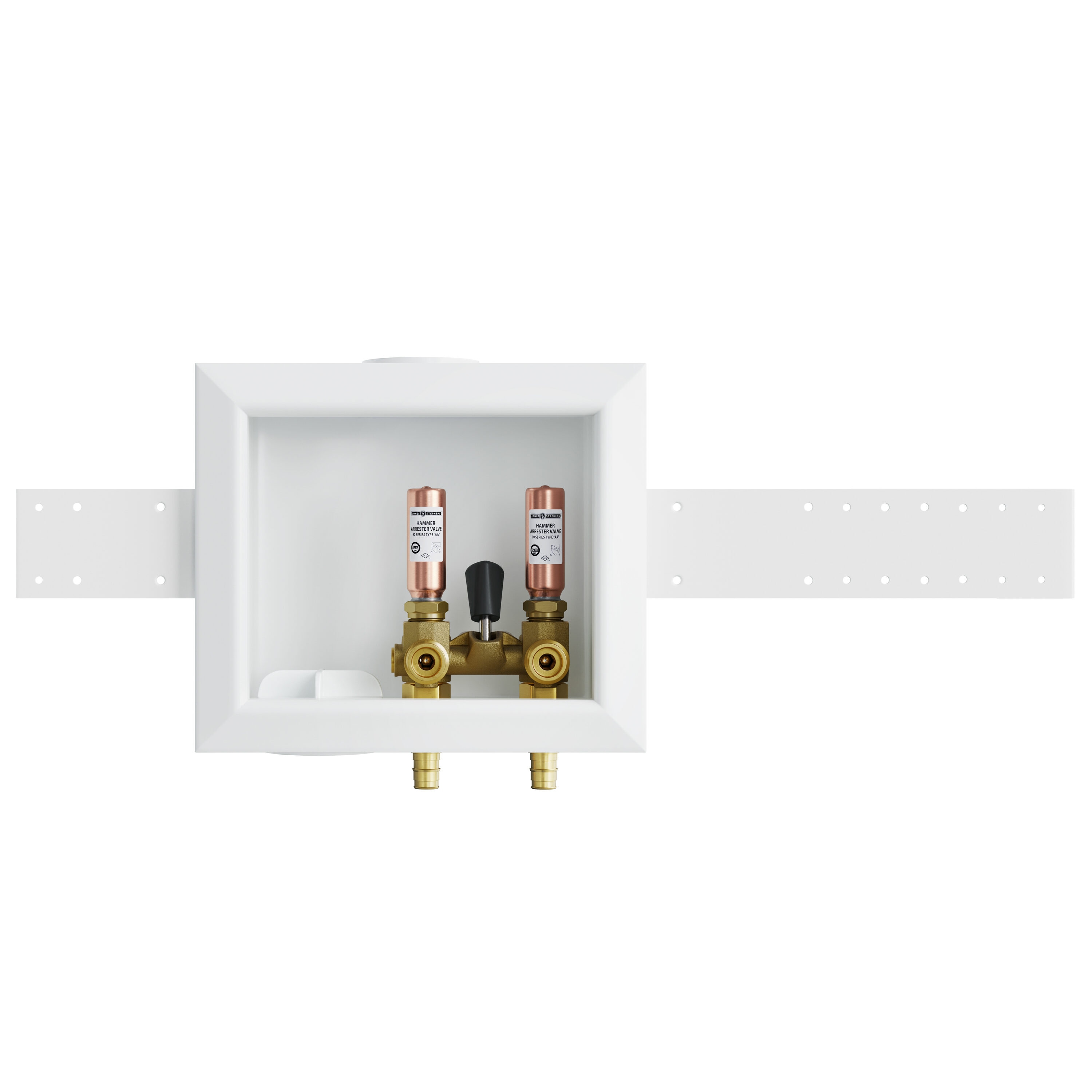

This Jones Stephens washing machine outlet box is designed with a single lever to provide convenient and quick water supply shut-off access in the event of a leak or broken hose. Compact in design, this left outlet box features a 1/2 inch PEX F1960 connection and includes all necessary parts for installation and testing. All parts are designed with quality engineering and construction to be durable and reliable to meet Jones Stephens’ highest quality standards.
1/2 inch Expansion PEX (F1960) inlet connection
Single lever controls both valves; designed to fit cold expansion PEX fitting for PEX-A tubing only
Includes mounting brackets and frame
Can be converted to a center outlet by rotating box 180°
Easy to remove test plug
Compact design
Working pressure 20 - 125 psi, temperature range 40 - 160ºF
Meets or exceeds IAPMO PS 54-2015, ASME A112.18.1-2018, and CSA B125.1-18
CUPC listed
