This single phase 13 SEER sweat air conditioning system is designed for residential and commercial applications and consists of the outdoor condenser, indoor cased coil, and 30 ft. line set. The compact micro-channel condenser is charged with R-410A refrigerant and has a top air discharge. The cased coil is filled with dry nitrogen, and is designed to be used with the metering orifice supplied with the condenser. The line set is 30 ft. in length and has a 3/8 in. liquid line and 3/4 in. insulated suction line. The system is AHRI certified and ETL listed. Final connections from line set to coil and condenser must be done by a certified technician.

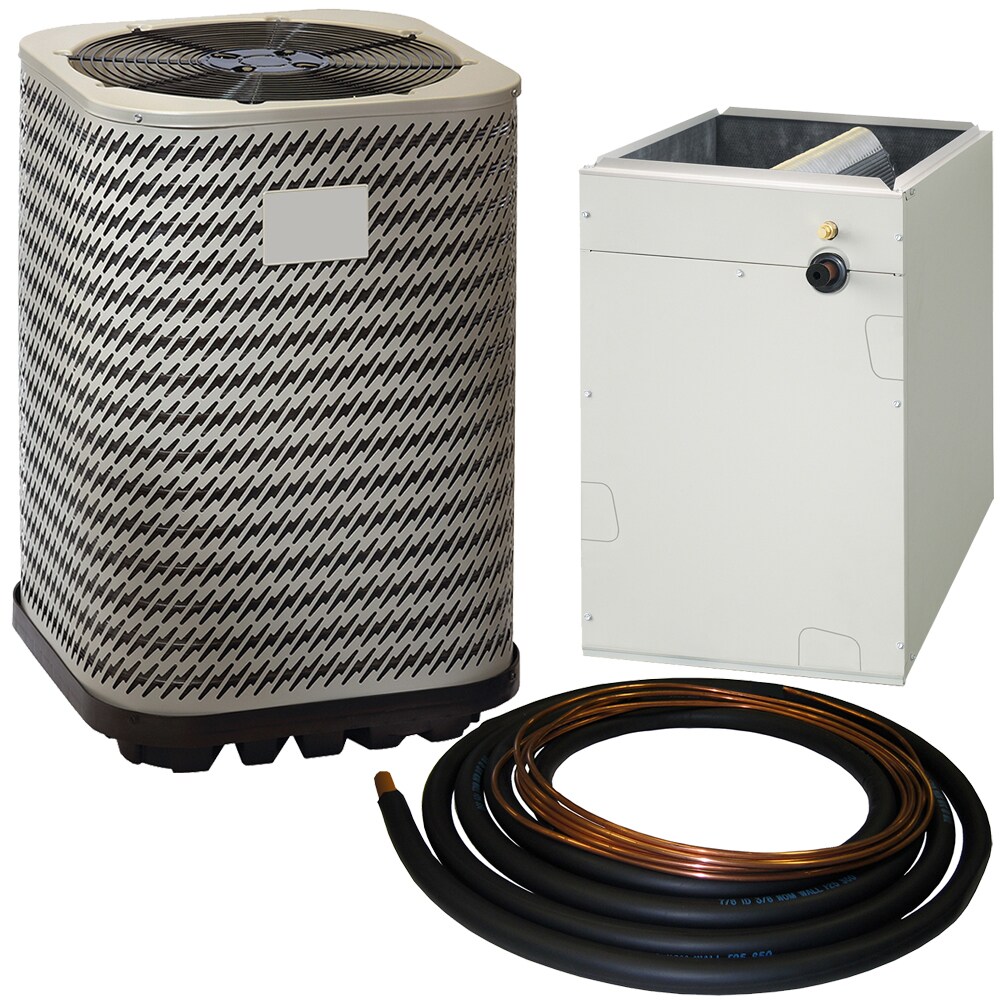

Outdoor air conditioning condenser and indoor evaporator coil and 30 feet of line set
Ozone friendly R-410A refrigerant
Outdoor condenser has micro-channel aluminum coils for high corrosion resistance, and the galvanized steel cabinet is coated with a polyester urethane to withstand coastal elements
Permanently lubricated motor requires no maintenance and is protected from the elements
The fully cased, multi-positional design of the evaporator coil allows it to be installed in Upflow, and horizontal applications; coils are ready to accept the refrigerant metering piston which is included with the outdoor condenser
30 foot line set includes a liquid line and insulated suction line and can be cut to length in the field
Sweat fit systems require and EPA certified technician to install as system must be brazed, vacuumed and base valves opened
When ordering an air conditioning system with a gas furnace, the proper evaporator will be supplied to match the application
Equipment must be registered online within 60 days with the manufacturer for the extended 10 year parts warranty
