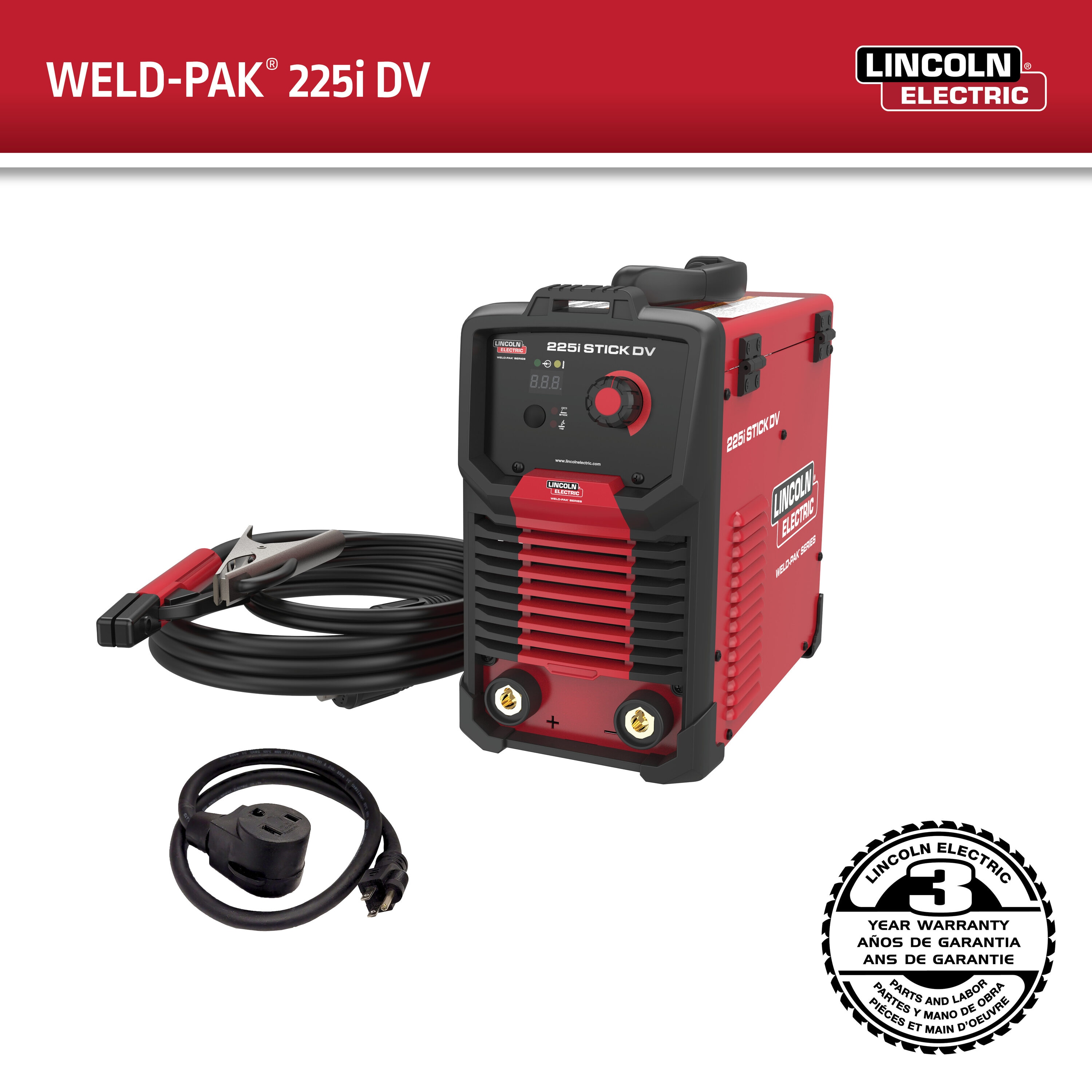

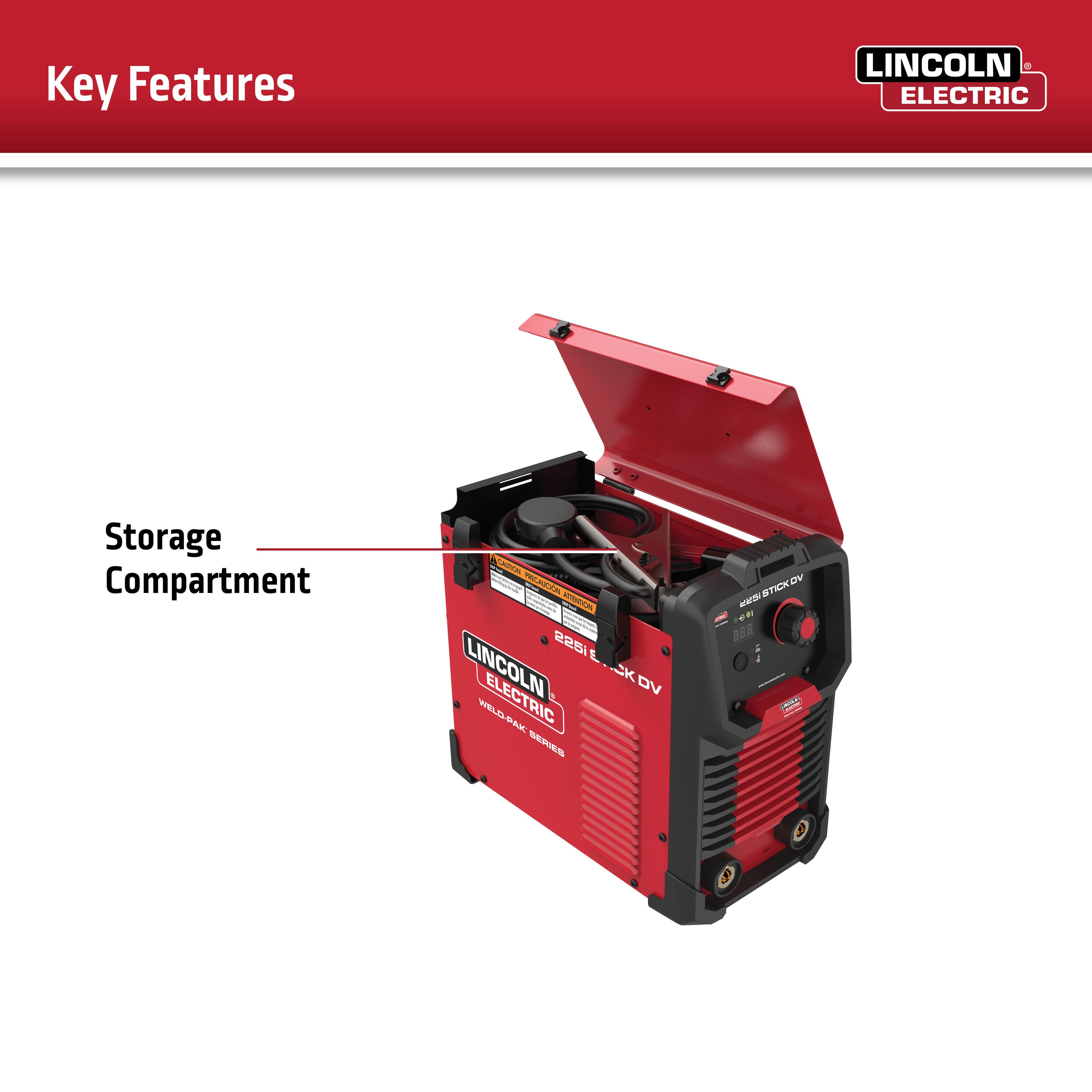

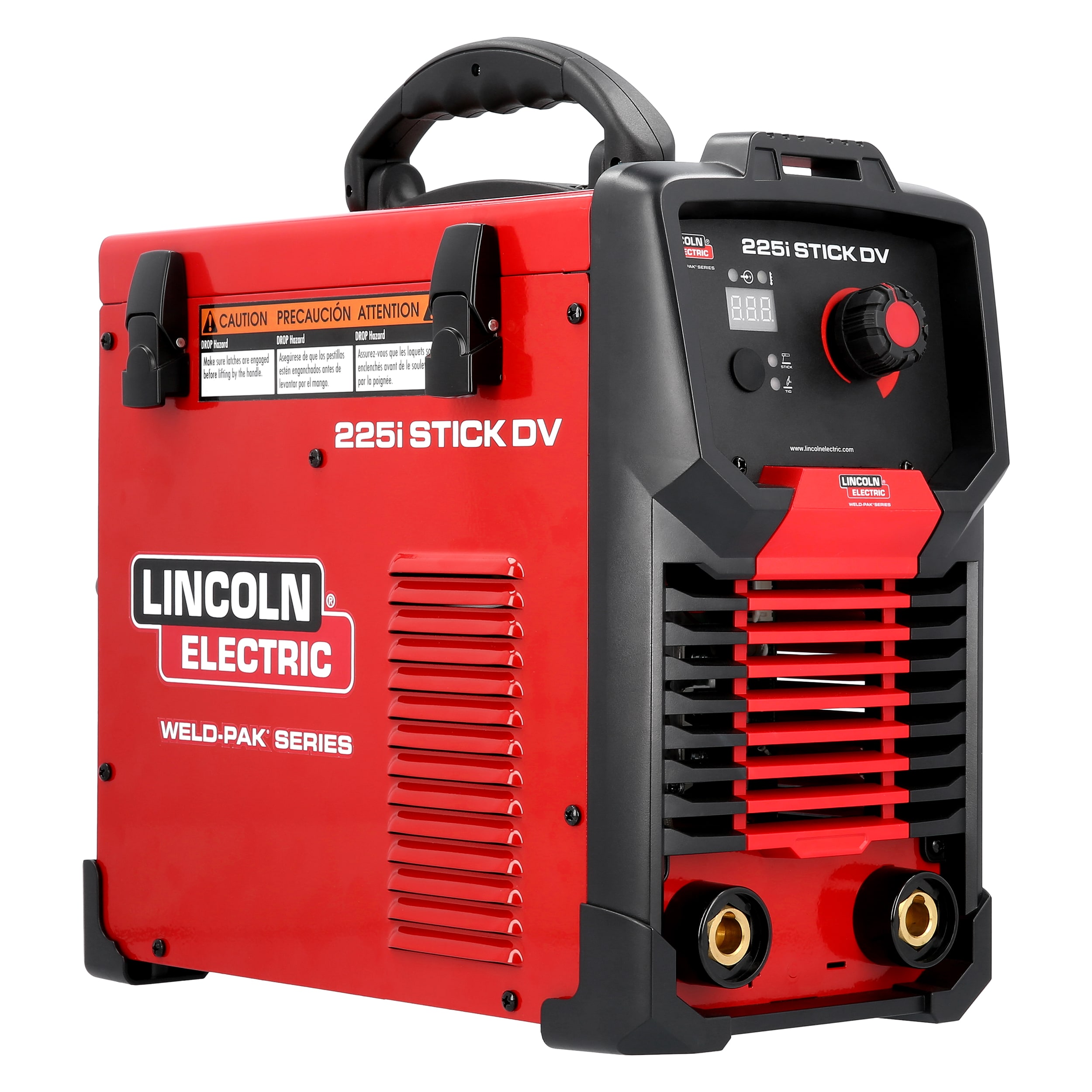

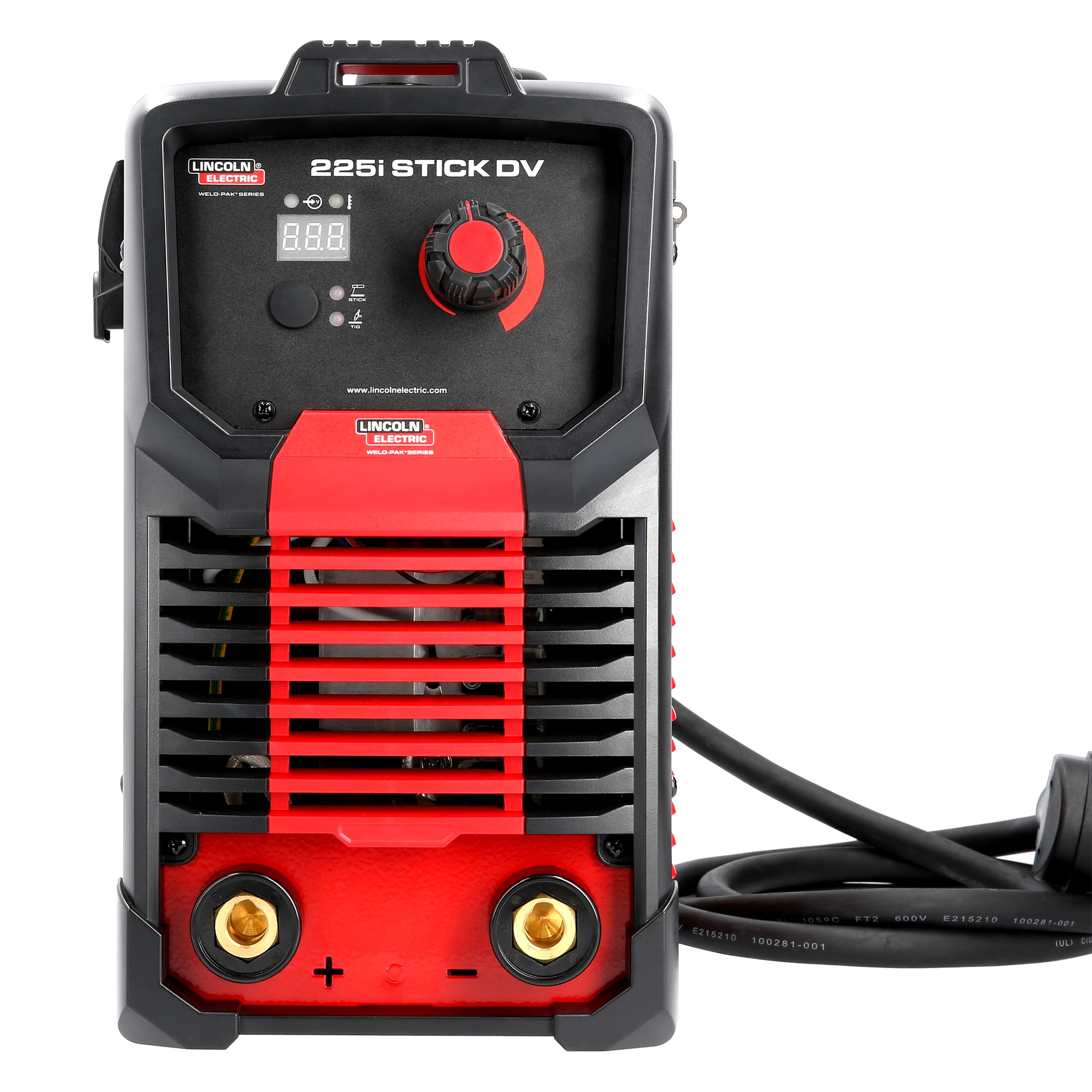

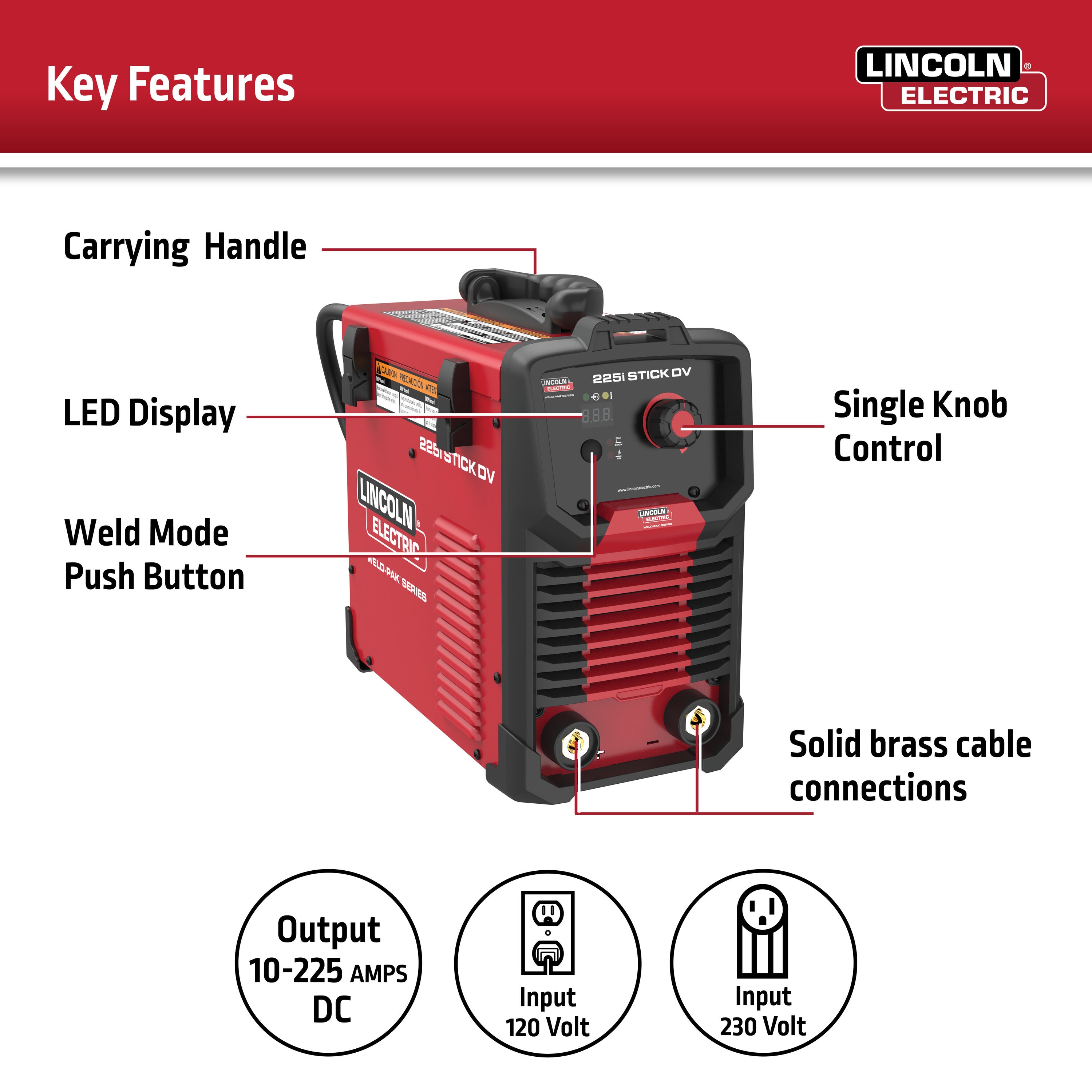

The dual voltage Weld-Pak® 225i Stick DV stick/TIG Welder has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64" to 5/32". Weighing in at 20 lbs., it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 gauge sheet metal to 5/16" thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG® welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between.
120VAC/230VAC input, 120/230/1/60
10-225 amp DC welding output range
30% duty cycle at 225 amps
Weighs 20 lbs.

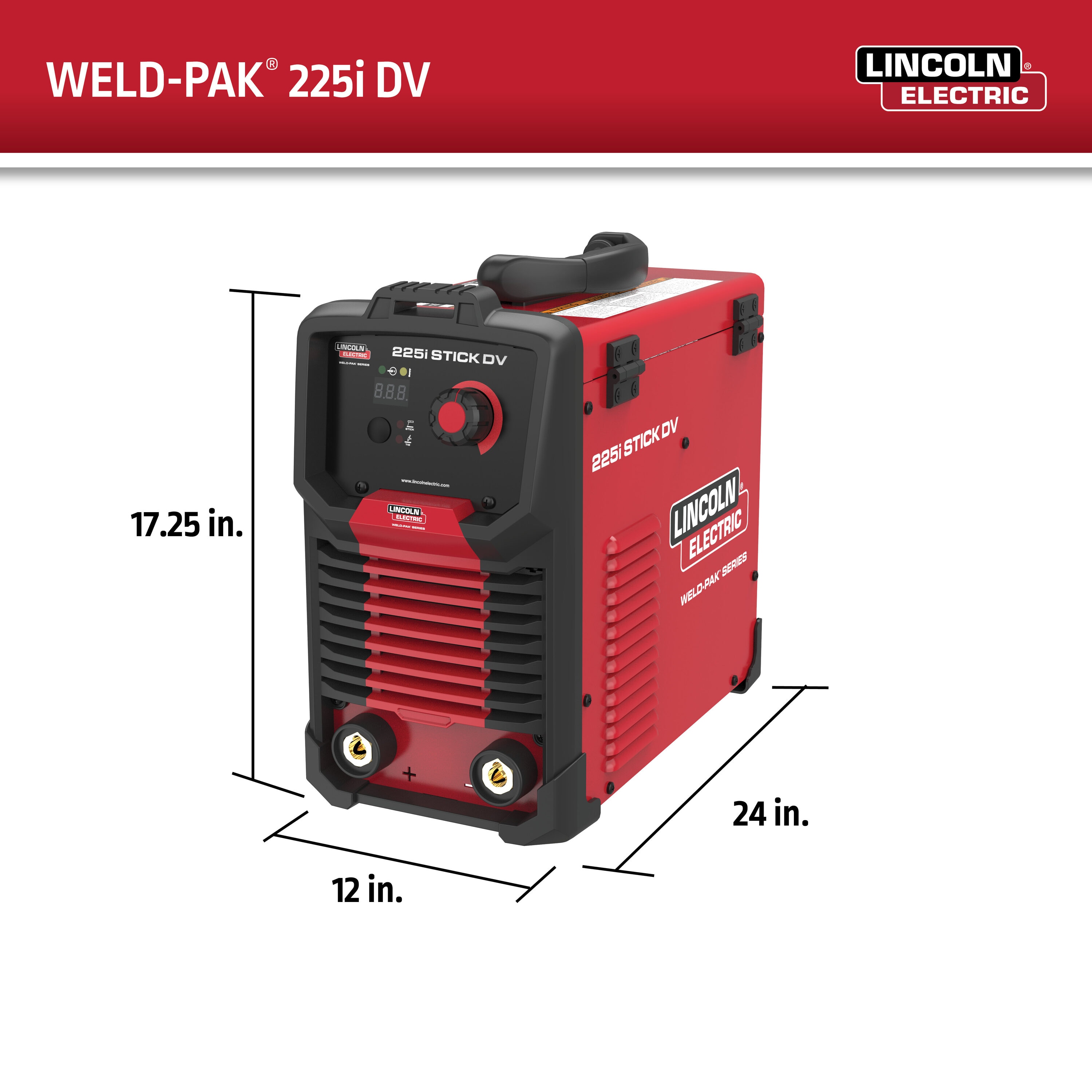

Dimensions of unit 12H x 8W x 14L inches
Welds 12 gauge to 5/16" single pass

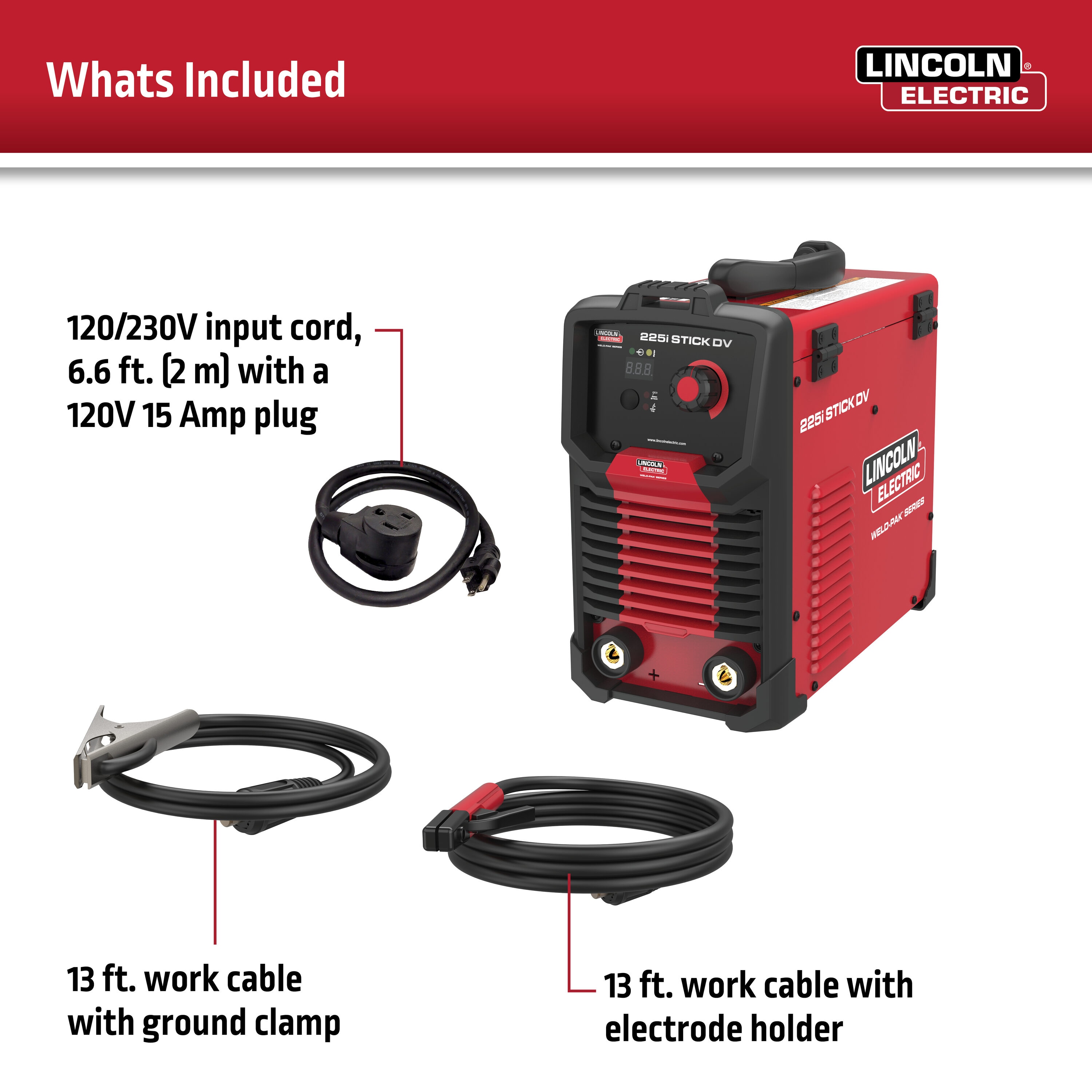

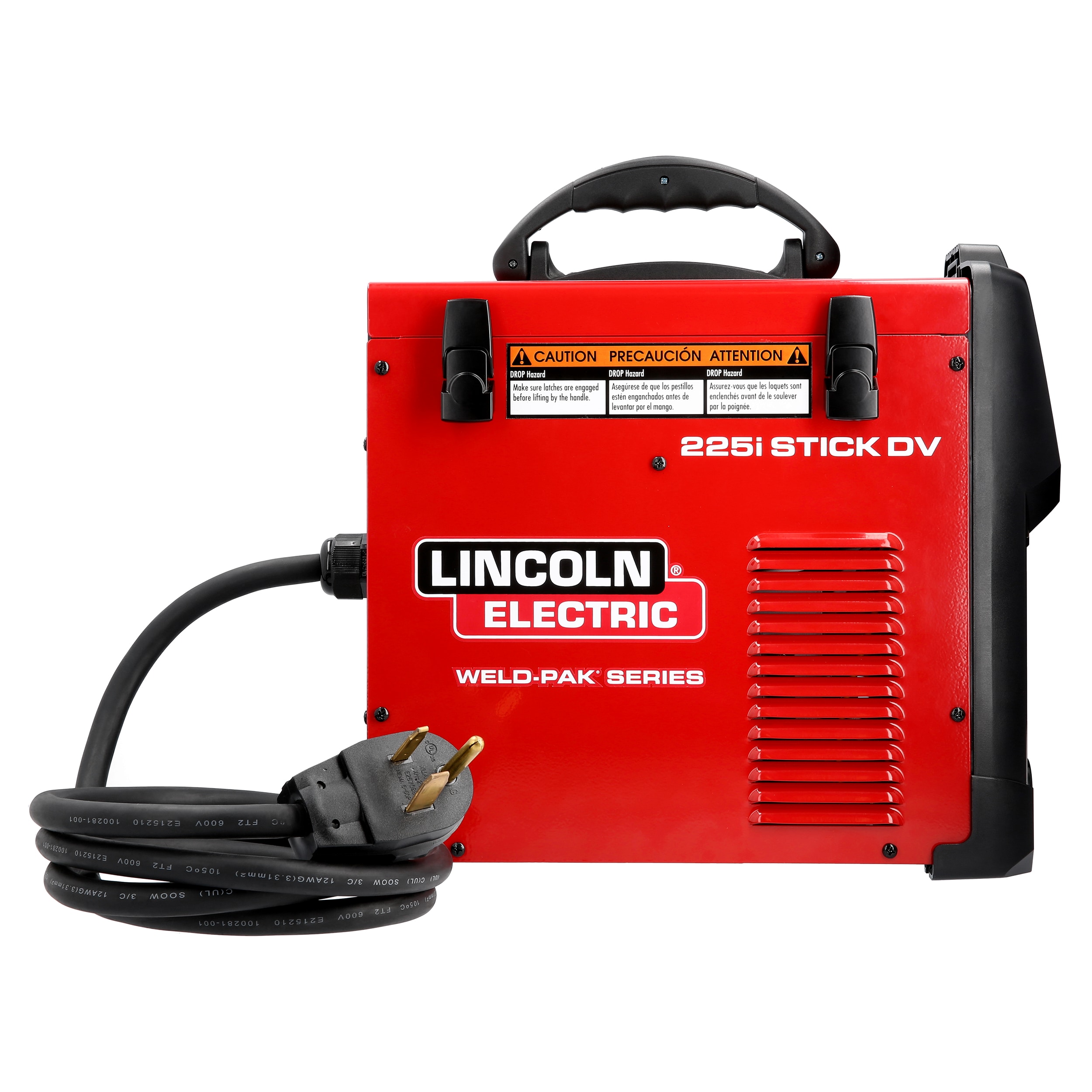

Comes with a shoulder strap, 13 foot work cable & clamp, 13 foot electrode cable & electrode holder, and 6 foot input cable with attached three-prong 230VAC 6-50P plug with 5-15P 120VAC adapter
TIG capability with additional attachments
