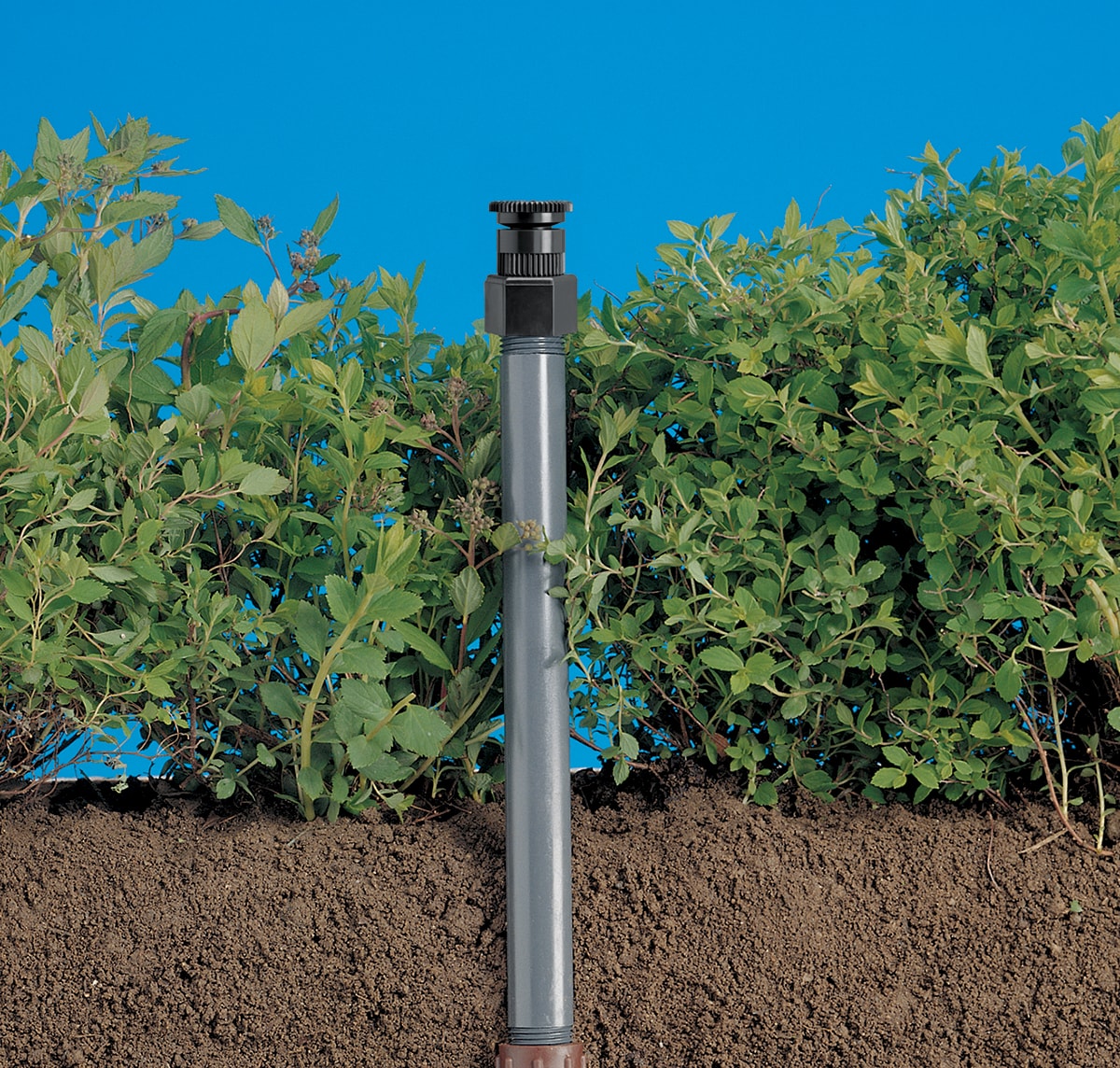

The Orbit shrub head spray combines with various lengths of PVC risers to create a way to spray water over trees, shrubs, perennials, or annuals. It is an integration of a shrub adapter with an adjustable pattern spray nozzle and filter. The inlet of the shrub adapter is 1/2-inch female pipe thread (FPT). Typical installation is to mount it on top of a 1/2-inch male pipe thread (MPT) PVC riser or 1/2-inch MPT adjustable shrub riser. You will typically install the riser in a 1/2-inch PVC Tee or Elbow underground. The adjustable pattern nozzle permits arc adjustment from 0 to 360 degrees and radius adjustment down to 50% of the rated distance and are replaceable with all Orbit, Hydro-Rain female-thread nozzles, as well as nozzles from other major manufacturers. The standard adjustable spray head does not have pressure-regulating riser stems and is not for sale in the State of California, but there are pressure-regulating versions available. For outdoor irrigation use with cold water only.
For watering trees, shrubs, perennials, or annuals of various heights
Combines a shrub adapter with an adjustable pattern spray nozzle and filter
Adjustable pattern nozzle permits arc adjustment from 0 to 360 degrees
Shrub adapter allows for replacement with same or different pattern nozzle
Compatible with nozzles from Orbit, Hydro-Rain, and other major brands
Non-pressure regulating: check local code for restrictions
Control with a B-hyve smart controller for optimum water conservation
For outdoor irrigation applications and cold water use only
