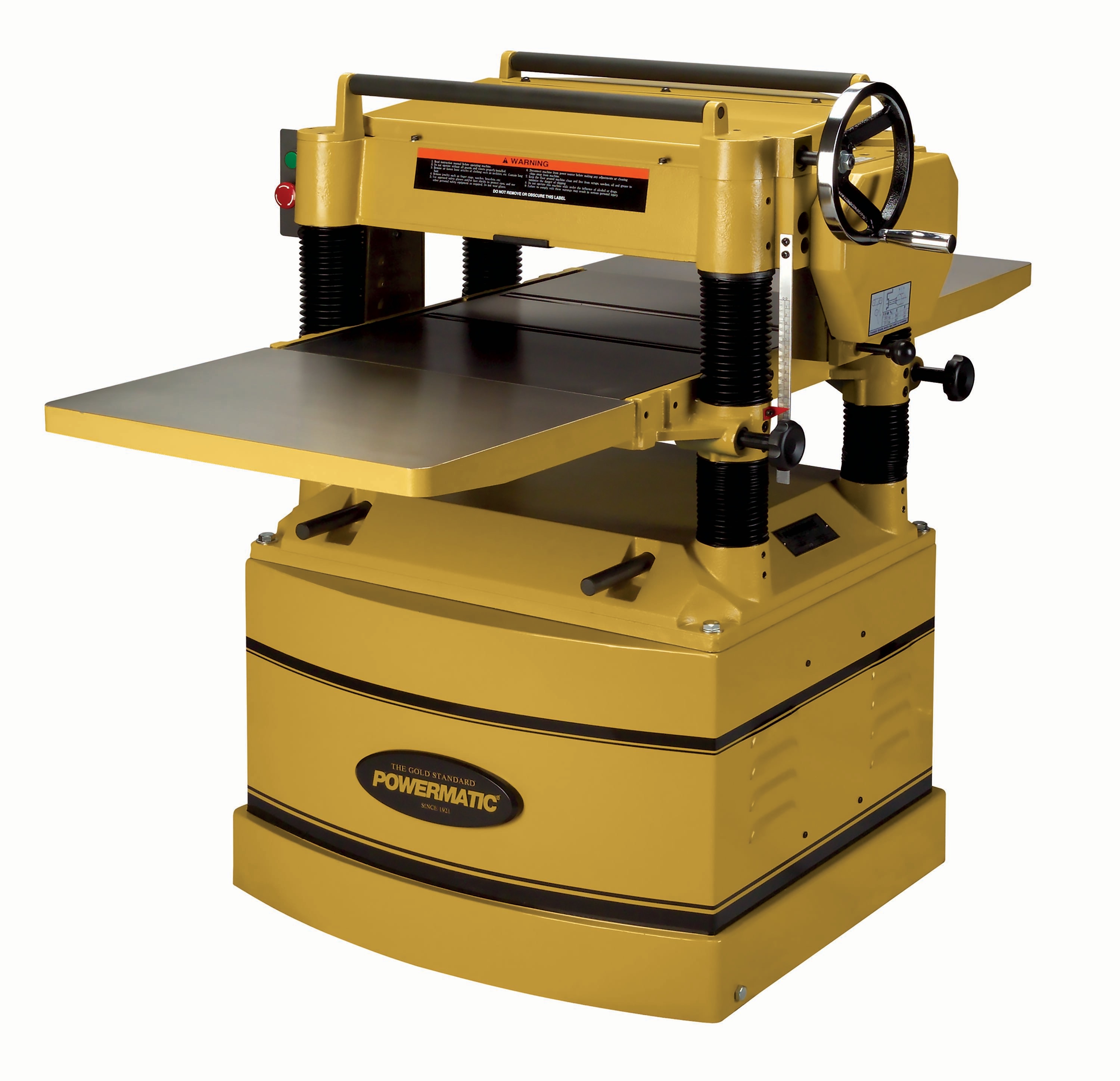

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5-HP motor and 20-inch planing capacity will handle the most demanding work. The 5-inch dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to four-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
Cast iron table with extensions creates a big 55-1/2-in x 20-in working area
Chip breaker and pressure bar helps to reduce snipe

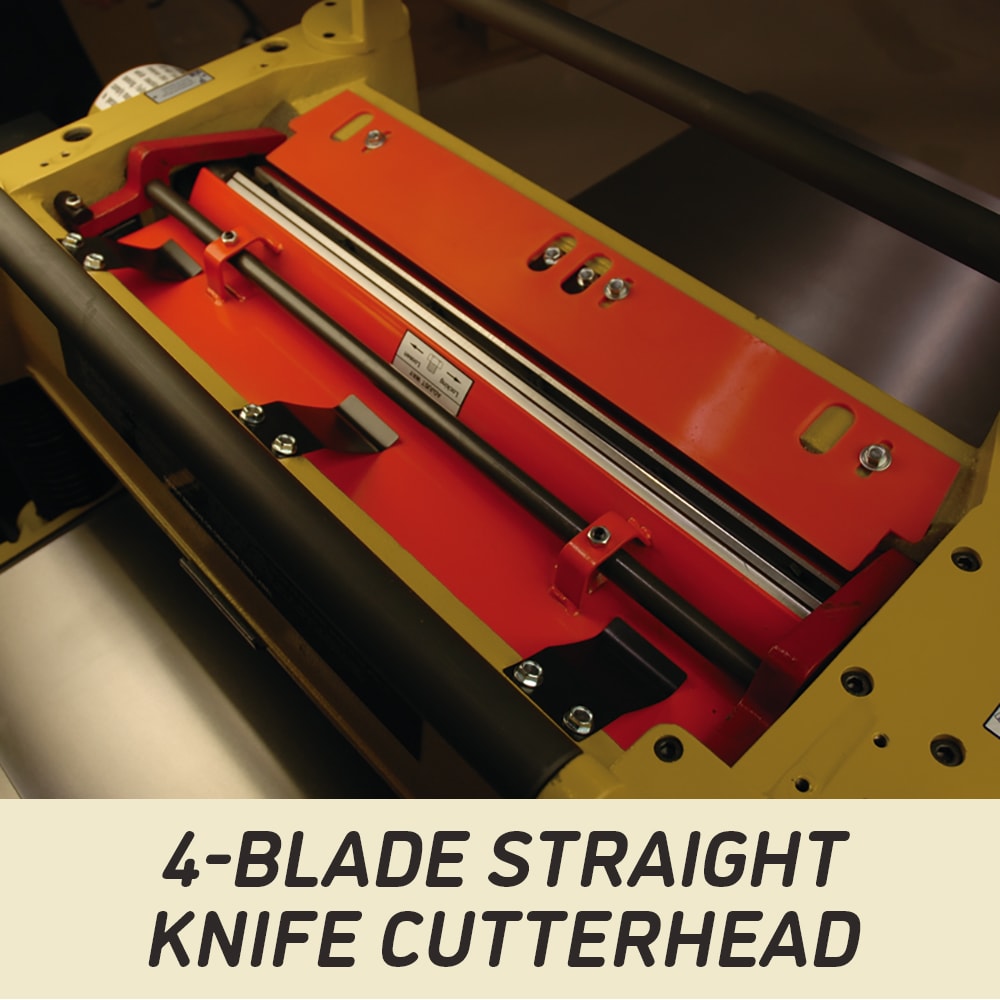

Cutterhead contains four high-speed steel straight knives for clean, smooth cuts
Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
Fully-enclosed base cabinet with integrated casters for shop mobility
Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
