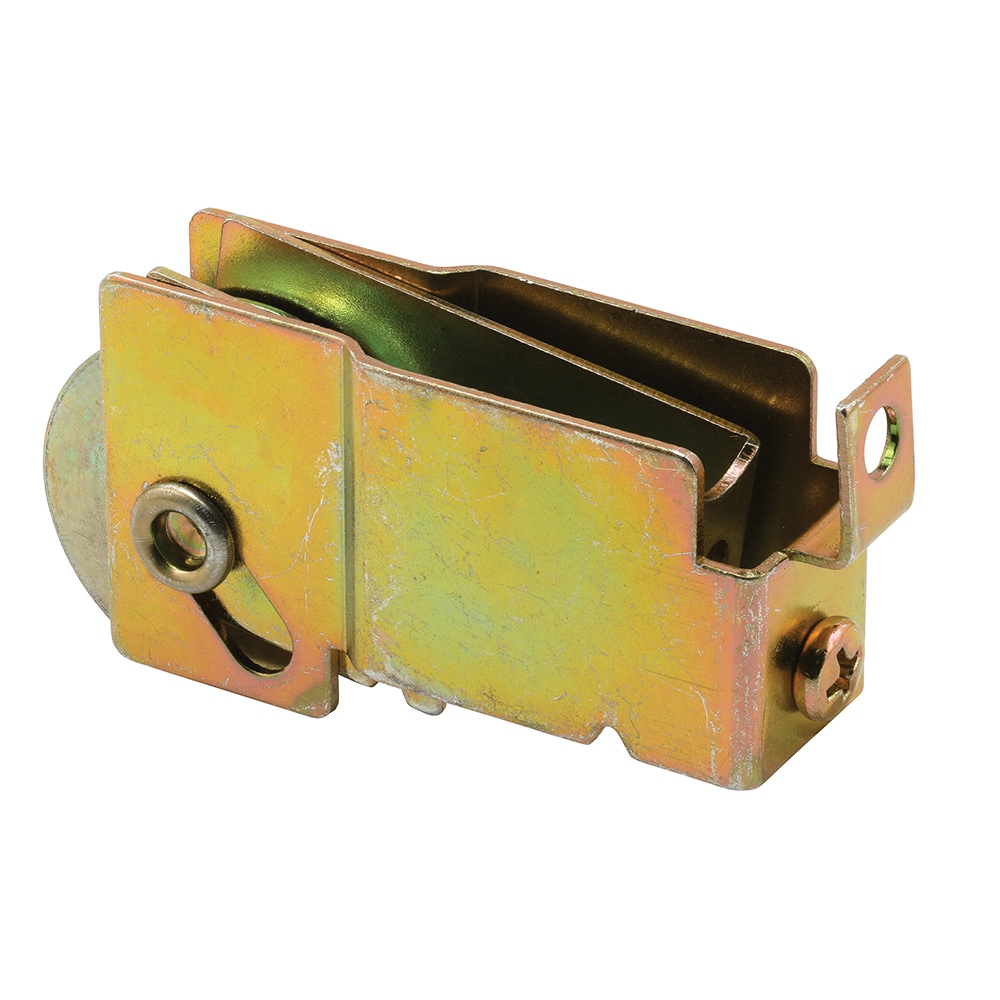

This is an F-tab patio door roller assembly with a 1-1/4 inch concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 3/4 inch wide and 1-1/8 inch tall with a rear adjusting screw. Used by Christian Porter, Fullview and a variety of other patio door manufacturers.
Used by Christian Porter, Fullview and a variety of other patio door manufacturers
When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
1-1/4 inch diameter ball bearing roller
Stamped steel housing and steel roller
Rear adjustment screw
Allows the door to roll smoothly
A Phillips head screwdriver is required for installation

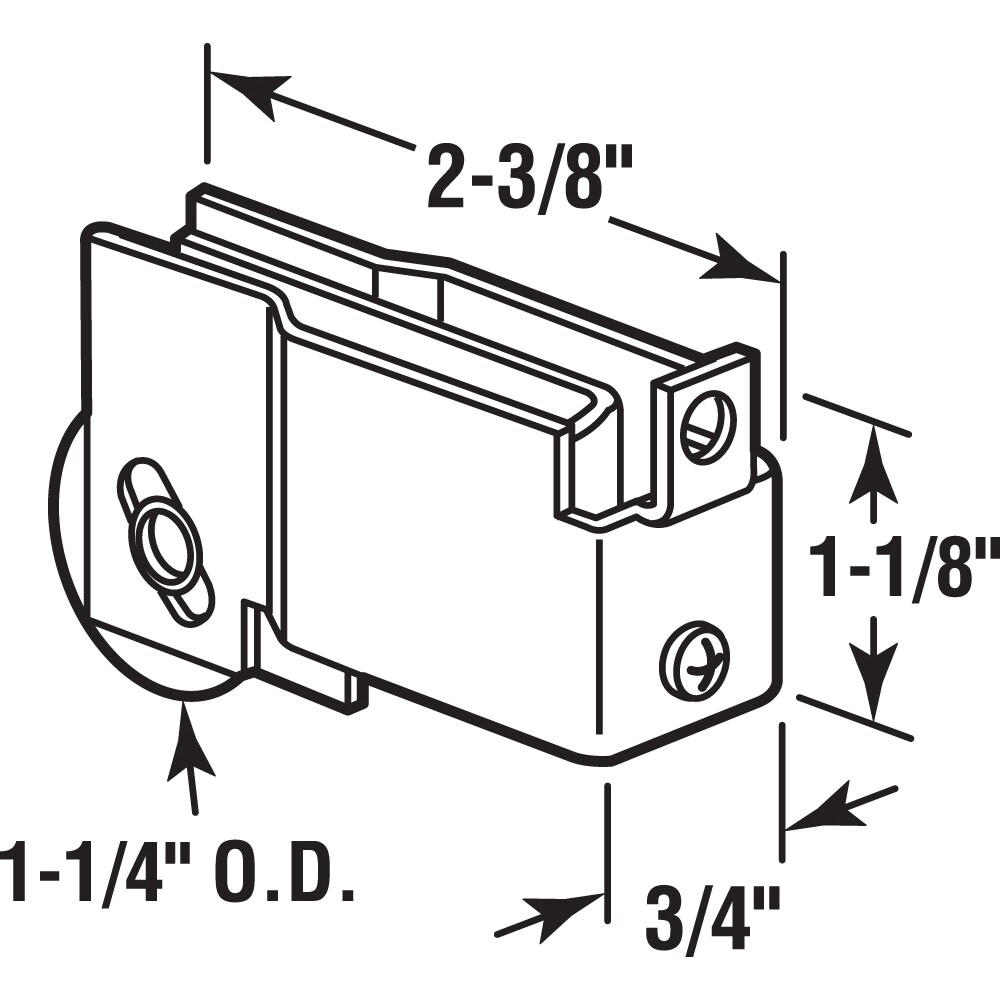

Please refer to the line art drawing and compare with your original item before purchasing
