This wall bracket is constructed of stamped stainless steel and it comes in a satin finish. It features a 2-hole mounting base and a 1-1/2 inch overall reach, with a 1-3/16 inch wide base, and it fits 1 inch thick panels. The T-27 Torx security fasteners included with this item feature tamper-resistant 6-lobe security drives with center pins. This restroom partition hardware is used to replace broken or missing U-brackets, and it includes all the fasteners necessary for its complete installation. Wall brackets like these are manufactured in various dimensions for use with different panel thicknesses, as well as in alternate finishes. These restroom partition wall brackets are used by many, and they are simple to install. NOTE: A protective film is applied to help avoid scratching until unit is ready to be installed.
Restroom partition hardware used to replace broken or missing U-brackets
Fits 1 inch thick panels, base measures 1-3/16 inch wide x 1-1/2 inch height with 1-1/2 inch reach
Satin finish
Stamped stainless steel construction
Installation fasteners: 1 each - T-27 barrel nut and shoulder screw, 2- T-27 pan head screws; fastener finishes match hardware finish
NOTE: A protective film is applied to help avoid scratching until unit is ready to be installed
A Torx security bit is required to install or remove

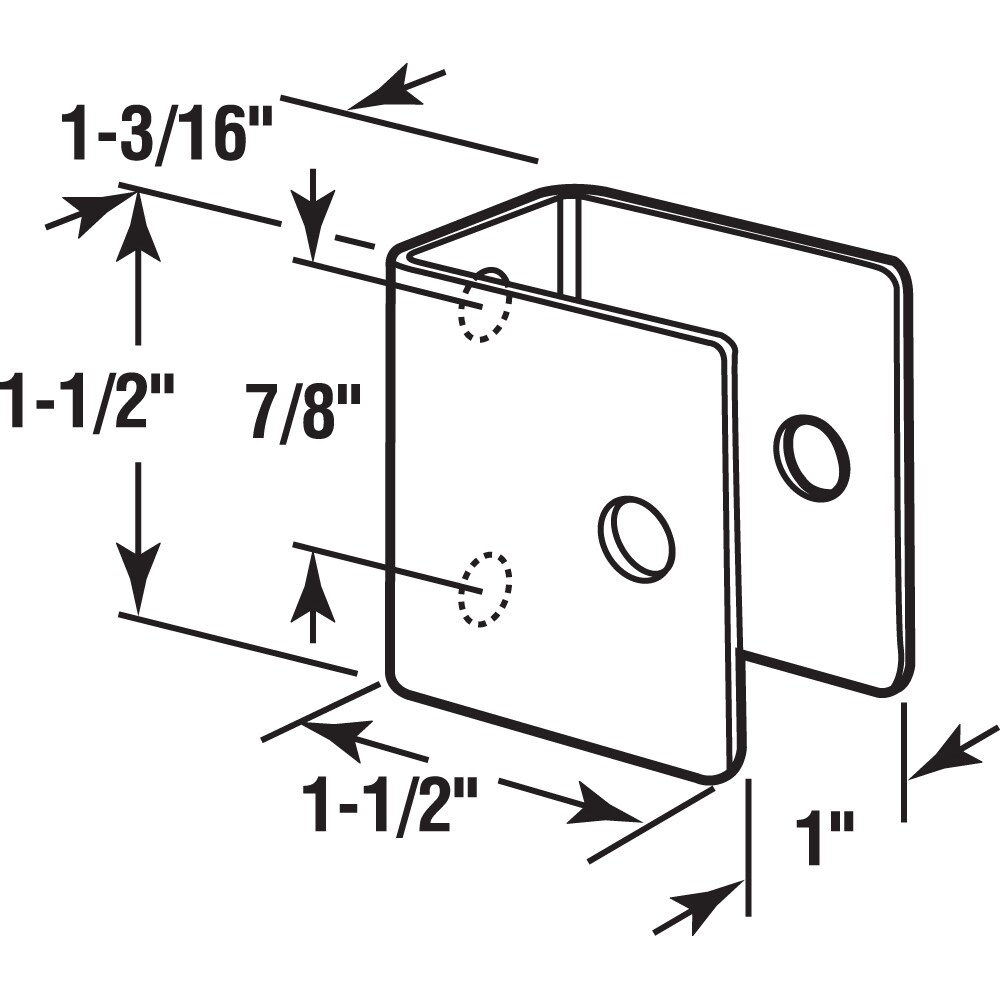

Please refer to the line art drawing for dimensions and compare with your original item before purchasing
