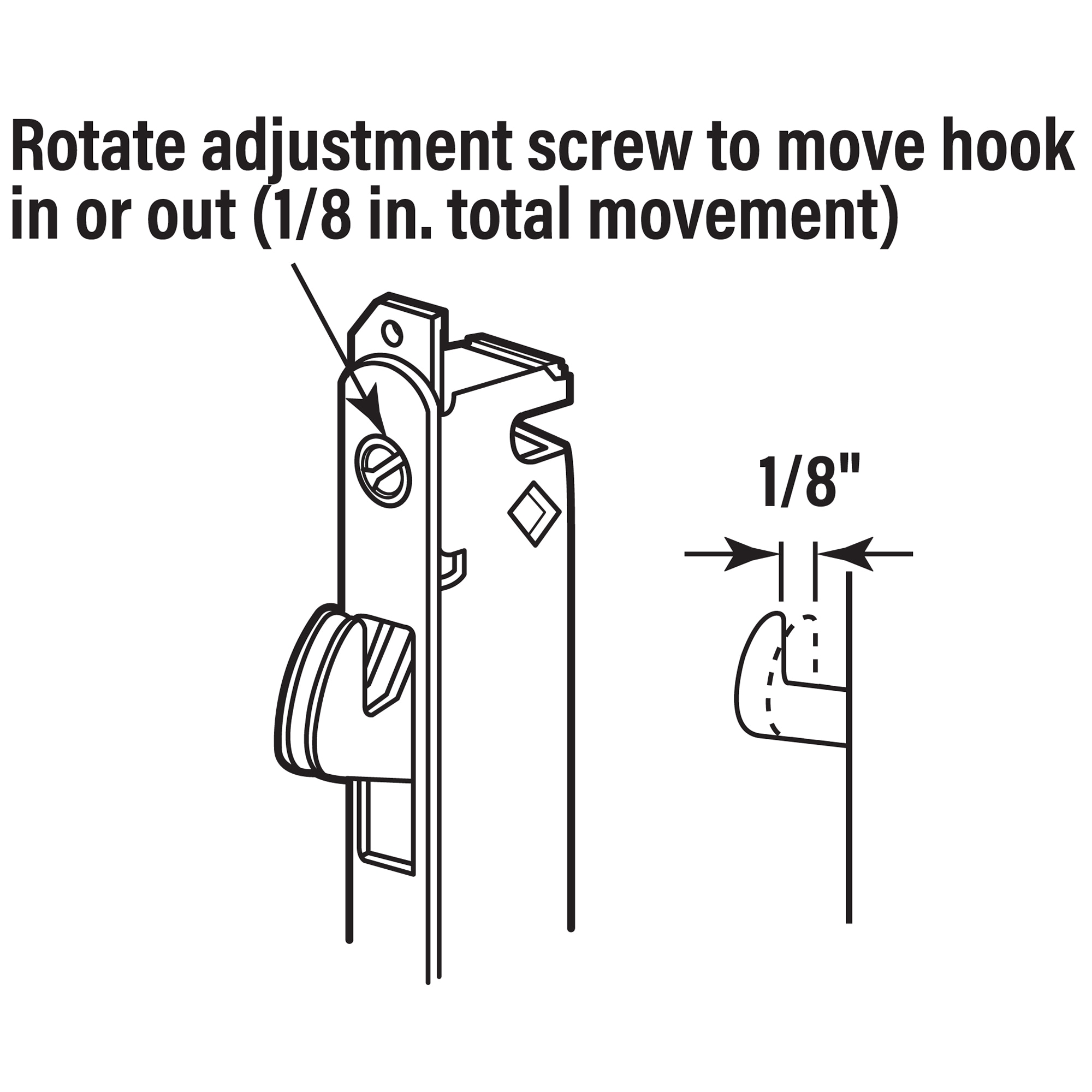

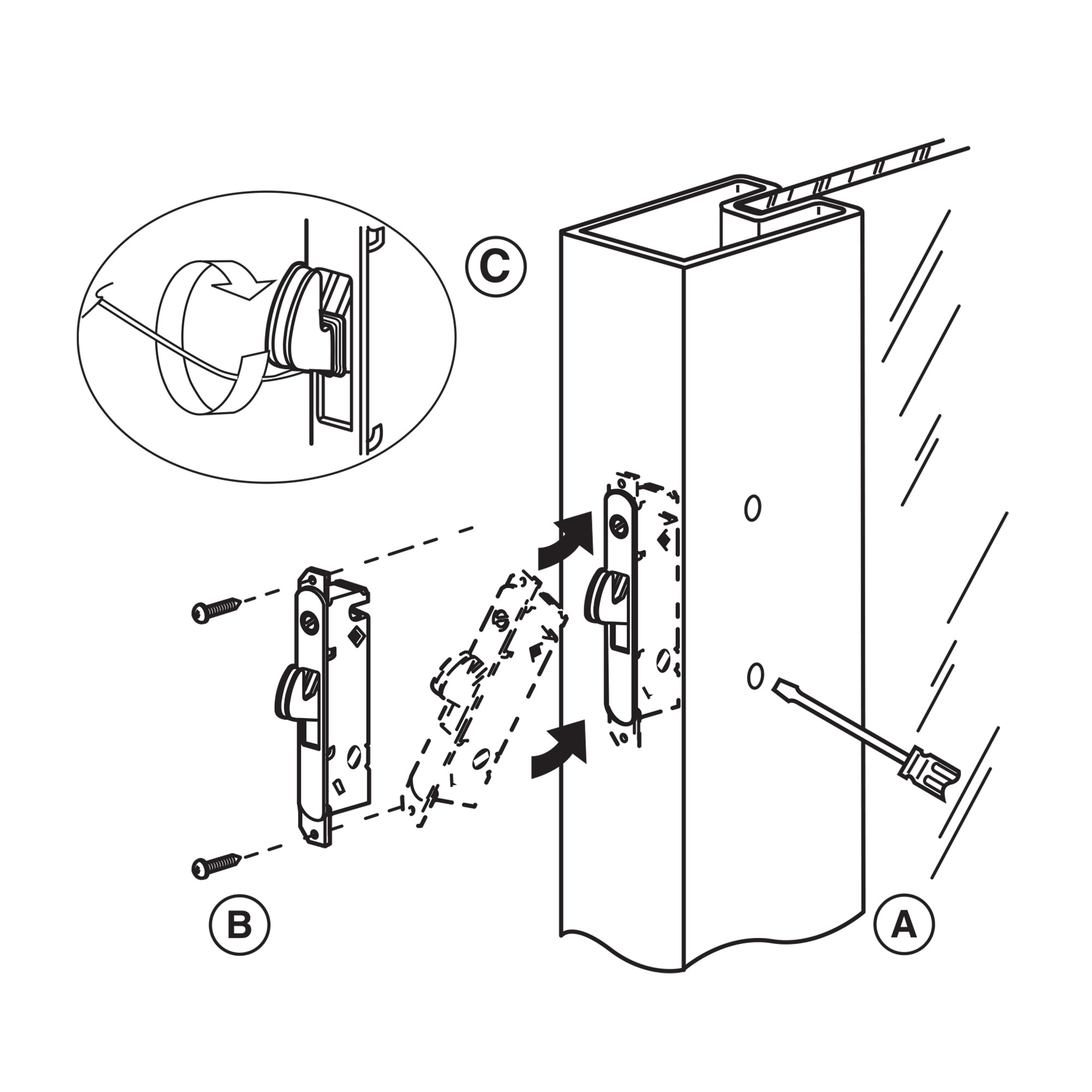

When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise lock! This E 2013 Mortise Lock has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with vertical keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 inch from center to center, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted. Installation Tip: Watch the manufacturer’s How-To Video that is linked to this item page.
REPLACE OLD OR BROKEN DOOR LOCKS – When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise door lock LOCKS – When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise door lock
FOR SLIDING DOORS – This mortise lock replacement can be used on sliding patio doors constructed of wood, aluminum and vinyl, and fits on W and F manufactured handles
VERTICAL DEGREE KEYWAY - This E 2013 mortise lock has a vertical keyway position when in the locked position.
STRONG AND DURABLE – This patio door mortise lock set is constructed of a steel housing and faceplate
IMPORTANT - Take note of the mounting screw holes on the door, the shape of the opening on the door frame (rounded) and the angle of the original mortise lath keyway slot

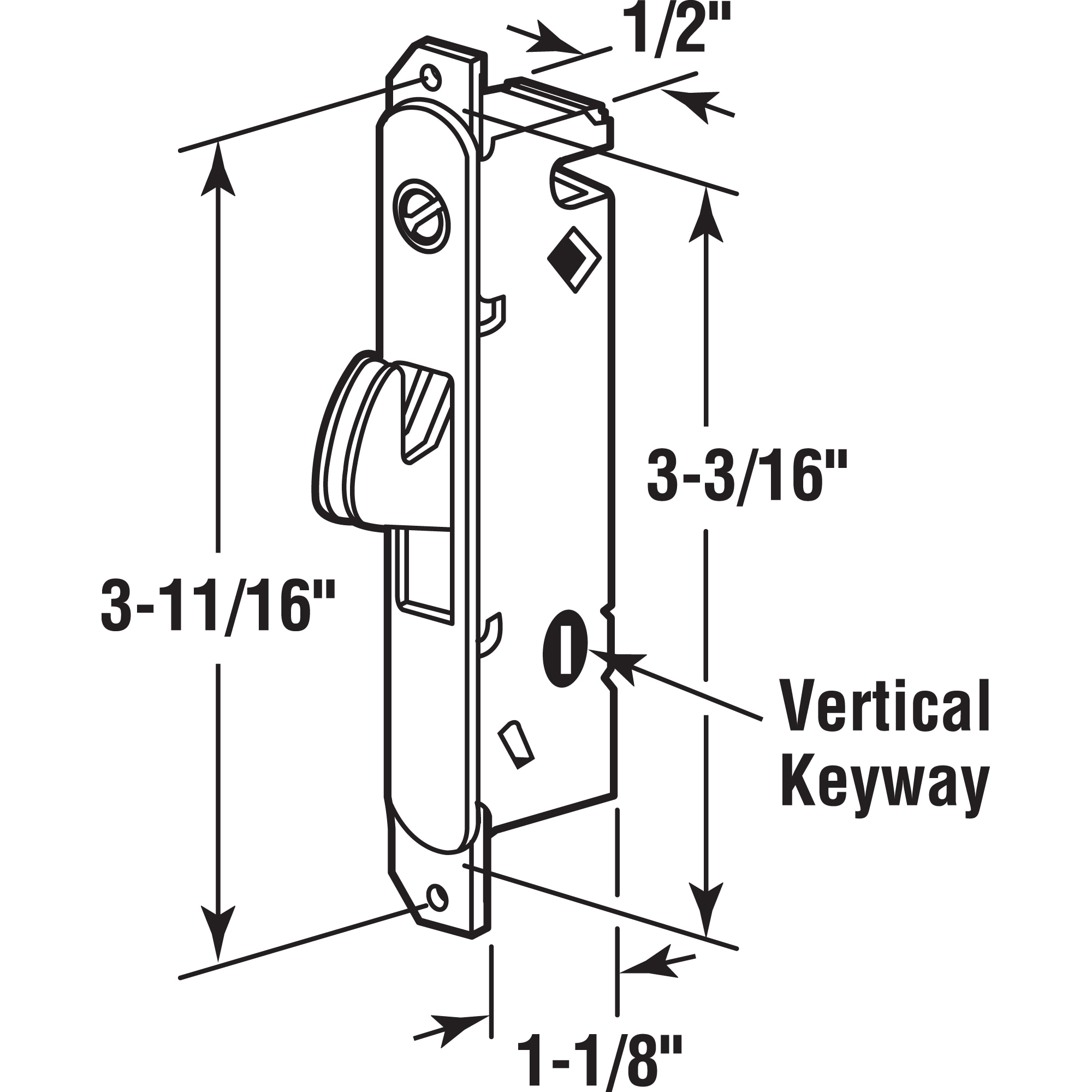

DIMENSIONS – The mounting holes of the mortise latch are spaced apart at 3-11/16 inch on center; for all dimensional information please refer to the line art and compare to your needs before purchasing (Not Universal)
