Rain Bird High Value (HV) In-Line Valves provide outstanding performance and unmatched durability. Featuring a 1 in. female threaded inlet and outlet, this valve has a compact design for tight installations. Its patented eccentric design provides smoother closing with less water hammer, while the glass-filled polypropylene body and Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring offers strength in harsh environments. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw.
Eccentric diaphragm for smooth closing and less water hammer
Compact design with 2.54 inch spin radius for tight installations allowing more valves in a single valve box
Glass-filled polypropylene body for strength
External bleed to manually flush system of dirt and debris during installation and system start-up
Internal bleed for spray-free manual operation
Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring for maximum reliability in harsh environments
Captive multi-drive screws for ease of access and faster bonnet removal

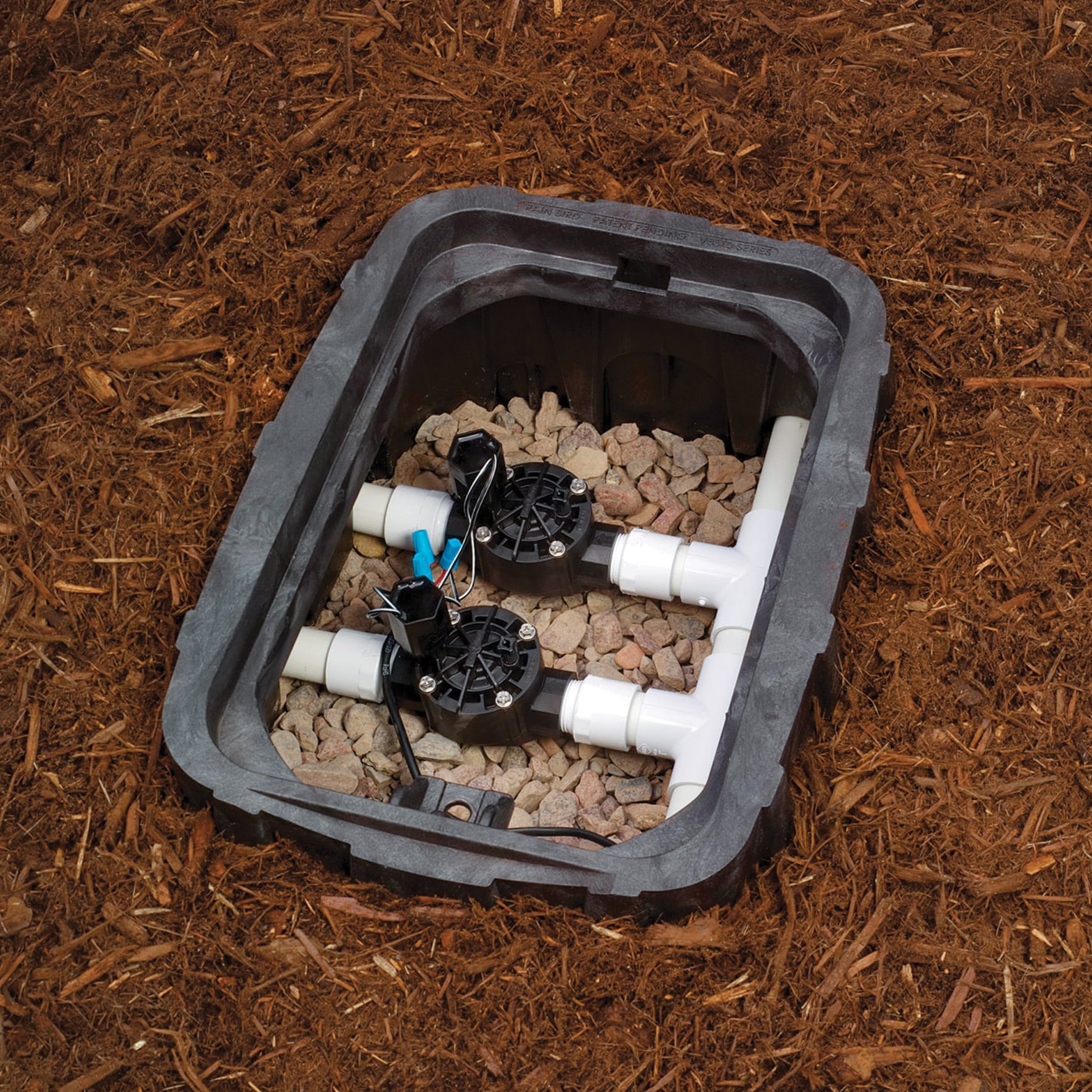

Designed for below-ground installation, out of sight and away from playful hands
Works with any underground irrigation controller brand
