Capable of handling up to 5000 lbs, offers axle-to-frame support to prevent bottoming out; The flexible air springs operate within 5-100 psi.
Cable ties secure air lines and electrical wires, preventing loosening and movement; Maintains system neatness, stability, and reduces potential damage.

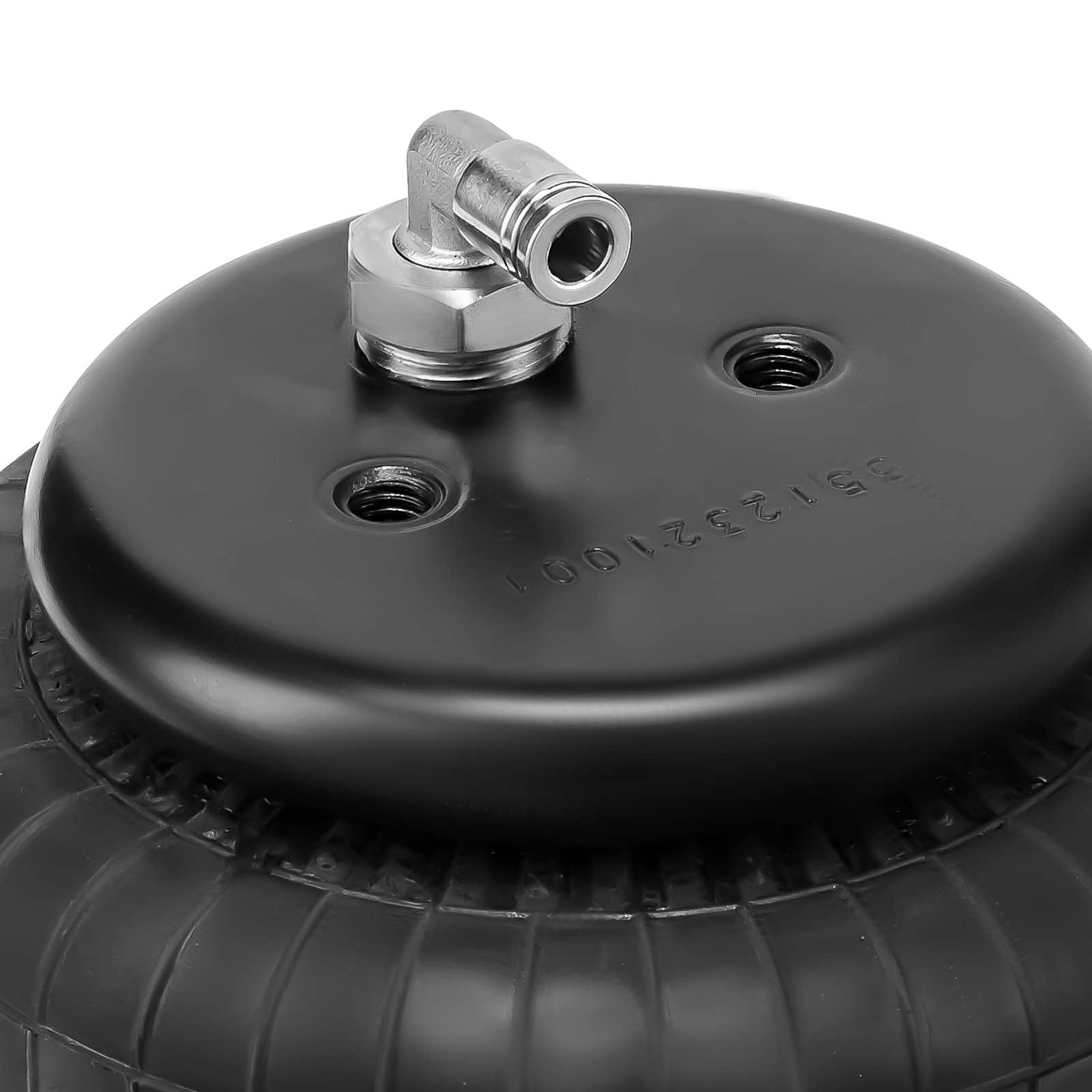

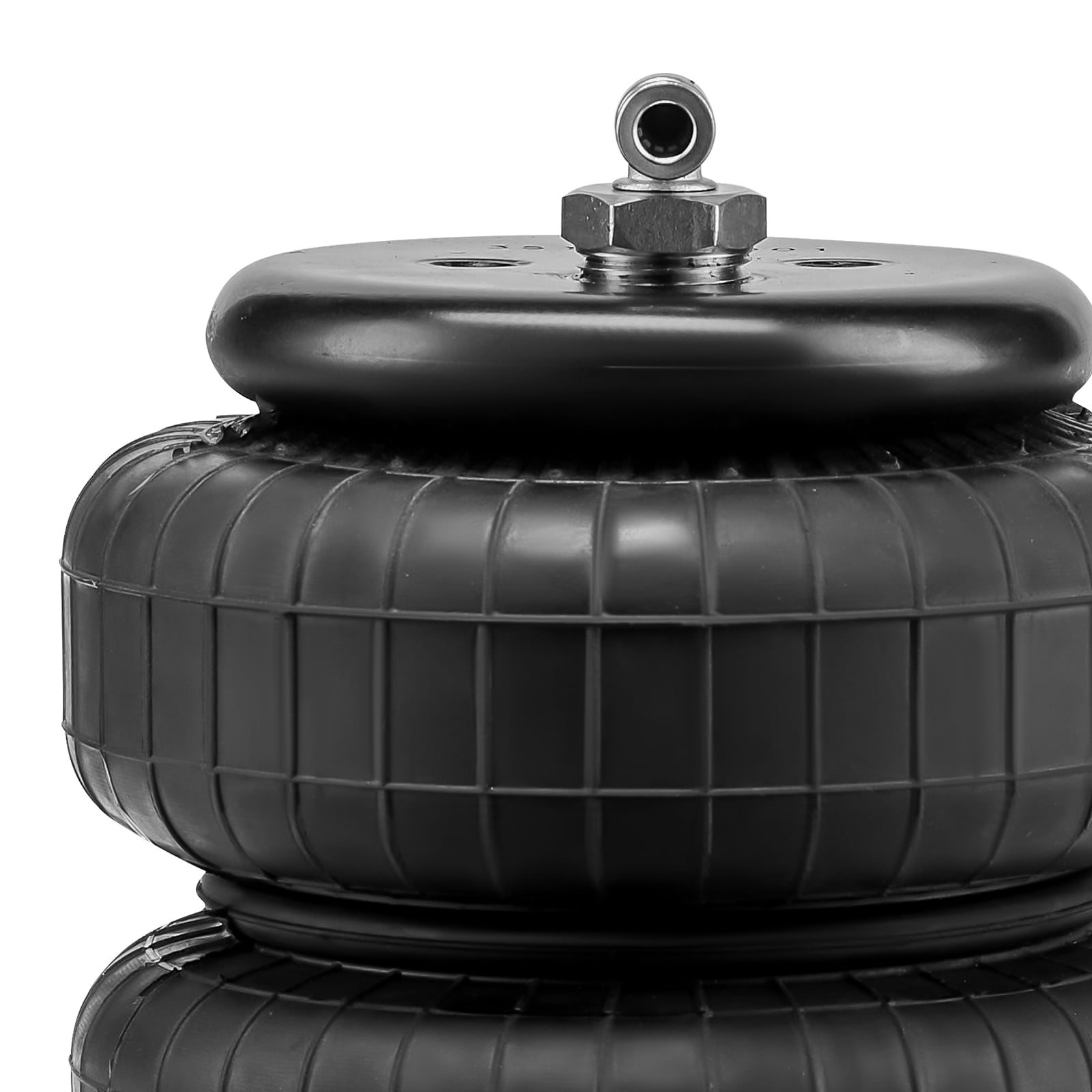

Our elastic NR airbags are pre-assembled with air nozzles and have passed multiple air tightness tests to ensure no leaks and safety.
Follow the detailed instructions to install the air suspension bags without the need for extra drilling or modifications.
Particularly effective under heavy loads, maintains vehicle balance and reduces bottoming out for a secure driving experience.
Ensures a perfect match with your pickup truck model for top-notch performance; Comes with all-inclusive accessories for reliable suspension on challenging trips.

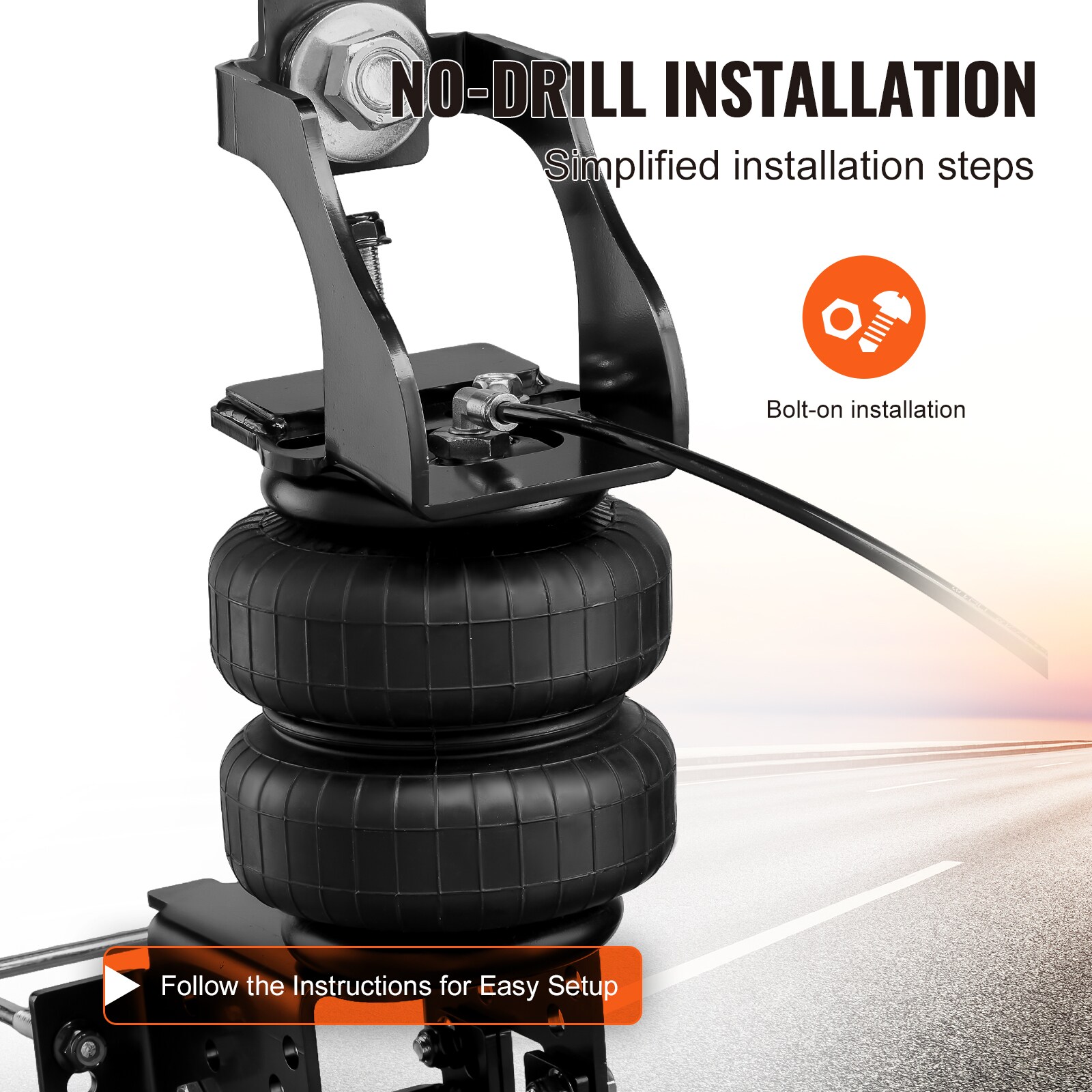

Easy Installation: The air suspension bags have a bolt-on design, eliminating the need for drilling or modifications; Just follow the provided instructions; After installation, regularly check air pressure, inspect for leaks and ensure all connections are secure for optimal system operation and safety.

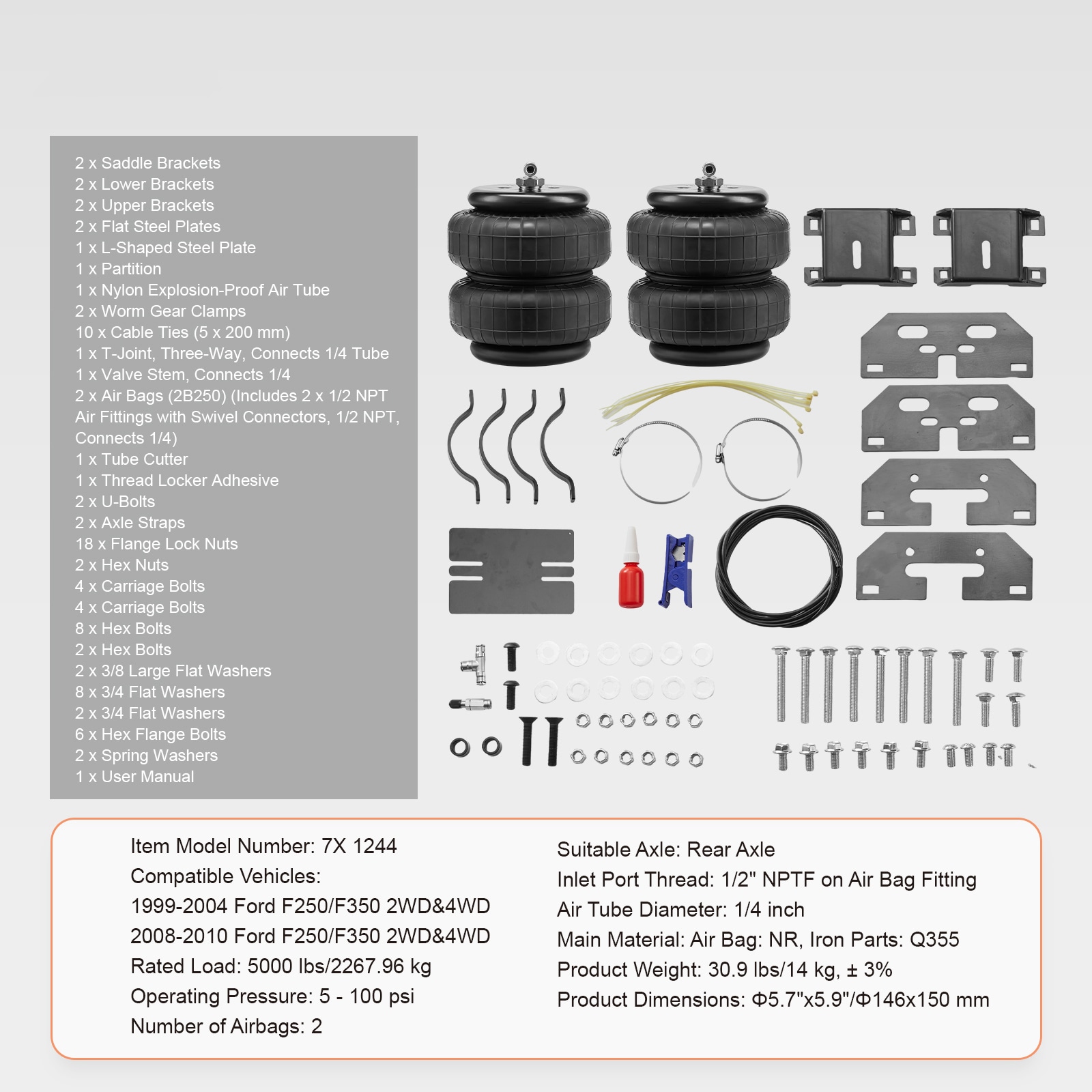

Rated Load: 2267.96 kg / 5000 lbs,
Operating Pressure: 5 - 100 psi,
Number of Airbags: 2,
Suitable Axle: Rear Axle,
Item Model Number: 7X 1244,
Compatible Vehicles: 1999-2004 Ford F250/F350 2WD&4WD, 2008-2010 Ford F250/F350 2WD&4WD,
Inlet Port Thread: 1/2" NPTF on Air Bag Fitting,
Air Tube Diameter: 1/4 inch,
Main Material: Air Bag: NR, Iron Parts: Q355,
Product Weight: 14 kg / 30.9 lbs, ± 3%,
Product Dimensions: Φ146x150 mm / Φ5.7"x5.9".

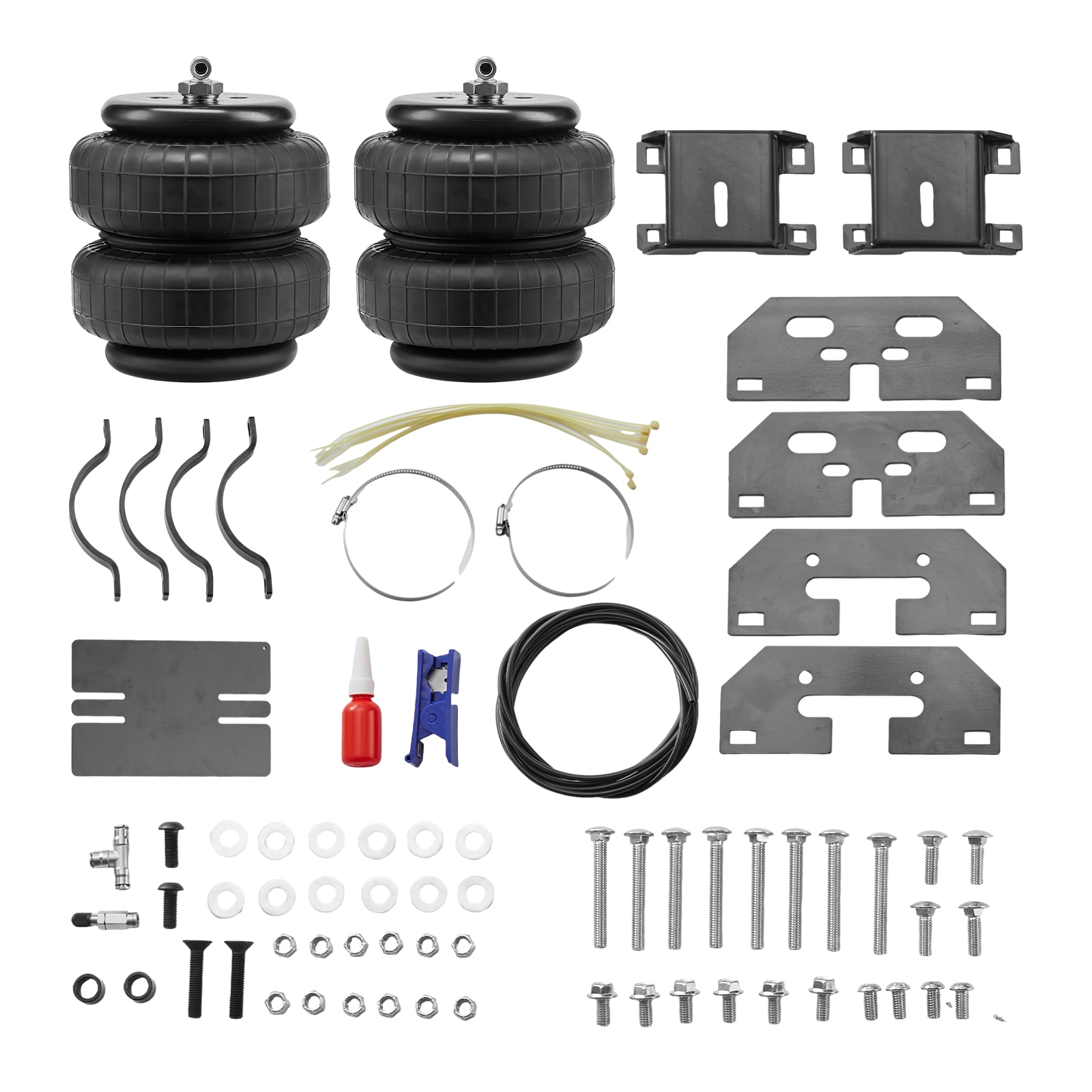

1 x Nylon Explosion-Proof Air Tube,
2 x Worm Gear Clamps,
10 x Cable Ties (5 x 200 mm),
1 x T-Joint, Three-Way, Connects 1/4 Tube,
1 x Valve Stem, Connects 1/4,
2 x Air Bags (2B250) (Includes 2 x 1/2 NPT Air Fittings with Swivel Connectors, 1/2 NPT, Connects 1/4),
1 x Tube Cutter,
1 x Thread Locker Adhesive,
2 x U-Bolts,
2 x Axle Straps,
18 x Flange Lock Nuts,
2 x Hex Nuts,
8 x Carriage Bolts,
10 x Hex Bolts,
2 x 3/8 Large Flat Washers,
8 x 3/4 Flat Washers,
2 x 3/4 Flat Washers,
6 x Hex Flange Bolts,
2 x Spring Washers,
2 x Saddle Brackets,
2 x Lower Brackets,
2 x Upper Brackets,
2 x Flat Steel Plates,
1 x L-Shaped Steel Plate,
1 x Partition,
1 x User Manual.
