It can support up to 5000 lbs, offers axle-to-frame support, and the air springs work within the range of 5-100 psi to prevent bottoming out.
The air suspension kit comes with all necessary accessories to provide excellent support for your pickup truck's suspension during complex trips.
The included cable ties keep the air lines and electrical wires in place, maintaining the system's neatness and stability and reducing potential damage.
Especially effective under heavy loads, it maintains vehicle balance, reduces bottoming out, and makes driving more secure.
Follow the detailed instructions to install the air suspension bags without the need for extra drilling or modifications.

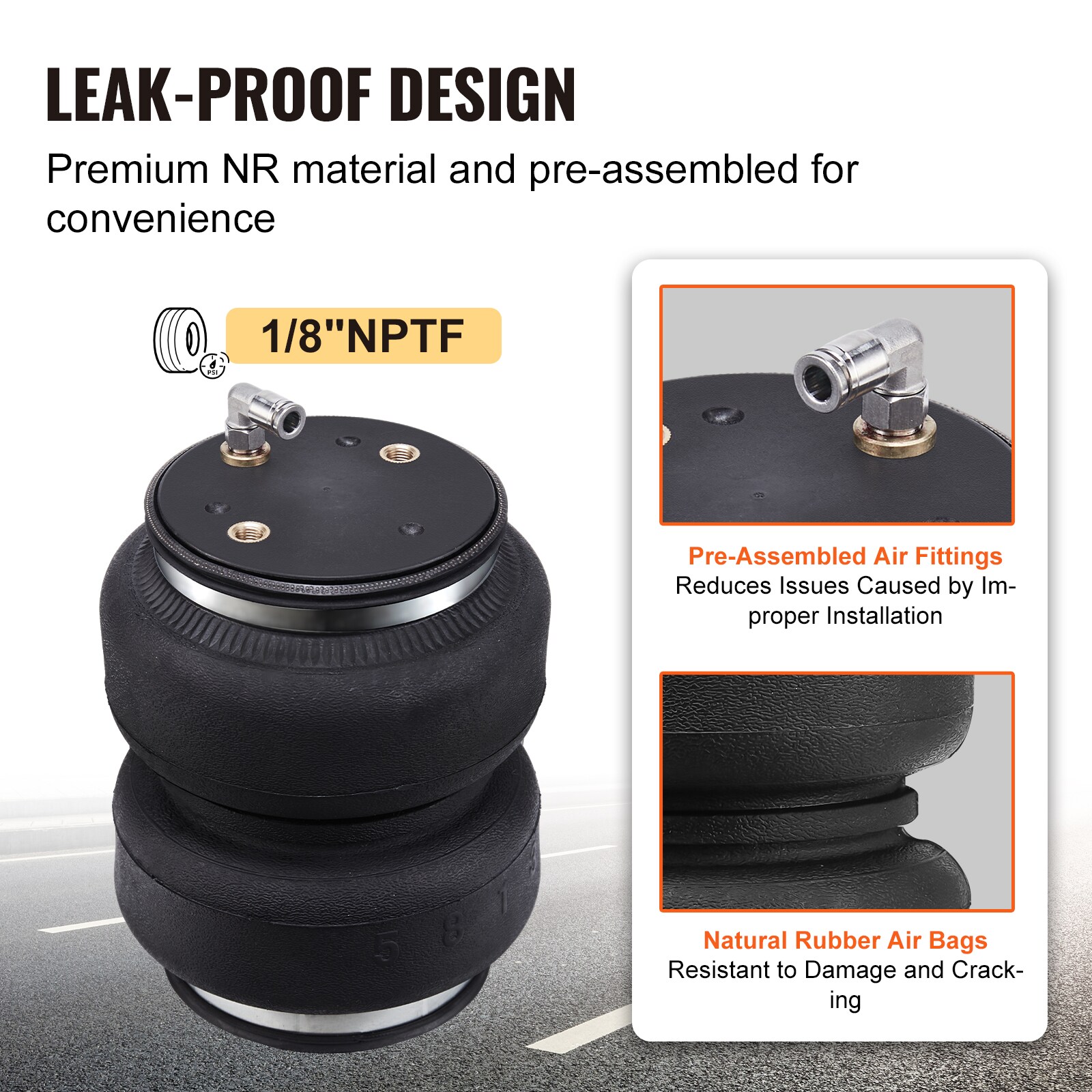

The elastic NR airbags are pre-assembled with air nozzles and have passed multiple tests to ensure no leaks, guaranteeing air tightness and safety.
Simple Installation: The air suspension bags have a hassle-free bolt-on installation, eliminating the need for drilling or modifications; Just follow the provided instructions; After installation, regularly check for air pressure, leaks, and secure connections for optimal performance and safety.
Rated Load: 2267.96 kg / 5000 lbs,
Operating Pressure: 5 - 100 psi,
Number of Airbags: 2,
Suitable Axle: Rear Axle,
Item Model Number: 7X 57365,
Compatible Vehicles: 2011-2018 Dodge Ram 1500, 2019-2021 Dodge Ram 1500 Classic,
Inlet Port Thread: 1/8"" NPTF on Air Bag Fitting,
Air Tube Diameter: 1/4 inch,
Main Material: Air Bag: NR, Iron Parts: Q355,
Product Weight: 10.54 kg / 23.2 lbs, ± 3%,
Product Dimensions: Φ141x185 mm / Φ5.6""x7.3".

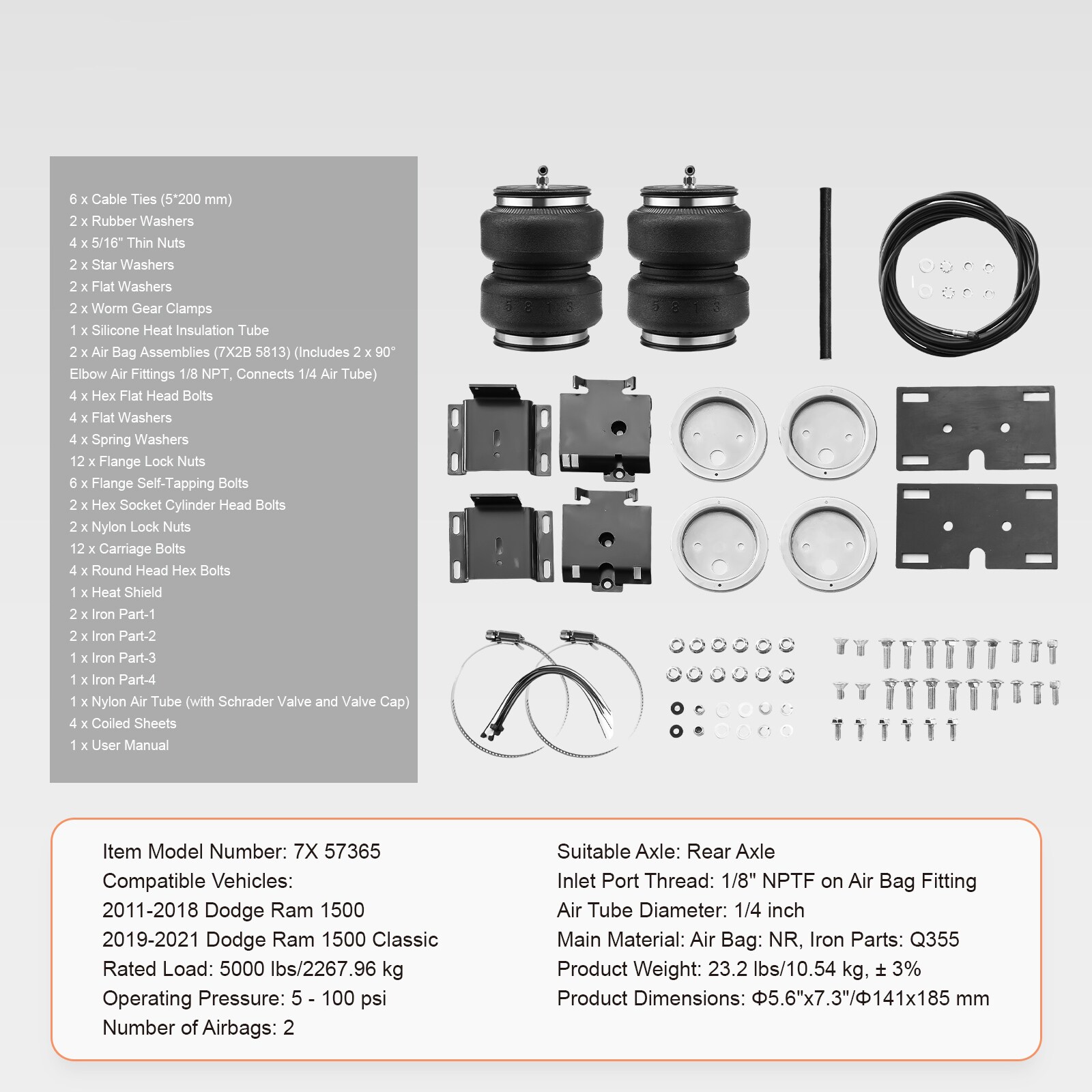

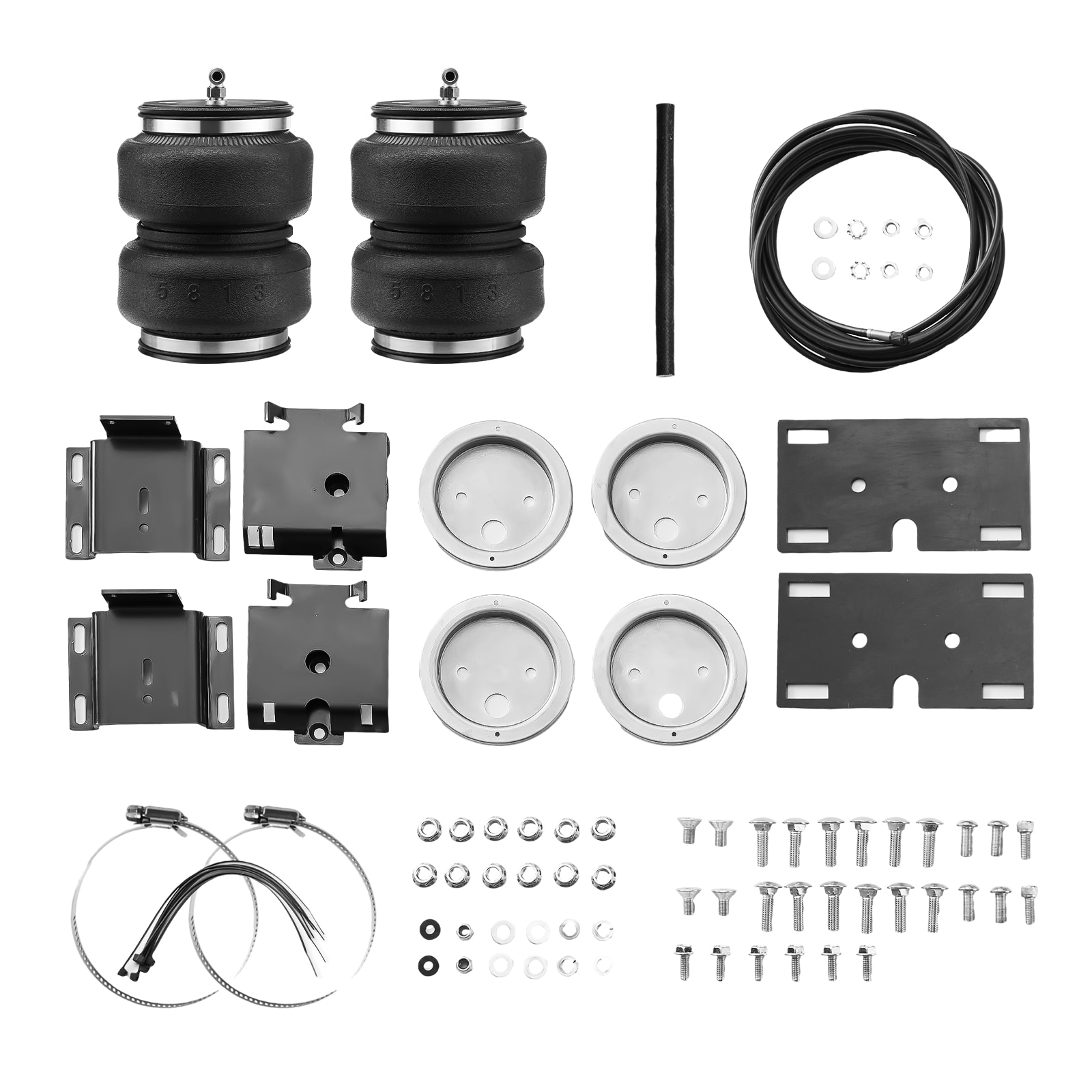

4 x Hex Flat Head Bolts,
4 x Flat Washers,
4 x Spring Washers,
12 x Flange Lock Nuts,
6 x Flange Self-Tapping Bolts,
2 x Hex Socket Cylinder Head Bolts,
2 x Nylon Lock Nuts,
12 x Carriage Bolts,
4 x Round Head Hex Bolts,
1 x Heat Shield,
2 x Iron Part-1,
2 x Iron Part-2,
1 x Iron Part-3,
1 x Iron Part-4,
6 x Cable Ties (5*200 mm),
2 x Rubber Washers,
4 x 5/16"" Thin Nuts,
2 x Star Washers,
2 x Flat Washers,
2 x Worm Gear Clamps,
1 x Silicone Heat Insulation Tube,
2 x Air Bag Assemblies (7X2B 5813) (Includes 2 x 90° Elbow Air Fittings 1/8 NPT, Connects 1/4 Air Tube),
1 x Nylon Air Tube (with Schrader Valve and Valve Cap),
4 x Coiled Sheets,
1 x User Manual.
