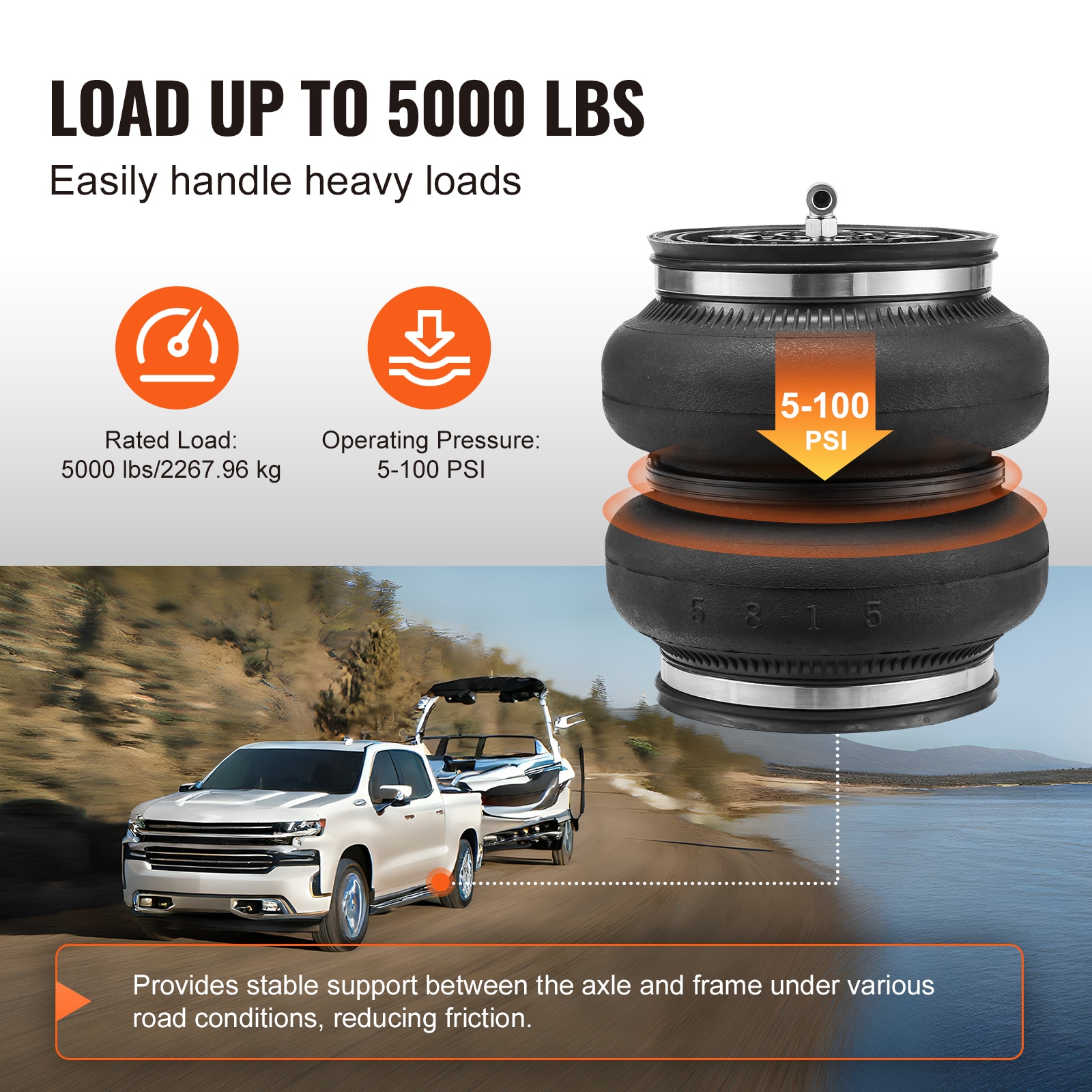

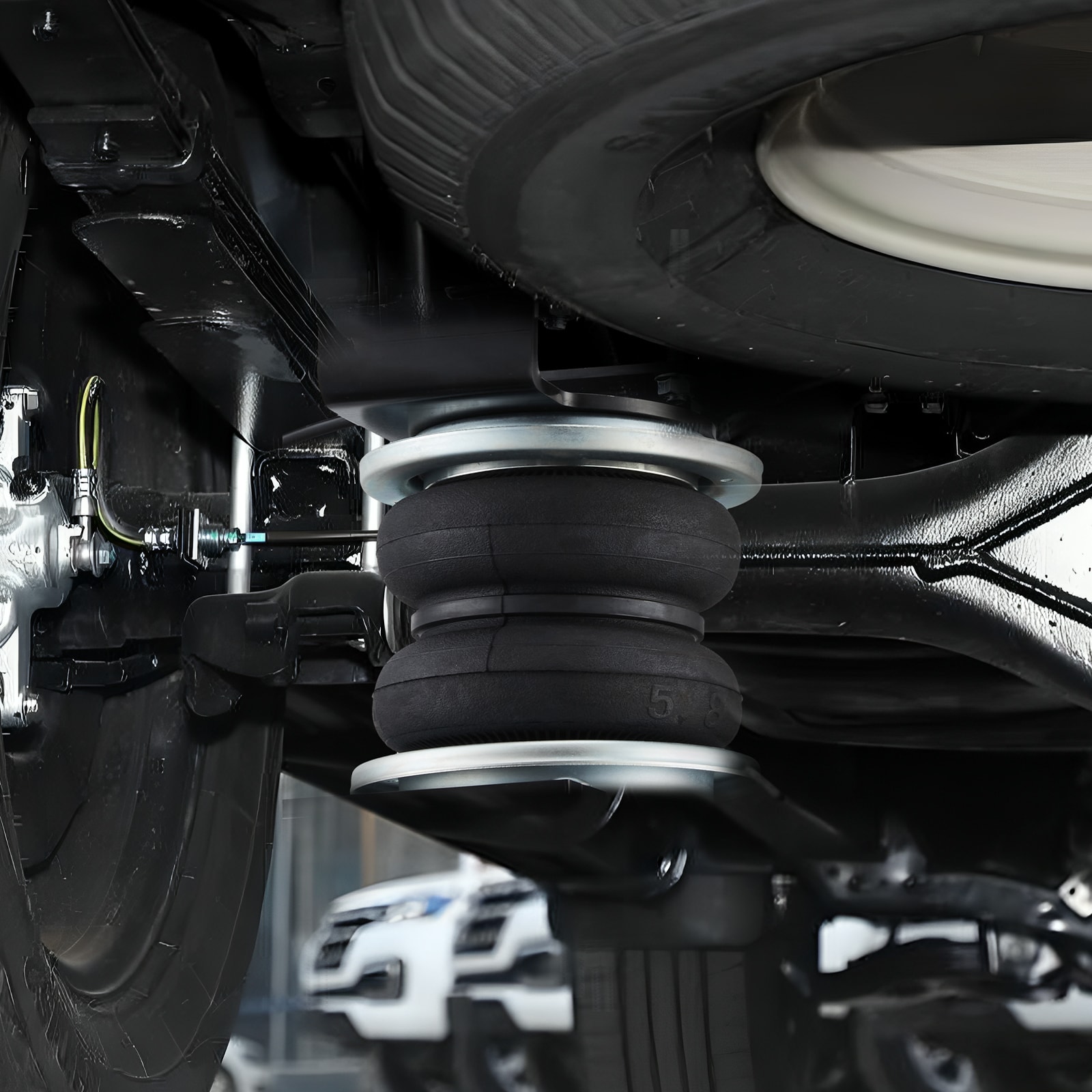

Capable of supporting up to 5000 lbs, offers axle-to-frame support; The flexible air springs operate within 5 - 100 psi to prevent bottoming out.
Follow detailed instructions to install the suspension bags without the need for extra drilling or modifications.
Cable ties secure air lines and electrical wires, prevent loosening and movement, keep the system tidy and stable.

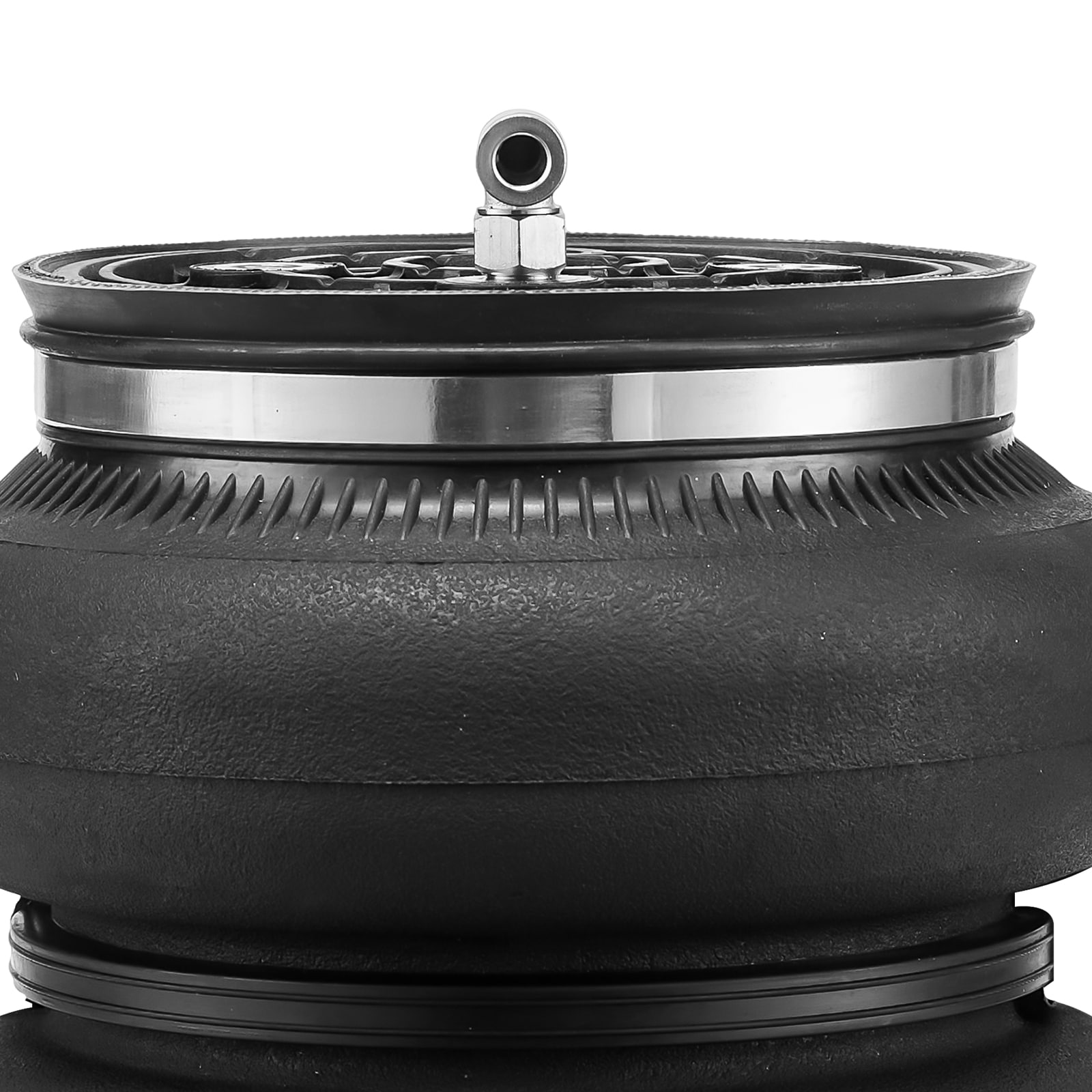

Our NR airbags are pre-assembled with air nozzles and have passed multiple tests to ensure air tightness and safety.
Ensures seamless fit with your pickup truck model, and comes with comprehensive accessories for stable suspension during complex rides.
Effective under heavy loads, maintains vehicle balance and reduces bottoming out for a safer and smoother drive.
Easy Installation: The air suspension bags have a bolt-on design, eliminating the need for drilling or modifications; Simply follow the provided instructions; After installation, regularly check the air pressure, inspect for leaks, and ensure secure connections.
Rated Load: 2267.96 kg / 5000 lbs,
Operating Pressure: 5 - 100 psi,
Number of Airbags: 2,
Suitable Axle: Rear Axle,
Inlet Port Thread: 1/8" NPTF on Air Bag Fitting,
Air Tube Diameter: 1/4 inch,
Main Material: Air Bag: NR, Iron Parts: Q355,
Product Weight: 15.33 kg / 33.8 lbs, ± 3%,
Product Dimensions: Φ176x182 mm / Φ6.9"x7.2",
tem Model Number: 7X 57538,

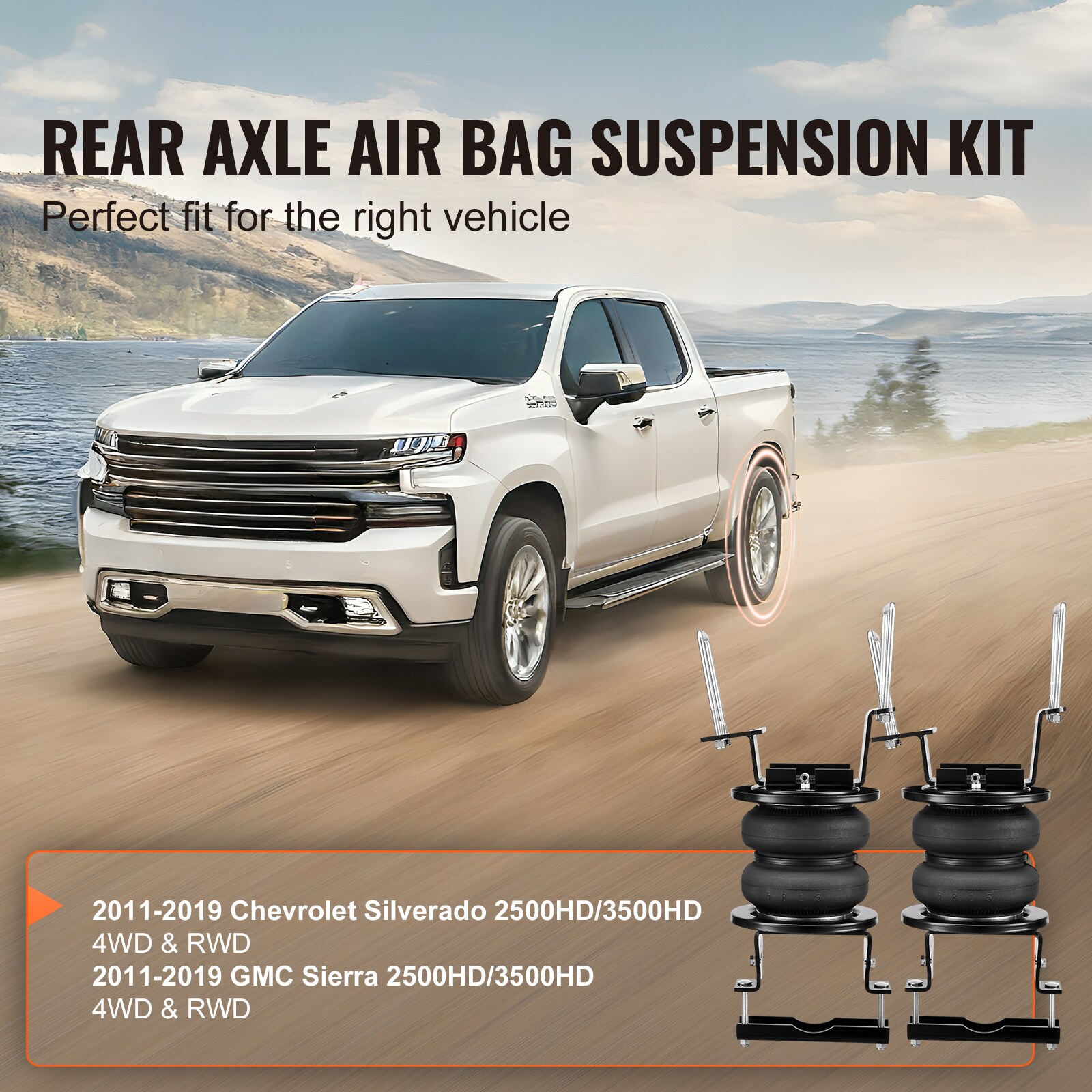

Compatible Vehicles: 2011-2019 Chevrolet Silverado 2500HD/3500HD 4WD&RWD, 2011-2019 GMC Sierra 2500HD/3500HD 4WD&RWD.

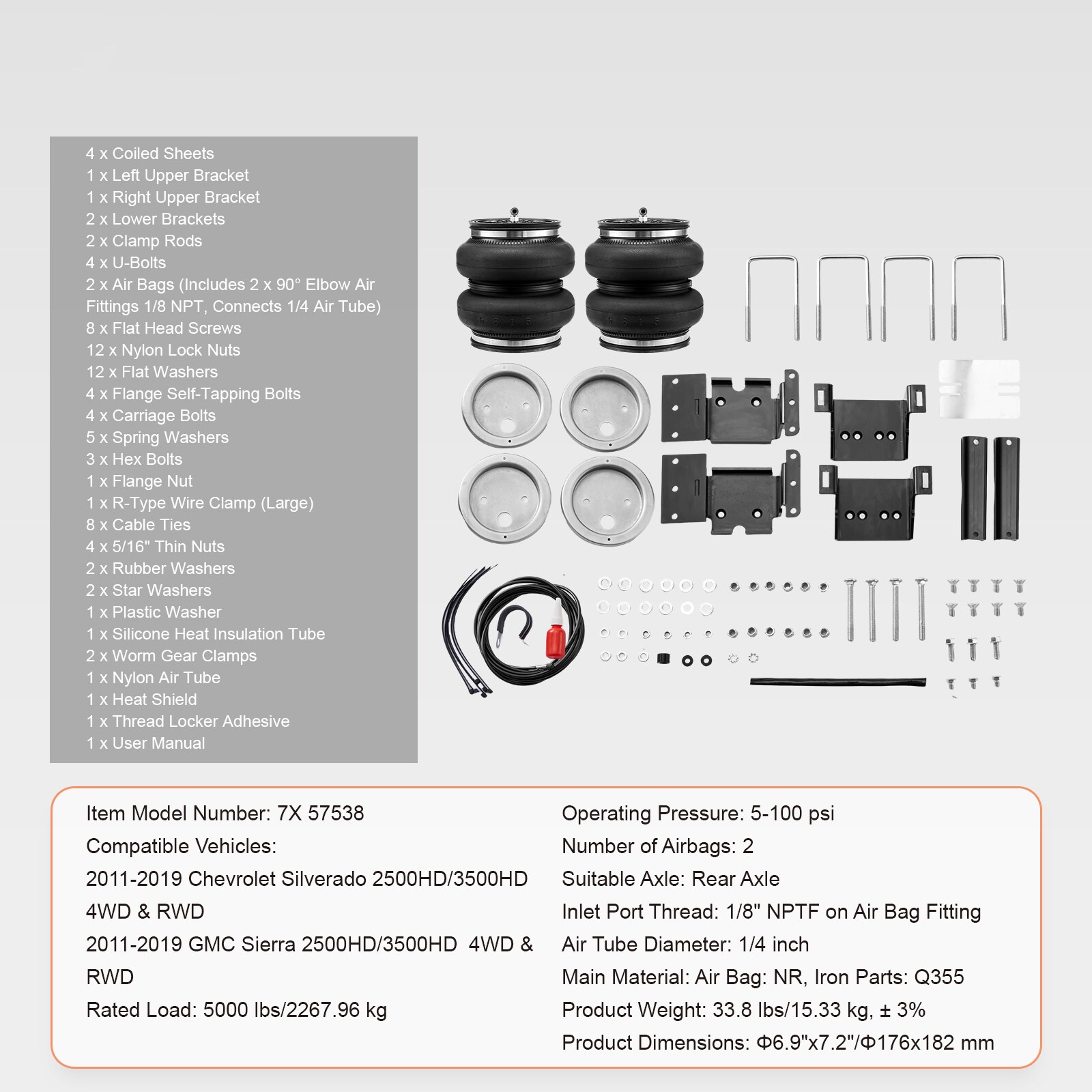

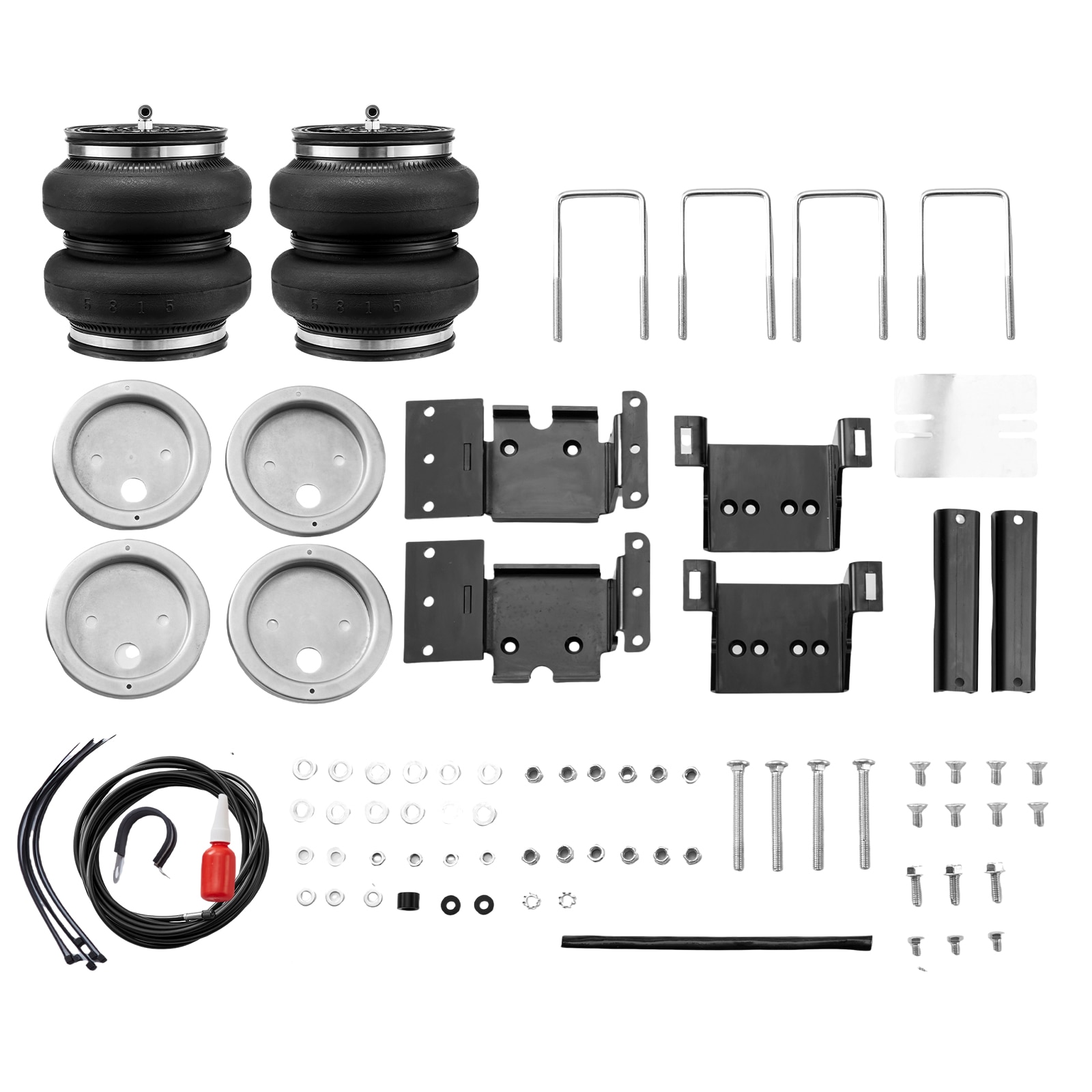

2 x Air Bags (Includes 2 x 90° Elbow Air Fittings 1/8 NPT, Connects 1/4 Air Tube),
8 x Flat Head Screws,
12 x Nylon Lock Nuts,
12 x Flat Washers,
4 x Flange Self-Tapping Bolts,
4 x Carriage Bolts,
5 x Spring Washers,
3 x Hex Bolts,
1 x Flange Nut,
1 x R-Type Wire Clamp (Large),
4 x Coiled Sheets,
1 x Left Upper Bracket,
1 x Right Upper Bracket,
2 x Lower Brackets,
2 x Clamp Rods,
4 x U-Bolts,
8 x Cable Ties,
4 x 5/16" Thin Nuts,
2 x Rubber Washers,
2 x Star Washers,
1 x Plastic Washer,
1 x Silicone Heat Insulation Tube,
2 x Worm Gear Clamps,
1 x Nylon Air Tube,
1 x Heat Shield,
1 x Thread Locker Adhesive,
1 x User Manual.
