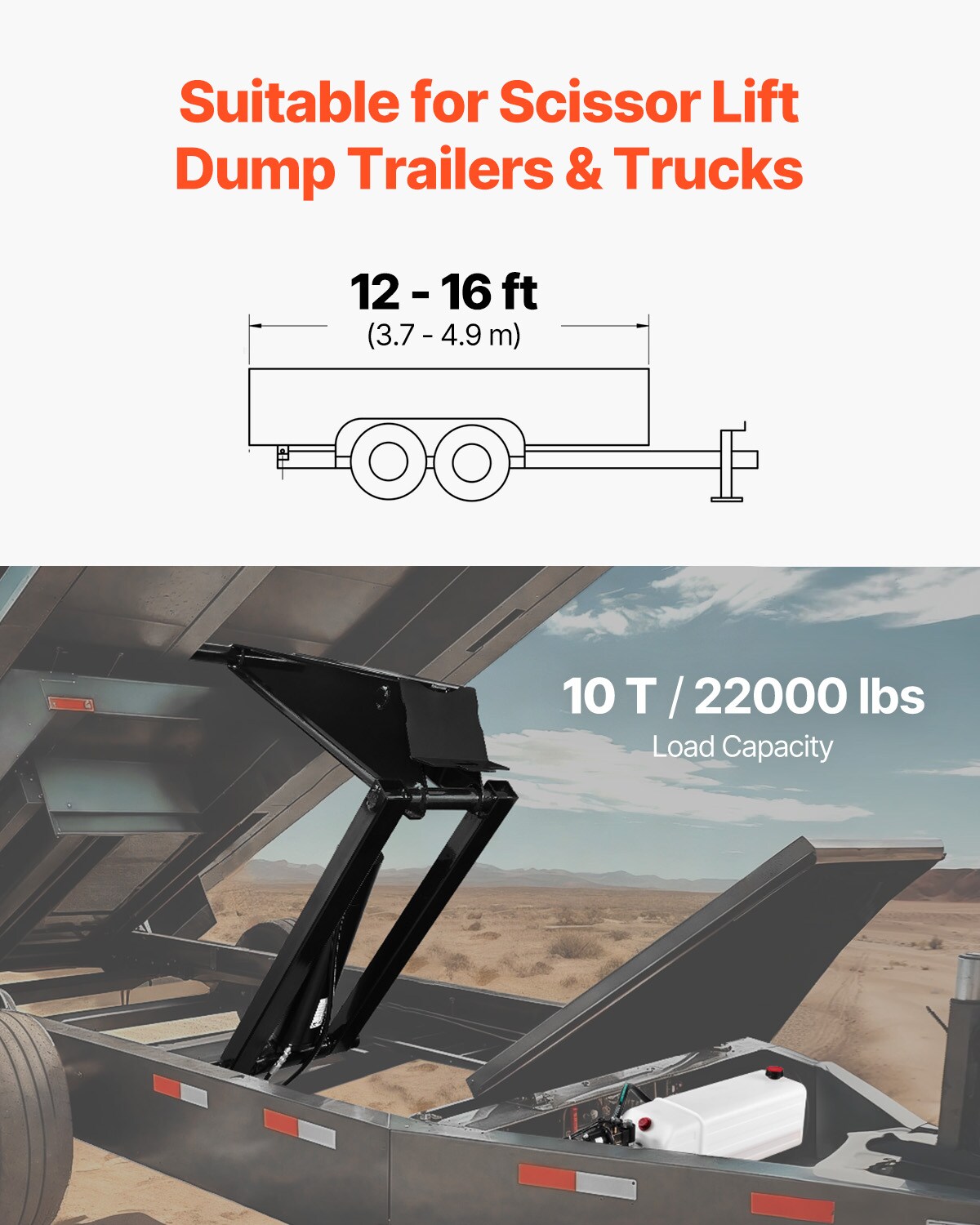

This hydraulic dump lift kit is perfect for 12-16 ft dump trucks and trailers, replacing the hydraulic lift of large scissor dump trailers; Supporting up to 10 t / 22,000 lbs, it extends trailer life efficiently.

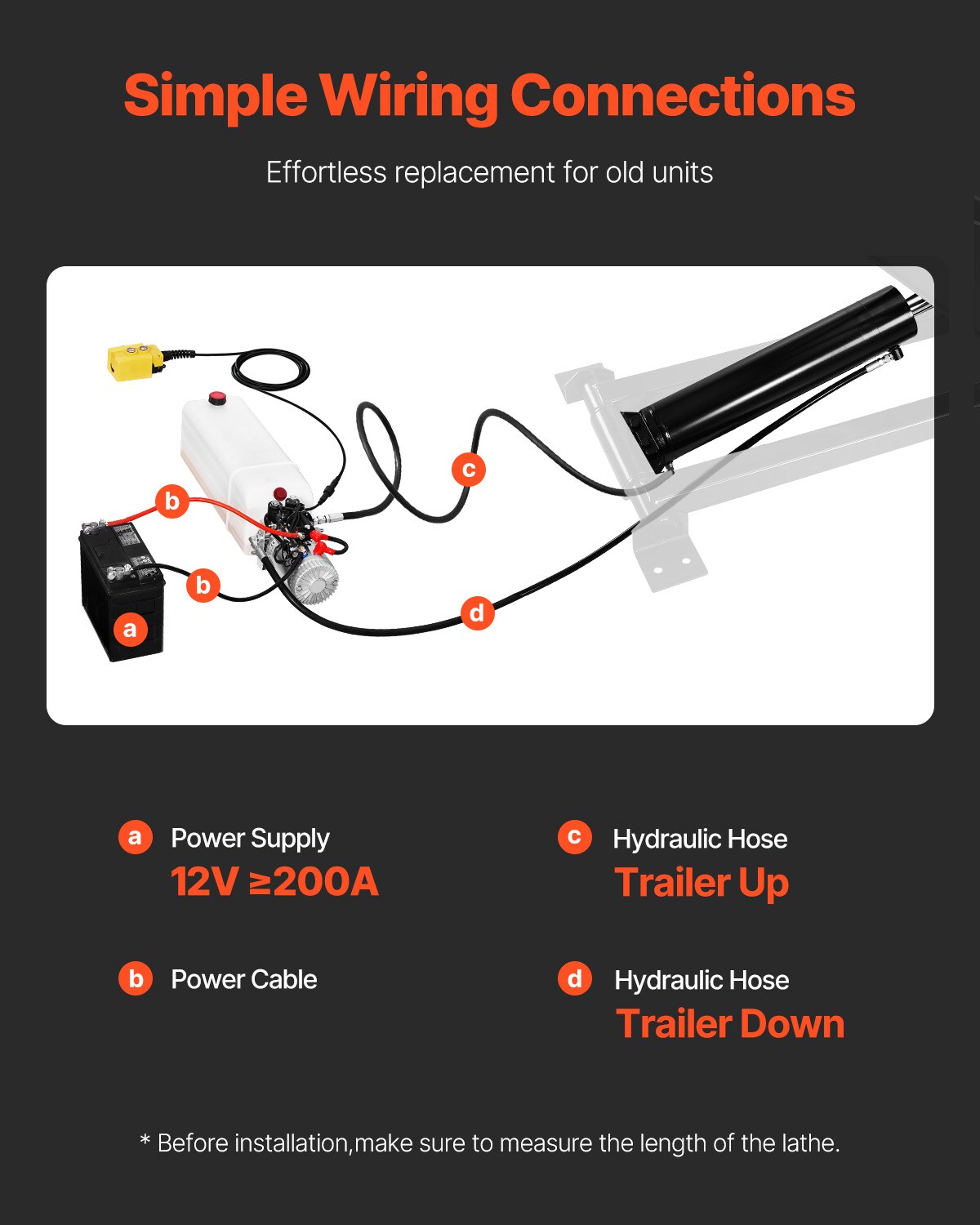

Equipped with a double-acting hydraulic pump, this kit offers both lifting and lowering functions powered by a 12V DC motor; It ensures quick operation and flexible height control with rapid oil output.

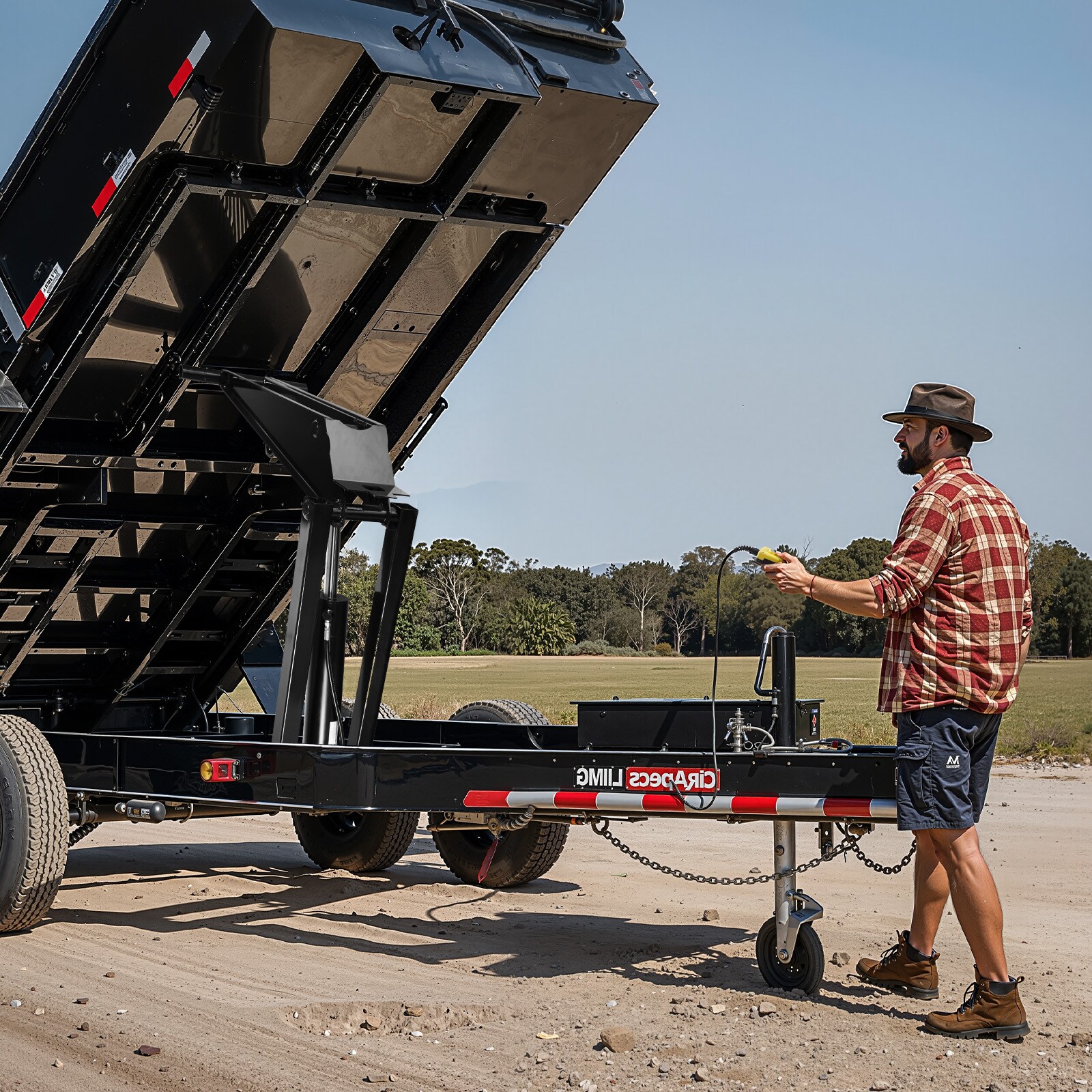

Ideal for construction and landscaping, this kit is perfect for handling materials like dirt, gravel, mulch, and debris; It makes transporting equipment and materials easier and more efficient on job sites.
This hydraulic lift kit requires a simple hydraulic oil change every six months, reducing long-term costs; It also minimizes energy consumption and has a lower environmental impact, keeping your trailer in optimal condition.
The safety arm must be raised whenever the bed is unloaded or during maintenance, installation, or servicing to prevent accidental lowering; This feature ensures operator safety and reduces the risk of injury.
Featuring a leak-proof, wear-resistant plastic oil tank and a high-strength steel structure, this dump lift kit ensures durability; The motor delivers powerful lifting capabilities, even under heavy loads.
Safety and Stability:Equipped with a safety arm, this hydraulic dump kit ensures secure support when unloading; It prevents accidental lowering, reducing operational risks and enhancing safety during maintenance, installation, or service
Item Model Number: ER-006 (10T),
Load Capacity: 22,000 lbs / 10 T,
External Power Voltage: DC 12V,
Lifting Plate Thickness: 8 mm / 0.3",
Maximum Body Tilt Angle: 127°,
Recommended Dumping Angle: <45°,
Main Material: Steel (Q355B),
Net Weight: 174 kg / 383.6 lbs,
Product Dimensions: 1275 x 610 x 300 mm / 50.2" x 24.0" x 11.8",
Suitable Trailer Length: 3.7 - 4.9 m / 12 - 16 ft,
User-Provided Power Cable Capacity: ≥200 A (Single-core Cable of 95 mm²),
Hydraulic Oil Tank Capacity: 9.5 L / 10 QT,
Power Output: 1.6 kW,
Operating Hydraulic Pressure: 16 - 20 MPa,
Flow Rate: 1.45 GPM,
Maximum Release Pressure: 22 MPa / 3200 PSI,
Oil Tank Material: PP Plastic.

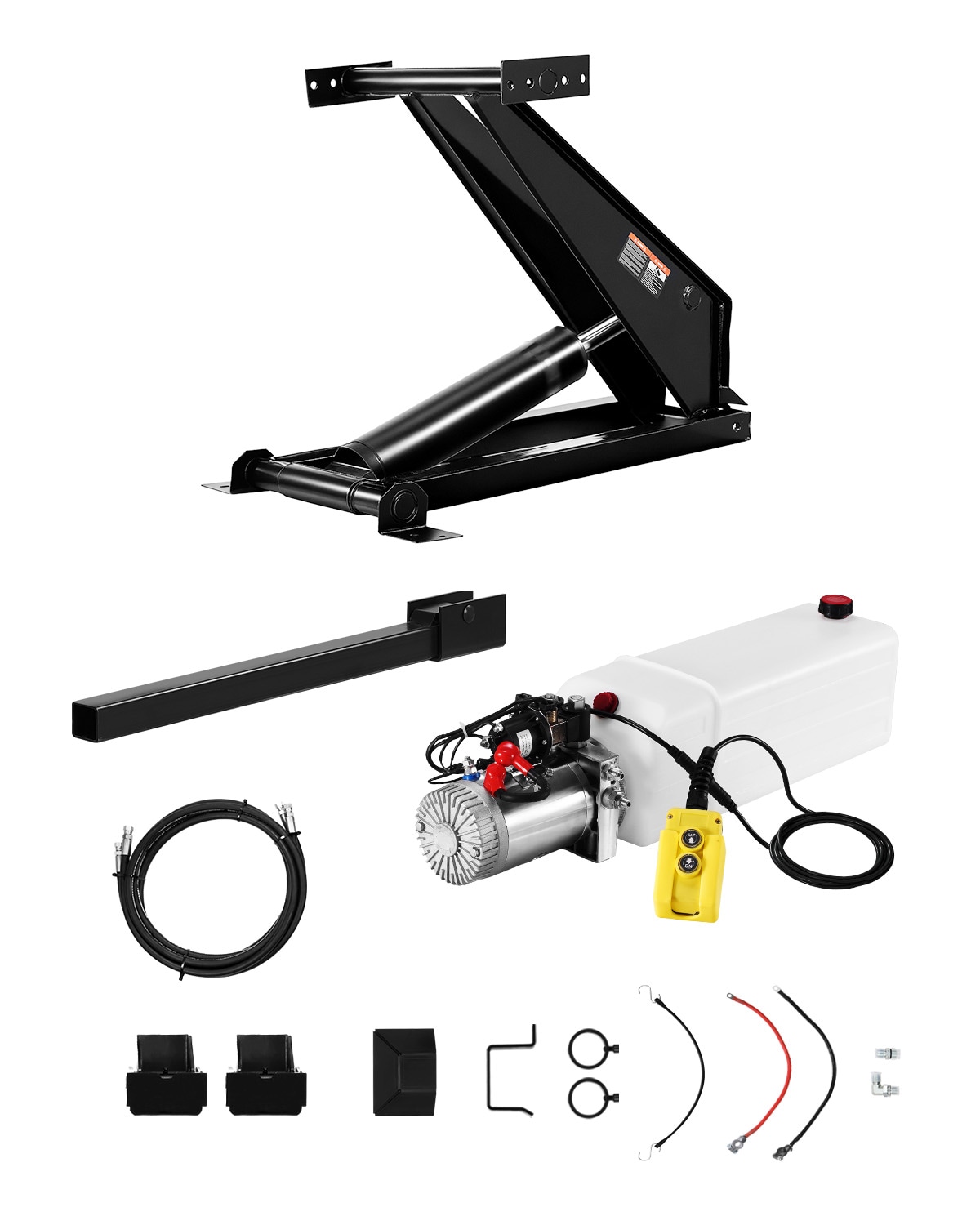

1 x Hydraulic Dump Lift Kit,
1 x Hydraulic Pump,
1 x Rubber Battery Strap,
1 x Main Unit,
1 x Straight Connector,
1 x Elbow Connector,
1 x User Manual,
2 x Upper Pivot Shaft,
2 x Lower Pivot Shaft,
2 x Pivot Positioning Ring,
1 x Safety Limit Stop,
1 x Upper Body Positioning Block,
1 x Safety Support Rod,
2 x Pivot Hinge,
2 x Hydraulic Hose,
2 x Positive/Negative Power Cable.
