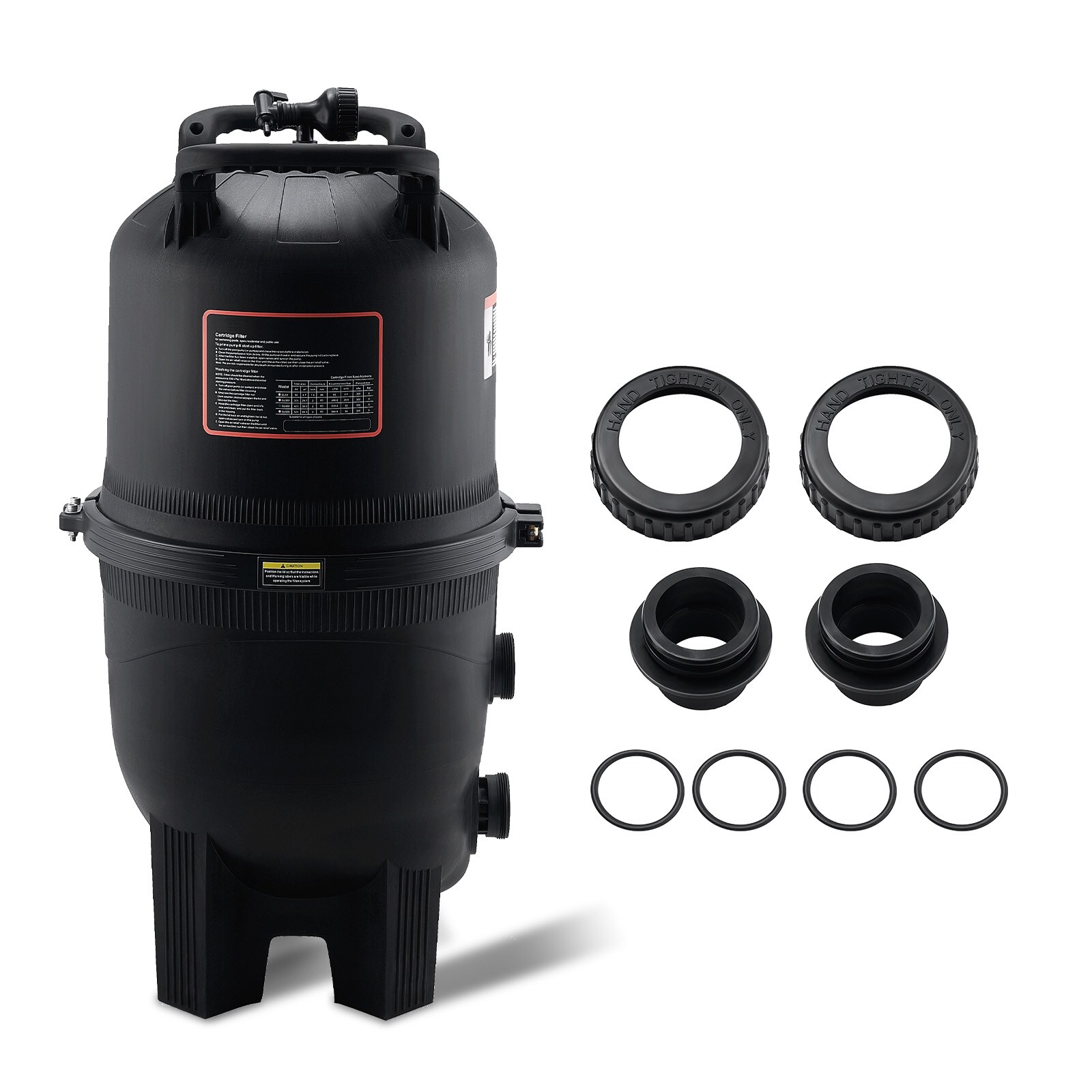

Our sturdy one-piece composite housing is engineered to prevent leaks while protecting the internal components from harsh weather conditions. This filter features an integrated pressure gauge for simple monitoring and a top-mounted automatic pressure relief valve to ensure safety and prevent any potential hazards, making it an ideal cleaning solution for your pool.
Equipped with 2-inch diameter inlet and outlet ports, this filter facilitates quick and efficient water intake and drainage; The increased diameter minimizes clogging and wear, enhancing overall pool cleaning efficiency and extending the filter's lifespan.
This robust filter is designed to effectively accommodate various pool types, making it perfect for residential, commercial, and educational facilities; It ensures your pool remains exceptionally clean while being easy to maintain, saving you time and effort.
Constructed from a PP and fiberglass composite in a one-piece die-cast design, this housing is both strong and long-lasting, effectively preventing leaks; Its seamless construction not only enhances aesthetics but also contributes to the filter's durability.
Featuring a 50-micron filter core, this system efficiently captures particulate impurities from your pool water; The filter core can be easily disassembled for cleaning, simplifying your maintenance tasks.
The filtration system includes an accurate pressure gauge that allows for real-time monitoring; A pressure relief valve on the top automatically vents excess air, reducing the risk of explosion from high water pressure.
If the operating pressure of the filtration system increases and remains elevated even after thorough cleaning; When you notice brittleness or cracks in the filter core's end caps; If the filter core's fabric shows tears or significant wear.
Large Filter Capacity: The powerful filter can handle 136 to 204 cubic meters of pool water; It's easy to clean and maintain, suitable for various places.
Product Dimensions (LxWxH): 24.40x22.05x52.12 inches (620x560x1324 mm)
Inlet/Outlet Diameter: 2 inches (60mm)
Filter Area: 520-525 sqft
Filter Cartridge Dimensions: Ф178 x 814 mm
Filter Cartridge Material: Lead-Free Paper
Number of Filter Cartridges: 4
Casing Material: PP+Glass Fiber
Pump Selection Range: 2.2KW - 3KW
Filtration Precision: 50μm
Model: GL520
GL520 ABS Straight Pipe ∅60 x 2
Pool Cartridge Filter x 1
