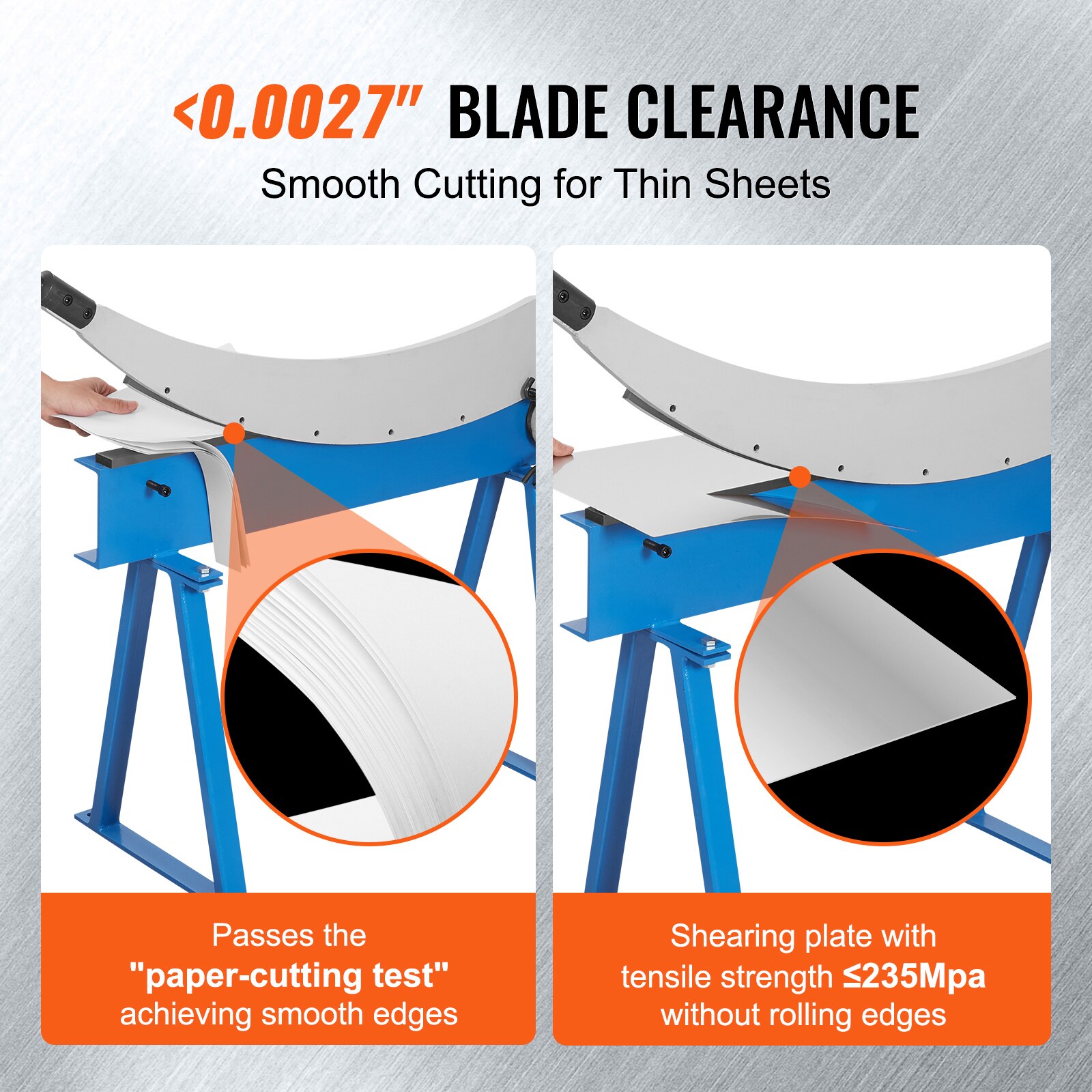

The cutting machine delivers smooth edges with a clearance of <0.0027"; Whether cutting paper or metal, it ensures clean, burr-free results, reducing material waste and preventing any damage to the workpiece.

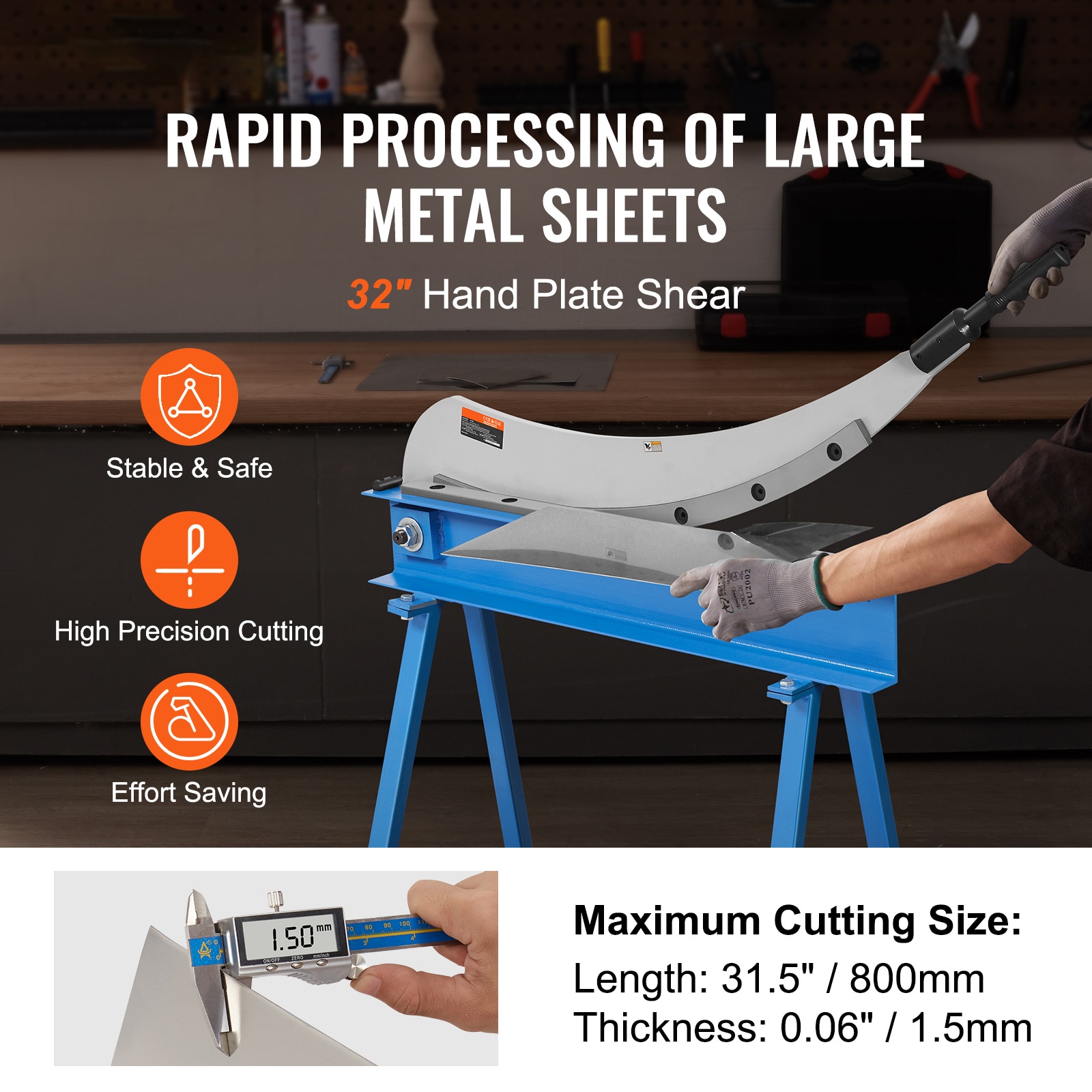

With a cutting capacity of 31.5" (800mm) in length and 0.06" (1.5mm) in thickness, this machine is perfect for handling larger metal sheets with ease; It allows you to cut large materials in a single pass, enhancing your efficiency and minimizing work time.

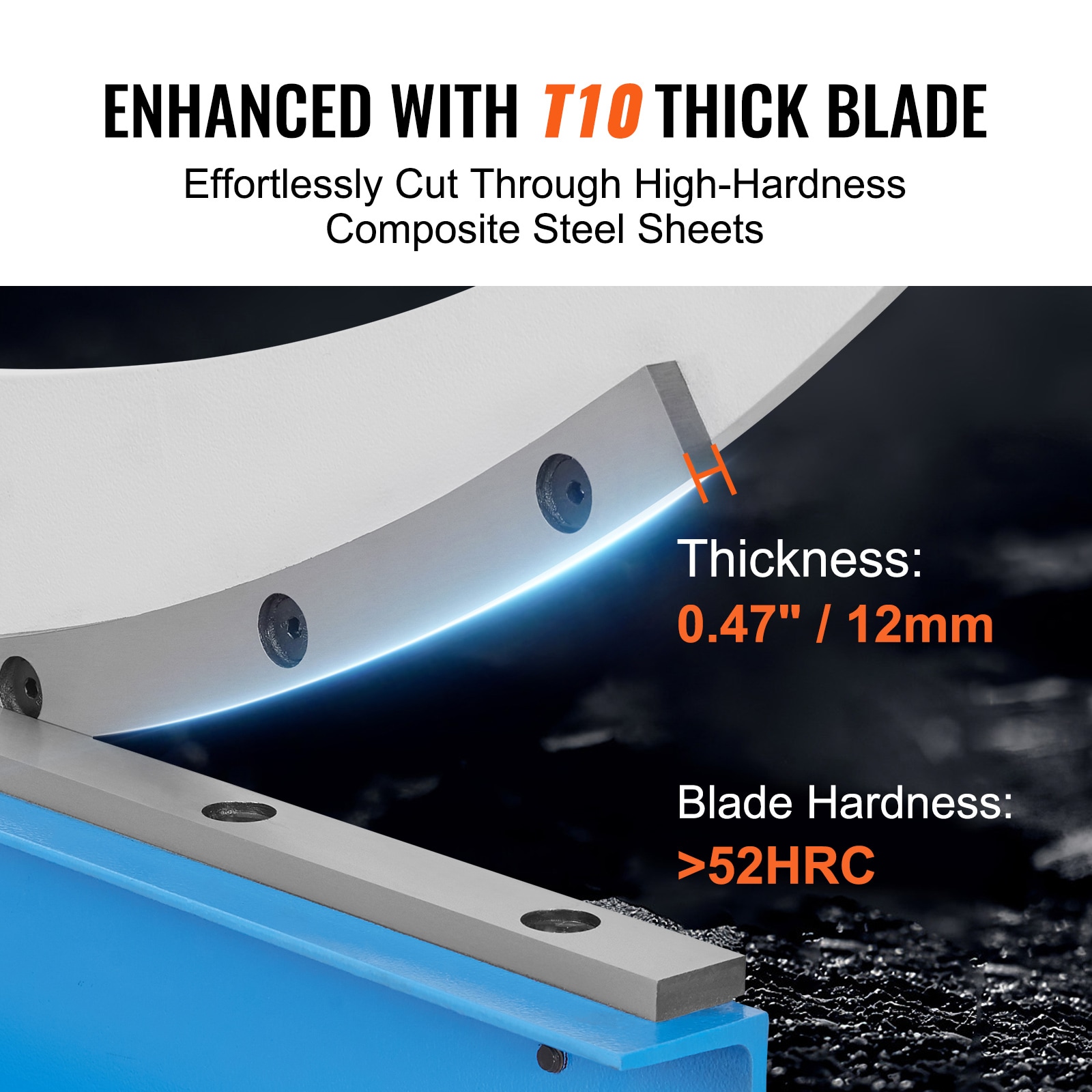

The blade is made from T10 steel, offering exceptional hardness (>52HRC) and a thickness of 0.47" (12mm); It can effortlessly cut through tough materials such as mild steel, aluminum, and alloy plates, ensuring long-lasting performance and reliability.

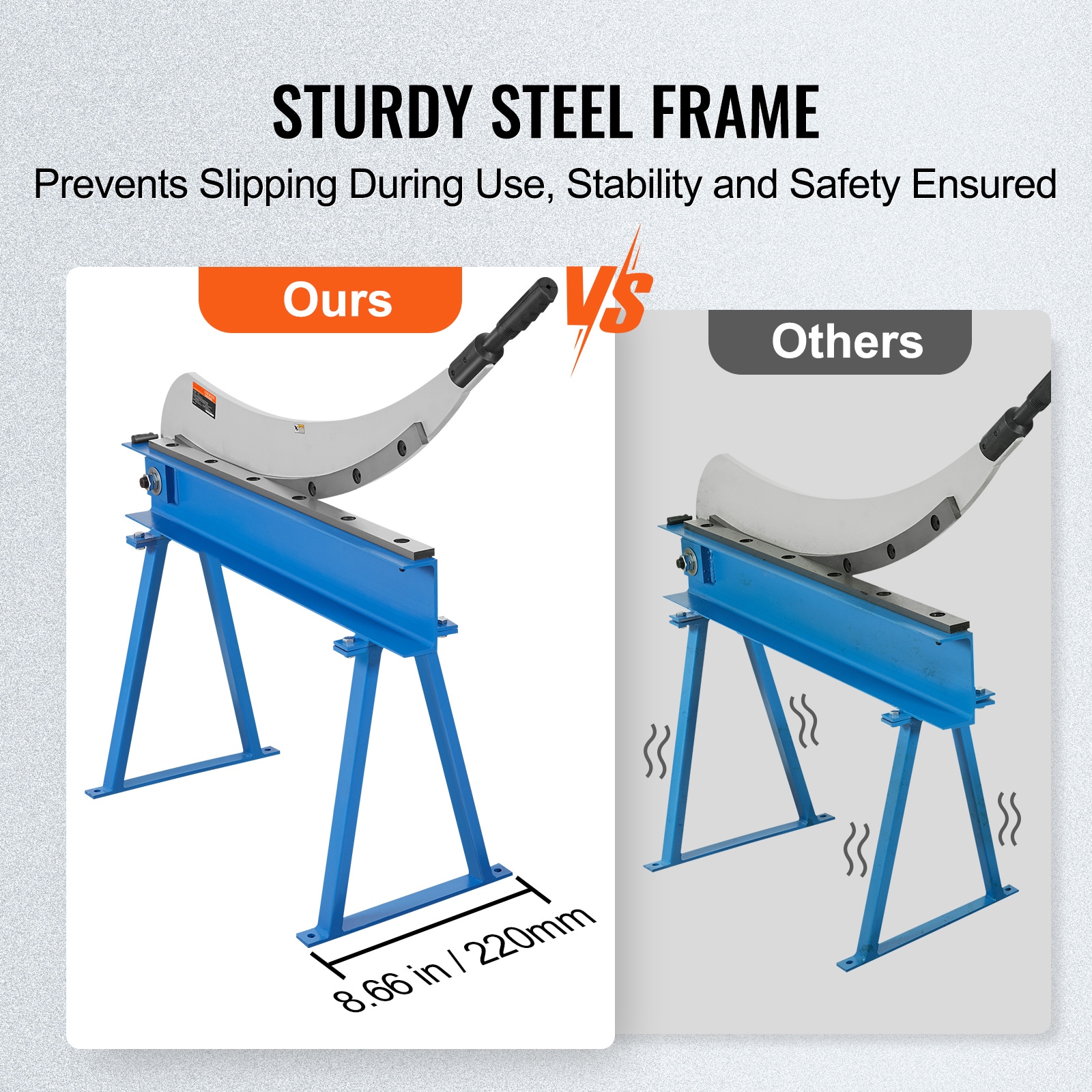

Built with a robust steel frame, this cutter provides stability during operation, minimizing vibration and improving cutting accuracy; Its solid build ensures safe use, giving you confidence while working on your projects.
Equipped with mounting holes, this machine can be easily installed on a workbench, enhancing stability and boosting work efficiency; Secure installation makes cutting even easier and more precise, allowing for smooth, uninterrupted operations.

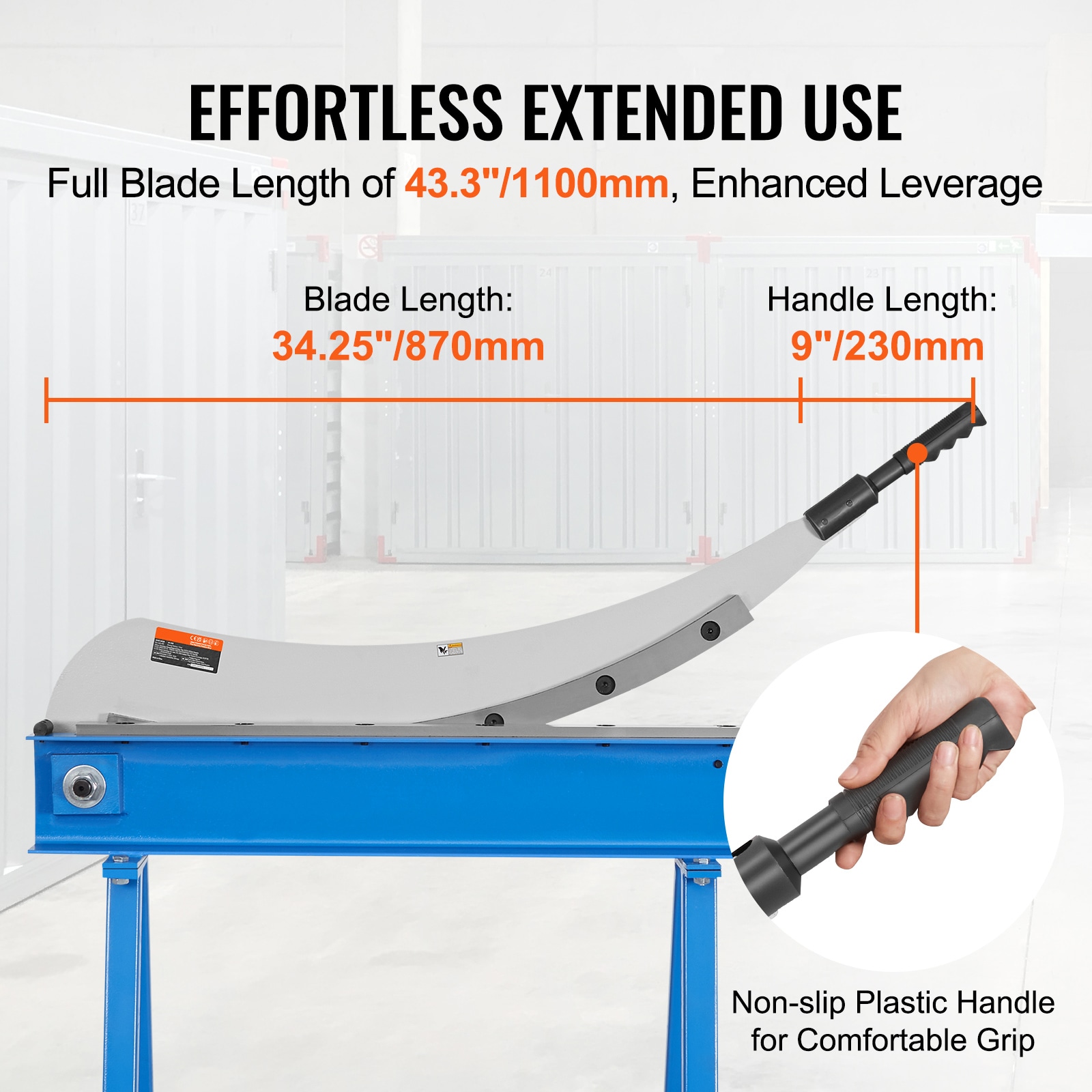

The extended handle design provides additional leverage, allowing you to cut thicker or harder materials with less effort; This ergonomic feature helps reduce fatigue, making even the most challenging tasks more manageable.
Effortless Cutting Power: The long handle design gives you better leverage, allowing you to apply more force with less effort; Whether working with thick metal sheets or harder materials, this cutter reduces fatigue and improves efficiency.

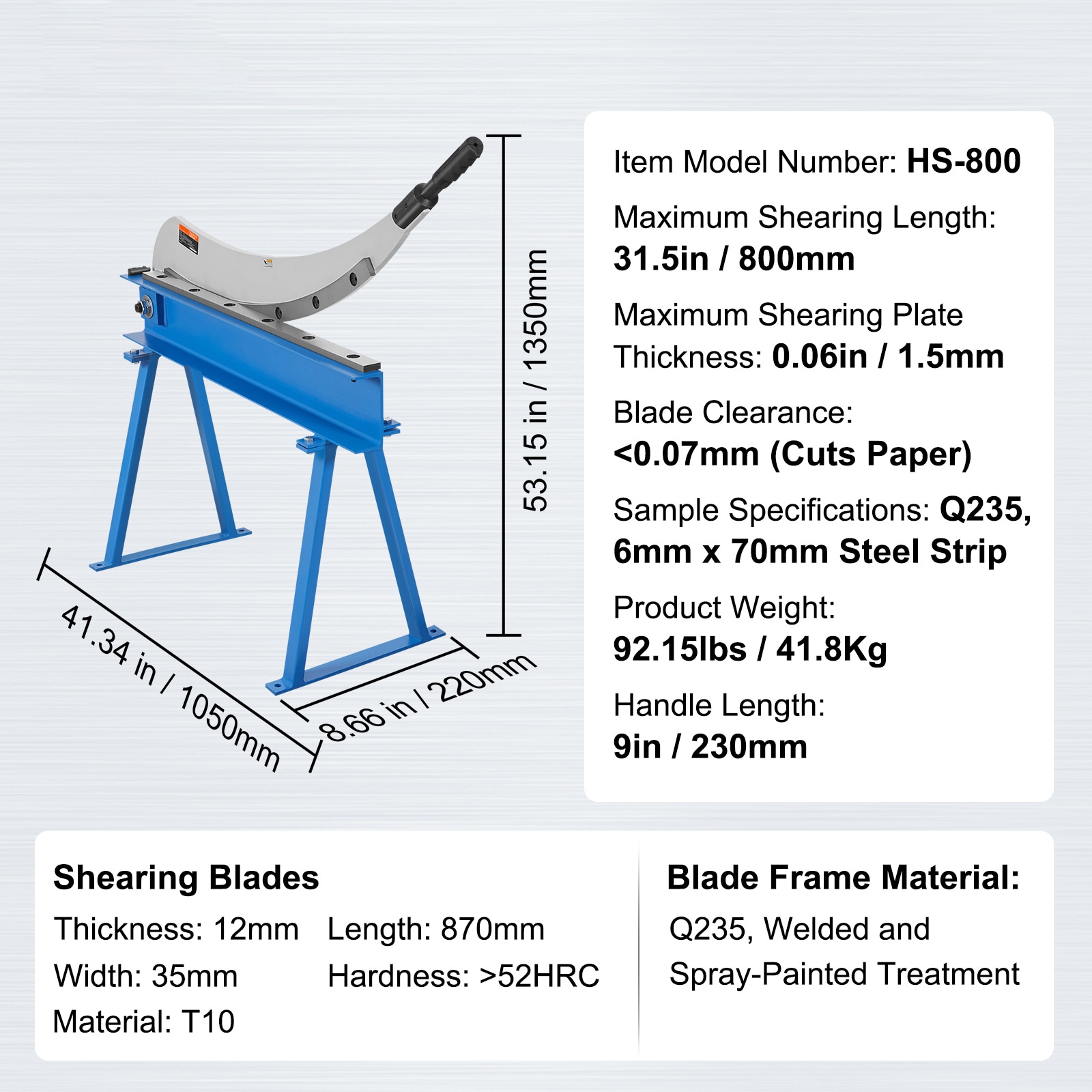

Max Shearing Length: 800mm / 31.5",
Max Shearing Plate Thickness: 1.5mm / 0.06",
Primary Material: Q235, T10,
Product Weight: 41.8kg / 92.15lbs,
Handle Length: 230mm / 9",
Blade Clearance: <0.07mm (Cuts Paper),
Sample Specifications: Q235, 6mm x 70mm Steel Strip,
Shear Plate Tensile Strength: ≤235MPa,
Operating Method: Floor Bolt Fixation, Manual Cutting,
Surface Treatment & Color: Painted, Blackened Treatment, Blue,
Product Dimensions: 1350mm x 220mm x 1050mm / 53.15" x 8.66" x 41.34".
4 x Bolts,
4 x Nuts,
2 x Brackets,
8 x Washers.
