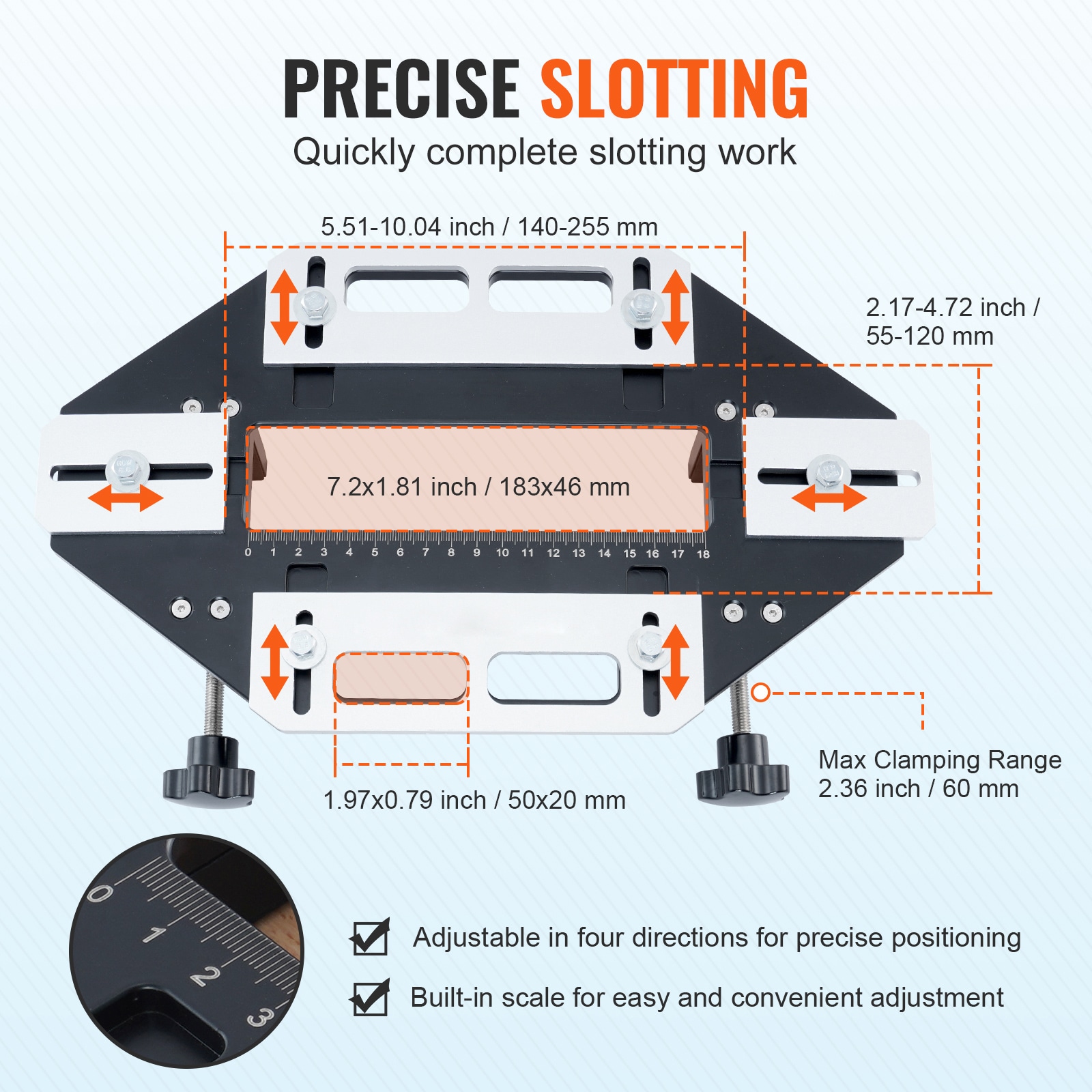

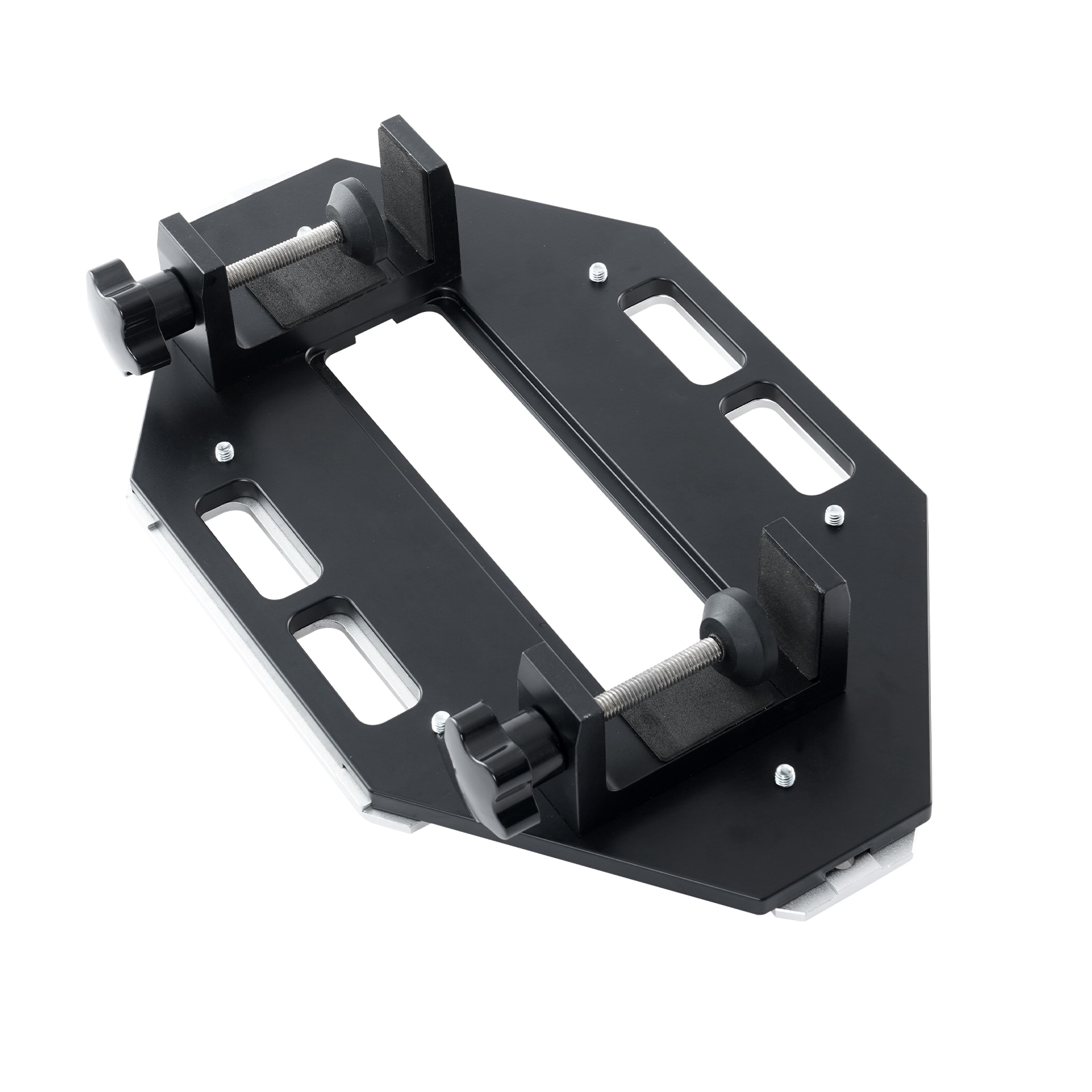

The hinge jig kit allows for adjustable length and width positioning in 4 directions; With built-in scales, it ensures precise slotting and secure installation of hinge slots and guide plates.
This cabinet hinge jig comes with a complete set of accessories for convenient hinge slotting tasks and a smooth drilling experience.
The hinge hole positioning tool has a built-in stainless steel threaded insert to protect the internal threads, enhance durability, and provide stable positioning, preventing workpiece movement during slotting.

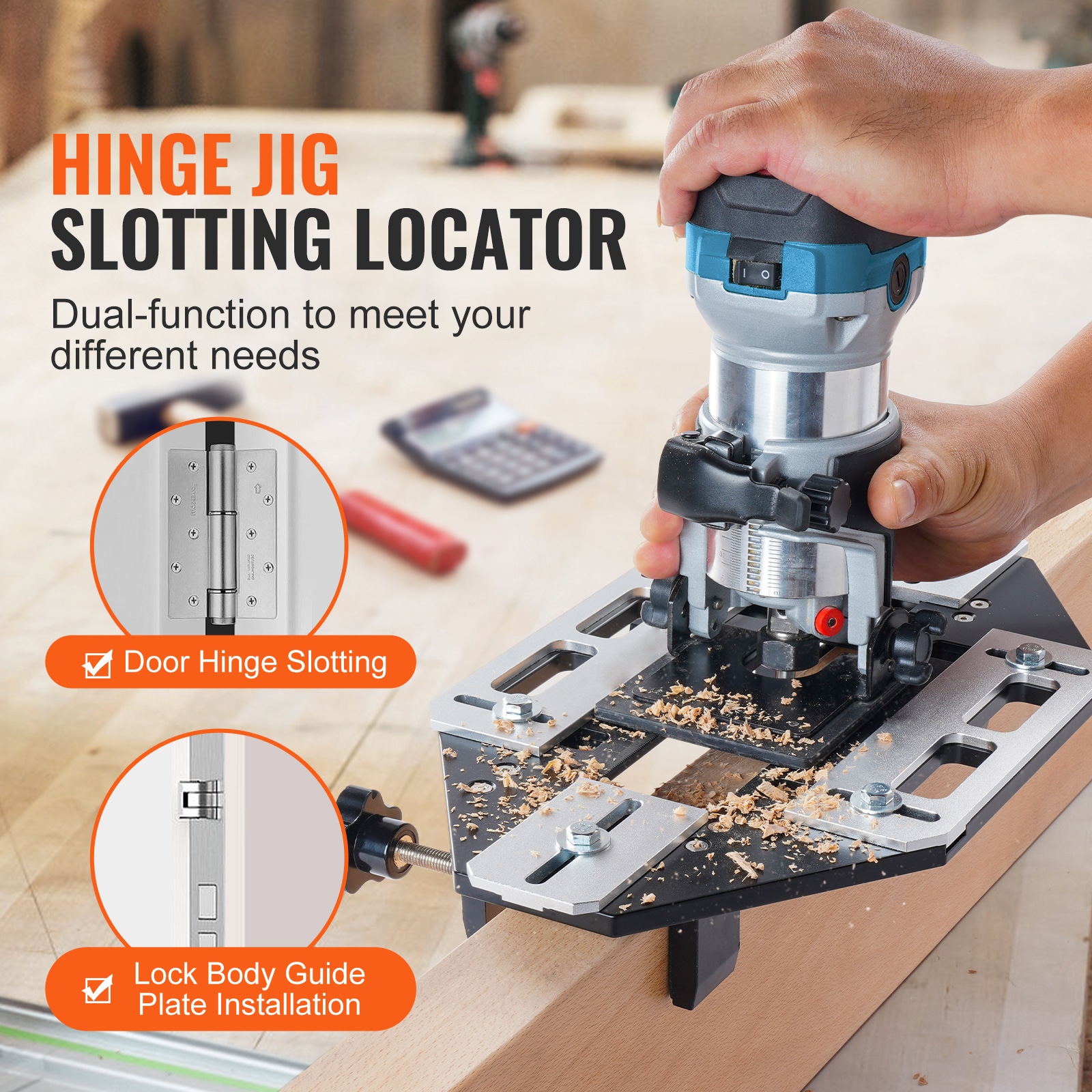

The hinge slot locator can quickly position both hinge slots and lock body guide plates; It's flexible to switch between uses, meeting different work requirements without the need for other tools.

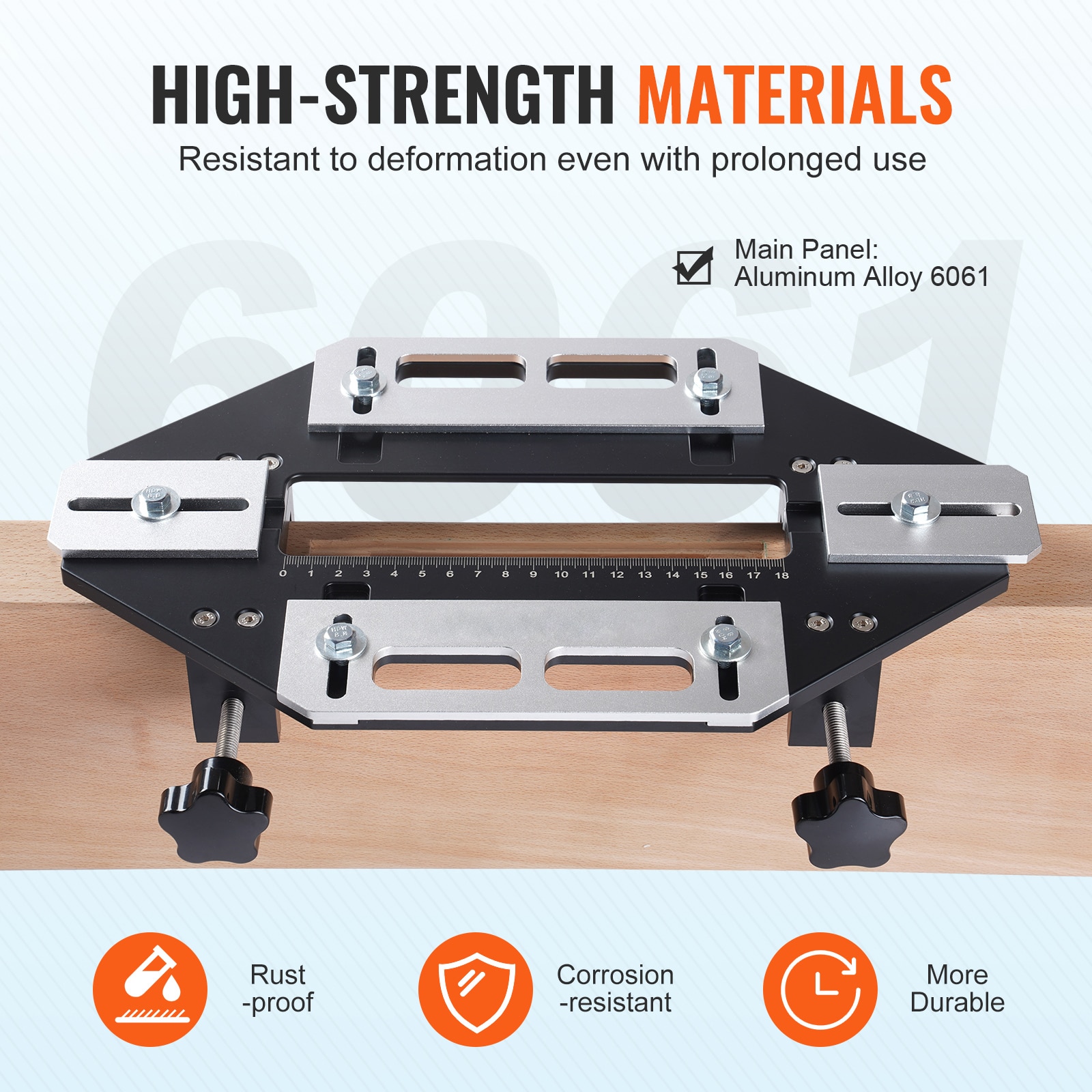

The main panel of the hinge jig is made from 6061 aluminum alloy; It has a stable structure, can withstand weight and pressure, and is built for a long service life and stability in complex conditions.
This door hinge jig doesn't need extra tools for clamping; Just manually tighten the screws for fast and efficient operation, saving adjustment time and offering a convenient experience.

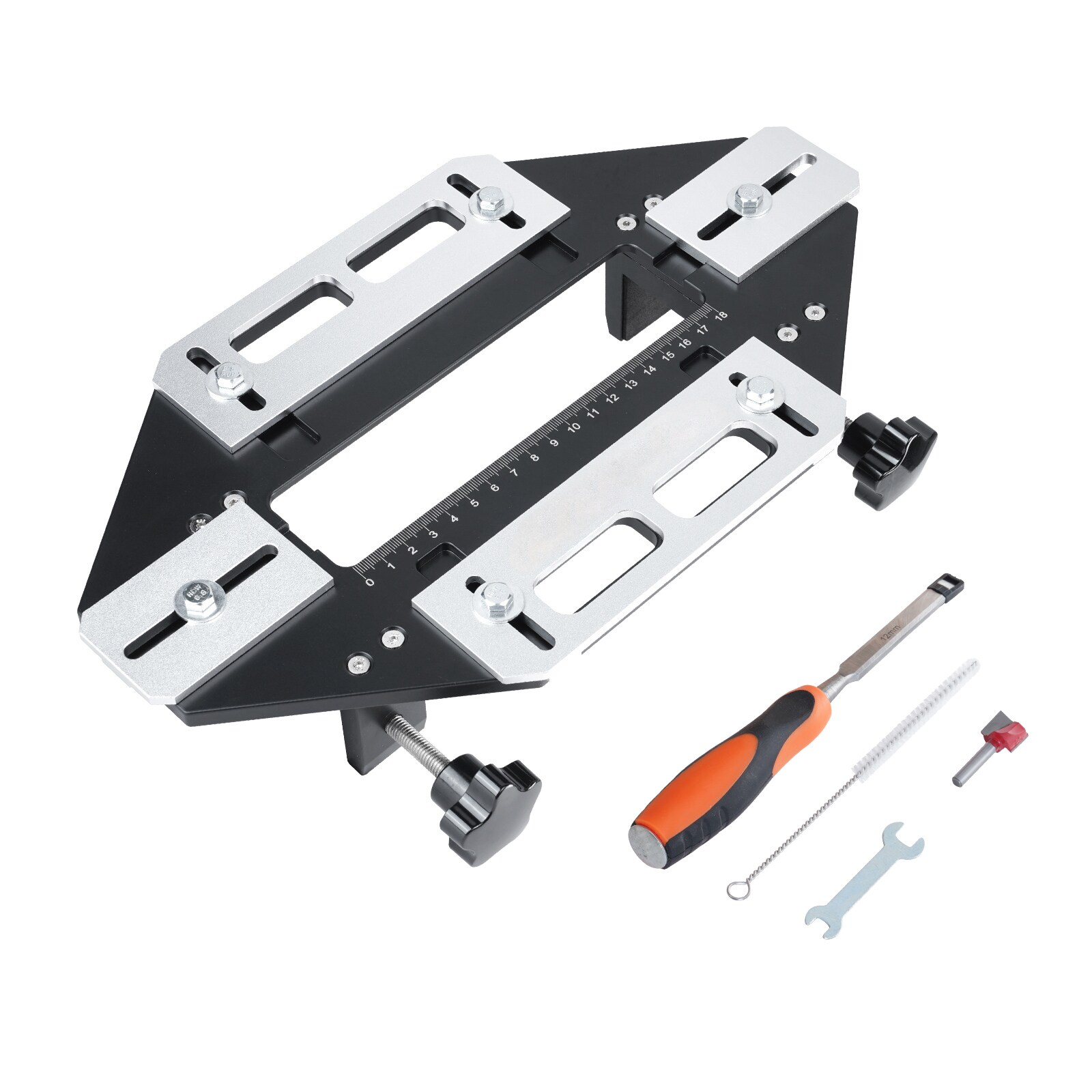

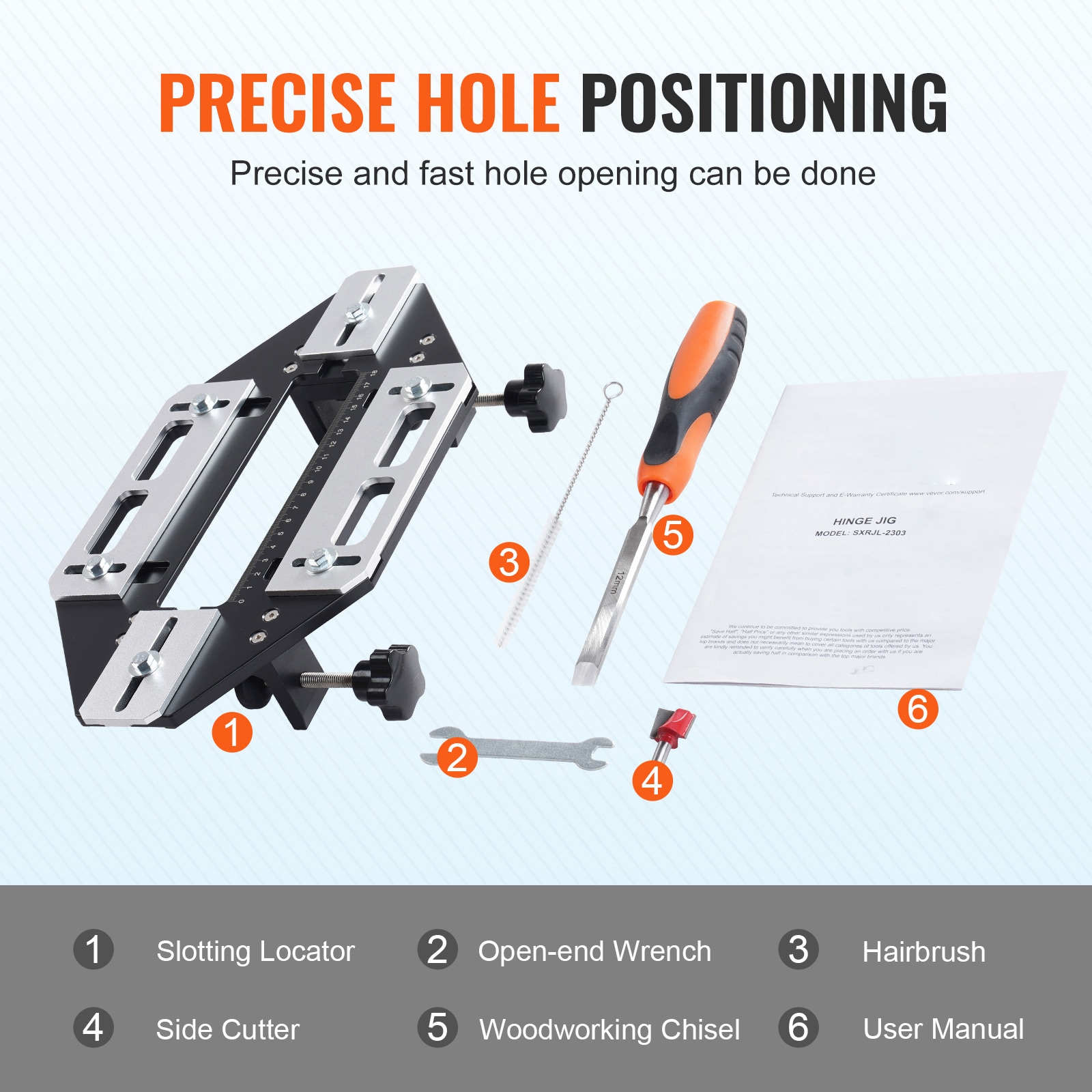

All-Inclusive Accessories: This cabinet hinge jig comes with a complete set, including a slotting locator, a side cutter, a woodworking chisel, an open-end wrench, a hairbrush, and a user manual; This full kit simplifies the hinge slotting positioning process;

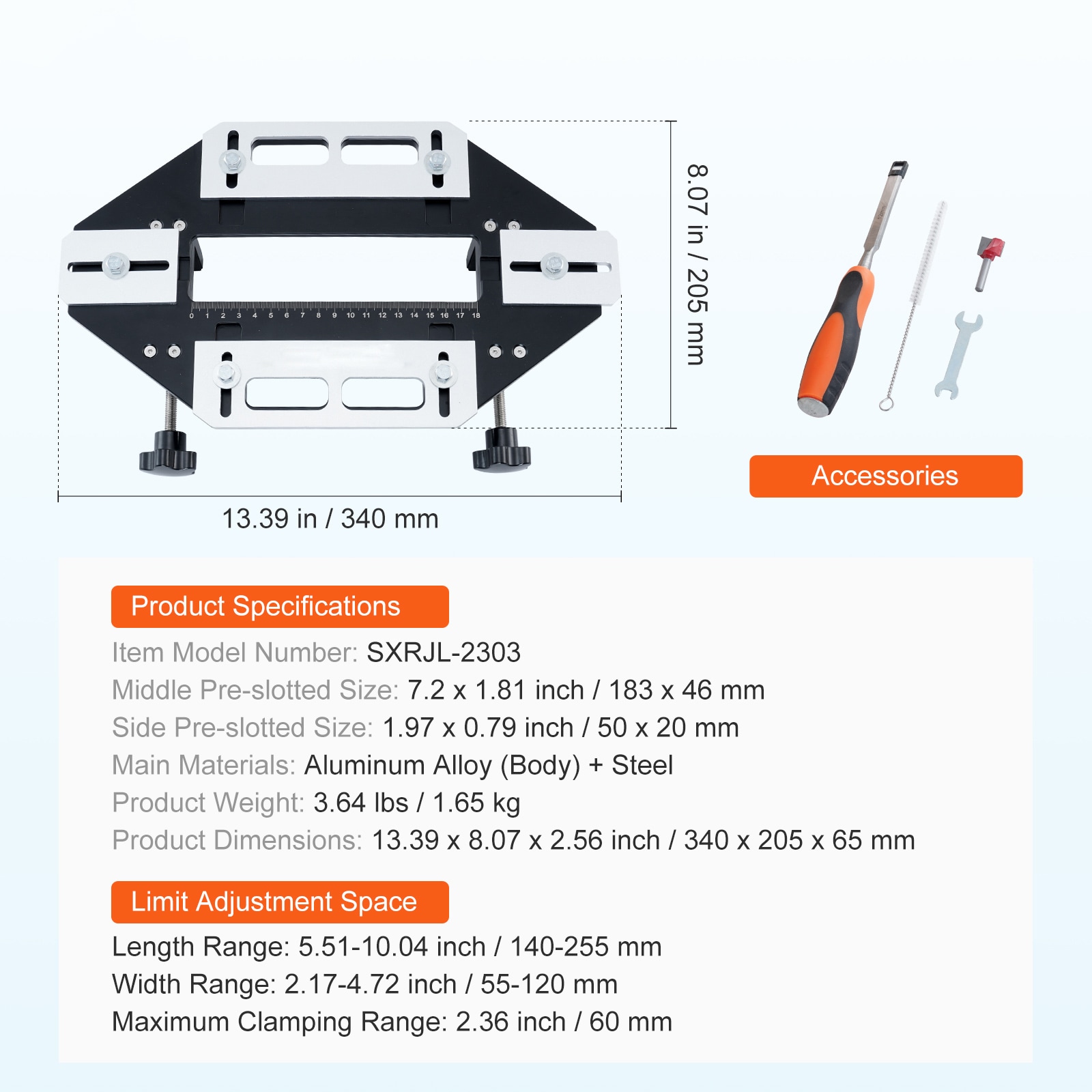

Length Range: 140 - 255 mm / 5.51 - 10.04 inch,
Width Range: 55 - 120 mm / 2.17 - 4.72 inch,
Maximum Clamping Range: 60 mm / 2.36 inch,
Main Materials: Aluminum Alloy (Body) + Steel,
Product Weight: 1.65 kg / 3.64 lbs,
Product Dimensions: 340 x 205 x 65 mm / 13.39 x 8.07 x 2.56 inch,
Item Model Number: SXRJL-2303,
Middle Pre-slotted Size: 183 x 46 mm / 7.2 x 1.81 inch,
Side Pre-slotted Size: 50 x 20 mm / 1.97 x 0.79 inch,
Limit Adjustment Space.
1 x User Manual,
1 x Hairbrush,
1 x Open-end Wrench,
1 x Woodworking Chisel （0.47''/12mm),
1 x Side Cutter（Clamping Diameter: 0.25''/6.3 mm),
1 x Slotting Locator.
