Our portable drill bit grinder has a powerful DC motor for stable operation; With 4500rpm high-speed rotation, strong torque, long durability, and low noise, it offers reliable support for sharpening.
Sharpen drill bits easily in 3 simple steps; Made mainly of 45# steel for stability and durability, it is lightweight and user-friendly.
This drill bits sharpener offers adjustable angles; The point angle can range from 95° to 135°, and you can adjust the lip relief angle with positioner pins to grind 4 types, suiting various needs.
There are 18 elastic collets - 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20 - suitable for ф3 - ф20 diameter drill bits.
The drill bits grinding sharpening machine is for re-sharpening and can be used in factories, workshops, family workshops, or for personal daily use.

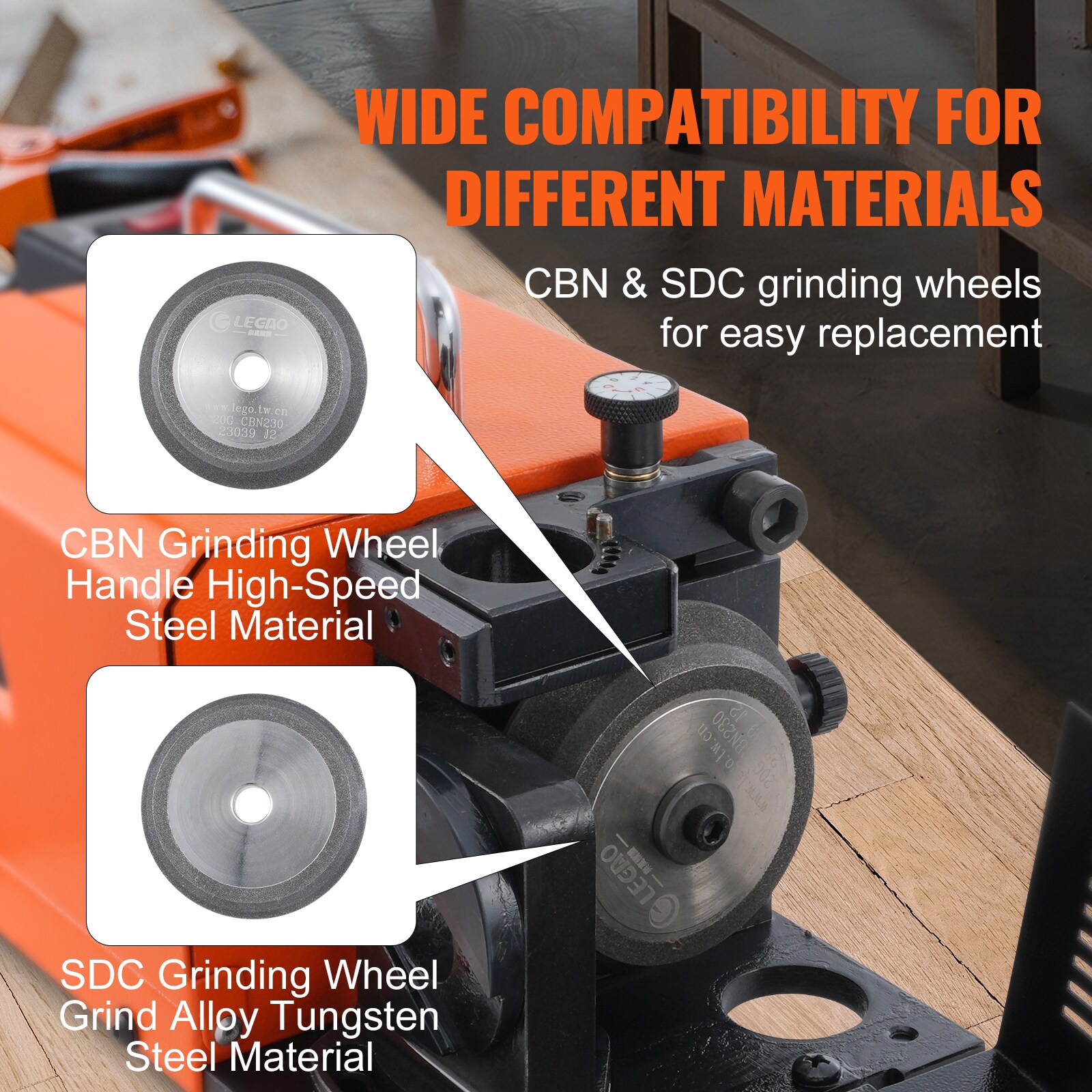

It is equipped with CBN and SDC grinding wheels; The CBN wheel is suitable for high-speed steel, and the SDC wheel is great for alloy tungsten steel, enhancing precision and efficiency.
Multi-Purpose Use: This drill bits grinding sharpening machine is for re-sharpening; Suitable for factories, workshops, garages, or DIY at home.
Net Weight: 9.1kg / 20.1 lbs,
Product Dimensions: 290 x 145 x 160 mm / 11.4'' x 5.7'' x 6.3'',
Applicable Drill Bit Diameter: ф3 - ф20mm,
Adjustable Point Angle: 95° - 135°,
Item Material: 45# Steel,
Rated Power: 120W,
Running Speed: 4500 RPM,
Item Model Number: MR-20G.
1 x CBN Grinding Wheel (pre-installed),
1 x SDC Grinding Wheel,
18 x Collets,
1 x M4 Hex Wrench,
1 x M2.5 Hex Wrench,
1 x Collet Chuck (3-13),
1 x Collet Chuck (14-20).
