This SVOPES linear guide rail set includes two 1500 mm (59") HGR20 rails, four slide blocks, and an RM1605 ballscrew kit, designed to provide precision and smooth operation for DIY CNC machines; Crafted from high-quality steel, the rails offer enhanced durability, extended service life, and minimal wear; The system ensures a smooth, stable motion with low noise, making it ideal for a variety of machining projects; Easy to assemble, this comprehensive kit is perfect for building or upgrading CNC routers, lathes, and mills.
Crafted from carbon steel for the main axle, GCr15 bearing steel for the linear blocks, and aluminum alloy for the casing, the materials ensure high strength, corrosion resistance, and superior wear resistance.
The chrome-plated surface enhances rust resistance and achieves a hardness rating of HRC62; This provides a high level of accuracy and durability for long-term, reliable use.
This linear guide rail set includes two 1500 mm (59") HGR20 rails, four slide blocks, and a RM1605 ballscrew kit, providing all the essential components needed for smooth and precise movement.
This linear rail kit is ideal for DIY CNC routers, lathes, mills, and automation machinery; It's also well-suited for precision measuring equipment and other high-performance mechanical systems.
The guide rail and block system delivers smooth, stable movement with minimal wear; The setup reduces noise while ensuring excellent performance even during extended operation.
Pre-drilled holes in the support rail mount allow for easy installation, reducing the time and effort required for setup, ensuring a quick and hassle-free assembly process.
Wide-Ranging Usage: Ideal for automation machinery, precision measuring tools, and DIY CNC equipment, this linear guide rail set excels in any setup requiring accurate linear motion, enhancing the functionality of various high-precision systems.

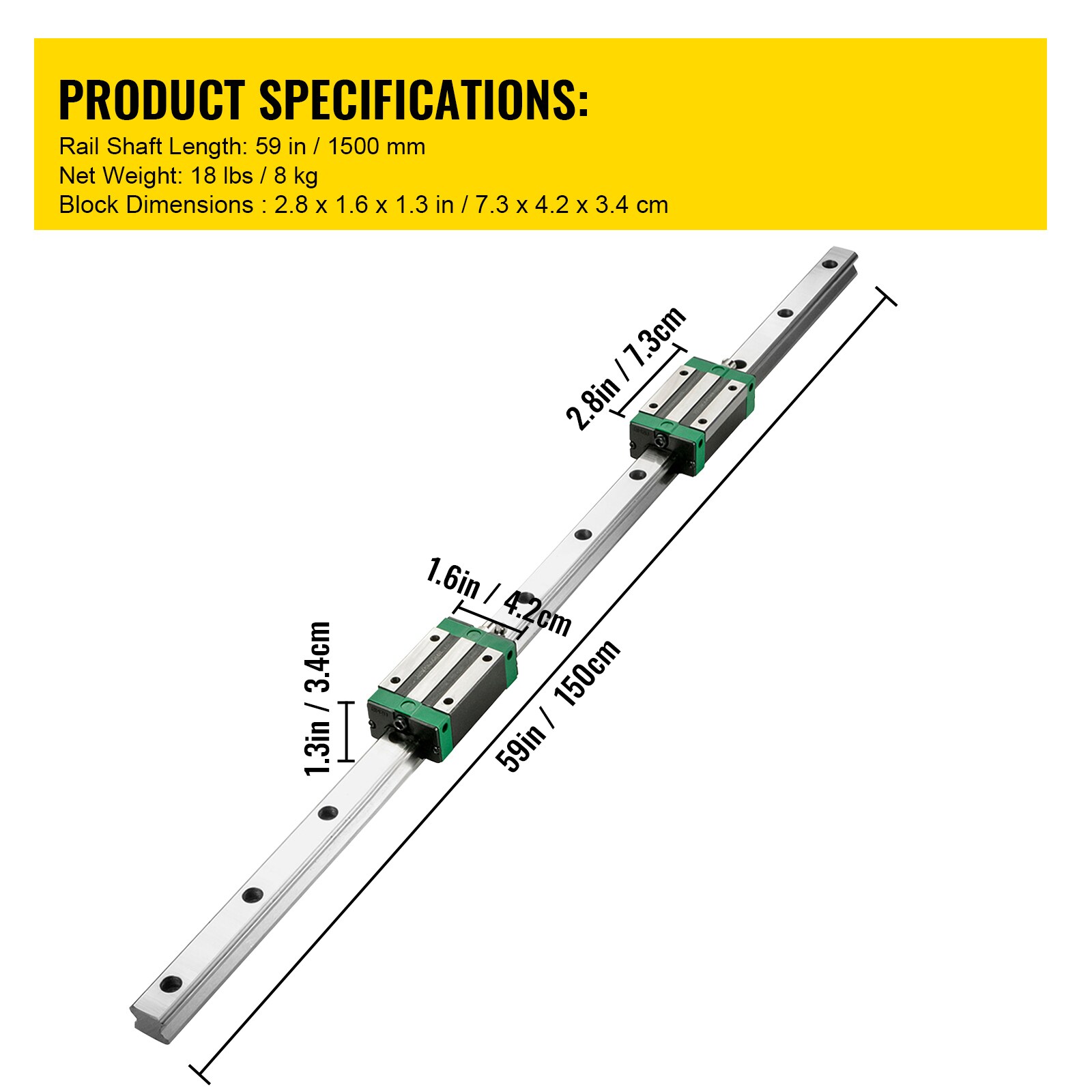

Rail Shaft Length: 1500 mm / 59 in,
Material: GCr15 Steel,
Type: HGR20 Slide Rail,
Nuts: BF12 / BK12 Nuts,
Block Dimensions (L x W x H): 7.3 x 4.2 x 3.4 cm / 2.8 x 1.6 x 1.3 in,
Fixing Screw Hole Size: M4 x 16 mm,
Static Load Ratings: 25.31,
Allowable Static Torque: 0.17 KNm,
Performance: Smooth Motion, Low Noise,
Net Weight: 8 kg / 18 lbs.

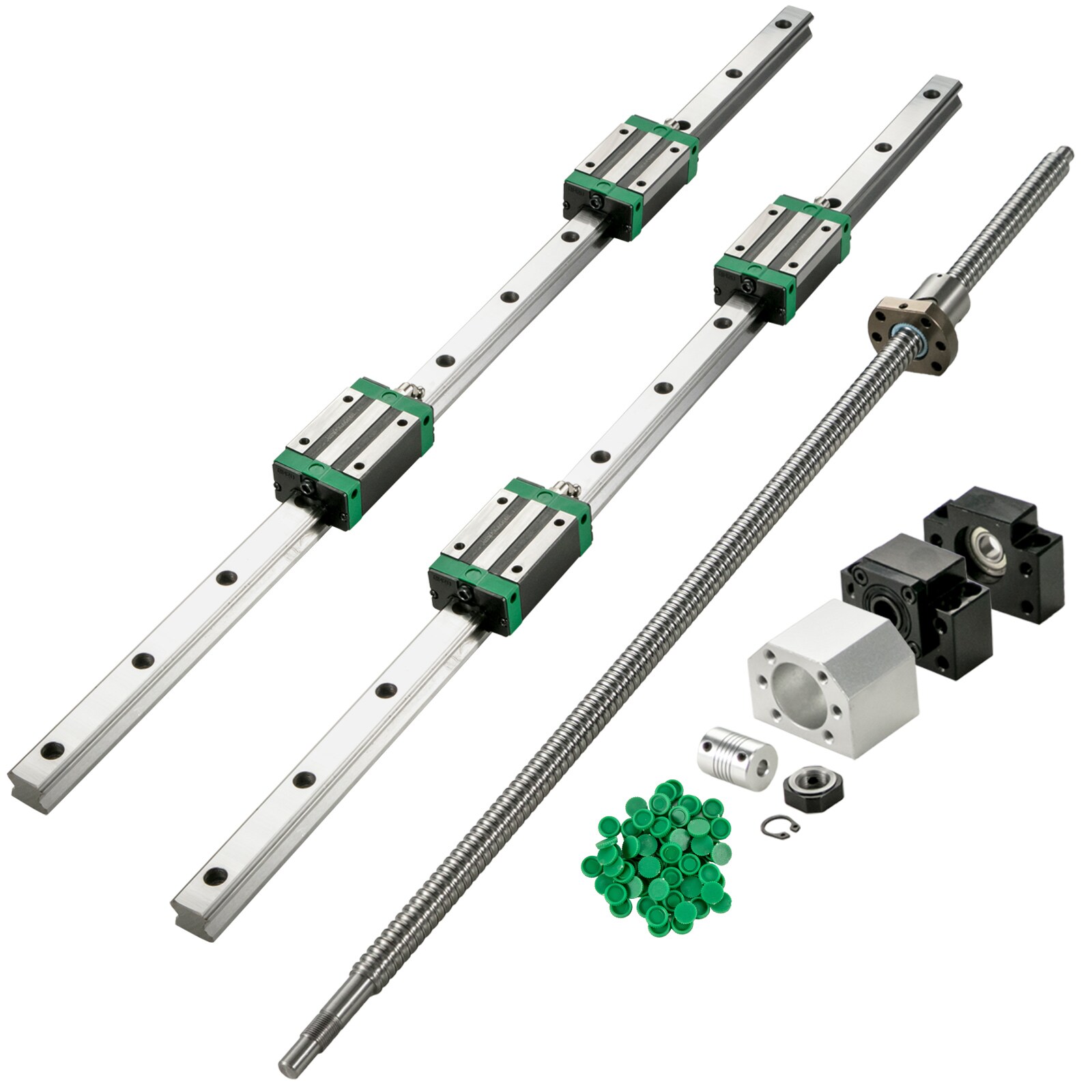

2 x HGR20-1500 mm Linear Guide Rails,
1 x Ball Nut,
1 x BF12 / BK12 Nut,
1 x Plum Coupling,
4 x Slide Blocks,
1 x RM1605-1500 mm Ballscrew.
