This VFD is perfect for a wide range of machines, including winders, mixers, extruders, grinders, compressors, pumps, and elevators; It’s ideal for any application requiring variable speed control and is a reliable solution for industrial automation.
Multiple layers of protection, including overload, fuse, over-voltage, and under-voltage safeguards, ensure the VFD’s stable operation; These features maximize reliability and minimize the risk of equipment damage.
The VFD’s intuitive digital display and detachable panel provide easy access for monitoring and adjustments; It allows for convenient remote control via interface connection, enhancing usability for daily operations.

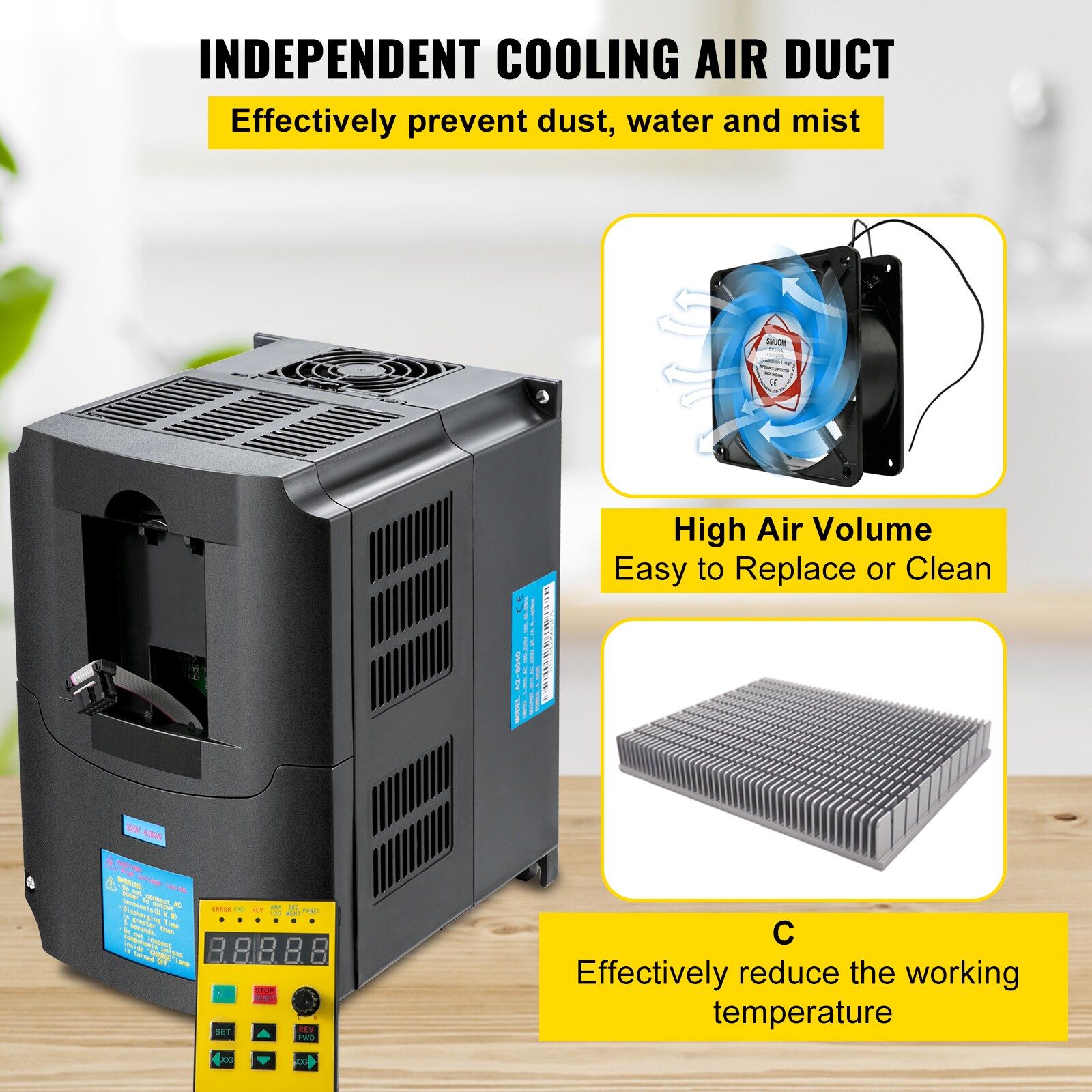

Equipped with a powerful fan and a built-in radiator, this VFD ensures effective heat management, preventing overheating; Its independent air ducts protect the internal components from contamination, ensuring reliable performance in harsh conditions.
Built with ABS flame-retardant material, this CNC VFD features excellent durability; Its crash-resistant body, non-corrosive coating, and high-temperature capacitor (up to 105°C) offer increased stability even in challenging environments.
This VFD utilizes an advanced control method that ensures high precision and efficient speed regulation; It supports functions like multi-segment speed control, acceleration/deceleration switching, and program running for flexible motor management.
Powerful Functionalities: It has a 1 or 3 phase input and 3 phase output; Control and frequency setting modes are diverse, including V/F control, vector control, digital, analog, serial communication, and PID settings; It enables fast starting and heavy load handling.
Power: 4 kW
Model: H100-4S2-1B
Net Weight: 2.6 kg / 5.73 lbs
Product Size: 220 x 118 x 148 mm / 8.7 x 4.6 x 5.8 in
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-17A
Output Current: 0-17A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 5.5 HP
Working Temperature: -5 ~ 40 ℃ / 23~104℉
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
1 x Extension Wire
1 x 4 KW Variable Frequency Drive Inverter
1 x English Manual
