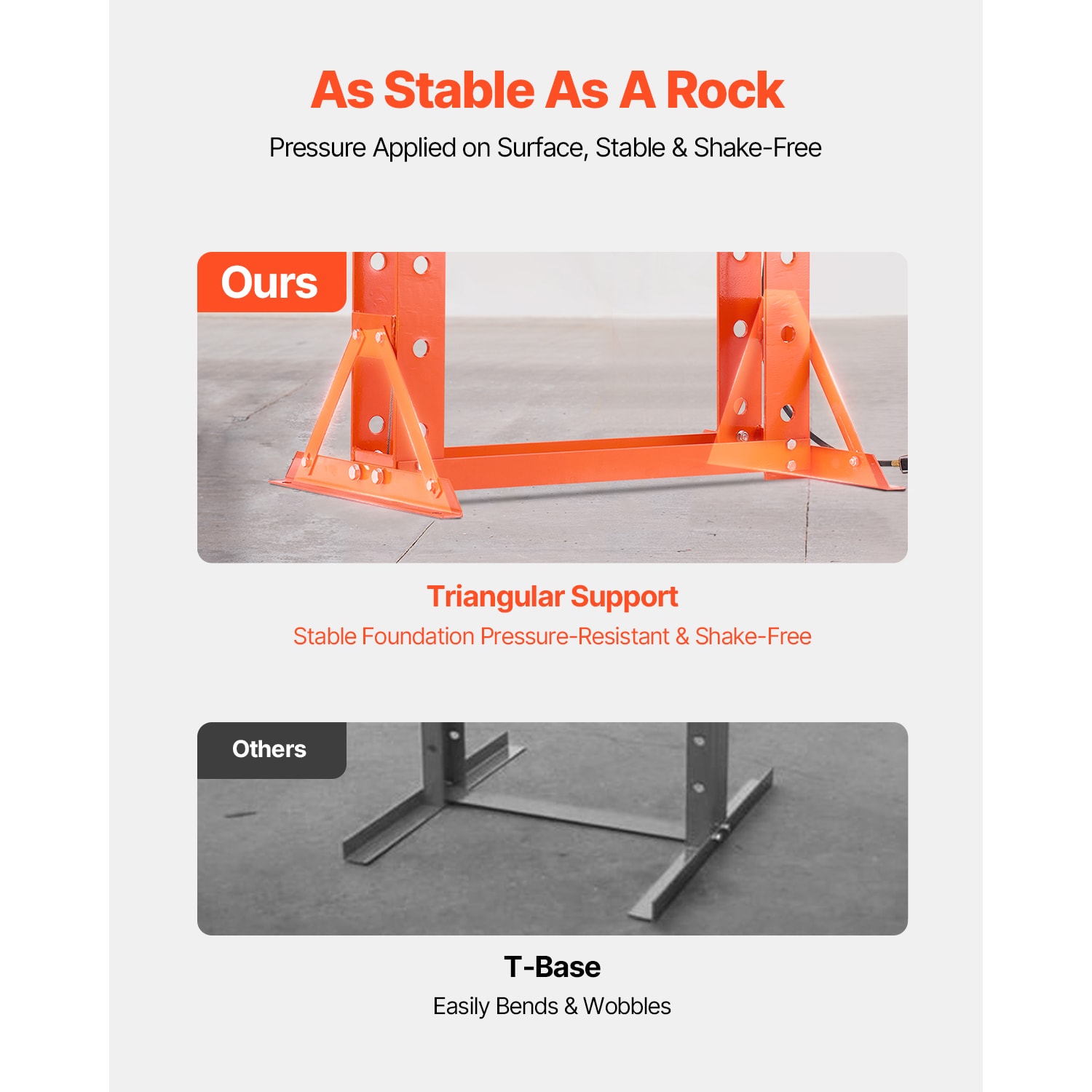

With a steady base, this press offers superior stability, preventing wobbling or shaking during use; This ensures accurate, safe operation, even under high-pressure conditions.
Crafted from high-quality materials, this press features a powder-coated finish that protects against corrosion; It is built to withstand heavy use, ensuring longevity and dependable service over time.
The hydraulic press is made with reinforced steel, providing excellent durability and resistance to intense pressure; Its robust design ensures that it won't deform under heavy loads, offering reliable performance.
Designed with a thick steel frame, this press offers exceptional load-bearing capacity; It remains sturdy and reliable, making it ideal for heavy-duty tasks in both professional and DIY environments.
The two movable, flat stamping plates allow for easy positioning of various parts, making it adaptable for different tasks and providing flexibility in operations for improved efficiency.

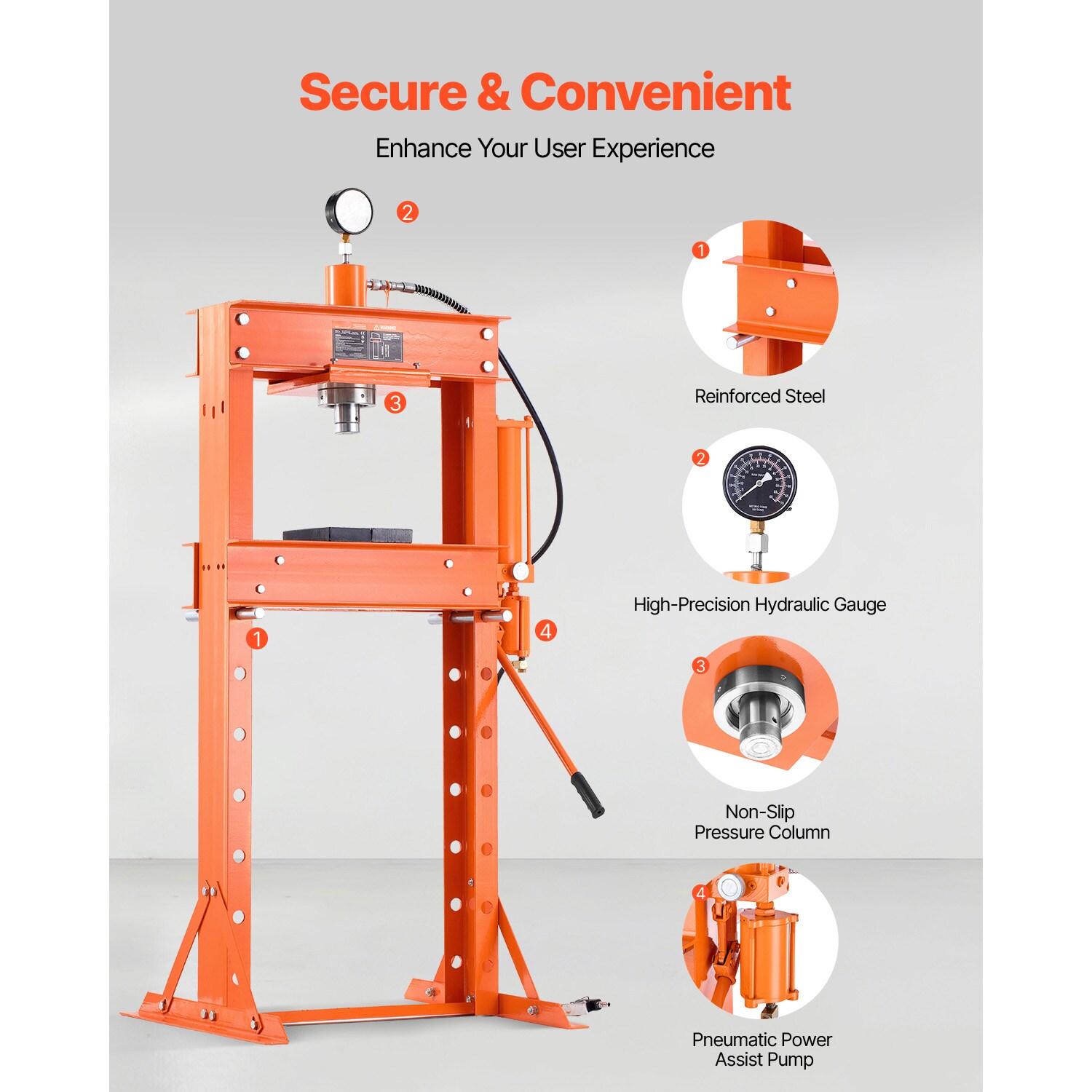

Equipped with a heavy-duty downward column, this press guarantees slip-free operation; Its ergonomic handle makes handling easy and comfortable, even during extended work sessions.
Adjustable Worktable Height: With a quick-adjust pin system and 8 height settings ranging from 2.6 to 36.9 inches (65-938 mm), this hydraulic press provides flexible working positions; The cylinder stroke is 4.9 inches (125 mm)
Product Dimensions: 855 × 700 × 1750 mm / 33.6 × 27.4 × 68.9 in,
Cylinder Stroke: 125 mm / 4.9 in,
Rated Load: 30T,
Hydraulic Pump Operating Pressure: 0.8-1.2 MPa,
Hydraulic Oil Model: 15#,
Net Weight: 113.25 kg / 249.7 lbs (Including all accessories),
Item Model Number: ZX0901 item 30T.
1 x 30T Pressure Gauge,
1 x Seal Washer (pre-installed on oil cylinder component),
1 x Oil Cylinder Component,
1 x Tapered End Tightening Screw M8×8 (pre-installed on oil cylinder component),
2 x Cotter Pin,
4 x Hex Bolt M10×170,
10 x Hex Bolt M10×25,
4 x Diagonal Brace,
4 x Hex Bolt M12×30,
2 x Angle Iron,
1 x Connecting Rod Component,
4 x Flat Washer φ12,
4 x Spring Washer φ12,
4 x Hex Nut M12,
1 x Handle,
2 x Hex Bolt M10×20,
1 x Pneumatic Quick Connect Hose (American-style),
1 x Pneumatic Manual Pump Component,
1 x Oil Hose Component,
1 x User Manual,
1 x European-style Quick Connect Fitting,
1 x Upper Cap (pre-installed on oil cylinder component),
1 x Piston (pre-installed on oil cylinder component),
4 x Hex Bolt M8×16,
2 x Cross Beam,
8 x Hex Bolt M16×35,
8 x Flat Washer φ16,
8 x Spring Washer φ16,
8 x Hex Nut M16,
2 x Vertical Column,
1 x Oil Cylinder Mounting Plate Welded Assembly,
1 x Lower Cap (pre-installed on oil cylinder component),
16 x Flat Washer φ10,
16 x Spring Washer φ10,
12 x Hex Nut M10,
2 x Pressure Block,
4 x Workbench Support Pipe,
2 x Workbench.
