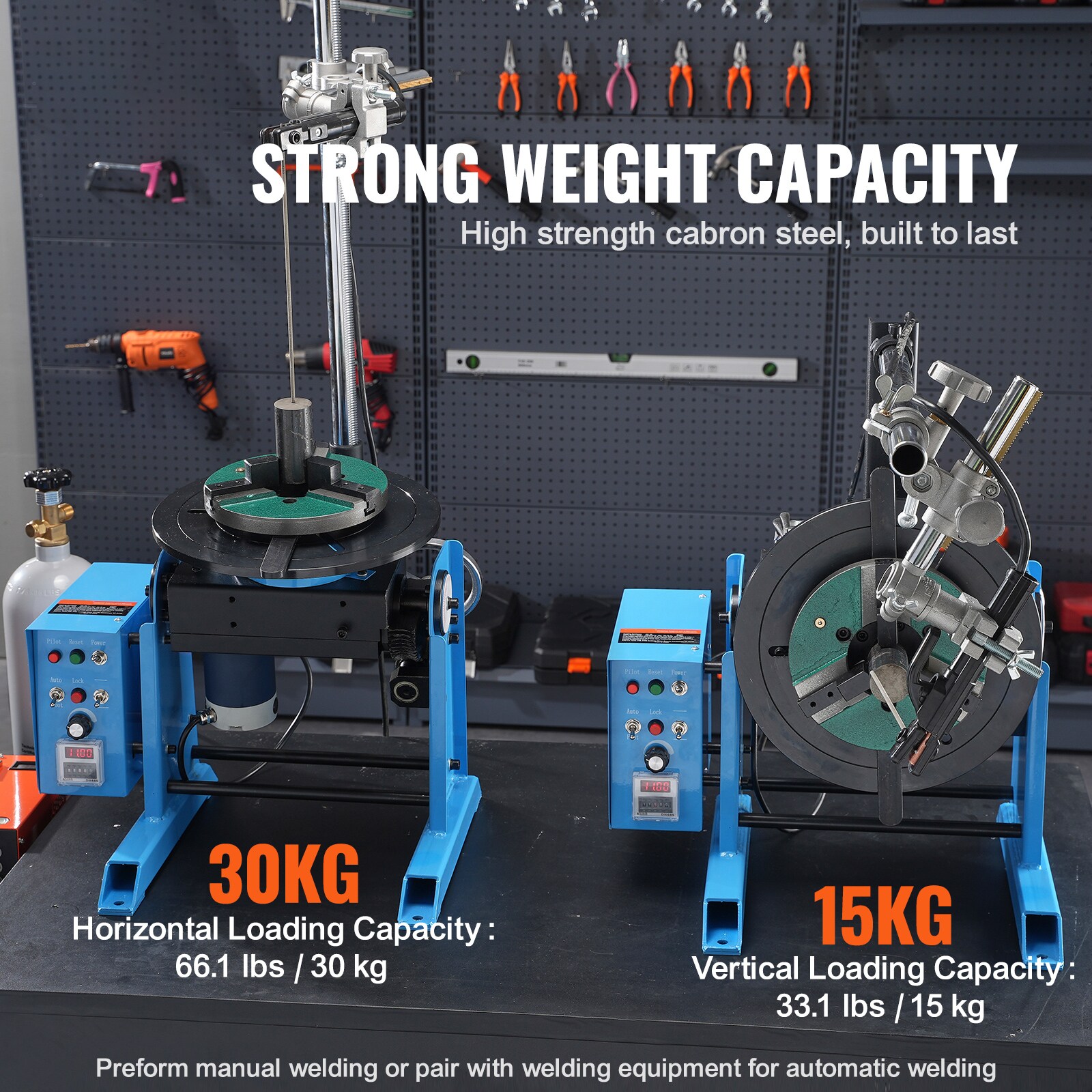

Built with high-strength carbon steel, the welding positioner supports impressive load-bearing capacities: 33.1 lbs (vertical) and 66.1 lbs (horizontal); This robust structure ensures durability for various welding applications while offering resistance to wear and corrosion for long-lasting performance.

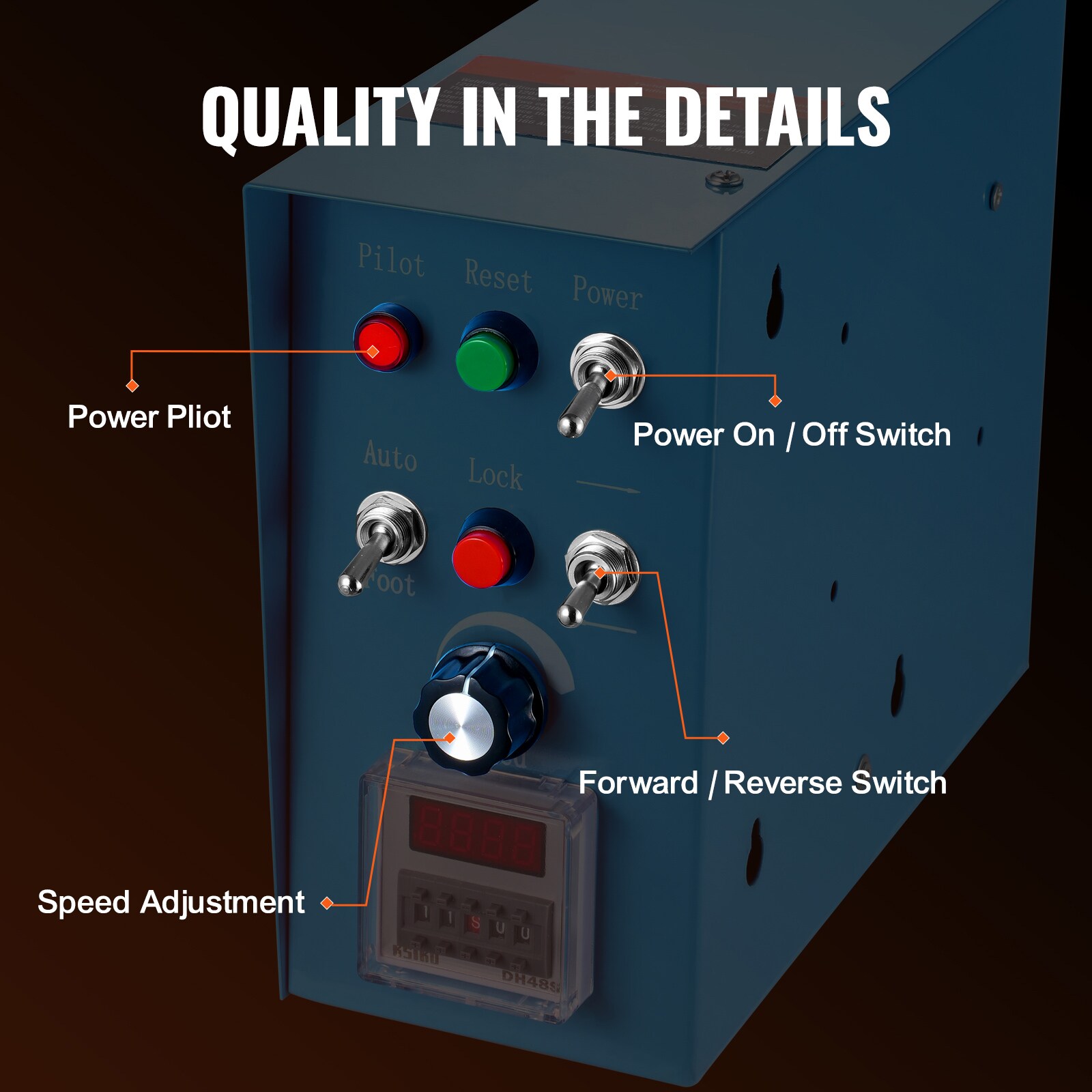

The 360° rotation of the worktable can be easily controlled with the foot pedal switch, offering flexibility during the welding process; The intuitive control box allows stepless speed adjustments (1-12 rpm), giving you full control over the rotation speed for different tasks, ensuring consistent and smooth results.
Equipped with a durable KD200 three-jaw chuck, this positioner has a clamping range of 10-210 mm and a supporting range of 80-190 mm; It ensures the workpiece stays secure during rotation, preventing movement or slipping, which greatly improves welding precision and consistency.
The turntable can tilt between 0-90° and is easily locked in place using the hand wheel, allowing you to position the workpiece at the perfect angle for precise welding; This tiltable feature enhances the flexibility and ease of use for different welding angles and positions.
The SVOPES rotary welding positioner is ideal for a variety of welding tasks; Whether you're working on metal welding, large pipe welding, heavy machinery, or automated welding processes, this positioner is designed to deliver precise and efficient results for all your welding needs.
The positioner incorporates a worm gear turning mechanism with a self-locking feature, ensuring the workpiece is securely positioned; With a hand wheel to lock the worktable at your desired angle, precise and stable adjustments are easy to achieve; The welding gun stand holder further enhances accuracy during operations.
Wide Applications: Our positioning turntable is suitable for cutting, grinding, assembly, and testing; It can be fixed on a workbench or tooling for manual welding or used with welding equipment for automatic welding to enhance efficiency and precision.
Motor Power: 80W,
Speed: 1-12 RPM,
Horizontal/Vertical Load Capacity: 66.1lbs/30 kg ; 33.1lbs / 15kg,
Working Table Tilting Angle: 0-90°,
Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm,
Turntable Diameter: 12.4'' / 315mm,
Net Weight: 85.5 lbs / 38.8 kg,

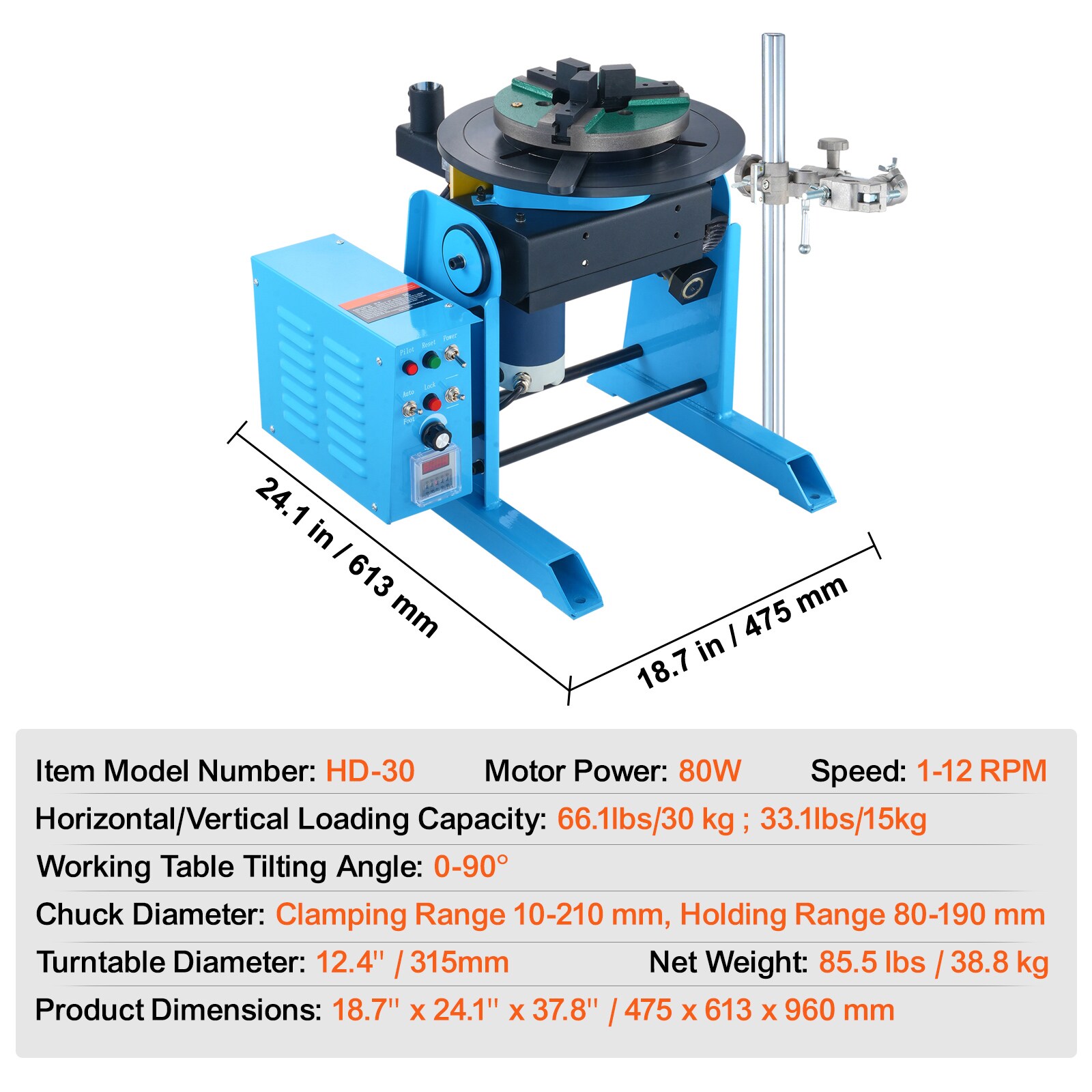

Product Dimensions: 18.7'' x 24.1'' x 37.8'' / 475 x 613 x 960 mm,
Item Model Number: HD-30.

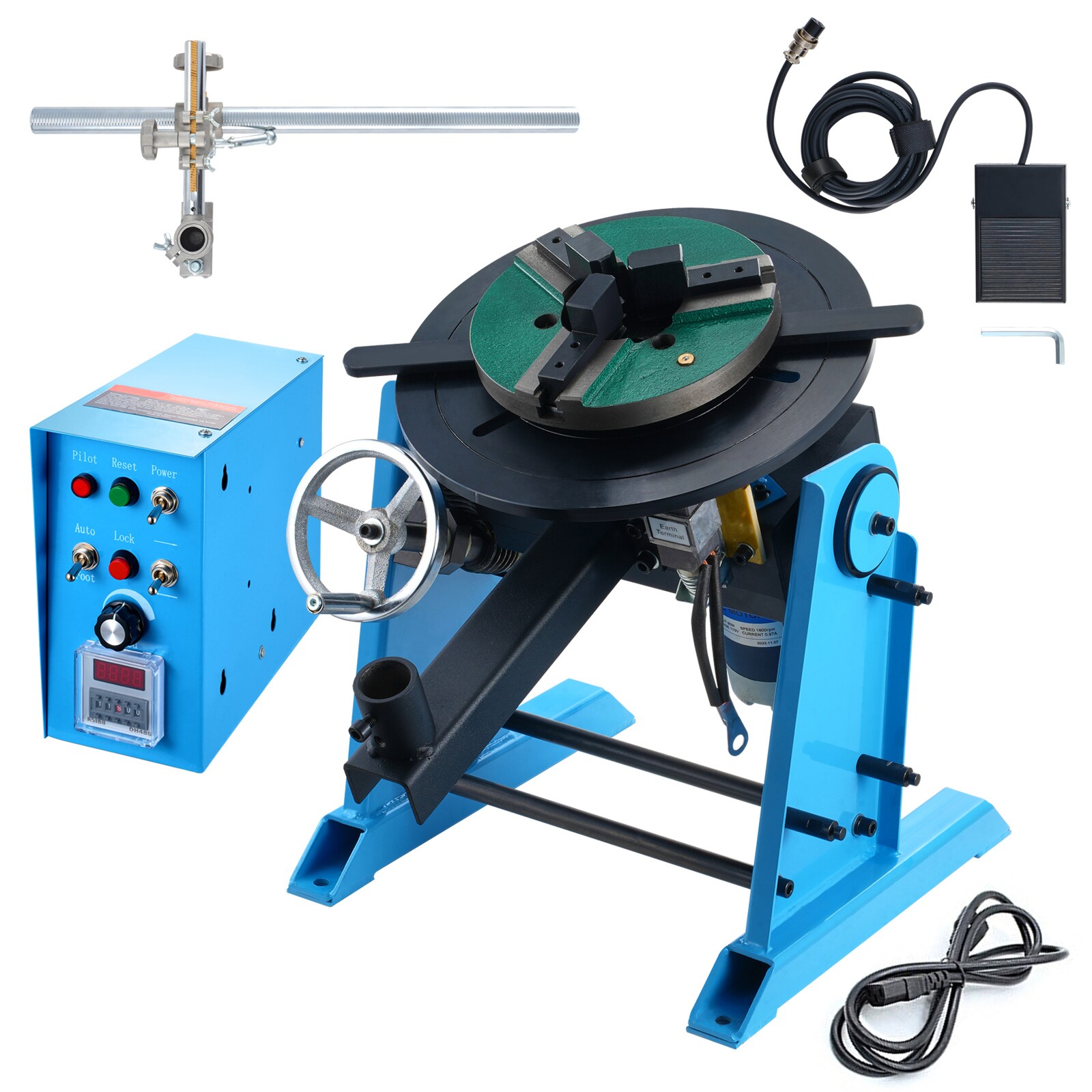

1 x Control Box,
1 x Welding Machine Connection Aviation Plug,
1 x Set of Gun Holder (With Rod),
1 x Gun Stand Holder,
1 x User Manual,
1 x Set Of Mounting Bolts (4 x Stud, 4 x Flat Washer, 4 x Spring Washer),
1 x M5 Hex Wrench,
1 x Power Cord,
1 x Foot Pedal,
1 x Set of Hand Wheel.
