The machine features a detachable modular setup, with five different-sized blades (1", 2x2", 3", 4"); This design makes it easy to work with various sheet metal types, including low-carbon steel and aluminum.
Capable of processing sheet materials up to 20 GA (1 mm) thick and 12 in (305 mm) wide, the SVOPES metal brake achieves clean bends at a 90° angle; A perfect fit for a wide range of metalworking projects.

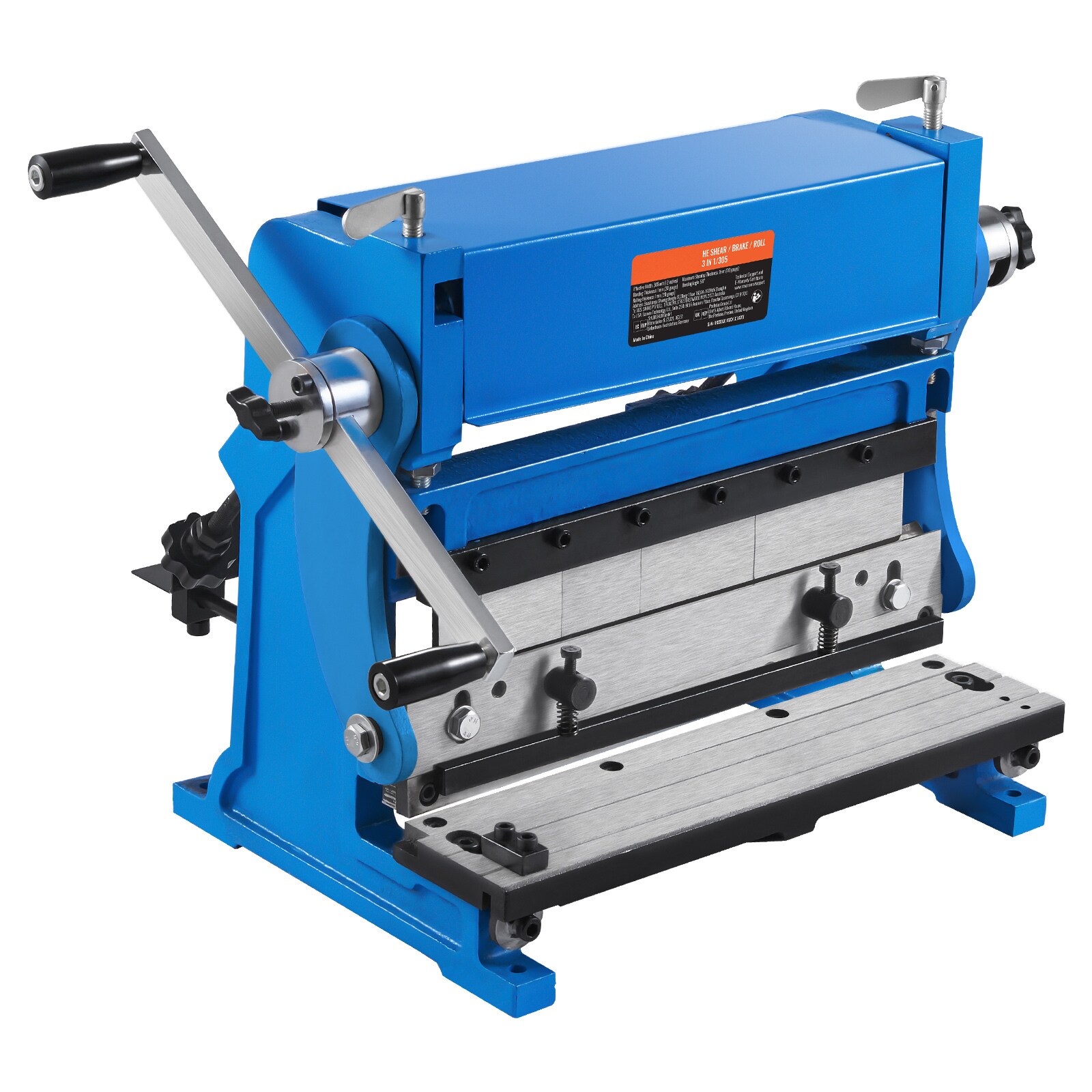

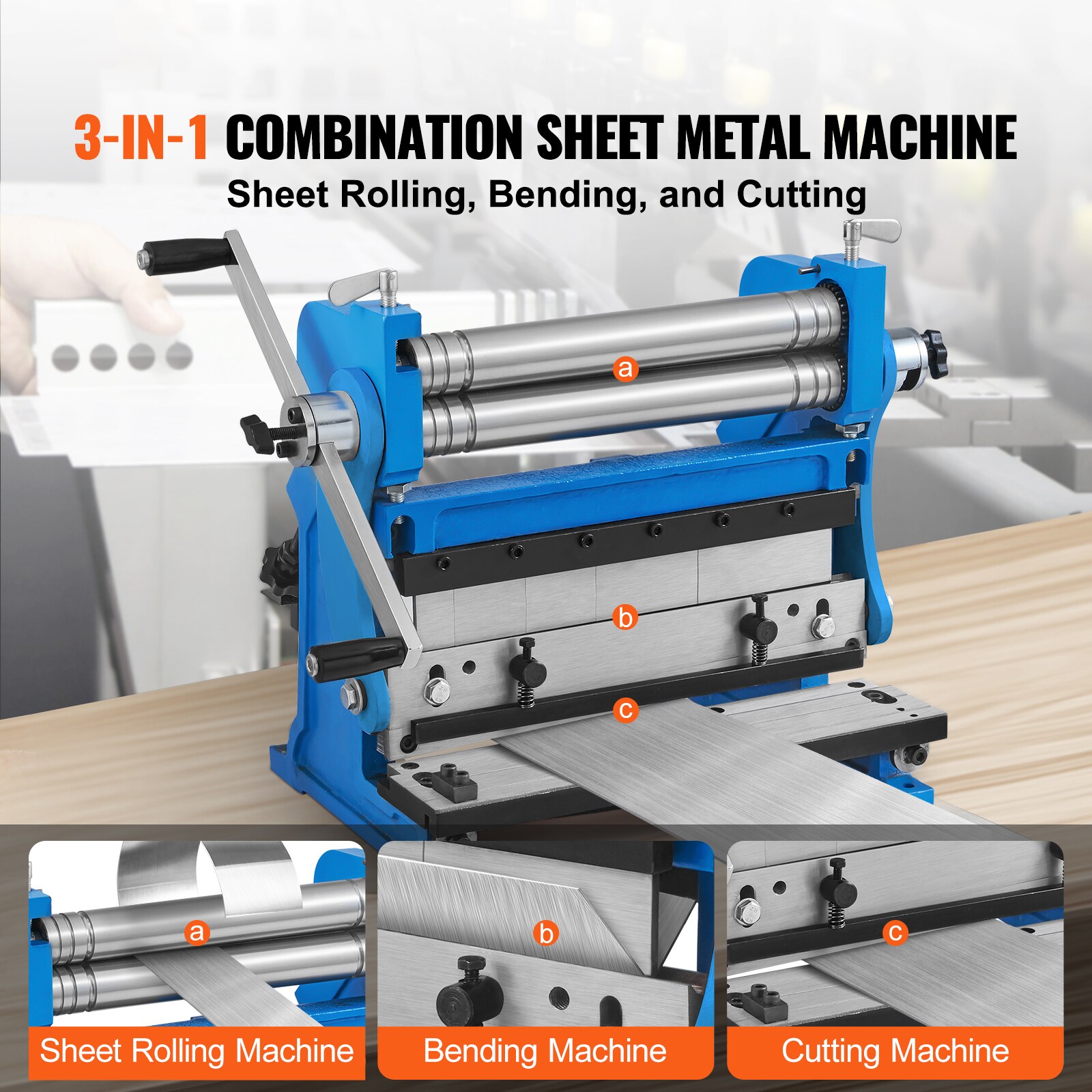

The SVOPES 3-In-1 Sheet Metal Brake combines shearing, bending, and rolling into one efficient machine; Adjust the roller with ease, bend up to 90°, and cut through various metals effortlessly.
Built with industrial-grade materials, the sheet metal brake is engineered for lasting performance; Its robust frame resists wear and tear, ensuring the tool withstands even the toughest tasks.
No complex training is required; The SVOPES metal brake is designed for easy operation; With its straightforward controls and simple setup, even beginners can achieve precise results without hassle.
Equipped with advanced curvature adjustment, this tool allows precise control over the bending process; Create cylindrical or tapered pieces with flawless results, ensuring a high-quality finish every time.

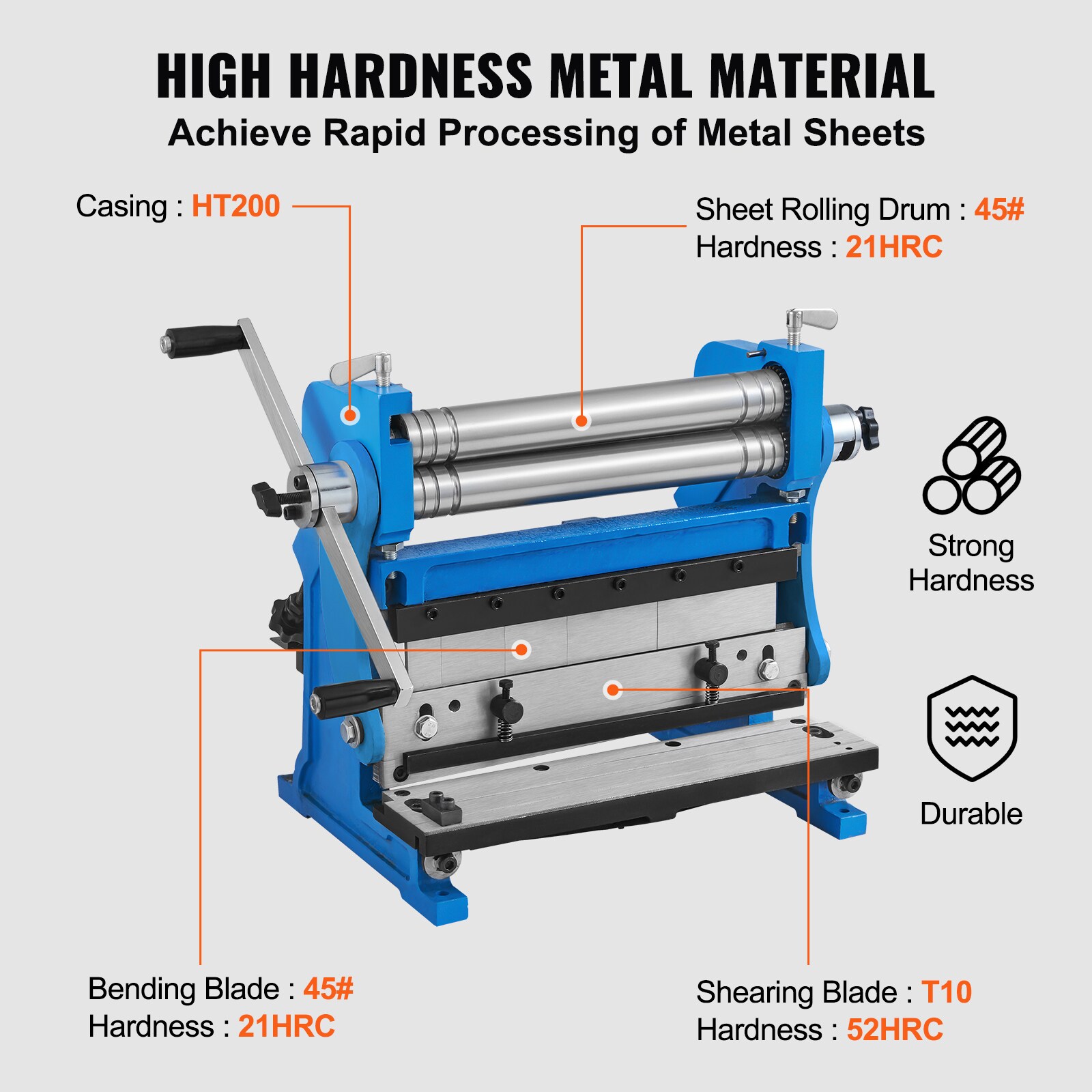

Built to Last with Quality Materials: Constructed with HT200 casting and featuring a T10 shearing blade, this machine ensures clean cuts without burrs; The bending blade and roller are made from durable 45# material, offering resistance to wear and deformation.

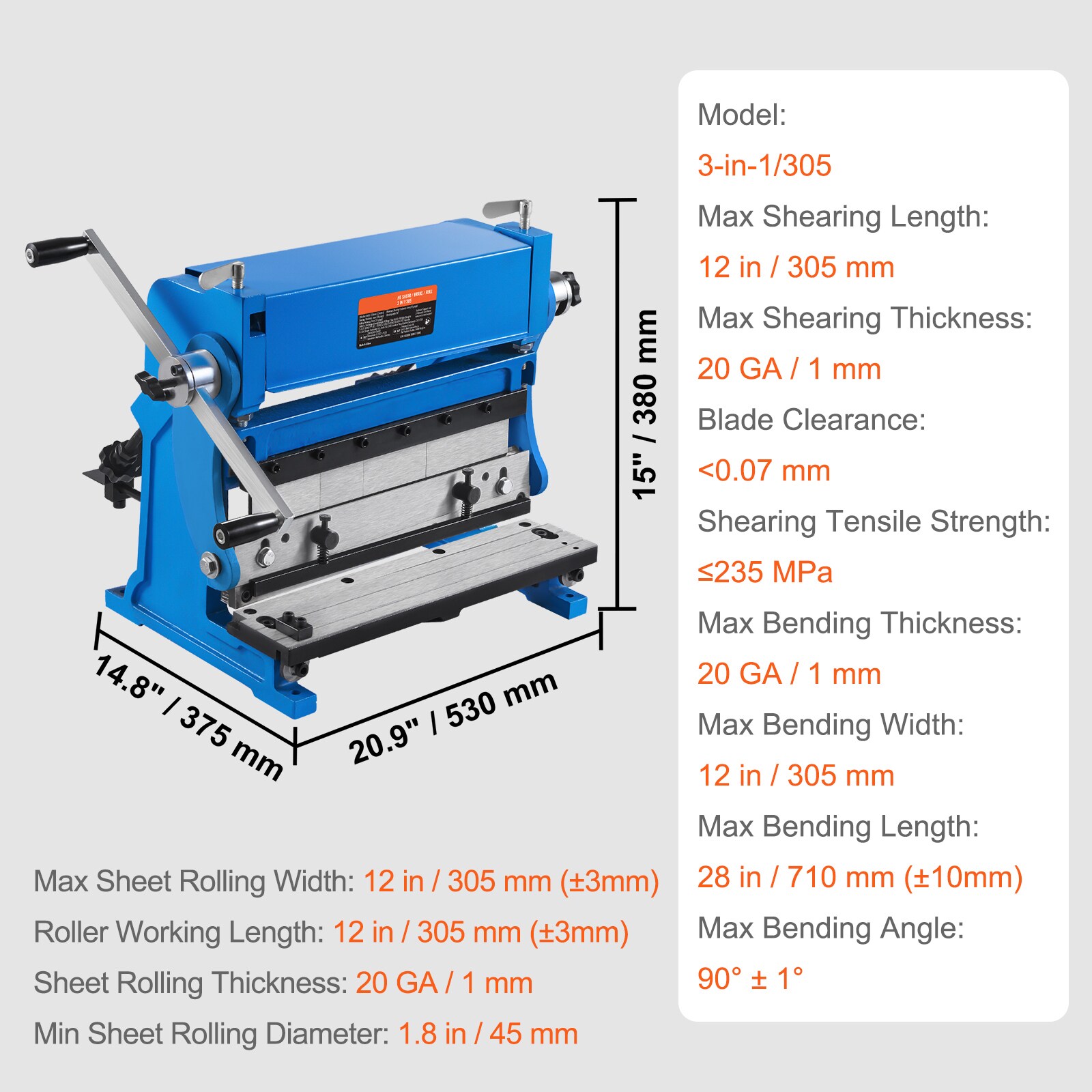

Max Shearing Length: 305 mm / 12 in,
Item Model Number: 3-in-1/305,
Max Shearing Thickness: 1 mm / 20 GA,
Blade Clearance: <0.07 mm,
Shearing Tensile Strength: ≤235 MPa,
Max Bending Thickness: 1 mm / 20 GA,
Max Bending Width: 305 mm / 12 in,
Max Bending Length: 710 mm / 28 in (±10 mm),
Max Bending Angle: 90° ± 1°,
Max Sheet Rolling Width: 305 mm / 12 in (±3 mm),
Roller Working Length: 305 mm / 12 in (±3 mm),
Sheet Rolling Thickness: 1 mm / 20 GA,
Min Sheet Rolling Diameter: 45 mm / 1.8 in,
Surface Treatment and Color: Painted,
Primary Materials: Q235, 45#, HT200,
Net Weight: 41 kg / 90 lbs,
Product Dimensions: 530 x 375 x 380 mm / 20.9 x 14.8 x 15 in,
Shearing Blade:
Thickness: 10 mm / 0.4 in,
Length: 354 mm / 14 in,
Width: 20 mm / 0.8 in,
Hardness: 52 HRC,
Material: T10,
Upper Bending Tool:
Type: Straight Blade,
Thickness: 5 mm / 0.2 in,
Length: 307 mm / 12 in,
Width: 58 mm / 2.3 in,
Hardness: 21 HRC,
Material: 45#,
Lower Bending Die:
Type: V-shaped Die,
Thickness: 20 mm / 0.8 in,
1 x User Manual,
1 x Sheet Metal Brake.
