Take your welding operations to the next level with SVOPES turning rolls linkage roller, designed for efficiency and precision; Featuring a 600W high-torque motor, this roller ensures smooth rotation with a 2205 lbs (1000 kg) capacity; The 9.84-inch PU roller supports various workpieces, with a range of 25-800mm and 200-1400mm O,D,, allowing you to handle a wide array of materials.

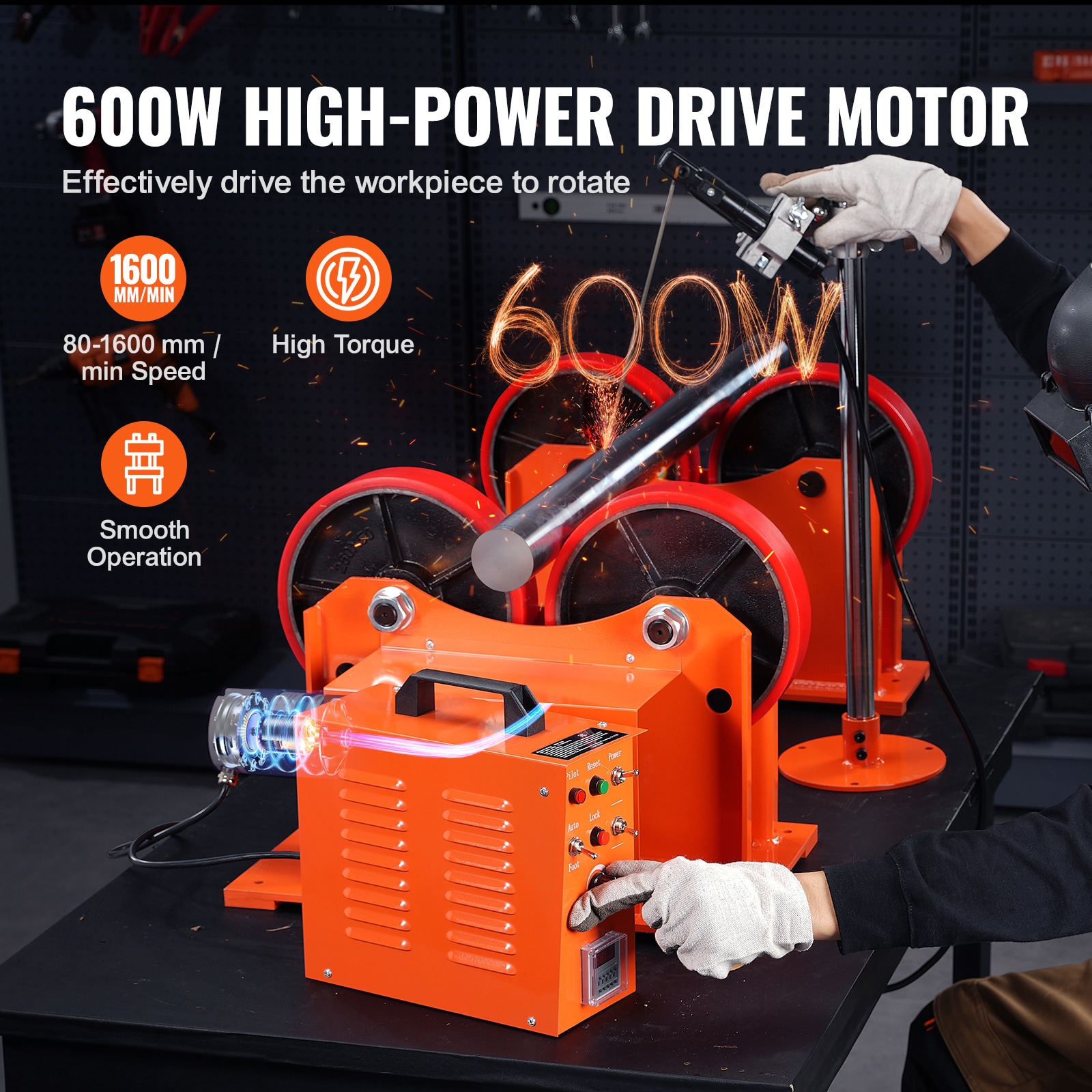

Powered by a high-torque 600W motor, this welding positioner delivers a strong load capacity of 2205 lbs (1000 kg) and adjustable speeds between 80-1600 mm/min; This ensures fast and smooth rotation, enhancing the overall efficiency of your welding projects.
Built with high-strength carbon steel, this welding positioner ensures a robust structure with an impressive 2205 lbs (1000 kg) load capacity; It offers superior durability and resistance to corrosion, ensuring reliable long-term performance for various welding tasks.
The rollers feature both inner and outer holes, making it easy to adjust the gap and accommodate workpieces of varying sizes; The inner holes cater to workpieces with 25-800mm OD; while the outer holes are suitable for larger workpieces ranging from 200-1400mm OD.
This welding positioner excels in handling a wide range of cylindrical workpieces; Ideal for metal welding, large pipe welding, heavy machinery welding, and automated systems, it guarantees efficient performance for diverse welding applications.

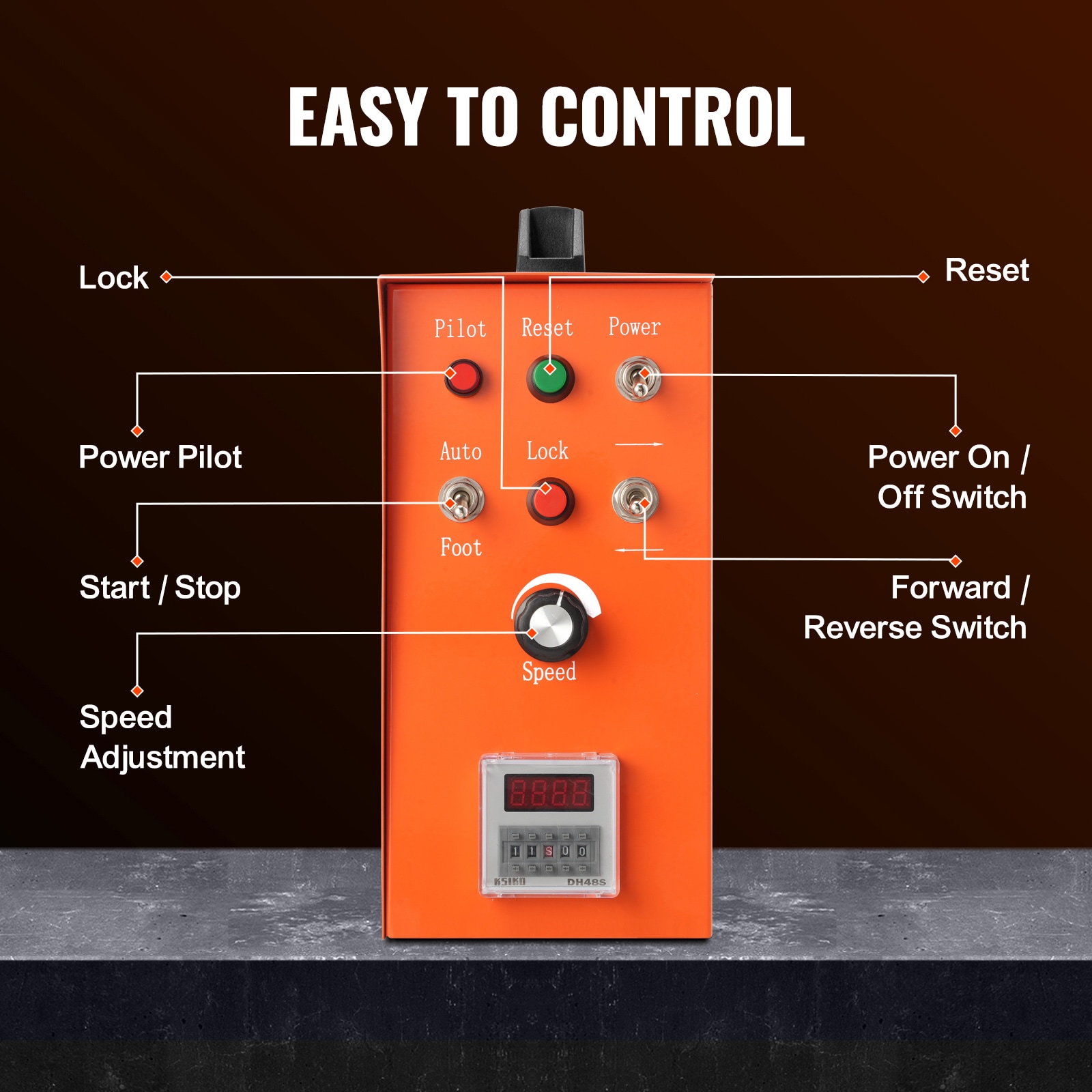

Choose between two control modes for added flexibility; The auto mode ensures continuous rotation at a preset speed, while the foot switch mode allows manual stop/start control and rotation within a small range for precise adjustments during operation.
Equipped with wear-resistant polyurethane rollers, this positioner provides exceptional balance and stability; These durable rollers minimize the risk of damage to workpieces, enhance friction control, and help extend the lifespan of your equipment.
Dual Control Options: This turning roll comes with two convenient control modes: the auto mode; which maintains continuous rotation at a set speed; and the foot switch mode; allowing for fine-tuned manual control; enabling you to rotate the workpiece in small increments for precise adjustments.
Speed Range: 80-1600 mm/min,
Roller Size: 250 mm diameter, 50 mm width,
Horizontal Loading Capacity: 1000 kg / 2205 lbs,
Motor Power: 600W,
Turntable Diameter: 315 mm / 12.4 inches,
Net Weight: 75.6 kg / 166.7 lbs,
Item Model Number: HDTR-1000.

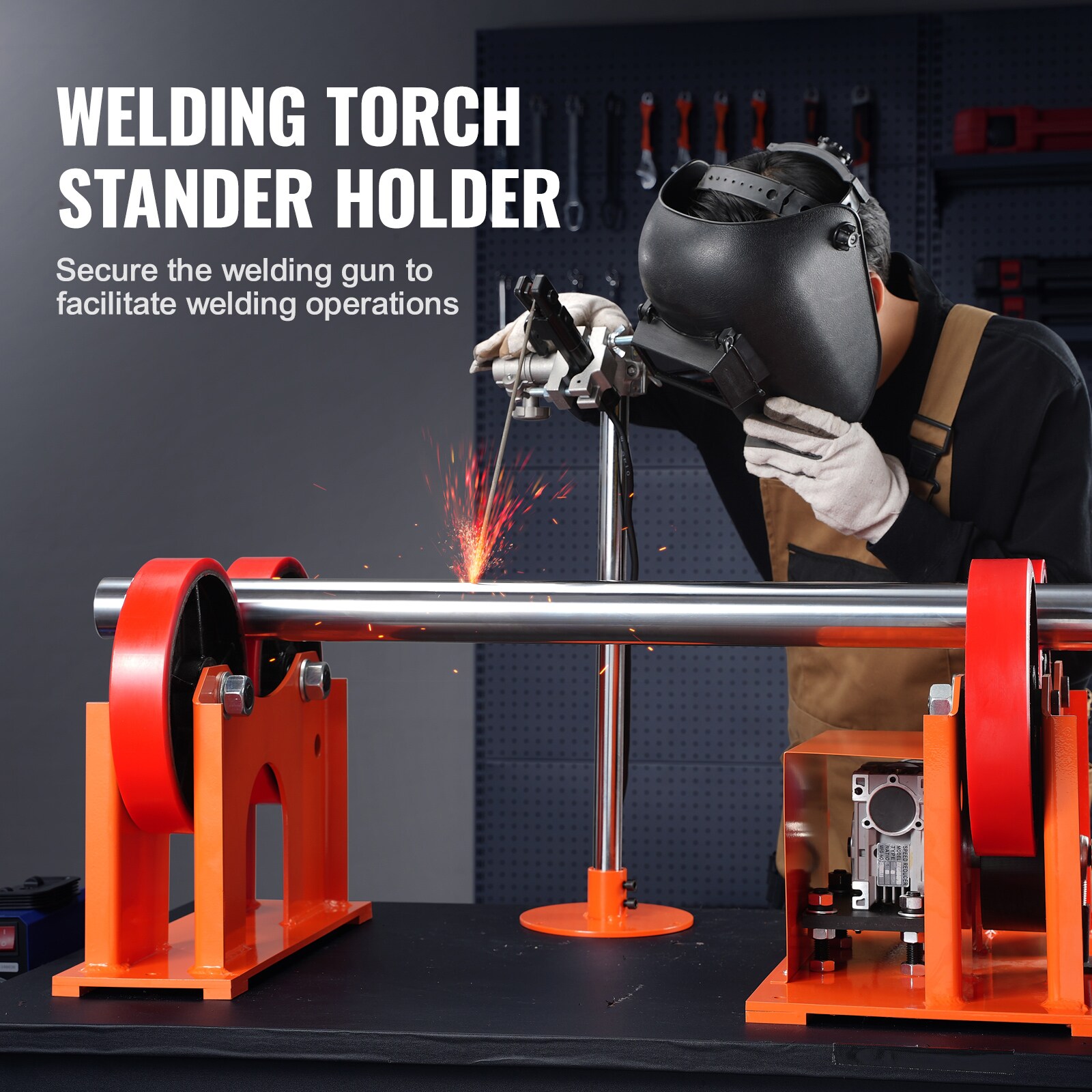

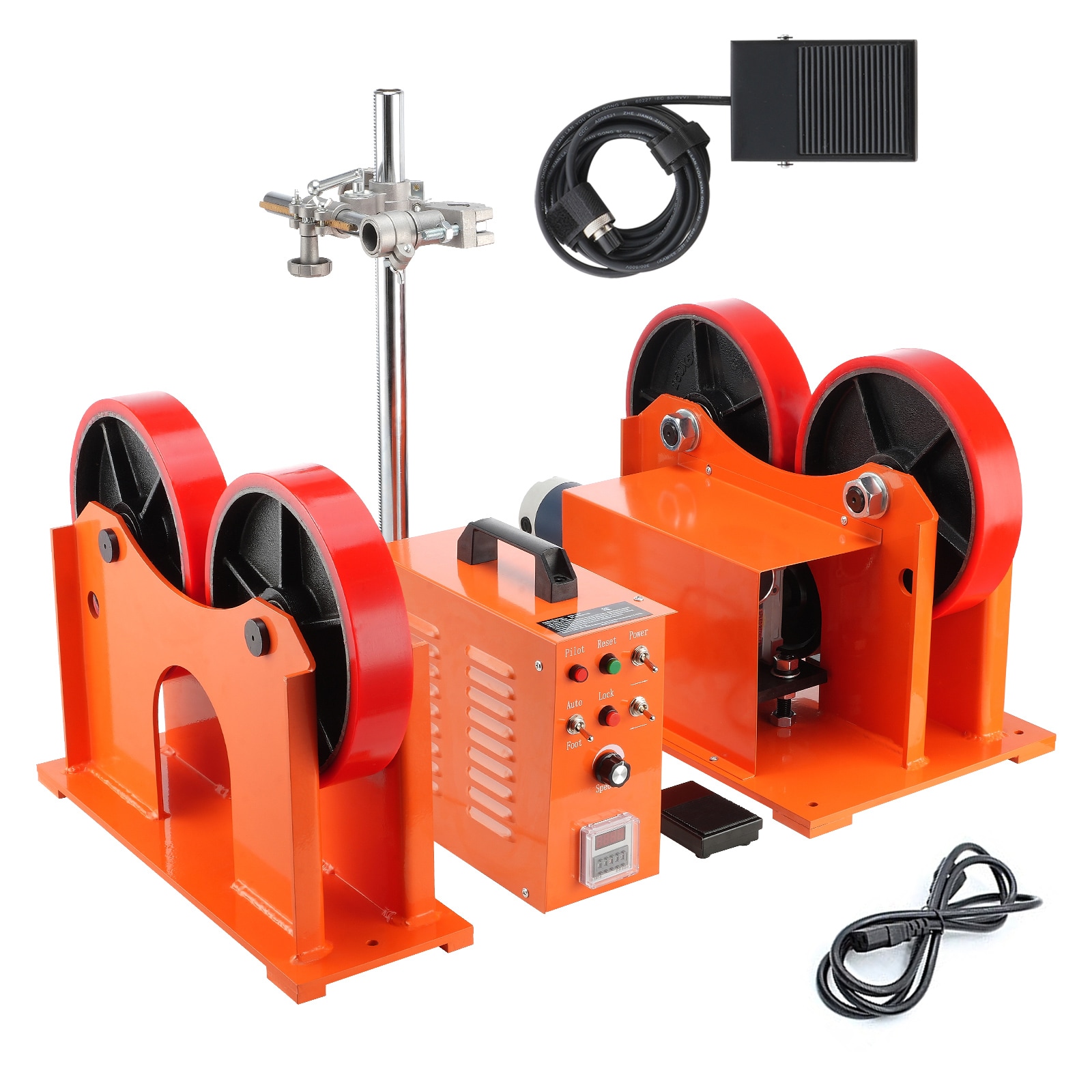

1 x Gun Stand Holder,
1 x Welding Machine Connection Aviation Plug,
1 x Set of Gun Holder,
1 x Power Cord,
1 x Foot Pedal,
1 x Control Box,
1 x User Manual.
